SAXSdb — 4ac0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TETRACYCLINE REPRESSOR PROTEIN CLASS B FROM TRANSPOSON TN1 0

ESCHERICHIA COLI

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–203	Not recorded	MIY (4S,4AS,5AR,12AS)-4,7-BIS(DIMETHYLAMINO)-3,10,12,12A-TETRAHYDROXY-1,11-DIOXO-1,4,4A,5,5A,6,11,12A-OCTAHYDROTETRACENE-2- CARBOXAMIDE × 2 MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.5	Resolution 2.45 Å R-free 0.294

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4AC0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2NS7 How an in vitro selected peptide mimics the antibiotic tetracycline to induce TET repressor Deposited 2006-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–187（187 aa） Chain B 1–187（187 aa）	Mutation：C68S, C88N, C121T, C144S Mutation：C68S, C88N, C121T, C144S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；1.4M ammonium sulfate, 0.1M sodium chloride, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.40 Å R-free 0.277
2NS7 How an in vitro selected peptide mimics the antibiotic tetracycline to induce TET repressor Deposited 2006-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–187（187 aa） Chain D 1–187（187 aa）	Mutation：C68S, C88N, C121T, C144S Mutation：C68S, C88N, C121T, C144S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；1.4M ammonium sulfate, 0.1M sodium chloride, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.40 Å R-free 0.277
2NS8 How an in vitro selected peptide mimics the antibiotic tetracycline to induce TET repressor Deposited 2006-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–187（187 aa） Chain B 1–187（187 aa）	Mutation：C68S, C88N, C121T, C144S Mutation：C68S, C88N, C121T, C144S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；292 K；4M sodium formate, 0.1M Tris-HCl, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.55 Å R-free 0.270
2NS8 How an in vitro selected peptide mimics the antibiotic tetracycline to induce TET repressor Deposited 2006-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–187（187 aa） Chain D 1–187（187 aa）	Mutation：C68S, C88N, C121T, C144S Mutation：C68S, C88N, C121T, C144S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；292 K；4M sodium formate, 0.1M Tris-HCl, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.55 Å R-free 0.270
2NS8 How an in vitro selected peptide mimics the antibiotic tetracycline to induce TET repressor Deposited 2006-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–187（187 aa） Chain B 1–187（187 aa） Chain C 1–187（187 aa） Chain D 1–187（187 aa）	Mutation：C68S, C88N, C121T, C144S Mutation：C68S, C88N, C121T, C144S Mutation：C68S, C88N, C121T, C144S Mutation：C68S, C88N, C121T, C144S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；292 K；4M sodium formate, 0.1M Tris-HCl, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.55 Å R-free 0.270
2VKV TetR (BD) variant L17G with reverse phenotype Deposited 2008-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–50（50 aa） Fragment：RESIDUES 1-50,51-208	Mutation：YES	TDC 5A,6-ANHYDROTETRACYCLINE × 2 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.7；277 K；0.1 M TRIS-HCL (PH 8.7), 0.3 M MGCL2, 20 % PEG 4000, 3 % DIOXANE, AT 277 K	Resolution 1.74 Å R-free 0.225
2XGC Crystal structure of a designed heterodimeric variant T-A(I)B of the tetracycline repressor Deposited 2010-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–50（50 aa） Fragment：RESIDUES 1-50,51-208	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.15 Å R-free 0.271
2XGC Crystal structure of a designed heterodimeric variant T-A(I)B of the tetracycline repressor Deposited 2010-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–50（50 aa） Fragment：RESIDUES 1-50,51-208	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.15 Å R-free 0.271
2XGD Crystal structure of a designed homodimeric variant T-A(L)A(L) of the tetracycline repressor Deposited 2010-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–50（50 aa） Fragment：RESIDUES 1-50,51-208	Mutation：YES	CL CHLORIDE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.25 Å R-free 0.259
2XGE Crystal structure of a designed heterodimeric variant T-A(A)B of the tetracycline repressor Deposited 2010-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–50（50 aa） Fragment：RESIDUES 1-50,51-208	Not recorded	EDO 1,2-ETHANEDIOL × 2 NA SODIUM ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.14 Å R-free 0.260
2XGE Crystal structure of a designed heterodimeric variant T-A(A)B of the tetracycline repressor Deposited 2010-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–50（50 aa） Fragment：RESIDUES 1-50,51-208	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.14 Å R-free 0.260
3FK6 Crystal structure of TetR triple mutant (H64K, S135L, S138I) Deposited 2008-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–50（50 aa） Fragment：DNA-binding domain (residues 1-50) and the effector-binding domain (residues 51-208) Chain B 1–50（50 aa） Fragment：DNA-binding domain (residues 1-50) and the effector-binding domain (residues 51-208)	Mutation：H64K, S135L, S138I Mutation：H64K, S135L, S138I	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；1M dipotassium hydrogen phosphate, 200mM sodium chloride, 50mM Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.10 Å R-free 0.262
3FK7 Crystal structure of TetR triple mutant (H64K, S135L, S138I) in complex with 4-ddma-atc Deposited 2008-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–50（50 aa） Fragment：DNA-binding domain (residues 1-50) and the effector-binding domain (residues 51-208) Chain B 1–50（50 aa） Fragment：DNA-binding domain (residues 1-50) and the effector-binding domain (residues 51-208)	Mutation：H64K, S135L, S138I Mutation：H64K, S135L, S138I	MG MAGNESIUM ION × 2 4DM (4aS,12aS)-3,10,11,12a-tetrahydroxy-6-methyl-1,12-dioxo-1,4,4a,5,12,12a-hexahydrotetracene-2-carboxamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；1M dipotassium hydrogen phosphate, 200mM sodium chloride, 50mM Tris-HCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.06 Å R-free 0.261
3ZQF Structure of Tetracycline repressor in complex with antiinducer peptide-TAP1 Deposited 2011-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–187（187 aa） Fragment：RESIDUES 1-187,188-208	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；RESERVOIR: 3 M NACL, 0.1 M BIS-TRIS, PH 6.	Resolution 2.56 Å R-free 0.247
3ZQG Structure of Tetracycline repressor in complex with antiinducer peptide-TAP2 Deposited 2011-06-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–187（187 aa） Fragment：RESIDUES 1-187,188-208	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；RESERVOIR: 3 M NACL, 0.1 M BIS-TRIS, PH 6.5	Resolution 2.45 Å R-free 0.234
3ZQH Structure of Tetracycline repressor in complex with inducer peptide- TIP3 Deposited 2011-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–187（187 aa） Fragment：RESIDUES 1-187,188-208	Mutation：YES	EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 9；0.2 M NACL, 0.1 M TRIS PH 9.0, 25% PEG 3350.	Resolution 1.60 Å R-free 0.224
3ZQI Structure of Tetracycline repressor in complex with inducer peptide- TIP2 Deposited 2011-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–187（187 aa） Fragment：RESIDUES 1-187,188-208 Chain B 1–187（187 aa） Fragment：RESIDUES 1-187,188-208	Mutation：YES Mutation：YES	EDO 1,2-ETHANEDIOL × 5 MG MAGNESIUM ION × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；0.2 M MAGNESIUM ACETATE, 0.1 M SODIUM CACODYLATE, PH 7.0, 20% PEG 8000.	Resolution 1.50 Å R-free 0.195
6SY4 TetR in complex with the TetR-binding RNA-aptamer K1 Deposited 2019-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: trimeric	Chain A 1–203（203 aa） Chain B 1–203（203 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；4% v/v Tacsimate pH 6.0, 12% w/v PEG 3350	Resolution 2.69 Å R-free 0.246
6SY6 TetR in complex with the TetR-binding RNA-aptamer K2 Deposited 2019-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: trimeric	Chain A 1–203（203 aa） Chain B 1–203（203 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；15 % (v/v) pentaerythritol propoxylate (5/4 PO/OH), 0.2 M NaCl, pH 6.0, 0.1 M MES-NaOH	Resolution 2.90 Å R-free 0.288
9DT3 Crystal structure of the engineered sulfonylurea repressor EsR (L11-C6), bound to ethametsulfuron-methyl Deposited 2024-09-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–207（207 aa） Chain B 1–207（207 aa）	Not recorded	RXF methyl 2-[[4-ethoxy-6-(methylamino)-1,3,5-triazin-2-yl]carbamoylsulfamoyl]benzoate × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.05 M Magnesium chloride 0.1 M HEPES pH 7.5 30% v/v Polyethylene glycol monomethyl ether 550	Resolution 2.80 Å R-free 0.278
9DT3 Crystal structure of the engineered sulfonylurea repressor EsR (L11-C6), bound to ethametsulfuron-methyl Deposited 2024-09-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–207（207 aa） Chain D 1–207（207 aa）	Not recorded	RXF methyl 2-[[4-ethoxy-6-(methylamino)-1,3,5-triazin-2-yl]carbamoylsulfamoyl]benzoate × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.05 M Magnesium chloride 0.1 M HEPES pH 7.5 30% v/v Polyethylene glycol monomethyl ether 550	Resolution 2.80 Å R-free 0.278
9DT4 Crystal structure of the engineered sulfonylurea repressor CsR (L4.2-20), apo form Deposited 2024-09-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–207（207 aa） Chain B 1–207（207 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.2 M Sodium acetate 0.1 M TRIS hydrochloride pH 8.5 30% w/v Polyethylene glycol 4,000	Resolution 2.40 Å R-free 0.241
9DT5 Crystal structure of the engineered sulfonylurea repressor CsR (L4.2-20), bound to chlorsulfuron Deposited 2024-09-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–207（207 aa） Chain B 1–207（207 aa）	Not recorded	1CS 1-(2-CHLOROPHENYLSULFONYL)-3-(4-METHOXY-6-METHYL-L,3,5-TRIAZIN-2-YL)UREA × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.05 M Ammonium sulfate 0.05 M BIS-TRIS pH 6.5 30% w/v Polyethylene glycol 600	Resolution 2.00 Å R-free 0.228
9DT5 Crystal structure of the engineered sulfonylurea repressor CsR (L4.2-20), bound to chlorsulfuron Deposited 2024-09-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–207（207 aa） Chain D 1–207（207 aa）	Not recorded	1CS 1-(2-CHLOROPHENYLSULFONYL)-3-(4-METHOXY-6-METHYL-L,3,5-TRIAZIN-2-YL)UREA × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；0.05 M Ammonium sulfate 0.05 M BIS-TRIS pH 6.5 30% w/v Polyethylene glycol 600	Resolution 2.00 Å R-free 0.228

17 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TETR2_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–202； UniProt 2–203

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ac0
Deposition date deposition_date	2011-12-12
Structure title title	TETR(B) IN COMPLEX WITH MINOCYCLINE AND MAGNESIUM
Keywords keywords	TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.56 Å
Radius of gyration Rg (electron density) rg_electron	19.80 Å
Forward intensity I(0) i0	9790180.00
Molecular weight molecular_weight	22735.0 kDa
Excluded volume excluded_volume	28345 Å³
Envelope volume envelope_volume	35615 Å³
Hydration-shell volume shell_volume	16015 Å³
Envelope diameter envelope_diameter	70.8 Å
Shell Rg shell_rg	25.03 Å
Envelope Rg envelope_rg	20.39 Å
Shape Rg shape_rg	19.77 Å
Total Rg total_rg	20.73 Å
Total atoms total_atoms	1597
Residues n_residues	197
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

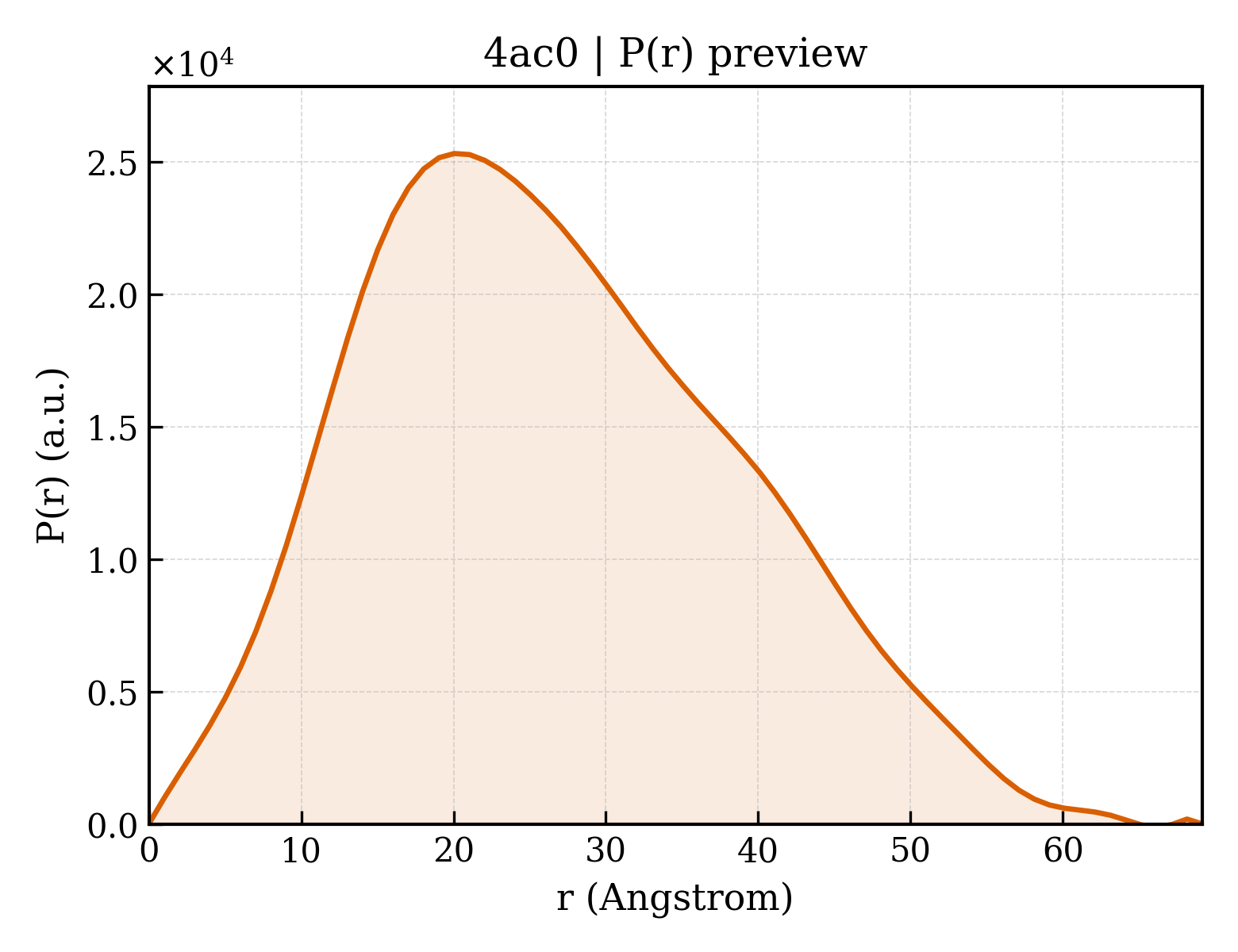

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	69.2 Å
Rg (real space) rg_real	20.60 Å
Rg uncertainty (real space) rg_real_error	0.51 Å
I(0) (real space) i0_real	9.7900e+06
I(0) uncertainty (real space) i0_real_error	1.3350e+05
Rg (reciprocal space) rg_reciprocal	20.59 Å
I(0) (reciprocal space) i0_reciprocal	9790000.0000
Solution quality estimate total_estimate	0.8002
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.0 Å
Skewness Skewness skewness	0.364
Kurtosis Kurtosis kurtosis	-0.447
Angular range angular_range	— – 0.3850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2293000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.823; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.930; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	TETRACYCLINE REPRESSOR PROTEIN CLASS B FROM TRANSPOSON TN1 0
Molecular weight formula_weight	22894.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1623

SRLDKSKVINSALELLNEVGIEGLTTRKLAQKLGVEQPTLYWHVKNKRALLDALAIEMLDRHHTHFCPLEGESWQDFLRNNAKSFRCALLSHRDGAKVHLGTRPTEKQYETLENQLAFLCQQGFSLENALYALSAVGHFTLGCVLEDQEHQVAKEERETPTTDSMPPLLRQAIELFDHQGAEPAFLFGLELIICGLEKQLKC

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	(4S,4AS,5AR,12AS)-4,7-BIS(DIMETHYLAMINO)-3,10,12,12A-TETRAHYDROXY-1,11-DIOXO-1,4,4A,5,5A,6,11,12A-OCTAHYDROTETRACENE-2- CARBOXAMIDE
Molecular weight formula_weight	457.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	24

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4ac0a1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.0 — automated matches

Domain ID domain_id	d4ac0a2
Class class	a — All alpha proteins
Fold Fold fold	a.121 — Tetracyclin repressor-like, C-terminal domain
Superfamily Superfamily superfamily	a.121.1 — Tetracyclin repressor-like, C-terminal domain
Family Family family	a.121.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	4ac0A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

Domain ID domain_id	4ac0A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	357 — Tetracycline Repressor; domain 2
Homologous superfamily homologous superfamily	10 — Tetracycline Repressor, domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	71.880 Å
Unit-cell length b length_b	71.880 Å
Unit-cell length c length_c	93.430 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.450 Å
Low-resolution limit resolution_low	56.970 Å
R factor r_factor	0.2370
R_work r_work	0.2344
R_free r_free	0.2938

fit	/app/data/saxs_computation/ac/4ac0/4ac0.fit
pddf	/app/data/pr_computation/ac/4ac0/4ac0.pr.out
profile	/app/data/saxs_computation/ac/4ac0/4ac0.dat
