SAXSdb — 4b4c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHROMODOMAIN-HELICASE-DNA-BINDING PROTEIN 1

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1119–1327	Fragment：DNA-BINDING DOMAIN, RESIDUES 1119-1327	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 8 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；2M AMMONIUM SULFATE, 0.1M CITRATE PH 3.5	Resolution 1.62 Å R-free 0.226

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4B4C	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2B2T Tandem chromodomains of human CHD1 complexed with Histone H3 Tail containing trimethyllysine 4 and phosphothreonine 3 Deposited 2005-09-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 268–443（176 aa） Fragment：residues 268-443 Chain B 268–443（176 aa） Fragment：residues 268-443 Chain C 268–373（106 aa） Fragment：residues 268-373	Mutation：C436M Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：C436M Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；283 K；4% PEG3350, 0.05M HEPES, pH 8.0, 10mM BTP, 12.5mM NaCl, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00	Resolution 2.45 Å R-free 0.266
2B2U Tandem chromodomains of human CHD1 complexed with Histone H3 Tail containing trimethyllysine 4 and dimethylarginine 2 Deposited 2005-09-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 268–443（176 aa） Fragment：residues 268-443 Chain B 268–443（176 aa） Fragment：residues 268-443 Chain C 268–373（106 aa） Fragment：residues 268-373	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；283 K；4% PEG3350, 0.05M HEPES, pH 8.0, 10mM BTP, 12.5mM NaCl, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00	Resolution 2.95 Å R-free 0.290
2B2V Crystal structure analysis of human CHD1 chromodomains 1 and 2 bound to histone H3 resi 1-15 MeK4 Deposited 2005-09-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 268–443（176 aa） Fragment：residues 268-443 Chain B 268–443（176 aa） Fragment：residues 268-443 Chain C 268–373（106 aa） Fragment：residues 268-373	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；283 K；4% PEG3350, 0.05M HEPES, pH 8.0, 10mM BTP, 12.5mM NaCl, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00	Resolution 2.65 Å R-free 0.266
2B2W Tandem chromodomains of human CHD1 complexed with Histone H3 Tail containing trimethyllysine 4 Deposited 2005-09-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 268–443（176 aa） Fragment：residues 268-443 Chain B 268–443（176 aa） Fragment：residues 268-443 Chain C 268–373（106 aa） Fragment：residues 268-373	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；283 K；4% PEG3350, 0.05M HEPES pH 8.0, 10mM BTP, 12.5mM NaCl, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00	Resolution 2.40 Å R-free 0.273
2B2Y Tandem chromodomains of human CHD1 Deposited 2005-09-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 268–443（176 aa） Fragment：residues 268-443 Chain B 268–443（176 aa） Fragment：residues 268-443 Chain C 268–373（106 aa） Fragment：residues 268-373	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；283 K；4% PEG3350, 0.05M HEPES, 10mM BTP, pH 8.0, 12.5mM NaCl, 5mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 283K, pH 8.00	Resolution 2.35 Å R-free 0.264
2N39 NMR solution structure of a C-terminal domain of the chromodomain helicase DNA-binding protein 1 Deposited 2015-05-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1409–1511（103 aa） Fragment：C-terminal domain (UNP residues 1409-1511)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 10；Pressure ambient NMR sample composition 440 uM [U-98% 13C; U-98% 15N] CHD1-C, 20 mM sodium phosphate, 10 mM NaCl, 1 mM DTT, 0.003 w/v sodium azide, 0.2 mM 2,2-dimethyl-2-silapentane-5-sulfonate (DSS), 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
4NW2 Tandem chromodomains of human CHD1 in complex with Influenza virus NS1 C-terminal tail trimethylated at K229 Deposited 2013-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 268–443（176 aa） Fragment：UNP residues 268-443	Not recorded	UNX UNKNOWN LIGAND × 18 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；10% PEG8000, 0.2M magnesium chloride, 0.1M Tris, pH 8.5, vapor diffusion, sitting drop, temperature 291K	Resolution 1.90 Å R-free 0.242
4NW2 Tandem chromodomains of human CHD1 in complex with Influenza virus NS1 C-terminal tail trimethylated at K229 Deposited 2013-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 268–443（176 aa） Fragment：UNP residues 268-443	Not recorded	UNX UNKNOWN LIGAND × 13 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；10% PEG8000, 0.2M magnesium chloride, 0.1M Tris, pH 8.5, vapor diffusion, sitting drop, temperature 291K	Resolution 1.90 Å R-free 0.242
4O42 Tandem chromodomains of human CHD1 in complex with influenza NS1 C-terminal tail dimethylated at K229 Deposited 2013-12-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 268–443（176 aa） Fragment：UNP residues 268-443	Not recorded	UNX UNKNOWN LIGAND × 11 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；291 K；15% PEG3350, 0.1 succinic acid, pH 7, temperature 291K	Resolution 1.87 Å R-free 0.221
5AFW Assembly of methylated LSD1 and CHD1 drives AR-dependent transcription and translocation Deposited 2015-01-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 270–443（174 aa） Fragment：RESIDUES 270-443	Not recorded	EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M HEPES PH 7.5, 0.2 M L-PROLINE, 10% (W/V) PEG3350	Resolution 1.60 Å R-free 0.227
8UMG Chromodomains of human CHD1 complexed with UNC10142 Deposited 2023-10-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 268–445（178 aa） Chain B 268–445（178 aa） Chain C 268–445（178 aa）	Mutation：+KK Mutation：+KK Mutation：+KK	X31 1-{4-[{2-(azonan-1-yl)-6-methoxy-7-[3-(piperidin-1-yl)propoxy]quinazolin-4-yl}(methyl)amino]piperidin-1-yl}ethan-1-one × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；PEG3350, sodium chloride, HEPES	Resolution 3.10 Å R-free 0.320
9EAR CHD1-nucleosome complex (closed state) Deposited 2024-11-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric	Chain W 2–1327（1326 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9NH8 CHD1-nucleosome complex (anchored state) Deposited 2025-02-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain W 2–1327（1326 aa）	Not recorded	ARG ARGININE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9T9E Crystal structure of human CHD1 tandem chromodomain in complex with the ethoxyquinoline-based inhibitor 2b Deposited 2025-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 270–443（174 aa）	Not recorded	A1JUQ ~{N}2-[3-(dimethylamino)propyl]-7-ethoxy-~{N}4-[1-(phenylmethyl)piperidin-4-yl]quinoline-2,4-diamine × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；12 % (w/v) PEG 3350, 0.2 M L-Proline, 0.1 M HEPES, pH 7.5. The ligand (final conc. of 20 mM, 10% (v/v) DMSO) has been soaked in this condition for 24 h.	Resolution 1.70 Å R-free 0.221
9T9F Crystal structure of human CHD1 tandem chromodomain in complex with the ethoxyquinoline-based inhibitor 2l Deposited 2025-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 270–443（174 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 3 A1JUR 2-[4-(dimethylamino)piperidin-1-yl]-7-ethoxy-~{N}-[1-(phenylmethyl)piperidin-4-yl]quinolin-4-amine × 1 DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；12 % (w/v) PEG 3350, 0.2 M L-Proline, 0.1 M HEPES, pH 7.5. The ligand (final conc. of 10 mM, 10% (v/v) DMSO) has been soaked in this condition for 24 h.	Resolution 1.35 Å R-free 0.208
9T9G Crystal structure of human CHD1 tandem chromodomain in complex with the ethoxyquinazoline-based inhibitor 1q Deposited 2025-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 270–443（174 aa）	Not recorded	A1JUO 2-[4-(dimethylamino)piperidin-1-yl]-7-ethoxy-~{N}-[1-(phenylmethyl)piperidin-4-yl]quinazolin-4-amine × 1 DMS DIMETHYL SULFOXIDE × 1 EDO 1,2-ETHANEDIOL × 1 BU3 (R,R)-2,3-BUTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；12 % (w/v) PEG 3350, 0.2 M L-Proline, 0.1 M HEPES, pH 7.5. The ligand (final conc. of 20 mM, 10 % (v/v) DMSO) has been soaked in this condition for 24 h.	Resolution 1.70 Å R-free 0.212
9T9H Crystal structure of human CHD1 tandem chromodomain in complex with the ethoxyquinoline-based inhibitor 2n Deposited 2025-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 270–443（174 aa）	Not recorded	A1JUP 7-ethoxy-2-[4-[(4-methoxyphenyl)methylamino]piperidin-1-yl]-~{N}-[1-(phenylmethyl)piperidin-4-yl]quinolin-4-amine × 1 EDO 1,2-ETHANEDIOL × 1 DMS DIMETHYL SULFOXIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；12 % (w/v) PEG 3350, 0.2 M L-Proline, 0.1 M HEPES, pH 7.5. The ligand (final conc. of 10 mM, 10% (v/v) DMSO) has been soaked in this condition for 24 h.	Resolution 1.45 Å R-free 0.208
9T9I Crystal structure of human CHD1 tandem chromodomain in complex with the ethoxyquinoline-based inhibitor 2s Deposited 2025-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 270–443（174 aa）	Not recorded	A1JUS 7-ethoxy-2-[4-[[4-[[1-(2-methoxyethyl)-1,2,3-triazol-4-yl]methoxy]phenyl]methylamino]piperidin-1-yl]-~{N}-[1-(phenylmethyl)piperidin-4-yl]quinolin-4-amine × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；12 % (w/v) PEG 3350, 0.2 M L-Proline, 0.1 M HEPES, pH 7.5. The ligand (final conc. of 10 mM, 10% (v/v) DMSO) has been soaked in this condition for 24 h.	Resolution 1.55 Å R-free 0.217

17 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CHD1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–211； UniProt 1119–1327

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4b4c
Deposition date deposition_date	2012-07-30
Structure title title	Crystal structure of the DNA-binding domain of human CHD1.
Keywords keywords	CHROMODOMAIN, CHROMATIN-REMODELING, HISTONE ACETYLATION COMPLEX, CHROMATIN REGULATION, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.65 Å
Radius of gyration Rg (electron density) rg_electron	17.51 Å
Forward intensity I(0) i0	8209630.00
Molecular weight molecular_weight	21226.0 kDa
Excluded volume excluded_volume	26688 Å³
Envelope volume envelope_volume	31766 Å³
Hydration-shell volume shell_volume	15580 Å³
Envelope diameter envelope_diameter	58.0 Å
Shell Rg shell_rg	22.99 Å
Envelope Rg envelope_rg	17.80 Å
Shape Rg shape_rg	17.49 Å
Total Rg total_rg	18.49 Å
Total atoms total_atoms	1493
Residues n_residues	187
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

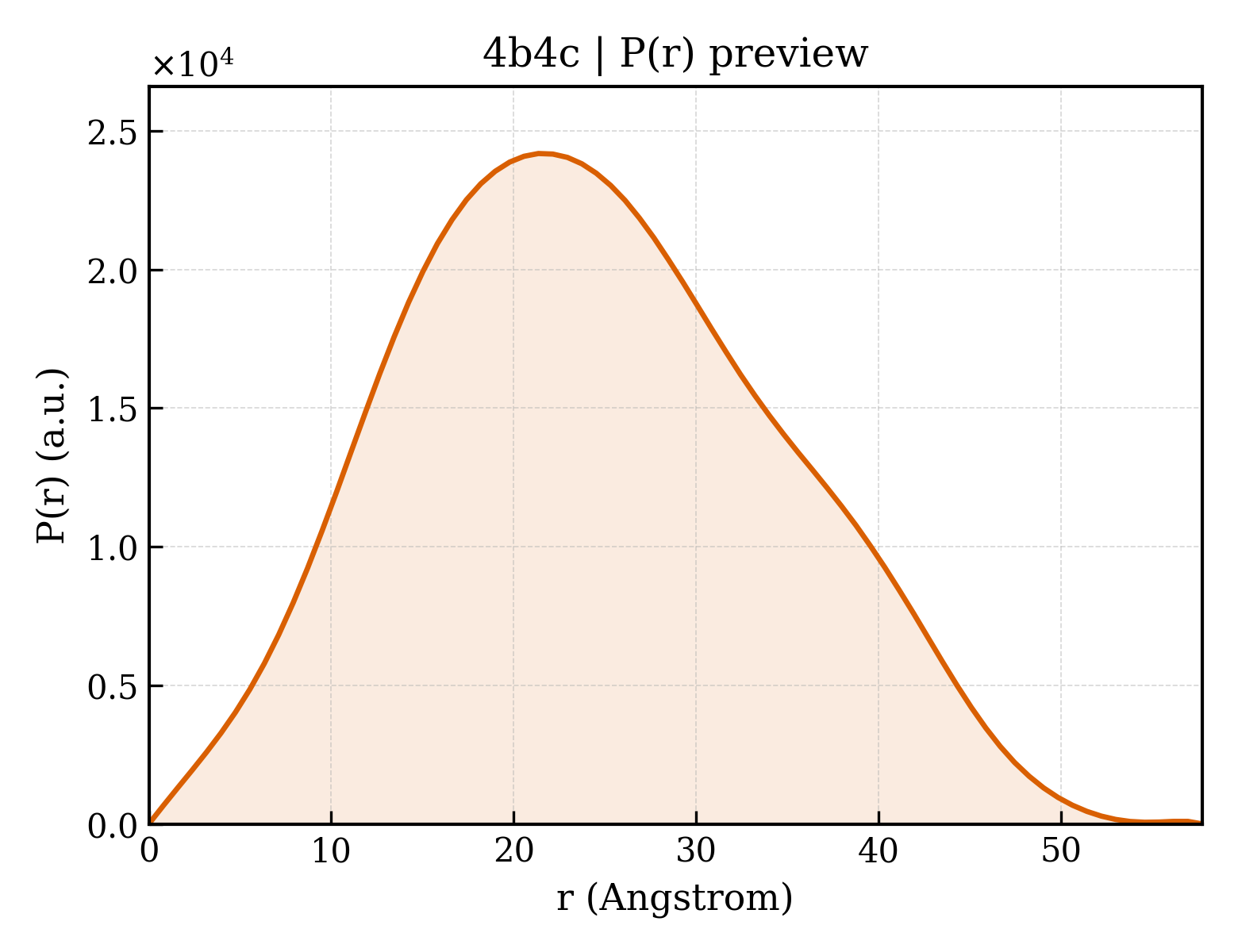

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	57.8 Å
Rg (real space) rg_real	18.58 Å
Rg uncertainty (real space) rg_real_error	0.33 Å
I(0) (real space) i0_real	8.2100e+06
I(0) uncertainty (real space) i0_real_error	1.0640e+05
Rg (reciprocal space) rg_reciprocal	18.59 Å
I(0) (reciprocal space) i0_reciprocal	8210000.0000
Solution quality estimate total_estimate	0.9089
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.4 Å
Skewness Skewness skewness	0.206
Kurtosis Kurtosis kurtosis	-0.533
Angular range angular_range	— – 0.4250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1549000.0000
Real-space data points n_real_points	74
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.938; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CHROMODOMAIN-HELICASE-DNA-BINDING PROTEIN 1
Molecular weight formula_weight	23713.1 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1726

SMPRENIKGFSDAEIRRFIKSYKKFGGPLERLDAIARDAELVDKSETDLRRLGELVHNGCIKALKDSSSGTERTGGRLGKVKGPTFRISGVQVNAKLVISHEEELIPLHKSIPSDPEERKQYTIPCHTKAAHFDIDWGKEDDSNLLIGIYEYGYGSWEMIKMDPDLSLTHKILPDDPDKKPQAKQLQTRADYLIKLLSRDLAKKEALSGAG

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	187

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4b4cA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.464 Å
Unit-cell length b length_b	62.464 Å
Unit-cell length c length_c	128.085 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.620 Å
Low-resolution limit resolution_low	29.340 Å
R factor r_factor	0.1936
R_work r_work	0.1920
R_free r_free	0.2257

fit	/app/data/saxs_computation/b4/4b4c/4b4c.fit
pddf	/app/data/pr_computation/b4/4b4c/4b4c.pr.out
profile	/app/data/saxs_computation/b4/4b4c/4b4c.dat
