SAXSdb — 4bsk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

VASCULAR ENDOTHELIAL GROWTH FACTOR RECEPTOR 3

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 4 其他Polymer 2 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 23–229	Fragment：LIGAND-BINDING DOMAINS D1-2, RESIDUES 23-229	VASCULAR ENDOTHELIAL GROWTH FACTOR C × 2 （P49767） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9；SITTING DROPS AT ROOM TEMPERATURE OVER A RESERVOIR SOLUTION OF 0.1 M BIS-TRIS BUFFER AT PH 8.5-9.5 AND 1.0-1.5 M AMMONIUM SULPHATE.	Resolution 4.20 Å R-free 0.372

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4BSK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4BSJ Crystal structure of VEGFR-3 extracellular domains D4-5 Deposited 2013-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 330–553（224 aa） Fragment：EXTRACELLULAR DOMAINS 4 AND 5 (D4-5), RESIDUES 330-553	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；VAPOUR DIFFUSION, SITTING DROP, TEMPERATURE 298 K, PHOSPHATE BUFFER 0.1 M, PH 7.5 - 8.5, PEG 400 25%.	Resolution 2.50 Å R-free 0.253
4BSJ Crystal structure of VEGFR-3 extracellular domains D4-5 Deposited 2013-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 330–553（224 aa） Fragment：EXTRACELLULAR DOMAINS 4 AND 5 (D4-5), RESIDUES 330-553	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；VAPOUR DIFFUSION, SITTING DROP, TEMPERATURE 298 K, PHOSPHATE BUFFER 0.1 M, PH 7.5 - 8.5, PEG 400 25%.	Resolution 2.50 Å R-free 0.253

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VGFR3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–207； UniProt 23–229

VASCULAR ENDOTHELIAL GROWTH FACTOR C

HOMO SAPIENS

UniProt P49767

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 4 其他Polymer 2 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 103–215	Fragment：VEGF HOMOLOGY DOMAIN, RESIDUES 103-215 Mutation：YES	VASCULAR ENDOTHELIAL GROWTH FACTOR RECEPTOR 3 × 2 （P35916） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9；SITTING DROPS AT ROOM TEMPERATURE OVER A RESERVOIR SOLUTION OF 0.1 M BIS-TRIS BUFFER AT PH 8.5-9.5 AND 1.0-1.5 M AMMONIUM SULPHATE.	Resolution 4.20 Å R-free 0.372

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4BSK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2X1W Crystal Structure of VEGF-C in Complex with Domains 2 and 3 of VEGFR2 Deposited 2010-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 112–215（104 aa） Fragment：VEGF HOMOLOGY DOMAIN, RESIDUES 112-215 Chain B 112–215（104 aa） Fragment：VEGF HOMOLOGY DOMAIN, RESIDUES 112-215	Mutation：YES Mutation：YES	CS CESIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.2；100 MM MES BUFFER, PH 5.0-5.6, 50 MM CSCL AND 28-32 % (W/V) JEFFAMINE 600.	Resolution 2.70 Å R-free 0.280
2X1W Crystal Structure of VEGF-C in Complex with Domains 2 and 3 of VEGFR2 Deposited 2010-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 112–215（104 aa） Fragment：VEGF HOMOLOGY DOMAIN, RESIDUES 112-215 Chain D 112–215（104 aa） Fragment：VEGF HOMOLOGY DOMAIN, RESIDUES 112-215	Mutation：YES Mutation：YES	CS CESIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.2；100 MM MES BUFFER, PH 5.0-5.6, 50 MM CSCL AND 28-32 % (W/V) JEFFAMINE 600.	Resolution 2.70 Å R-free 0.280
2X1X CRYSTAL STRUCTURE OF VEGF-C IN COMPLEX WITH DOMAINS 2 AND 3 OF VEGFR2 IN A TETRAGONAL CRYSTAL FORM Deposited 2010-01-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 112–215（104 aa） Fragment：VEGF HOMOLOGY DOMAIN, RESIDUES 112-215	Mutation：YES	HG MERCURY (II) ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；100 MM NA-ACETATE BUFFER, PH 4.4-4.8, 50 MM CSCL, 28-32 % (W/V) JEFFAMINE 600	Resolution 3.10 Å R-free 0.334

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VEGFC_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 3–115； UniProt 103–215

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4bsk
Deposition date deposition_date	2013-06-10
Structure title title	Crystal structure of VEGF-C in complex with VEGFR-3 domains D1-2
Keywords keywords	;TRANSFERASE-HORMONE COMPLEX, TRANSFERASE, LYMPHANGIOGENESIS, ANGIOGENESIS, IG DOMAIN, GLYCOPROTEIN, RECEPTOR TYROSINE KINASE, DIMERIZATION ;; TRANSFERASE/HORMONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.98 Å
Radius of gyration Rg (electron density) rg_electron	31.15 Å
Forward intensity I(0) i0	13901300.00
Molecular weight molecular_weight	26685.0 kDa
Excluded volume excluded_volume	32622 Å³
Envelope volume envelope_volume	49601 Å³
Hydration-shell volume shell_volume	17076 Å³
Envelope diameter envelope_diameter	119.4 Å
Shell Rg shell_rg	30.05 Å
Envelope Rg envelope_rg	31.15 Å
Shape Rg shape_rg	31.20 Å
Total Rg total_rg	30.88 Å
Total atoms total_atoms	1876
Residues n_residues	270
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

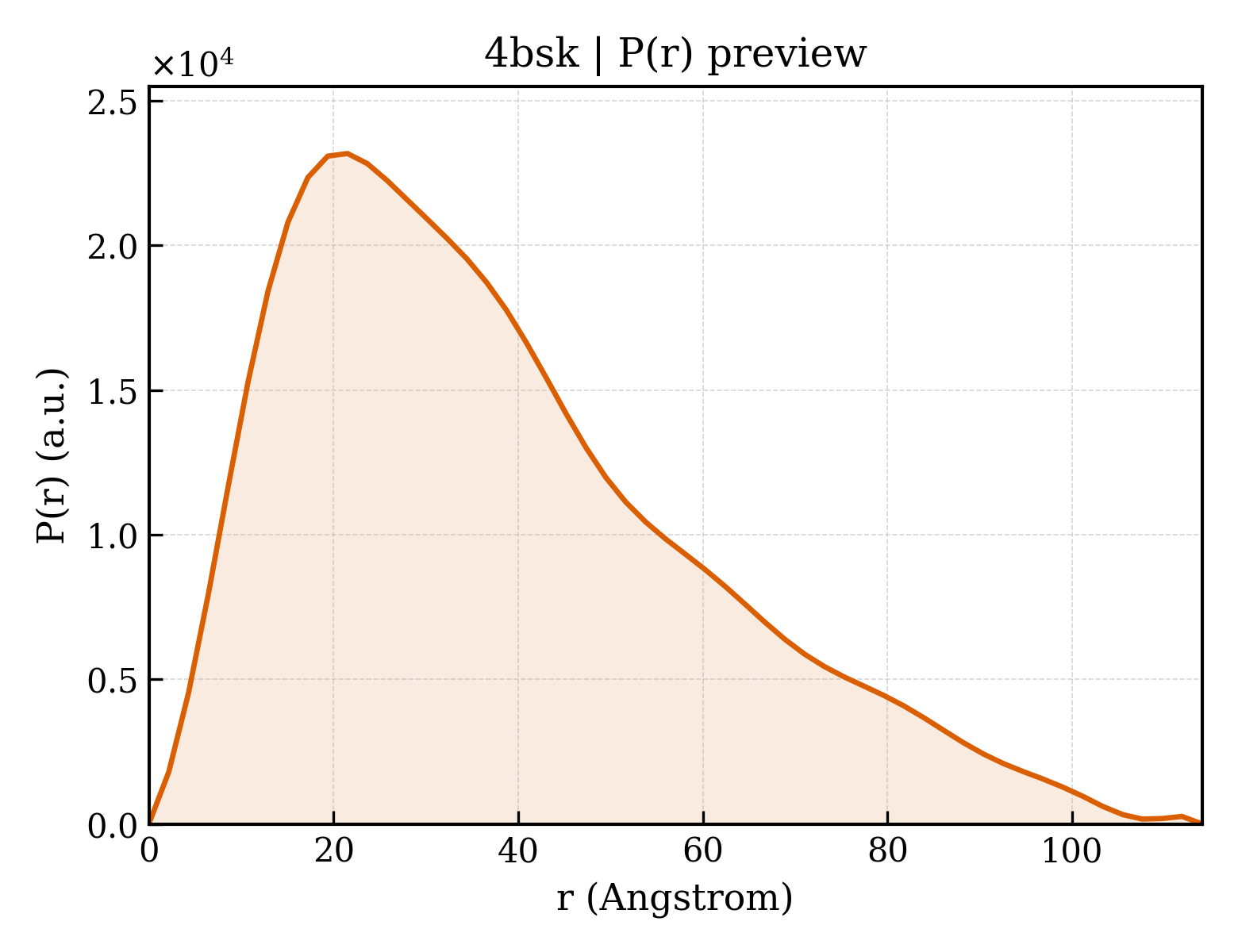

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	114.1 Å
Rg (real space) rg_real	30.74 Å
Rg uncertainty (real space) rg_real_error	1.65 Å
I(0) (real space) i0_real	1.3900e+07
I(0) uncertainty (real space) i0_real_error	2.4960e+05
Rg (reciprocal space) rg_reciprocal	30.41 Å
I(0) (reciprocal space) i0_reciprocal	13900000.0000
Solution quality estimate total_estimate	0.6950
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.5 Å
Skewness Skewness skewness	0.770
Kurtosis Kurtosis kurtosis	-0.004
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1095000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.345; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.092; Smooth: 0.904

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	VASCULAR ENDOTHELIAL GROWTH FACTOR RECEPTOR 3
Molecular weight formula_weight	23856.6 kDa
EC 编号 ec_number	2.7.10.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1876

SGYSMTPPTLNITEESHVIDTGDSLSISCRGQHPLEWAWPGAQEAPATGDKDSEDTGVVRDCEGTDARPYCKVLLLHEVHANDTGSYVCYYKYIKARIEGTTAASSYVFVRDFEQPFINKPDTLLVNRKDAMWVPCLVSIPGLNVTLRSQSSVLWPDGQEVVWDDRRGMLVSTPLLHDALYLQCETTWGDQDFLSNPFLVHITGNELADPIEGR

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 2 Entity 2 polymer

Description description	VASCULAR ENDOTHELIAL GROWTH FACTOR C
Molecular weight formula_weight	13594.5 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

DPTEETIKFAAAHYNTEILKSIDNEWRKTQCMPREVAIDVGKEFGVATNTFFKPPCVSVYRCGGCCNSEGLQCMNTSTSYLSKTLFEITVPLSQGPKPVTISFANHTSCRCMSKLHHHHHH

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

▶

8. Citations (1)

▶

Unit-cell length a length_a	166.660 Å
Unit-cell length b length_b	166.660 Å
Unit-cell length c length_c	166.660 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 2 3
Space-group number int_tables_number	197
Crystal system crystal_system	—

Resolution resolution	4.201 Å
Low-resolution limit resolution_low	19.920 Å
R factor r_factor	0.3380
R_work r_work	0.3341
R_free r_free	0.3718

fit	/app/data/saxs_computation/bs/4bsk/4bsk.fit
pddf	/app/data/pr_computation/bs/4bsk/4bsk.pr.out
profile	/app/data/saxs_computation/bs/4bsk/4bsk.dat
