SAXSdb — 4bzj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein transport protein SEC31

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Protein transport protein SEC13 × 1 （Q04491） Protein transport protein SEC13 × 1 （Q04491） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SEC31_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1273； UniProt 1–1273 Author chain C； PDBConstruct 1–1273； UniProt 1–1273

Protein transport protein SEC13

Saccharomyces cerevisiae

UniProt Q04491

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Protein transport protein SEC31 × 2 （P38968） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SEC13_YEAST
Isoform	—
PDB entities	2, 3
Chains and sequence ranges	Author chain B； PDBConstruct 1–291； UniProt 2–292 Author chain F； PDBConstruct 1–291； UniProt 2–292

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4bzj
Deposition date deposition_date	2013-07-26
Structure title title	The structure of the COPII coat assembled on membranes
Keywords keywords	PROTEIN TRANSPORT, SECRETION, TRAFFICKING; PROTEIN TRANSPORT
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4bzj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4bzj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

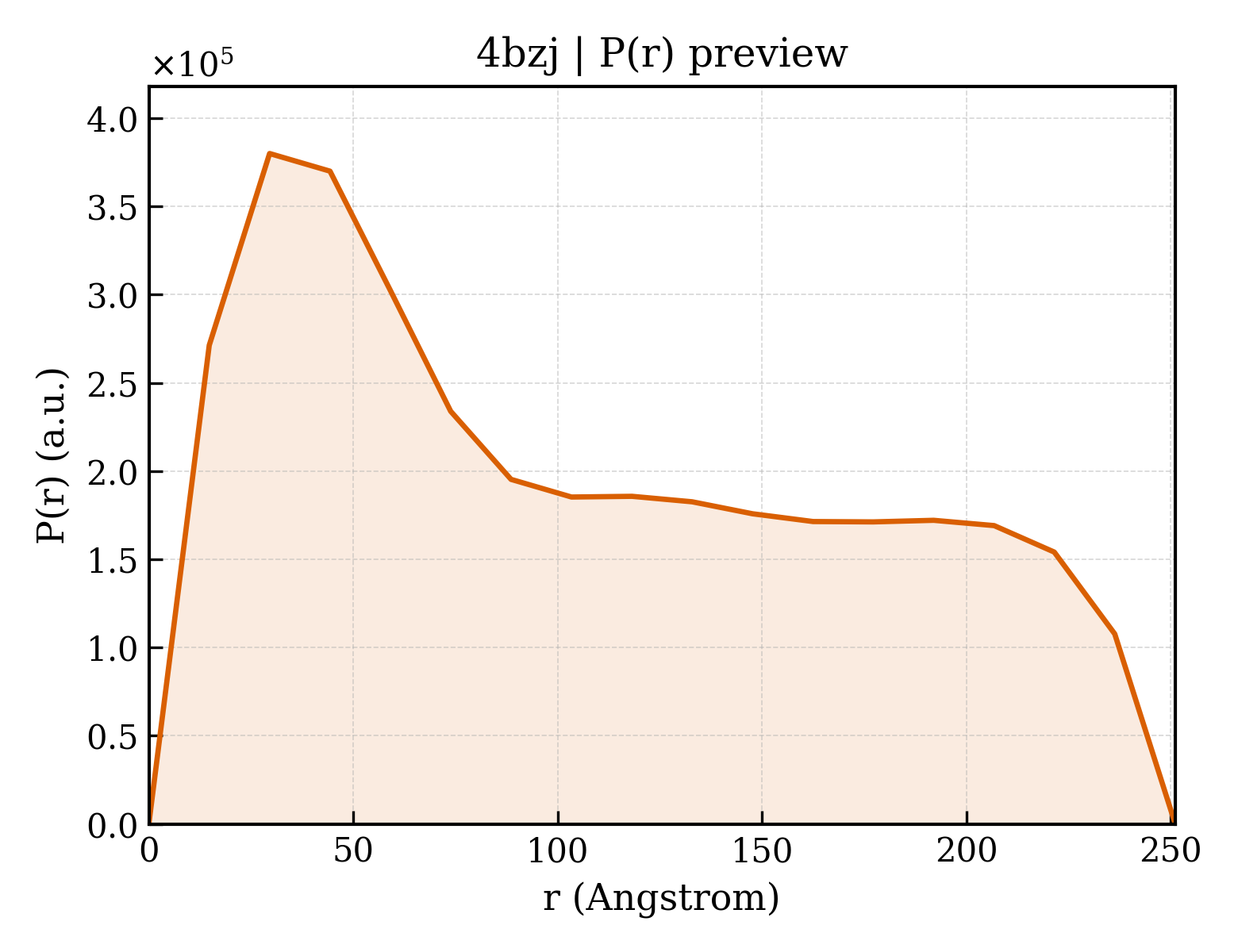

4bzj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	93.74 Å
Rg (electron density)	96.32 Å
Total Rg	95.47 Å
Atom count	15238
Residues	1943
Excluded volume	269530 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4bzj__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Protein transport protein SEC31
Molecular weight formula_weight	138833.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	15423

MVKLAEFSRTATFAWSHDKIPLLVSGTVSGTVDANFSTDSSLELWSLLAADSEKPIASLQVDSKFNDLDWSHNNKIIAGALDNGSLELYSTNEANNAINSMARFSNHSSSVKTVKFNAKQDNVLASGGNNGEIFIWDMNKCTESPSNYTPLTPGQSMSSVDEVISLAWNQSLAHVFASAGSSNFASIWDLKAKKEVIHLSYTSPNSGIKQQLSVVEWHPKNSTRVATATGSDNDPSILIWDLRNANTPLQTLNQGHQKGILSLDWCHQDEHLLLSSGRDNTVLLWNPESAEQLSQFPARGNWCFKTKFAPEAPDLFACASFDNKIEVQTLQNLTNTLDEQETETKQQESETDFWNNVSREESKEKPSVFHLQAPTWYGEPSPAAHWAFGGKLVQITPDGKGVSITNPKISGLESNTTLSEALKTKDFKPLINQRLVKVIDDVNEEDWNLLEKLSMDGTEEFLKEALAFDNDESDAQDDANNEKEDDGEEFFQQIETNFQPEGDFSLSGNIEQTISKNLVSGNIKSAVKNSLENDLLMEAMVIALDSNNERLKESVKNAYFAKYGSKSSLSRILYSISKREVDDLVENLDVSQWKFISKAIQNLYPNDIAQRNEMLIKLGDRLKENGHRQDSLTLYLAAGSLDKVASIWLSEFPDLEDKLKKDNKTIYEAHSECLTEFIERFTVFSNFINGSSTINNEQLIAKFLEFINLTTSTGNFELATEFLNSLPSDNEEVKTEKARVLIASGKSLPAQNPATATTSKAKYTNAKTNKNVPVLPTPGMPSTTSIPSMQAPFYGMTPGASANALPPKPYVPATTTSAPVHTEGKYAPPSQPSMASPFVNKTNSSTRLNSFAPPPNPYATATVPATNVSTTSIPQNTFAPIQPGMPIMGDYNAQSSSIPSQPPINAVSGQTPHLNRKANDGWNDLPLKVKEKPSRAKAVSVAPPNILSTPTPLNGIPANAASTMPPPPLSRAPSSVSMVSPPPLHKNSRVPSLVATSESPRASISNPYAPPQSSQQFPIGTISTANQTSNTAQVASSNPYAPPPQQRVATPLSGGVPPAPLPKASNPYAPTATTQPNGSSYPPTGPYTNNHTMTSPPPVFNKPPTGPPPISMKKRSNKLASIEQNPSQGATYPPTLSSSASPLQPSQPPTLASQVNTSAENVSHEIPADQQPIVDFLKEELARVTPLTPKEYSKQLKDCDKRLKILFYHLEKQDLLTQPTIDCLHDLVALMKEKKYKEAMVIHANIATNHAQEGGNWLTGVKRLIGIAEATLN

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 2 Entity 2 polymer

Description description	Protein transport protein SEC13
Molecular weight formula_weight	32400.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

VVIANAHNELIHDAVLDYYGKRLATCSSDKTIKIFEVEGETHKLIDTLTGHEGPVWRVDWAHPKFGTILASCSYDGKVLIWKEENGRWSQIAVHAVHSASVNSVQWAPHEYGPLLLVASSDGKVSVVEFKENGTTSPIIIDAHAIGVNSASWAPATIEEDGEHNGTKESRKFVTGGADNLVKIWKYNSDAQTYVLESTLEGHSDWVRDVAWSPTVLLRSYLASVSQDRTCIIWTQDNEQGPWKKTLLKEEKFPDVLWRASWSLSGNVLALSGGDNKVTLWKENLEGKWEPA

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 3 Entity 3 polymer

Description description	Protein transport protein SEC13
Molecular weight formula_weight	32508.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

VVIANAHNEMIHDAVMDYYGKRMATCSSDKTIKIFEVEGETHKLIDTLTGHEGPVWRVDWAHPKFGTILASCSYDGKVMIWKEENGRWSQIAVHAVHSASVNSVQWAPHEYGPMLLVASSDGKVSVVEFKENGTTSPIIIDAHAIGVNSASWAPATIEEDGEHNGTKESRKFVTGGADNLVKIWKYNSDAQTYVLESTLEGHSDWVRDVAWSPTVLLRSYMASVSQDRTCIIWTQDNEQGPWKKTLLKEEKFPDVLWRASWSLSGNVLALSGGDNKVTLWKENLEGKWEPA

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	SACCHAROMYCES CEREVISIAE

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	185

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	40.000 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	40.00 Å
Resolution测定Method resolution_method	SUBTOMOGRAM ALIGNMENT AND AVERAGING
颗粒数 num_particles	182
