SAXSdb — 4ckv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

VASCULAR ENDOTHELIAL GROWTH FACTOR RECEPTOR 1

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain X； UniProt 132–225	Fragment：DOMAIN-2, RESIDUES 132-225	ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 7.5；291 K；VAPOR DIFFUSION METHOD, MOTHER LIQUOR:1MM VEGFR-1-D2,0.1%(W/V) DDM,4MM LAXAPHYCINE-A,5MM HEPES/NAOH PH 7.5. RESERVOIR:18% (W/V) PEG8000,100MM HEPES/NAOH PH 7.5, 18C	Resolution 2.06 Å R-free 0.205

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4CKV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FLT VEGF IN COMPLEX WITH DOMAIN 2 OF THE FLT-1 RECEPTOR Deposited 1997-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain X 132–226（95 aa） Fragment：SECOND EXTRACELLULAR IGG LIKE DOMAIN, RESIDUES 129 - 229 Chain Y 132–226（95 aa） Fragment：SECOND EXTRACELLULAR IGG LIKE DOMAIN, RESIDUES 129 - 229	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 1.70 Å R-free 0.261
1FLT VEGF IN COMPLEX WITH DOMAIN 2 OF THE FLT-1 RECEPTOR Deposited 1997-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain X 132–226（95 aa） Fragment：SECOND EXTRACELLULAR IGG LIKE DOMAIN, RESIDUES 129 - 229 Chain Y 132–226（95 aa） Fragment：SECOND EXTRACELLULAR IGG LIKE DOMAIN, RESIDUES 129 - 229	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；pH 8.5	Resolution 1.70 Å R-free 0.261
1QSV THE VEGF-BINDING DOMAIN OF FLT-1, 20 NMR STRUCTURES Deposited 1999-06-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 129–229（101 aa） Fragment：SECOND EXTRACELLULAR IMMUNOGLOBULIN-LIKE DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.7；300 K；Ionic strength (raw mmCIF value) 150mM；Pressure AMBIENT NMR sample composition 1MM FLT-1(DOMAIN2) U-15N,13C; PHOSPHATE BUFFERED SALINE, PH 5.7; 50UM EDTA; 100UM NAN3; 50UM DSS NMR sample composition 1MM FLT-1(DOMAIN2) U-15N; PHOSPHATE BUFFERED SALINE, PH 5.7; 50UM EDTA; 100UM NAN3; 50UM DSS	Resolution not provided
1QSZ THE VEGF-BINDING DOMAIN OF FLT-1 (MINIMIZED MEAN) Deposited 1999-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 129–229（101 aa） Fragment：SECOND EXTRACELLULAR IMMUNOGLOBULIN-LIKE DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.7；300 K；Ionic strength (raw mmCIF value) 150mM；Pressure AMBIENT NMR sample composition 1MM FLT-1(DOMAIN2) U-15N,13C; PHOSPHATE BUFFERED SALINE, PH 5.7; 50UM EDTA; 100UM NAN3; 50UM DSS NMR sample composition 1MM FLT-1(DOMAIN2) U-15N; PHOSPHATE BUFFERED SALINE, PH 5.7; 50UM EDTA; 100UM NAN3; 50UM DSS NMR sample composition 1MM FLT-1(DOMAIN2) 15% 13C; PHOSPHATE BUFFERED SALINE, PH 5.7; 50UM EDTA; 100UM NAN3; 50UM DSS	Resolution not provided
1QTY VASCULAR ENDOTHELIAL GROWTH FACTOR IN COMPLEX WITH DOMAIN 2 OF THE FLT-1 RECEPTOR Deposited 1999-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain X 129–229（101 aa） Fragment：DOMAIN 2 Chain Y 129–229（101 aa） Fragment：DOMAIN 2	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, AMMONIUMSULFATE, TRIS , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.284
1QTY VASCULAR ENDOTHELIAL GROWTH FACTOR IN COMPLEX WITH DOMAIN 2 OF THE FLT-1 RECEPTOR Deposited 1999-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain T 129–229（101 aa） Fragment：DOMAIN 2 Chain U 129–229（101 aa） Fragment：DOMAIN 2	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, AMMONIUMSULFATE, TRIS , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.284
1QTY VASCULAR ENDOTHELIAL GROWTH FACTOR IN COMPLEX WITH DOMAIN 2 OF THE FLT-1 RECEPTOR Deposited 1999-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain T 129–229（101 aa） Fragment：DOMAIN 2 Chain U 129–229（101 aa） Fragment：DOMAIN 2 Chain X 129–229（101 aa） Fragment：DOMAIN 2 Chain Y 129–229（101 aa） Fragment：DOMAIN 2	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 4000, AMMONIUMSULFATE, TRIS , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.284
1RV6 Crystal Structure of PlGF in Complex with Domain 2 of VEGFR1 Deposited 2003-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain X 130–229（100 aa） Fragment：domain-2 Chain Y 130–229（100 aa） Fragment：domain-2	Not recorded	B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.45 Å R-free 0.260
2XAC Structural Insights into the Binding of VEGF-B by VEGFR-1D2: Recognition and Specificity Deposited 2010-03-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 129–226（98 aa） Fragment：DOMAIN 2, RESIDUES 129-226 Chain X 129–226（98 aa） Fragment：DOMAIN 2, RESIDUES 129-226	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；14% PEG 4000, 0.1M SODIUM CITRATE, PH 5.6 AND 0.2M LICL	Resolution 2.71 Å R-free 0.364
3HNG Crystal structure of VEGFR1 in complex with N-(4-Chlorophenyl)-2-((pyridin-4-ylmethyl)amino)benzamide Deposited 2009-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 801–1158（358 aa） Fragment：KINASE DOMAIN, UNP residues 801-1158	Not recorded	8ST N-(4-chlorophenyl)-2-[(pyridin-4-ylmethyl)amino]benzamide × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.2M potassium formate, 20% PEG 3350, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.70 Å R-free 0.260
4CL7 Crystal structure of VEGFR-1 domain 2 in presence of Cobalt Deposited 2014-01-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 132–225（94 aa） Fragment：DOMAIN-2, RESIDUES 132-225 Chain C 132–225（94 aa） Fragment：DOMAIN-2, RESIDUES 132-225	Not recorded	CO COBALT (II) ION × 3 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；CRYSTAL WERE OBTAINED BY HANGING DROP METHOD FROM 1MM VEGFR1-D2, 5MM HEPES/NAOH PH7.0, 10MM COCL2, 100 MM BIS-TRIS/HCL PH6.5 15%(W/V) PEG3350.	Resolution 2.00 Å R-free 0.233
4CL7 Crystal structure of VEGFR-1 domain 2 in presence of Cobalt Deposited 2014-01-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 132–225（94 aa） Fragment：DOMAIN-2, RESIDUES 132-225 Chain D 132–225（94 aa） Fragment：DOMAIN-2, RESIDUES 132-225	Not recorded	CO COBALT (II) ION × 2 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；CRYSTAL WERE OBTAINED BY HANGING DROP METHOD FROM 1MM VEGFR1-D2, 5MM HEPES/NAOH PH7.0, 10MM COCL2, 100 MM BIS-TRIS/HCL PH6.5 15%(W/V) PEG3350.	Resolution 2.00 Å R-free 0.233
5ABD CRYSTAL STRUCTURE OF VEGFR-1 DOMAIN 2 IN PRESENCE OF CU Deposited 2015-08-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 132–226（95 aa） Fragment：DOMAIN-2, RESIDUES 132-226	Not recorded	NA SODIUM ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；VAPOR DIFFUSION METHOD, MOTHER LIQUOR: 1.5MICROM VERGFR1-D2, 15MM TRIS/HCL PH 8.1, 25MM NACL, 5MM CUSO4 RESERVOIR: 19.5% (W/V) PEG8000, 100MM SA,	Resolution 2.00 Å R-free 0.222
5ABD CRYSTAL STRUCTURE OF VEGFR-1 DOMAIN 2 IN PRESENCE OF CU Deposited 2015-08-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 132–226（95 aa） Fragment：DOMAIN-2, RESIDUES 132-226	Not recorded	CU COPPER (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；VAPOR DIFFUSION METHOD, MOTHER LIQUOR: 1.5MICROM VERGFR1-D2, 15MM TRIS/HCL PH 8.1, 25MM NACL, 5MM CUSO4 RESERVOIR: 19.5% (W/V) PEG8000, 100MM SA,	Resolution 2.00 Å R-free 0.222
5ABD CRYSTAL STRUCTURE OF VEGFR-1 DOMAIN 2 IN PRESENCE OF CU Deposited 2015-08-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 132–226（95 aa） Fragment：DOMAIN-2, RESIDUES 132-226	Not recorded	NA SODIUM ION × 1 SO4 SULFATE ION × 1 CU COPPER (II) ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；VAPOR DIFFUSION METHOD, MOTHER LIQUOR: 1.5MICROM VERGFR1-D2, 15MM TRIS/HCL PH 8.1, 25MM NACL, 5MM CUSO4 RESERVOIR: 19.5% (W/V) PEG8000, 100MM SA,	Resolution 2.00 Å R-free 0.222
5T89 Crystal structure of VEGF-A in complex with VEGFR-1 domains D1-6 Deposited 2016-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain X 27–656（630 aa） Chain Y 27–656（630 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 19	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；10-14% PEG3000 200 mM calcium chloride 100 mM MES pH 6.5	Resolution 4.00 Å R-free 0.315

10 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VGFR1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 1–94； UniProt 132–225

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ckv
Deposition date deposition_date	2014-01-09
Structure title title	Crystal structure of VEGFR-1 domain 2 in presence of Zn
Keywords keywords	RECEPTOR; RECEPTOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.52 Å
Radius of gyration Rg (electron density) rg_electron	13.07 Å
Forward intensity I(0) i0	2493720.00
Molecular weight molecular_weight	11106.0 kDa
Excluded volume excluded_volume	14054 Å³
Envelope volume envelope_volume	15850 Å³
Hydration-shell volume shell_volume	10504 Å³
Envelope diameter envelope_diameter	46.7 Å
Shell Rg shell_rg	18.55 Å
Envelope Rg envelope_rg	13.45 Å
Shape Rg shape_rg	13.03 Å
Total Rg total_rg	14.48 Å
Total atoms total_atoms	776
Residues n_residues	94
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	48.6 Å
Rg (real space) rg_real	14.46 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	2.4940e+06
I(0) uncertainty (real space) i0_real_error	2.6670e+04
Rg (reciprocal space) rg_reciprocal	14.47 Å
I(0) (reciprocal space) i0_reciprocal	2494000.0000
Solution quality estimate total_estimate	0.7050
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.8 Å
Skewness Skewness skewness	0.246
Kurtosis Kurtosis kurtosis	-0.214
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	478600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.801; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.998; Smooth: 0.990

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	VASCULAR ENDOTHELIAL GROWTH FACTOR RECEPTOR 1
Molecular weight formula_weight	10805.6 kDa
EC 编号 ec_number	2.7.10.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X
Atom count atom_count	897

GRPFVEMYSEIPEIIHMTEGRELVIPCRVTSPNITVTLKKFPLDTLIPDGKRIIWDSRKGFIISNATYKEIGLLTCEATVNGHLYKTNYLTHRQ

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	81

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d4ckvx_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.4 — I set domains

CATH v4.4 (1 domains)

Domain ID domain_id	4ckvX00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	95.730 Å
Unit-cell length b length_b	102.390 Å
Unit-cell length c length_c	27.470 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.055 Å
Low-resolution limit resolution_low	47.865 Å
R factor r_factor	0.1650
R_work r_work	0.1628
R_free r_free	0.2053

fit	/app/data/saxs_computation/ck/4ckv/4ckv.fit
pddf	/app/data/pr_computation/ck/4ckv/4ckv.pr.out
profile	/app/data/saxs_computation/ck/4ckv/4ckv.dat

Crystal structure of VEGFR-1 domain 2 in presence of Zn

1. Protein Identity and Related Structures Protein Identity & Related Structures

VASCULAR ENDOTHELIAL GROWTH FACTOR RECEPTOR 1

State in the Current Structure

Other States of the Same Protein in the Database

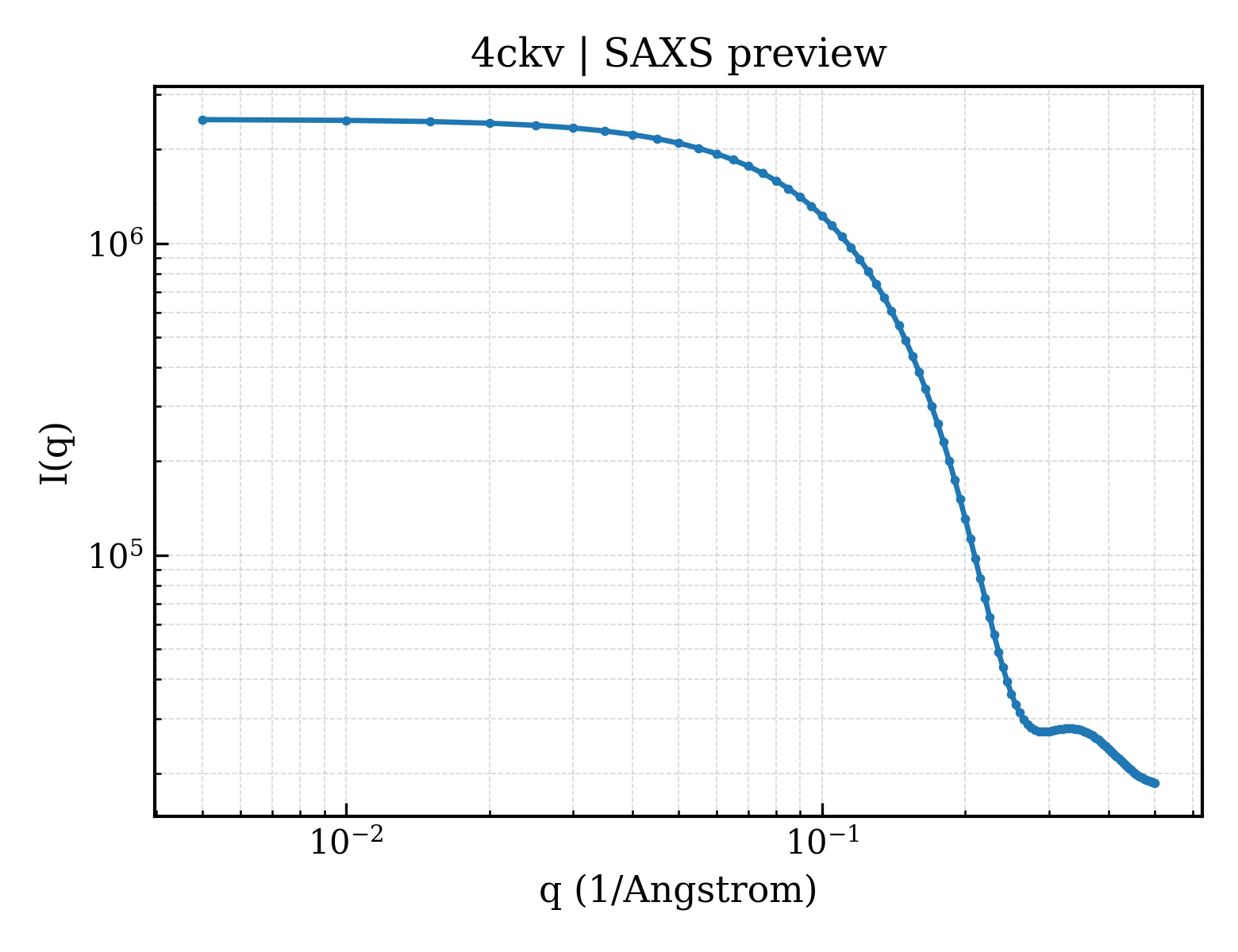

SAXS scattering curve SAXS Profile

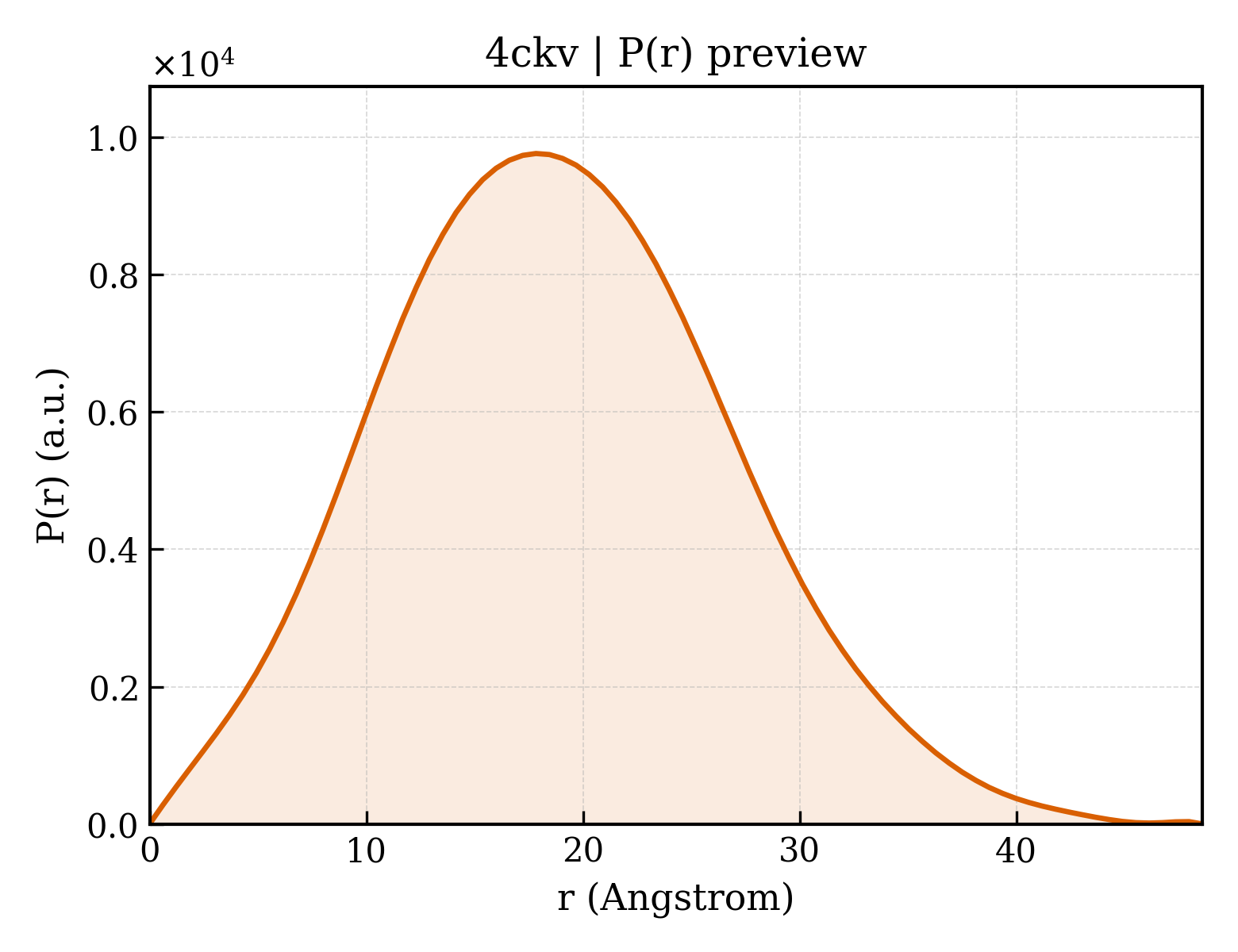

P(r) Distance Distribution P(r) Distribution
