1qty

VASCULAR ENDOTHELIAL GROWTH FACTOR IN COMPLEX WITH DOMAIN 2 OF THE FLT-1 RECEPTOR

Method: X-RAY DIFFRACTION D_max: 152.2 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

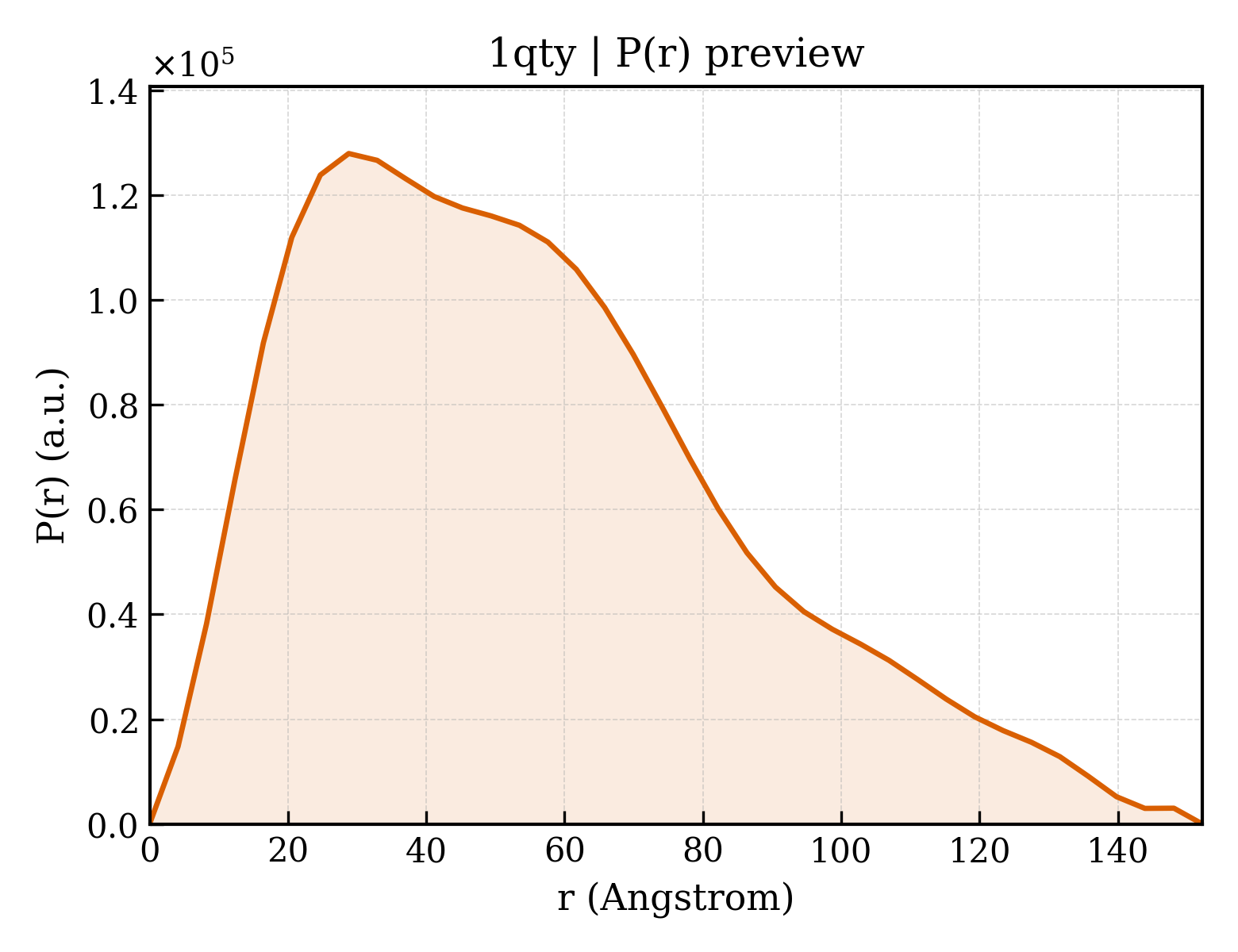

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1qty
沉积日期 deposition_date	1999-06-29
结构标题 title	VASCULAR ENDOTHELIAL GROWTH FACTOR IN COMPLEX WITH DOMAIN 2 OF THE FLT-1 RECEPTOR
关键词 keywords	;COMPLEX (GROWTH FACTOR-RECEPTOR), FLT-1, VEGF RECEPTOR, RECEPTOR TYROSINE KINASE, CYSTINE KNOT, GLYCOPROTEIN, IMMUNOGLOBULIN-LIKE DOMAIN, I-SET, HORMONE/GROWTH FACTOR RECEPTOR, HORMONE-GROWTH FACTOR RECEPTOR complex ;; HORMONE/GROWTH FACTOR RECEPTOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	43.21 Å
回转半径 Rg (电子) rg_electron	44.21 Å
零角强度 I(0) i0	118117000.00
分子量 molecular_weight	87603.0 kDa
排除体积 excluded_volume	109570 Å³
包络体积 envelope_volume	156930 Å³
水化壳体积 shell_volume	34424 Å³
包络直径 envelope_diameter	164.1 Å
壳层 Rg shell_rg	40.52 Å
包络 Rg envelope_rg	43.97 Å
形状 Rg shape_rg	44.24 Å
总 Rg total_rg	43.87 Å
总原子数 total_atoms	6121
残基数 n_residues	757
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	152.2 Å
Rg (实空间) rg_real	43.94 Å
Rg 误差 (实空间) rg_real_error	1.91 Å
I(0) (实空间) i0_real	1.1810e+08
I(0) 误差 (实空间) i0_real_error	2.1980e+06
Rg (倒空间) rg_reciprocal	43.21 Å
I(0) (倒空间) i0_reciprocal	118000000.0000
解质量估计 total_estimate	0.5217
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	28.8 Å
偏度 Skewness skewness	0.655
峰度 Kurtosis kurtosis	-0.139
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6845000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.619; Stabil: 1.000; Sysdev: 0.083; Positv: 1.000; Valcen: 0.459; Smooth: 0.212

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	VASCULAR ENDOTHELIAL GROWTH FACTOR
分子量 formula_weight	11948.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V,W,R,S
原子数 atom_count	6121

GQNHHEVVKFMDVYQRSYCHPIETLVDIFQEYPDEIEYIFKPSCVPLMRCGGCCNDEGLECVPTEESNITMQIMRIKPHQGQHIGEMSFLQHNKCECRPKKD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	FMS-LIKE TYROSINE KINASE 1
分子量 formula_weight	11538.3 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X,Y,T,U

SDTGRPFVEMYSEIPEIIHMTEGRELVIPCRVTSPNITVTLKKFPLDTLIPDGKRIIWDSRKGFIISNATYKEIGLLTCEATVNGHLYKTNYLTHRQTNTI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1qtyr_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.17 — Cystine-knot cytokines
超家族 Superfamily superfamily	g.17.1 — Cystine-knot cytokines
家族 Family family	g.17.1.1 — Platelet-derived growth factor-like

结构域编号 domain_id	d1qtys_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.17 — Cystine-knot cytokines
超家族 Superfamily superfamily	g.17.1 — Cystine-knot cytokines
家族 Family family	g.17.1.1 — Platelet-derived growth factor-like

结构域编号 domain_id	d1qtyt_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.4 — I set domains

结构域编号 domain_id	d1qtyu_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.4 — I set domains

结构域编号 domain_id	d1qtyv_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.17 — Cystine-knot cytokines
超家族 Superfamily superfamily	g.17.1 — Cystine-knot cytokines
家族 Family family	g.17.1.1 — Platelet-derived growth factor-like

结构域编号 domain_id	d1qtyw_
类 Class class	g — Small proteins
折叠类型 Fold fold	g.17 — Cystine-knot cytokines
超家族 Superfamily superfamily	g.17.1 — Cystine-knot cytokines
家族 Family family	g.17.1.1 — Platelet-derived growth factor-like

结构域编号 domain_id	d1qtyx_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.4 — I set domains

结构域编号 domain_id	d1qtyy_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.1 — Immunoglobulin
家族 Family family	b.1.1.4 — I set domains

CATH v4.4 (8 domains)

结构域编号 domain_id	1qtyR00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	90 — Cystine Knot Cytokines, subunit B
同源超家族 H-superfamily homologous superfamily	10 — Cystine-knot cytokines

结构域编号 domain_id	1qtyS00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	90 — Cystine Knot Cytokines, subunit B
同源超家族 H-superfamily homologous superfamily	10 — Cystine-knot cytokines

结构域编号 domain_id	1qtyT00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1qtyU00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1qtyV00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	90 — Cystine Knot Cytokines, subunit B
同源超家族 H-superfamily homologous superfamily	10 — Cystine-knot cytokines

结构域编号 domain_id	1qtyW00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	10 — Ribbon
拓扑 Topology topology	90 — Cystine Knot Cytokines, subunit B
同源超家族 H-superfamily homologous superfamily	10 — Cystine-knot cytokines

结构域编号 domain_id	1qtyX00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1qtyY00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	124.310 Å
晶胞边长 b length_b	67.010 Å
晶胞边长 c length_c	120.840 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	118.15 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2327
R_work r_work	0.2327
R_free r_free	0.2844

fit	/app/data/saxs_computation/qt/1qty/1qty.fit
pddf	/app/data/pr_computation/qt/1qty/1qty.pr.out
profile	/app/data/saxs_computation/qt/1qty/1qty.dat
