SAXSdb — 4crl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYCLIN-DEPENDENT KINASE 8

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	CYCLIN-C × 1 （P24863） CORTISTATIN A × 1 FORMIC ACID × 5 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDK8_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–406； UniProt 1–403

CYCLIN-C

HOMO SAPIENS

UniProt P24863

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	CYCLIN-DEPENDENT KINASE 8 × 1 （P49336） CORTISTATIN A × 1 FORMIC ACID × 5 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCNC_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–285； UniProt 1–283

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4crl
Deposition date deposition_date	2014-02-27
Structure title title	Crystal structure of human CDK8-Cyclin C in complex with cortistatin A
Keywords keywords	;TRANSFERASE, CYCLIN-DEPENDENT KINASE 8, CDK8, CYCLIN C, CCNC, CORTISTATIN A, MEDIATOR KINASE, MEDIATOR COMPLEX, SUPER-ENHANCER, TRANSCRIPTION ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4crl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4crl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

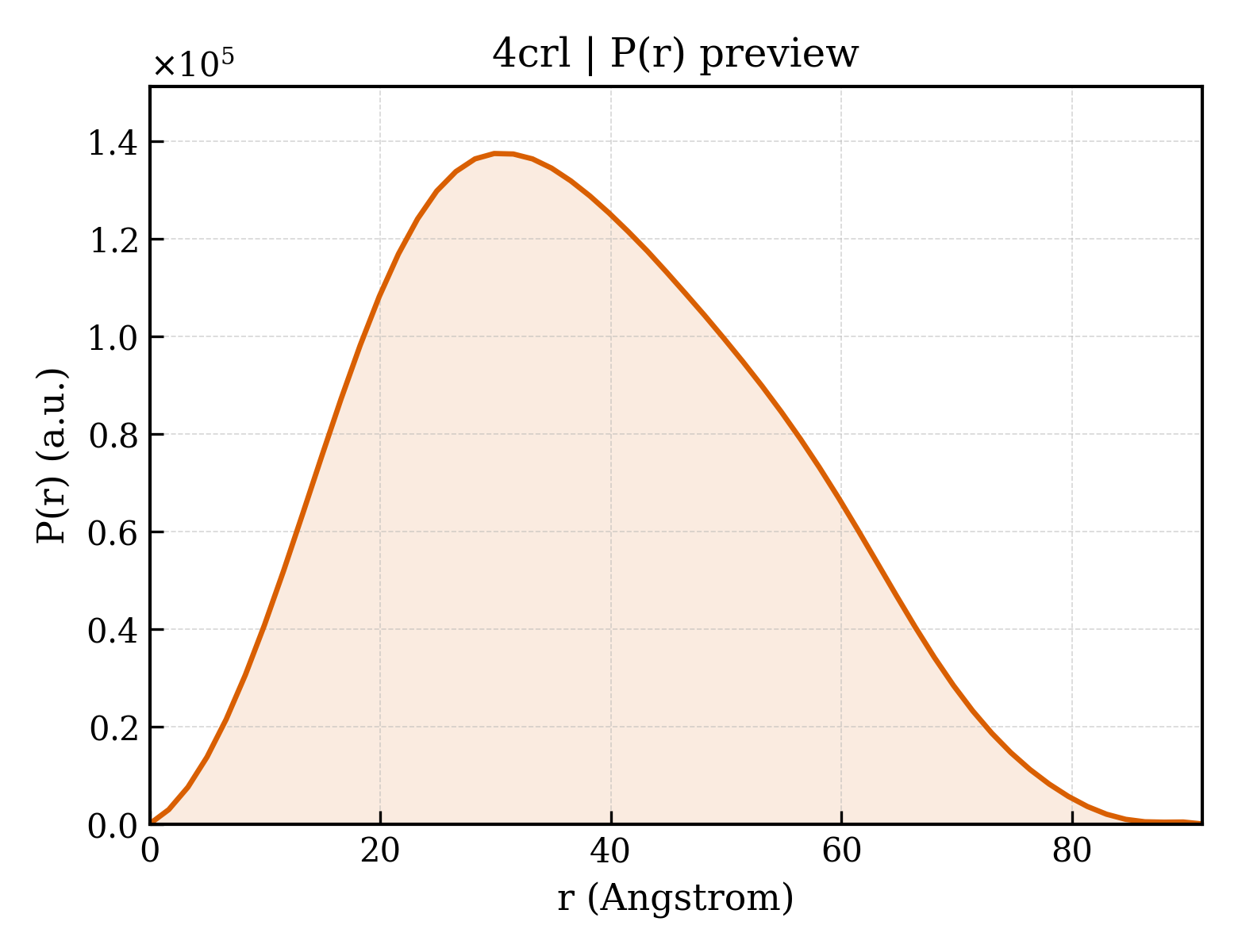

4crl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.99 Å
Rg (electron density)	28.00 Å
Total Rg	28.83 Å
Atom count	5067
Residues	605
Excluded volume	91381 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4crl__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CYCLIN-DEPENDENT KINASE 8
Molecular weight formula_weight	47105.9 kDa
EC 编号 ec_number	2.7.11.22
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5170

DDKMDYDFKVKLSSERERVEDLFEYEGCKVGRGTYGHVYKAKRKDGKDDKDYALKQIEGTGISMSACREIALLRELKHPNVISLQKVFLSHADRKVWLLFDYAEHDLWHIIKFHRASKANKKPVQLPRGMVKSLLYQILDGIHYLHANWVLHRDLKPANILVMGEGPERGRVKIADMGFARLFNSPLKPLADLDPVVVTFWYRAPELLLGARHYTKAIDIWAIGCIFAELLTSEPIFHCRQEDIKTSNPYHHDQLDRIFNVMGFPADKDWEDIKKMPEHSTLMKDFRRNTYTNCSLIKYMEKHKVKPDSKAFHLLQKLLTMDPIKRITSEQAMQDPYFLEDPLPTSDVFAGCQIPYPKREFLTEEEPDDKGDKKNQQQQQGNNHTNGTGHPGNQDSSHTQGPPLKK

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	SPODOPTERA FRUGIPERDA

Entity 2 Entity 2 polymer

Description description	CYCLIN-C
Molecular weight formula_weight	33480.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KAMAGNFWQSSHYLQWILDKQDLLKERQKDLKFLSEEEYWKLQIFFTNVIQALGEHLKLRQQVIATATVYFKRFYARYSLKSIDPVLMAPTCVFLASKVEEFGVVSNTRLIAAATSVLKTRFSYAFPKEFPYRMNHILECEFYLLELMDCCLIVYHPYRPLLQYVQDMGQEDMLLPLAWRIVNDTYRTDLCLLYPPFMIALACLHVACVVQQKDARQWFAELSVDMEKILEIIRVILKLYEQWKNFDERKEMATILSKMPKPKPPPNSEGEQGPNGSQNSSYSQS

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	SPODOPTERA FRUGIPERDA

Entity 3 Entity 3 non-polymer

Description description	CORTISTATIN A
Molecular weight formula_weight	472.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	103

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	4crlA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	4crlA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	4crlB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	472 — Cyclin A; domain 1
Homologous superfamily homologous superfamily	10 — Cyclin-like

Domain ID domain_id	4crlB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	472 — Cyclin A; domain 1
Homologous superfamily homologous superfamily	10 — Cyclin-like

▶

Unit-cell length a length_a	70.490 Å
Unit-cell length b length_b	71.252 Å
Unit-cell length c length_c	171.247 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	85.620 Å
R factor r_factor	0.2009
R_work r_work	0.1991
R_free r_free	0.2563

Crystal structure of human CDK8-Cyclin C in complex with cortistatin A
