SAXSdb — 4dkd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-34

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 2 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 21–193 Chain B； UniProt 21–193	Fragment：active core, UNP residues 21-193	Macrophage colony-stimulating factor 1 receptor × 1 （P07333） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 BMA beta-D-mannopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1M Calcium acetate, 0.1M Mes pH 6.0, 15% PEG 400, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.00 Å R-free 0.287

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4DKD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4DKC Crystal Structure of Human Interleukin-34 Deposited 2012-02-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 21–193（173 aa） Chain B 21–193（173 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M Hepes pH 7.5, 10% w/v Polyethylene glycol 6,000, 5% v/v (+/-)-2-Methyl-2,4-pentanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.85 Å R-free 0.203
4DKE Crystal Structure of Human Interleukin-34 Bound to FAb1.1 Deposited 2012-02-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 21–193（173 aa） Fragment：active core Chain B 21–193（173 aa） Fragment：active core	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.2 M Ammonium phosphate monobasic, 0.1 M Tris pH 8.5, 50% v/v (+/-)-2-Methyl-2,4-pentanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.00 Å R-free 0.265
4DKE Crystal Structure of Human Interleukin-34 Bound to FAb1.1 Deposited 2012-02-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 21–193（173 aa） Fragment：active core Chain B 21–193（173 aa） Fragment：active core	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.2 M Ammonium phosphate monobasic, 0.1 M Tris pH 8.5, 50% v/v (+/-)-2-Methyl-2,4-pentanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.00 Å R-free 0.265
4DKF Crystal Structure of Human Interleukin-34 Bound to FAb2 Deposited 2012-02-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 21–193（173 aa） Fragment：active core Chain B 21–193（173 aa） Fragment：active core	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.2 M Potassium sodium tartrate tetrahydrate, 20% w/v Polyethylene glycol 3,350, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.61 Å R-free 0.256
4DKF Crystal Structure of Human Interleukin-34 Bound to FAb2 Deposited 2012-02-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 21–193（173 aa） Fragment：active core Chain B 21–193（173 aa） Fragment：active core	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.2 M Potassium sodium tartrate tetrahydrate, 20% w/v Polyethylene glycol 3,350, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.61 Å R-free 0.256

3 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL34_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–176； UniProt 21–193 Author chain B； PDBConstruct 4–176； UniProt 21–193

Macrophage colony-stimulating factor 1 receptor

Homo sapiens

UniProt P07333

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 2 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 20–299	Fragment：D1-D3, UNP residues 20-299	Interleukin-34 × 2 （Q6ZMJ4） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 BMA beta-D-mannopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1M Calcium acetate, 0.1M Mes pH 6.0, 15% PEG 400, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.00 Å R-free 0.287

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4DKD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2I0V c-FMS tyrosine kinase in complex with a quinolone inhibitor Deposited 2006-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–678（141 aa） Fragment：Kinase Domain Chain A 753–922（170 aa） Fragment：Kinase Domain	Not recorded	SO4 SULFATE ION × 1 6C3 6-CHLORO-3-(3-METHYLISOXAZOL-5-YL)-4-PHENYLQUINOLIN-2(1H)-ONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；PEG 3350, sodium acetate, Li2SO4, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.296
2I0Y cFMS tyrosine kinase (FGF KID) in complex with an arylamide inhibitor Deposited 2006-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–678（141 aa） Fragment：Kinase Domain Chain A 753–922（170 aa） Fragment：Kinase Domain	Not recorded	5CN 5-CYANO-FURAN-2-CARBOXYLIC ACID [5-HYDROXYMETHYL-2-(4-METHYL-PIPERIDIN-1-YL)-PHENYL]-AMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；PEG 3350, sodium acetate, Li2SO4, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.263
2I1M cFMS tyrosine kinase (tie2 KID) in complex with an arylamide inhibitor Deposited 2006-08-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–678（141 aa） Fragment：Kinase Domain Chain A 753–922（170 aa） Fragment：Kinase Domain	Not recorded	5CN 5-CYANO-FURAN-2-CARBOXYLIC ACID [5-HYDROXYMETHYL-2-(4-METHYL-PIPERIDIN-1-YL)-PHENYL]-AMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；PEG 3350, sodium acetate, Li2SO4, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.80 Å R-free 0.282
2OGV Crystal Structure of the Autoinhibited Human c-Fms Kinase Domain Deposited 2007-01-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 543–681（139 aa） Fragment：Kinase domain: Residues 543-918 Chain A 741–918（178 aa） Fragment：Kinase domain: Residues 543-918	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；293 K；30% PEG 8000, 0.2M Ammonium sulfate, 0.1M MES pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.279
3BEA cFMS tyrosine kinase (tie2 KID) in complex with a pyrimidinopyridone inhibitor Deposited 2007-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–678（141 aa） Chain A 753–922（170 aa）	Mutation：A695L Mutation：A695L	SO4 SULFATE ION × 3 IXH 8-(2,3-dihydro-1H-inden-5-yl)-2-({4-[(3R,5S)-3,5-dimethylpiperazin-1-yl]phenyl}amino)-5-oxo-5,8-dihydropyrido[2,3-d]pyrimidine-6-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；PEG 3350, sodium acetate, Li2SO4, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.02 Å R-free 0.230
3DPK cFMS tyrosine kinase in complex with a pyridopyrimidinone inhibitor Deposited 2008-07-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–678（141 aa） Fragment：KINASE DOMAIN Chain A 753–922（170 aa） Fragment：KINASE DOMAIN	Mutation：Native kinase insert domain replaced by FGF receptor kinase insert domain Mutation：Native kinase insert domain replaced by FGF receptor kinase insert domain	SO4 SULFATE ION × 3 8C5 8-cyclohexyl-N-methoxy-5-oxo-2-{[4-(2-pyrrolidin-1-ylethyl)phenyl]amino}-5,8-dihydropyrido[2,3-d]pyrimidine-6-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；298 K；PEG 3350, SODIUM ACETATE, LI2SO4, pH 5.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.244
3KRJ cFMS tyrosine kinase in complex with 4-Cyano-1H-imidazole-2-carboxylic acid (2-cyclohex-1-enyl-4-piperidin-4-yl-phenyl)-amide Deposited 2009-11-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–678（141 aa） Fragment：UNP residues 538-678, 753-922 Chain A 753–922（170 aa） Fragment：UNP residues 538-678, 753-922	Mutation：C584S Mutation：C584S	ACT ACETATE ION × 1 KRJ 4-cyano-N-(2-cyclohex-1-en-1-yl-4-piperidin-4-ylphenyl)-1H-imidazole-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；13-19%PRG3350 100mM NaAcetate, pH 5.6 200mM (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.260
3KRL cFMS Tyrosine kinase in complex with 5-Cyano-furan-2-carboxylic acid [4-(4-methyl-piperazin-1-yl)-2-piperidin-1-yl-phenyl]-amide Deposited 2009-11-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–678（141 aa） Fragment：UNP residues 538-678, 753-922 Chain A 753–922（170 aa） Fragment：UNP residues 538-678, 753-922	Mutation：C584S Mutation：C584S	KRL 5-cyano-N-[4-(4-methylpiperazin-1-yl)-2-piperidin-1-ylphenyl]furan-2-carboxamide × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；295 K；13-19% PEG3350 100mM NaAc pH 5.6 200mM (NH4)2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.40 Å R-free 0.264
3LCD Inhibitor Bound to A DFG-In structure of the Kinase Domain of CSF-1R Deposited 2010-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–681（144 aa） Fragment：Kinase Domain Chain A 741–919（179 aa） Fragment：Kinase Domain	Mutation：KID domain replaced by linker Mutation：KID domain replaced by linker	SO4 SULFATE ION × 2 BDY N~3~-(2,6-dichlorobenzyl)-5-(4-{[(2R)-2-(pyrrolidin-1-ylmethyl)pyrrolidin-1-yl]carbonyl}phenyl)pyrazine-2,3-diamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；Equal volumes of protein:ligand (10 mg/ml protein, 1 mM ligand, 200 mM NaCl, 50 mM Potassium dihydrogen phosphate pH 7.5, 5% glycerol, 0.25 mM TCEP) and well solution (0.1 M sodium acetate pH 5.5, 0.2 M Lithium sulfate, 5 mM DTT, 1.5% glycerol, 10-25% PEG 3350) were mixed and set up., VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.265
3LCO Inhibitor Bound to A DFG-Out structure of the Kinase Domain of CSF-1R Deposited 2010-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 550–695（146 aa） Fragment：Kinase Domain Chain A 742–919（178 aa） Fragment：Kinase Domain	Not recorded	LC0 3-({4-methoxy-5-[(4-methoxybenzyl)oxy]pyridin-2-yl}methoxy)-5-(1-methyl-1H-pyrazol-4-yl)pyrazin-2-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295 K；11 mg/mL protein incubated with 4 mM inhibitor at 4C overnight followed by addition of 1 ug Arg-C (per 50 ul sample) at 22C for 24 hours, followed by addition of 0.5 uL of 5 mg/mL leupeptin, followed by mixing with equal volumes of well solution:22.5-35% PEG 4000, 0.1M Tris-HCL pH 8.5, 0.2M MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.40 Å R-free 0.289
4HW7 Crystal structure of FMS kinase domain with a small molecular inhibitor, PLX647-OME Deposited 2012-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 542–919（378 aa） Fragment：FMS kinase domain with KID	Mutation：C667T, C830S, C907T	64M 5-[(5-methoxy-1H-pyrrolo[2,3-b]pyridin-3-yl)methyl]-N-[4-(trifluoromethyl)benzyl]pyridin-2-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG8K, 0.2M MgCl and 0.1M Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.90 Å R-free 0.267
4HW7 Crystal structure of FMS kinase domain with a small molecular inhibitor, PLX647-OME Deposited 2012-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 542–919（378 aa） Fragment：FMS kinase domain with KID	Mutation：C667T, C830S, C907T	64M 5-[(5-methoxy-1H-pyrrolo[2,3-b]pyridin-3-yl)methyl]-N-[4-(trifluoromethyl)benzyl]pyridin-2-amine × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG8K, 0.2M MgCl and 0.1M Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.90 Å R-free 0.267
4LIQ Structure of the extracellular domain of human CSF-1 receptor in complex with the Fab fragment of RG7155 Deposited 2013-07-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 2–512（511 aa） Fragment：ectodomain, UNP residues 2-512	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；25% PEG 3350, 0.2M lithium sulfate, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.60 Å R-free 0.237
4R7H Crystal structure of FMS KINASE domain with a small molecular inhibitor, PLX3397 Deposited 2014-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 541–919（379 aa） Fragment：FMS kinase domain with KID (UNP residues 538-919)	Mutation：C667T, C830S, C907T	P31 5-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)methyl]-N-{[6-(trifluoromethyl)pyridin-3-yl]methyl}pyridin-2-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG8K, 0.2M MGCL AND 0.1M TRIS, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.248
4R7H Crystal structure of FMS KINASE domain with a small molecular inhibitor, PLX3397 Deposited 2014-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 541–919（379 aa） Fragment：FMS kinase domain with KID (UNP residues 538-919)	Mutation：C667T, C830S, C907T	P31 5-[(5-chloro-1H-pyrrolo[2,3-b]pyridin-3-yl)methyl]-N-{[6-(trifluoromethyl)pyridin-3-yl]methyl}pyridin-2-amine × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG8K, 0.2M MGCL AND 0.1M TRIS, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.248
4R7I Crystal structure of FMS kinase domain with a small molecular inhibitor, GLEEVEC Deposited 2014-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 541–919（379 aa） Fragment：FMS kinase domain with KID (UNP residues 538-919)	Mutation：C667T, C830S, C907T	STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG8K, 0.2M MGCL AND 0.1M TRIS, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.75 Å R-free 0.236
4R7I Crystal structure of FMS kinase domain with a small molecular inhibitor, GLEEVEC Deposited 2014-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 541–919（379 aa） Fragment：FMS kinase domain with KID (UNP residues 538-919)	Mutation：C667T, C830S, C907T	STI 4-(4-METHYL-PIPERAZIN-1-YLMETHYL)-N-[4-METHYL-3-(4-PYRIDIN-3-YL-PYRIMIDIN-2-YLAMINO)-PHENYL]-BENZAMIDE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG8K, 0.2M MGCL AND 0.1M TRIS, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.75 Å R-free 0.236
4WRL Structure of the human CSF-1:CSF-1R complex Deposited 2014-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 20–296（277 aa） Fragment：UNP residues 20-296 Chain C 20–296（277 aa） Fragment：UNP residues 20-296	Mutation：N240Q Mutation：N240Q	SIA N-acetyl-alpha-neuraminic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.2 M Lithium sulfate monohydrate, 0.1 M Tris pH 8.5 and 28% w/v PEG 3350	Resolution 2.80 Å R-free 0.261
4WRM Structure of the human CSF-1:CSF-1R complex Deposited 2014-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–504（485 aa） Fragment：UNP RESIDUES 20-504	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1 M NaCl, 0.1 M Tris pH 8.0 and 8% w/v PEG 20000	Resolution 6.85 Å R-free 0.359
6IG8 Crystal structure of CSF-1R kinase domain with a small molecular inhibitor, JTE-952 Deposited 2018-09-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 550–695（146 aa） Chain A 742–919（178 aa）	Mutation：S688A Mutation：S688A	MG MAGNESIUM ION × 2 GOL GLYCEROL × 1 A7O (3-{4-[(4-cyclopropylphenyl)methoxy]-3-methoxyphenyl}azetidin-1-yl)(4-{[(2S)-2,3-dihydroxypropoxy]methyl}pyridin-2-yl)methanone × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；11 mg/mL protein, 22.5-35% PEG 4000, 0.1M Tris-HCL pH 8.5, 0.2M MgCl2	Resolution 1.80 Å R-free 0.192
6N33 Crystal structure of fms kinase domain with a small molecular inhibitor, PLX5622 Deposited 2018-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 542–919（378 aa）	Mutation：C667T, C830S, C907T	622 6-fluoro-N-[(5-fluoro-2-methoxypyridin-3-yl)methyl]-5-[(5-methyl-1H-pyrrolo[2,3-b]pyridin-3-yl)methyl]pyridin-2-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20% PEG8K, 0.2M MGCL2 AND 0.1M TRIS, PH 7.5	Resolution 2.25 Å R-free 0.220
6T2W Crystal structure of the CSF1R kinase domain with a dihydropurinone inhibitor (compound 4) Deposited 2019-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 542–919（378 aa） Fragment：kinase domain (amino acids Q542-R919) with internal deletion of amino acids 697-740	Not recorded	M9T 2-[(4-methoxy-2-methyl-phenyl)amino]-7-methyl-9-(4-oxidanylcyclohexyl)purin-8-one × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；277 K；16% PEG3350, 0.15 M Ammonium Sulfate, 0.1 M PCTP pH 5.5	Resolution 1.70 Å R-free 0.187
6WXJ CSF1R signaling is a regulator of pathogenesis in progressive MS Deposited 2020-05-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–678（141 aa） Chain A 753–922（170 aa）	Not recorded	UF4 4-(3-{[(2S)-2-(6-methoxypyridin-3-yl)-2,3-dihydro-1,4-benzodioxin-6-yl]methyl}-3H-imidazo[4,5-b]pyridin-6-yl)-2-methylbut-3-yn-2-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；294 K；0.1 M MES, pH 6.5, 21.3% polyethylene glycol 3350 and 0.25 M ammonium sulfate	Resolution 2.62 Å R-free 0.272
7MFC Crystal structure of CSF1R in complex with vimseltinib Deposited 2021-04-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 542–919（378 aa） Fragment：Kinase domain, UNP residues 542-919 with deletion of 696-741	Mutation：C677T, C830S, C907T	Z6V Vimseltinib × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；289 K；CSF1R at 4mg/ml with 0.5mM vimseltinib: Crystallization: 100mM Tris base / HCl pH 7.71, 18% PEG 8000, 100mM MgCl2: Cryo: 20% glycerol	Resolution 2.80 Å R-free 0.256
7TNH Crystal structure of CSF1R kinase domain in complex with DP-6233 Deposited 2022-01-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 549–678（130 aa） Chain A 753–922（170 aa）	Not recorded	NA SODIUM ION × 1 CL CHLORIDE ION × 4 I9W 2,2-dimethyl-N-[(6-methyl-5-{[2-(1-methyl-1H-pyrazol-4-yl)pyridin-4-yl]oxy}pyridin-2-yl)carbamoyl]propanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；CSF1R at 10.7 mg/mL in 50 mM Tris pH 7.5, 200 mM NaCl, 5% glycerol with 5-fold excess of arylamide compound against 10% PEG 10,000, 0.1 M MES pH 6.5 and 0.1 M magnesium acetate soaked over two nights with 1 mM DP-6233 and 20% ethylene glycol as cryo	Resolution 2.70 Å R-free 0.269
8CGC Structure of CSF1R in complex with a pyrollopyrimidine (compound 23) Deposited 2023-02-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 542–919（378 aa）	Mutation：S688A	LMR (2S)-2-hydroxybutanedioic acid × 1 GOL GLYCEROL × 1 UIK [4-[4-[methyl-[(3-methylphenyl)methyl]amino]-7~{H}-pyrrolo[2,3-d]pyrimidin-6-yl]phenyl]methanol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.3 M DL-Malic acid pH 7.0, 23.0% w/v PEG 3350	Resolution 1.93 Å R-free 0.206
8JOT Crystal structure of CSF-1R kinase domain with sulfatinib Deposited 2023-06-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 542–919（378 aa）	Mutation：C137T,C300S,C377T	UKI Sulfatinib × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；19% PEG8K, 0.2 M MgCl and 0.1 M Tris, pH 7.5	Resolution 1.69 Å R-free 0.207
8W1L Structure of CSF1R kinase domain in complex with Cpd 32 Deposited 2024-02-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 538–678（141 aa） Chain A 774–922（149 aa）	Mutation：residues 679-752 replaced by residues 577-597 of FGFR1 Mutation：residues 679-752 replaced by residues 577-597 of FGFR1	A1AE3 [3-({3-methoxy-4-[(6-methoxypyridin-3-yl)methoxy]phenyl}methyl)-3H-imidazo[4,5-b]pyridin-6-yl](2-oxa-6-azaspiro[3.3]heptan-6-yl)methanone × 1 GOL GLYCEROL × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；0.1 M MES, pH 6.5, 21.3% polyethylene glycol 3350 and 0.25 M ammonium sulfate	Resolution 2.26 Å R-free 0.226

25 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CSF1R_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 4–283； UniProt 20–299

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4dkd
Deposition date deposition_date	2012-02-03
Structure title title	Crystal Structure of Human Interleukin-34 Bound to Human CSF-1R
Keywords keywords	dimeric four-helix bundle cytokine, receptor tyrosine kinase, glycosylation, CYTOKINE-TRANSFERASE complex; CYTOKINE/TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.50 Å
Radius of gyration Rg (electron density) rg_electron	33.05 Å
Forward intensity I(0) i0	74338700.00
Molecular weight molecular_weight	69084.0 kDa
Excluded volume excluded_volume	86802 Å³
Envelope volume envelope_volume	115170 Å³
Hydration-shell volume shell_volume	31245 Å³
Envelope diameter envelope_diameter	113.5 Å
Shell Rg shell_rg	36.75 Å
Envelope Rg envelope_rg	33.18 Å
Shape Rg shape_rg	33.02 Å
Total Rg total_rg	33.44 Å
Total atoms total_atoms	4856
Residues n_residues	593
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

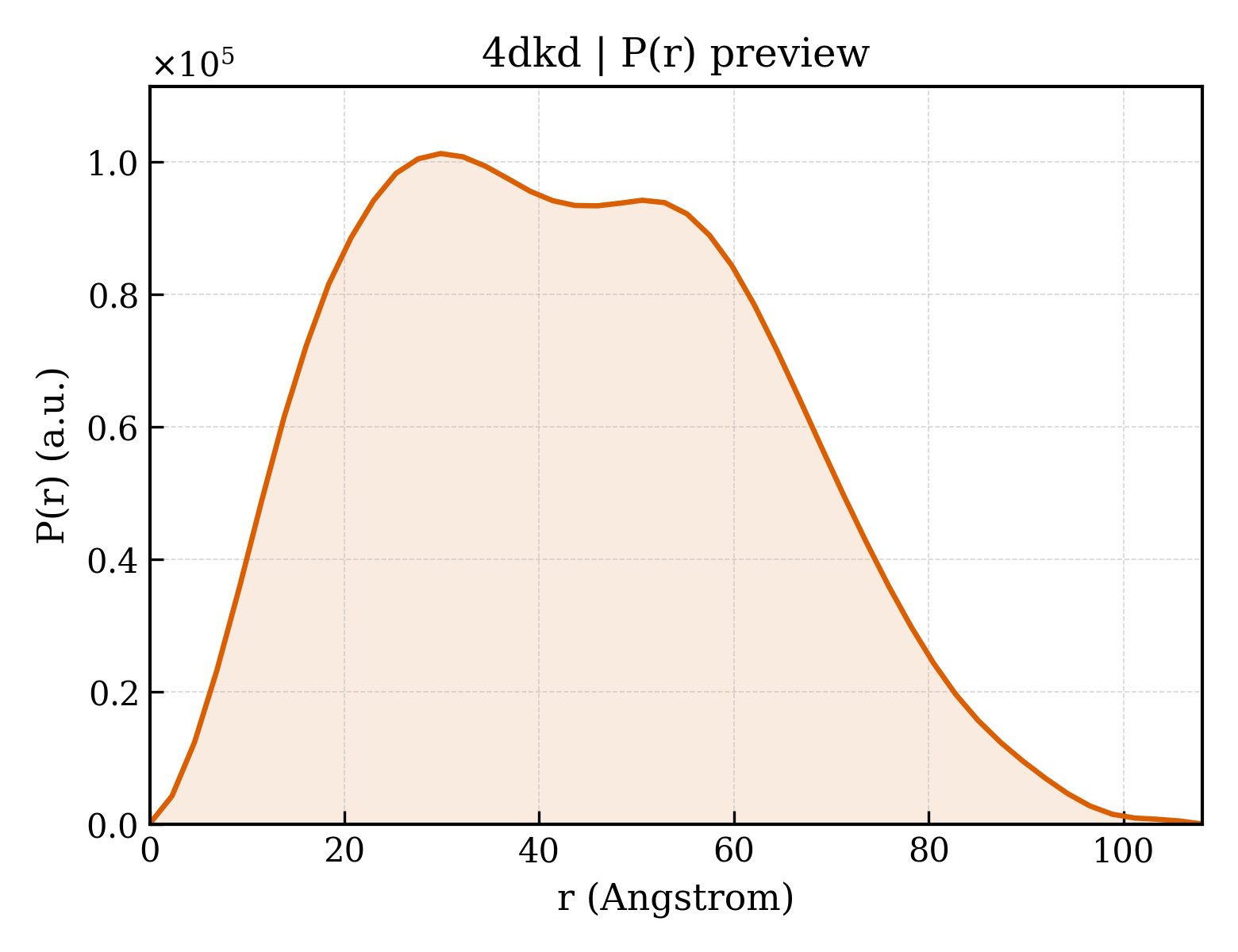

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	108.1 Å
Rg (real space) rg_real	33.54 Å
Rg uncertainty (real space) rg_real_error	1.25 Å
I(0) (real space) i0_real	7.4340e+07
I(0) uncertainty (real space) i0_real_error	1.3040e+06
Rg (reciprocal space) rg_reciprocal	33.52 Å
I(0) (reciprocal space) i0_reciprocal	74340000.0000
Solution quality estimate total_estimate	0.8819
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.9 Å
Skewness Skewness skewness	0.243
Kurtosis Kurtosis kurtosis	-0.671
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8173000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.915; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.869; Smooth: 0.846

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Interleukin-34
Molecular weight formula_weight	21434.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4872

AGSNEPLEMWPLTQNEECTVTGFLRDKLQYRSRLQYMKHYFPINYKISVPYEGVFRIANVTRLQRAQVSERELRYLWVLVSLSATESVQDVLLEGHPSWKYLQEVETLLLNVQQGLTDVEVSPKVESVLSLLNAPGPNLKLVRPKALLDNCFRVMELLYCSCCKQSSVLNWQDCEVGNSHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Macrophage colony-stimulating factor 1 receptor
Molecular weight formula_weight	32043.2 kDa
EC 编号 ec_number	2.7.10.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

AGSIPVIEPSVPELVVKPGATVTLRCVGNGSVEWDGPPSPHWTLYSDGSSSILSTNNATFQNTGTYRCTEPGDPLGGSAAIHLYVKDPARPWNVLAQEVVVFEDQDALLPCLLTDPVLEAGVSLVRVRGRPLMRHTNYSFSPWHGFTIHRAKFIQSQDYQCSALMGGRKVMSISIRLKVQKVIPGPPALTLVPAELVRIRGEAAQIVCSASSVDVNFDVFLQHNNTKLAIPQQSDFHNNRYQKVLTLNLDQVDFQHAGNYSCVASNVQGKHSTSMFFRVVESAGNSHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	beta-D-mannopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	16

▼

7. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id	4dkdA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	80 — Interleukin-34

Domain ID domain_id	4dkdB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	80 — Interleukin-34

Domain ID domain_id	4dkdC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4dkdC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4dkdC03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	101.361 Å
Unit-cell length b length_b	101.361 Å
Unit-cell length c length_c	175.252 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2540
R_work r_work	0.2523
R_free r_free	0.2868

fit	/app/data/saxs_computation/dk/4dkd/4dkd.fit
pddf	/app/data/pr_computation/dk/4dkd/4dkd.pr.out
profile	/app/data/saxs_computation/dk/4dkd/4dkd.dat
