SAXSdb — 4ds1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dynein light chain 1, cytoplasmic

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–92 Chain C； UniProt 1–92	Not recorded	Nucleoporin NUP159 × 2 （P40477）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.3 M Ammonium acetate, 5% methyl pentanediol (v/v), 35% PEG 4000 (w/v), pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.85 Å R-free 0.187

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4DS1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4HT6 The Structure of a Yeast Dynein Dyn2-Pac11 Complex and Effect on Single Molecule Dynein Motor Activity Deposited 2012-10-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–92（92 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；0.4M sodium phosphate monobasic, 0.1M 1,6-hexanediol, 25% PEG 3350 (w/v), pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.212
4HT6 The Structure of a Yeast Dynein Dyn2-Pac11 Complex and Effect on Single Molecule Dynein Motor Activity Deposited 2012-10-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–92（92 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；0.4M sodium phosphate monobasic, 0.1M 1,6-hexanediol, 25% PEG 3350 (w/v), pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.212
4HT6 The Structure of a Yeast Dynein Dyn2-Pac11 Complex and Effect on Single Molecule Dynein Motor Activity Deposited 2012-10-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–92（92 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；0.4M sodium phosphate monobasic, 0.1M 1,6-hexanediol, 25% PEG 3350 (w/v), pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.212
4HT6 The Structure of a Yeast Dynein Dyn2-Pac11 Complex and Effect on Single Molecule Dynein Motor Activity Deposited 2012-10-31	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–92（92 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；293 K；0.4M sodium phosphate monobasic, 0.1M 1,6-hexanediol, 25% PEG 3350 (w/v), pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.212
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric	Chain o 1–92（92 aa） Chain p 1–92（92 aa） Chain q 1–92（92 aa） Chain r 1–92（92 aa） Chain s 1–92（92 aa） Chain t 1–92（92 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain o 1–92（92 aa） Chain p 1–92（92 aa） Chain q 1–92（92 aa） Chain r 1–92（92 aa） Chain s 1–92（92 aa） Chain t 1–92（92 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain o 1–92（92 aa） Chain p 1–92（92 aa） Chain q 1–92（92 aa） Chain r 1–92（92 aa） Chain s 1–92（92 aa） Chain t 1–92（92 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å

2 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DYL1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–97； UniProt 1–92 Author chain C； PDBConstruct 6–97； UniProt 1–92

Nucleoporin NUP159

OrganismNot specified

UniProt P40477

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1116–1126 Chain D； UniProt 1116–1126	Fragment：UNP residues 1116-1126	Dynein light chain 1, cytoplasmic × 2 （Q02647）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.3 M Ammonium acetate, 5% methyl pentanediol (v/v), 35% PEG 4000 (w/v), pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.85 Å R-free 0.187

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4DS1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1XIP Crystal Structure of the N-terminal Domain of Nup159 Deposited 2004-09-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–387（386 aa） Fragment：N-terminal domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；292 K；PEG3350, ammonium acetate, sodium acetate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.50 Å R-free 0.249
3PBP Structure of the yeast heterotrimeric Nup82-Nup159-Nup116 nucleoporin complex Deposited 2010-10-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1425–1460（36 aa） Fragment：Tail, UNP residues 1425-1460	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；298 K；PEG 400, sodium cacodylate, lithium sulfate, 2,5-hexanediol, pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.272
3PBP Structure of the yeast heterotrimeric Nup82-Nup159-Nup116 nucleoporin complex Deposited 2010-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 1425–1460（36 aa） Fragment：Tail, UNP residues 1425-1460	Non-standard monomer：Yes (specific site not provided by mmCIF)	PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；298 K；PEG 400, sodium cacodylate, lithium sulfate, 2,5-hexanediol, pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.272
3PBP Structure of the yeast heterotrimeric Nup82-Nup159-Nup116 nucleoporin complex Deposited 2010-10-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 1425–1460（36 aa） Fragment：Tail, UNP residues 1425-1460	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；298 K；PEG 400, sodium cacodylate, lithium sulfate, 2,5-hexanediol, pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.272
3PBP Structure of the yeast heterotrimeric Nup82-Nup159-Nup116 nucleoporin complex Deposited 2010-10-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 1425–1460（36 aa） Fragment：Tail, UNP residues 1425-1460	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；298 K；PEG 400, sodium cacodylate, lithium sulfate, 2,5-hexanediol, pH 6.6, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.272
3RRM S. cerevisiae dbp5 l327v bound to nup159, gle1 h337r, ip6 and adp Deposited 2011-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–387（386 aa） Fragment：unp residues 2-387	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；20% PEG 3350, 200 mM KOAc, 20 mM sarcosine, 10 mM HEPES, 100 mM NaCl, 1 mM DTT, 0.5 mM IP6, 10 mM MgCl2, 1 mM ADP, 5% glycerol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.90 Å R-free 0.261
3TKN Structure of the Nup82-Nup159-Nup98 heterotrimer Deposited 2011-08-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1425–1460（36 aa） Fragment：UNP residues 1425-1460	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；18.5% PEG3350, 100 mM potassium thiocyanate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.40 Å R-free 0.285
3TKN Structure of the Nup82-Nup159-Nup98 heterotrimer Deposited 2011-08-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1425–1460（36 aa） Fragment：UNP residues 1425-1460	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；18.5% PEG3350, 100 mM potassium thiocyanate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.40 Å R-free 0.285
3TKN Structure of the Nup82-Nup159-Nup98 heterotrimer Deposited 2011-08-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1425–1460（36 aa） Fragment：UNP residues 1425-1460	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；18.5% PEG3350, 100 mM potassium thiocyanate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.40 Å R-free 0.285
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 448 PDB declaration: 448-meric	Chain w 1–1460（1460 aa） Chain x 1–1460（1460 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain w 1–1460（1460 aa） Chain x 1–1460（1460 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å
7N9F Structure of the in situ yeast NPC Deposited 2021-06-17	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 56 PDB declaration: 56-meric	Chain w 1–1460（1460 aa） Chain x 1–1460（1460 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；A custom-built vitrification device (Max Planck Institute for Biochemistry, Munich)	Resolution 37.00 Å

5 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NU159_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–11； UniProt 1116–1126 Author chain D； PDBConstruct 1–11； UniProt 1116–1126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ds1
Deposition date deposition_date	2012-02-17
Structure title title	The Structure of a Yeast Dyn2-Nup159 Complex and the Molecular Basis for the Dynein Light Chain - Nuclear Pore Interaction
Keywords keywords	nucleoporin, Dynein Light Chain fold, Peptide Binding, Nuclear Pore, STRUCTURAL PROTEIN-TRANSPORT PROTEIN complex; STRUCTURAL PROTEIN/TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.81 Å
Radius of gyration Rg (electron density) rg_electron	15.67 Å
Forward intensity I(0) i0	7656580.00
Molecular weight molecular_weight	21735.0 kDa
Excluded volume excluded_volume	27813 Å³
Envelope volume envelope_volume	29622 Å³
Hydration-shell volume shell_volume	15646 Å³
Envelope diameter envelope_diameter	53.8 Å
Shell Rg shell_rg	21.97 Å
Envelope Rg envelope_rg	16.05 Å
Shape Rg shape_rg	15.61 Å
Total Rg total_rg	16.98 Å
Total atoms total_atoms	1541
Residues n_residues	193
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

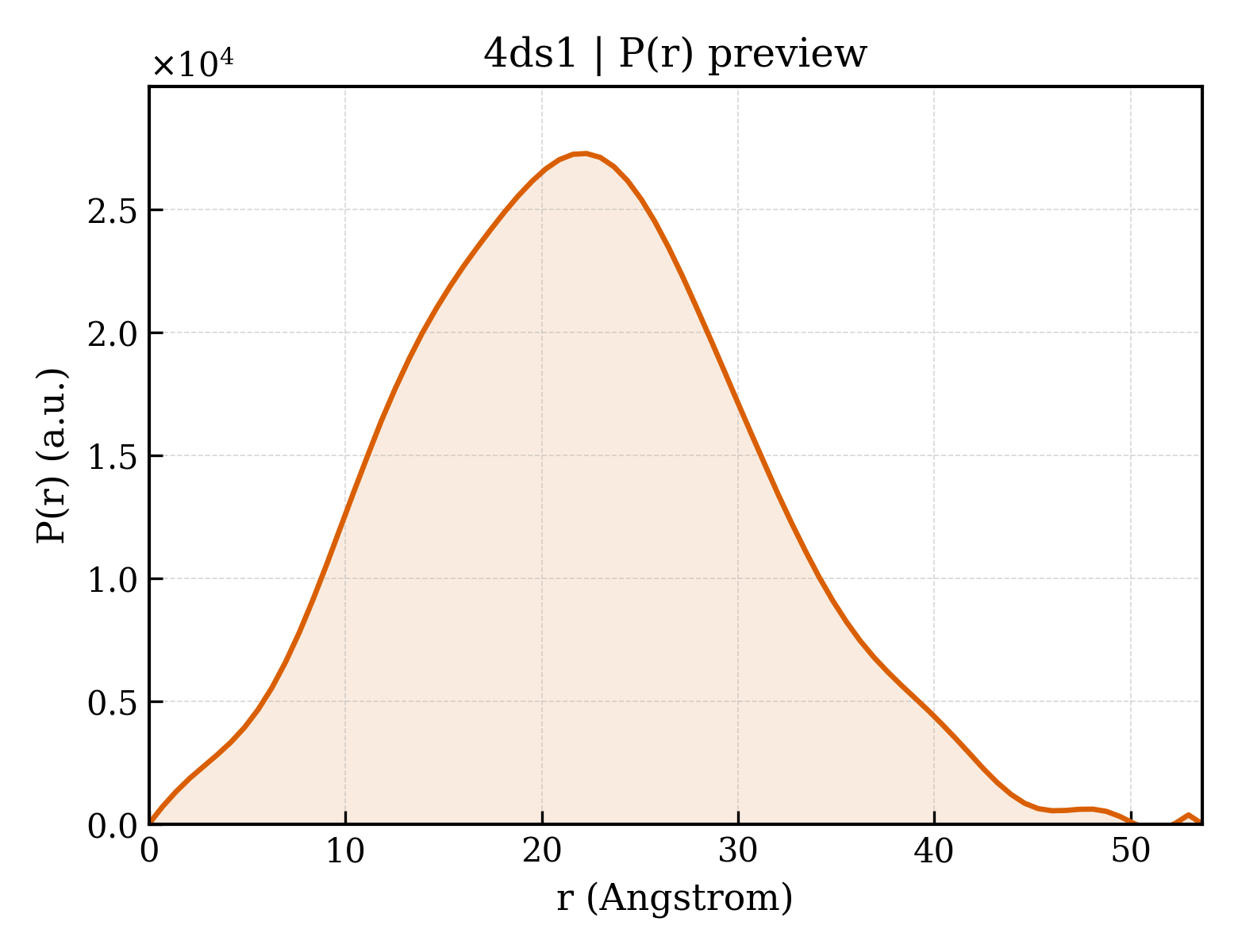

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.6 Å
Rg (real space) rg_real	16.71 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	7.6570e+06
I(0) uncertainty (real space) i0_real_error	8.2860e+04
Rg (reciprocal space) rg_reciprocal	16.72 Å
I(0) (reciprocal space) i0_reciprocal	7657000.0000
Solution quality estimate total_estimate	0.8010
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	22.3 Å
Skewness Skewness skewness	0.190
Kurtosis Kurtosis kurtosis	-0.278
Angular range angular_range	— – 0.4750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2544000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.807; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Dynein light chain 1, cytoplasmic
Molecular weight formula_weight	10868.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	1758

GPLGSMSDENKSTPIVKASDITDKLKEDILTISKDALDKYQLERDIAGTVKKQLDVKYGNTWHVIVGKNFGSYVTHEKGHFVYFYIGPLAFLVFKTA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Nucleoporin NUP159
Molecular weight formula_weight	1210.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

NYAESGIQTDL

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	217

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	4ds1A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	740 — Protein Inhibitor Of Neuronal Nitric Oxide Synthase
Homologous superfamily homologous superfamily	10 — Protein Inhibitor Of Neuronal Nitric Oxide Synthase;

Domain ID domain_id	4ds1C00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	740 — Protein Inhibitor Of Neuronal Nitric Oxide Synthase
Homologous superfamily homologous superfamily	10 — Protein Inhibitor Of Neuronal Nitric Oxide Synthase;

▶

8. Citations (1)

▶

Unit-cell length a length_a	33.869 Å
Unit-cell length b length_b	47.971 Å
Unit-cell length c length_c	110.703 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.851 Å
Low-resolution limit resolution_low	29.249 Å
R factor r_factor	0.1548
R_work r_work	0.1514
R_free r_free	0.1869

fit	/app/data/saxs_computation/ds/4ds1/4ds1.fit
pddf	/app/data/pr_computation/ds/4ds1/4ds1.pr.out
profile	/app/data/saxs_computation/ds/4ds1/4ds1.dat
