SAXSdb — 4fi3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vitamin B12 import system permease protein BtuC

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Vitamin B12 import ATP-binding protein BtuD × 2 （P06611） Vitamin B12-binding protein × 1 （P37028） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BTUC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–349； UniProt 1–326 Author chain B； PDBConstruct 24–349； UniProt 1–326

Vitamin B12 import ATP-binding protein BtuD

Escherichia coli

UniProt P06611

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Vitamin B12 import system permease protein BtuC × 2 （P06609） Vitamin B12-binding protein × 1 （P37028） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BTUD_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–249； UniProt 1–249 Author chain D； PDBConstruct 1–249； UniProt 1–249

Vitamin B12-binding protein

Escherichia coli

UniProt P37028

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Vitamin B12 import system permease protein BtuC × 2 （P06609） Vitamin B12 import ATP-binding protein BtuD × 2 （P06611） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BTUF_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 2–246； UniProt 22–266

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4fi3
Deposition date deposition_date	2012-06-07
Structure title title	Structure of vitamin B12 transporter BtuCD-F in a nucleotide-bound state
Keywords keywords	ABC transporter, Vitamin B12 transport, ATP binding, Membrane, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4fi3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4fi3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

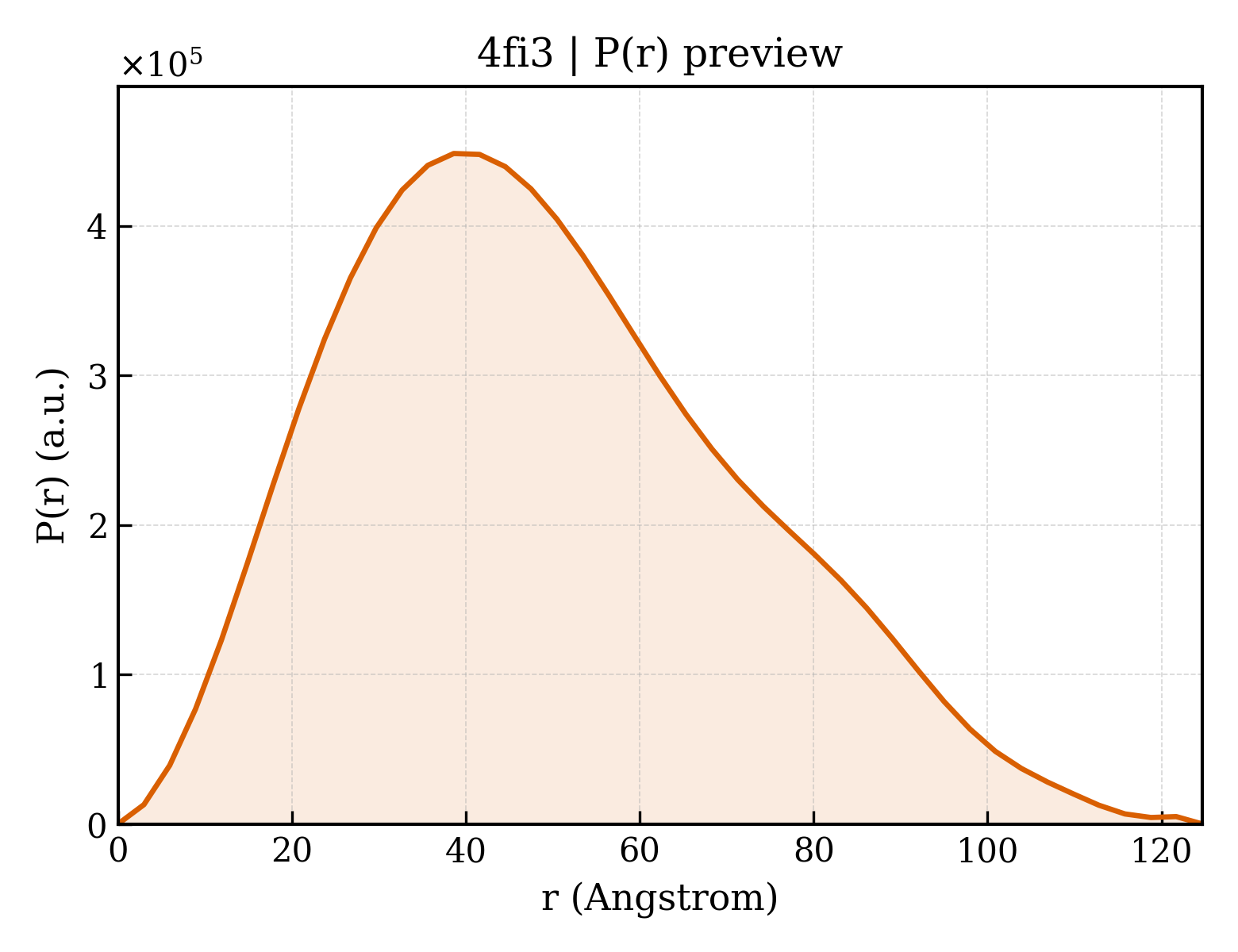

4fi3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.09 Å
Rg (electron density)	37.48 Å
Total Rg	37.81 Å
Atom count	10635
Residues	1389
Excluded volume	191990 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4fi3__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Vitamin B12 import system permease protein BtuC
Molecular weight formula_weight	37650.6 kDa
Mutation mutation	C18S, C32S, C120S, C156S, C205S, C206S, C267S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	10635

MGHHHHHHHHHHSSGENLYFQGHMLTLARQQQRQNIRWLLSLSVLMLLALLLSLSAGEQWISPGDWFTPRGELFVWQIRLPRTLAVLLVGAALAISGAVMQALFENPLAEPGLLGVSNGAGVGLIAAVLLGQGQLPNWALGLSAIAGALIITLILLRFARRHLSTSRLLLAGVALGIISSALMTWAIYFSTSVDLRQLMYWMMGGFGGVDWRQSWLMLALIPVLLWISSQSRPMNMLALGEISARQLGLPLWFWRNVLVAATGWMVGVSVALAGAIGFIGLVIPHILRLSGLTDHRVLLPGCALAGASALLLADIVARLALAAAELPIGVVTATLGAPVFIWLLLKAGR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Vitamin B12 import ATP-binding protein BtuD
Molecular weight formula_weight	27086.2 kDa
EC 编号 ec_number	3.6.3.33
Mutation mutation	C180S, E159Q, N162C
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MSIVMQLQDVAESTRLGPLSGEVRAGEILHLVGPNGAGKSTLLARMAGMTSGKGSIQFAGQPLEAWSATKLALHRAYLSQQQTPPFATPVWHYLTLHQHDKTRTELLNDVAGALALDDKLGRSTNQLSGGEWQRVRLAAVVLQITPQANPAGQLLLLDQPMCSLDVAQQSALDKILSALSQQGLAIVMSSHDLNHTLRHAHRAWLLKGGKMLASGRREEVLTPPNLAQAYGMNFRRLDIEGHRMLISTI

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Vitamin B12-binding protein
Molecular weight formula_weight	28238.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MAAPRVITLSPANTELAFAAGITPVGVSSYSDYPPQAQKIEQVSTWQGMNLERIVALKPDLVIAWRGGNAERQVDQLASLGIKVMWVDATSIEQIANALRQLAPWSPQPDKAEQAAQSLLDQYAQLKAQYADKPKKRVFLQFGINPPFTSGKESIQNQVLEVCGGENIFKDSRVPWPQVSREQVLARSPQAIVITGGPDQIPKIKQYWGEQLKIPVIPLTSDWFERASPRIILAAQQLCNALSQVDSGSHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	506.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	4fi3A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3470 — ABC transporter involved in vitamin B12 uptake, BtuC
Homologous superfamily homologous superfamily	10 — ABC transporter involved in vitamin B12 uptake, BtuC

Domain ID domain_id	4fi3B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3470 — ABC transporter involved in vitamin B12 uptake, BtuC
Homologous superfamily homologous superfamily	10 — ABC transporter involved in vitamin B12 uptake, BtuC

Domain ID domain_id	4fi3C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	4fi3D00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	4fi3F01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1980 — Nitrogenase molybdenum iron protein domain

Domain ID domain_id	4fi3F02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1980 — Nitrogenase molybdenum iron protein domain

▶

Unit-cell length a length_a	127.730 Å
Unit-cell length b length_b	211.990 Å
Unit-cell length c length_c	179.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	3.466 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2323
R_work r_work	0.2293
R_free r_free	0.2738

Structure of vitamin B12 transporter BtuCD-F in a nucleotide-bound state
