Crystal structure of HIV-1 reverse transcriptase (RT) in complex with Rilpivirine (TMC278, Edurant), a non-nucleoside rt-inhibiting drug

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Reverse transcriptase/ribonuclease H

Human immunodeficiency virus type 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile × 1 SULFATE ION × 6 1,2-ETHANEDIOL × 5 MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV1B1
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 3–557； UniProt 600–1154 Author chain B； PDBConstruct 1–428； UniProt 600–1027

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4g1q
Deposition date deposition_date	2012-07-11
Structure title title	Crystal structure of HIV-1 reverse transcriptase (RT) in complex with Rilpivirine (TMC278, Edurant), a non-nucleoside rt-inhibiting drug
Keywords keywords	;P51/P66, HETERO DIMER, NNRTI, NONNUCLEOSIDE INHIBITOR, AIDS, HIV, R278474, DIARYLPYRIMIDINE, DAPY, DNA RECOMBINATION, RNA-DIRECTED DNA POLYMERASE, DNA POLYMERASE, ENDONUCLEASE, HYDROLASE, MULTIFUNCTIONAL ENZYME, TRANSFERASE, HYDROLASE-INHIBITOR complex ;; TRANSFERASE, HYDROLASE/INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4g1q__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4g1q__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

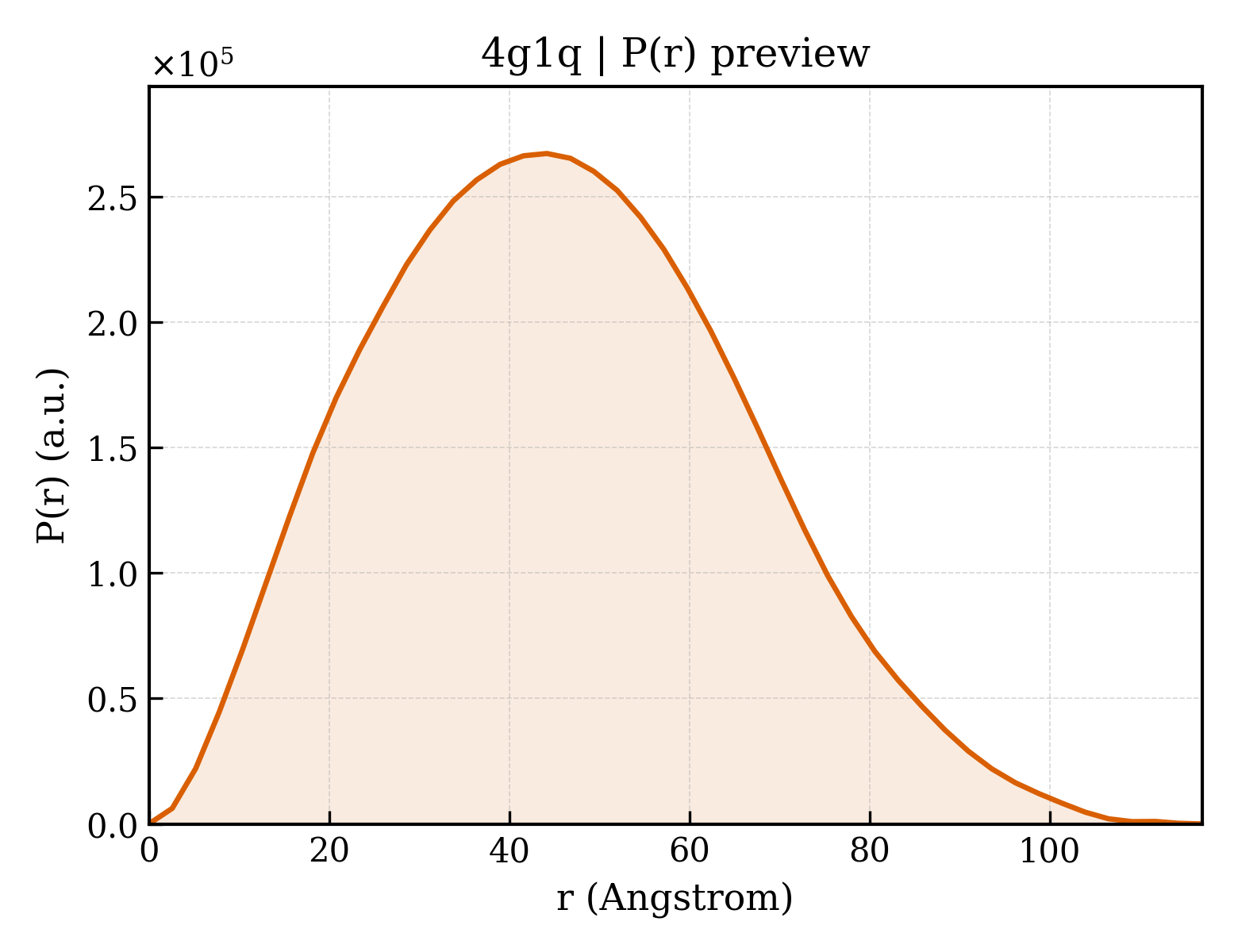

4g1q__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.40 Å
Rg (electron density)	34.71 Å
Total Rg	35.39 Å
Atom count	15876
Residues	972
Excluded volume	144530 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4g1q__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Reverse transcriptase/ribonuclease H
Molecular weight formula_weight	63989.2 kDa
EC 编号 ec_number	2.7.7.49, 2.7.7.7, 3.1.26.13
Mutation mutation	K172A, K173A, C280S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	16771

MVPISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFAAQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSAG

Source Source

Source organism organism	Human immunodeficiency virus type 1
Common name common_name	HIV-1
NCBI taxonomy ID ncbi_taxonomy_id	11678
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	p51 RT
Molecular weight formula_weight	50039.5 kDa
EC 编号 ec_number	2.7.7.49, 2.7.7.7, 3.1.26.13
Mutation mutation	C280S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

PISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ

Source Source

Source organism organism	Human immunodeficiency virus type 1
Common name common_name	HIV-1
NCBI taxonomy ID ncbi_taxonomy_id	11678
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	4-{[4-({4-[(E)-2-cyanoethenyl]-2,6-dimethylphenyl}amino)pyrimidin-2-yl]amino}benzonitrile
Molecular weight formula_weight	366.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	824

▼

6. Fold Classification (SCOP + CATH) 13 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d4g1qa1
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.2 — Reverse transcriptase

Domain ID domain_id	d4g1qa2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.0 — automated matches

Domain ID domain_id	d4g1qa3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d4g1qb_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.2 — Reverse transcriptase

CATH v4.4 (9 domains)

Domain ID domain_id	4g1qA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1

Domain ID domain_id	4g1qA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	4g1qA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	4g1qA04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	4g1qA05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	4g1qB01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1

Domain ID domain_id	4g1qB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	4g1qB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	4g1qB04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

▶

7. Citations (6)

Snapshot of the equilibrium dynamics of a drug bound to HIV-1 reverse transcriptase.

Nat Chem (2013)

PMID: 23422558 · DOI: 10.1038/nchem.1559 PRIMARY

HIV-1 reverse transcriptase complex with DNA and nevirapine reveals non-nucleoside inhibition mechanism.

Nat.Struct.Mol.Biol. (2012)

PMID: 22266819 · DOI: 10.1038/nsmb.2223

;High-resolution structures of HIV-1 reverse transcriptase/TMC278 complexes: strategic flexibility explains potency against resistance mutations. ;

Proc.Natl.Acad.Sci.USA (2008)

PMID: 18230722 · DOI: 10.1073/pnas.0711209105

Crystal engineering of HIV-1 reverse transcriptase for structure-based drug design.

Nucleic Acids Res. (2008)

PMID: 18676450 · DOI: 10.1093/nar/gkn464

;Crystal structures of clinically relevant Lys103Asn/Tyr181Cys double mutant HIV-1 reverse transcriptase in complexes with ATP and non-nucleoside inhibitor HBY 097. ;

J.Mol.Biol. (2007)

PMID: 17056061 · DOI: 10.1016/j.jmb.2006.08.097

;Roles of conformational and positional adaptability in structure-based design of TMC125-R165335 (etravirine) and related non-nucleoside reverse transcriptase inhibitors that are highly potent and effective against wild-type and drug-resistant HIV-1 variants. ;

J.Med.Chem. (2004)

PMID: 15115397 · DOI: 10.1021/jm030558s

Unit-cell length a length_a	162.713 Å
Unit-cell length b length_b	72.517 Å
Unit-cell length c length_c	109.514 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	100.84 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.510 Å
Low-resolution limit resolution_low	35.853 Å
R factor r_factor	0.1550
R_work r_work	0.1542
R_free r_free	0.1932
