1. Protein Identity and Related Structures Protein Identity & Related Structures

Thioredoxin-interacting protein

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 4–154	Fragment：N-terminal domain (UNP residues 4-154) Mutation：F4V,K5A,K6A	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.75 M sodium/potassium phosphate, 0.1 M HEPES sodium, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 1.60 Å R-free 0.227

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4GFX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4GEI N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：K64A, C36S, C49S, C120S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions batch；pH 7.15；277 K；25mM Hepes, 1 mM DTT, pH 7.15, batch, temperature 277K	Resolution 1.50 Å R-free 0.203
4GEJ N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：C36S, C49S, C120S	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1 M Hepes, 0.2 M Calcium Acetate, 10-12% PEG monomethyl ether 5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.294
4GEJ N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain J 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：C36S, C49S, C120S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1 M Hepes, 0.2 M Calcium Acetate, 10-12% PEG monomethyl ether 5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.294
4GEJ N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：C36S, C49S, C120S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1 M Hepes, 0.2 M Calcium Acetate, 10-12% PEG monomethyl ether 5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.294
4GEJ N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：C36S, C49S, C120S	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1 M Hepes, 0.2 M Calcium Acetate, 10-12% PEG monomethyl ether 5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.294
4GEJ N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：C36S, C49S, C120S	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1 M Hepes, 0.2 M Calcium Acetate, 10-12% PEG monomethyl ether 5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.294
4GEJ N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：C36S, C49S, C120S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1 M Hepes, 0.2 M Calcium Acetate, 10-12% PEG monomethyl ether 5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.294
4GEJ N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：C36S, C49S, C120S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1 M Hepes, 0.2 M Calcium Acetate, 10-12% PEG monomethyl ether 5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.294
4GEJ N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：C36S, C49S, C120S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1 M Hepes, 0.2 M Calcium Acetate, 10-12% PEG monomethyl ether 5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.294
4GEJ N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：C36S, C49S, C120S	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1 M Hepes, 0.2 M Calcium Acetate, 10-12% PEG monomethyl ether 5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.294
4GEJ N-terminal domain of VDUP-1 Deposited 2012-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 2–149（148 aa） Fragment：N-terminal domain, UNP residues 2-149	Mutation：C36S, C49S, C120S	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；0.1 M Hepes, 0.2 M Calcium Acetate, 10-12% PEG monomethyl ether 5000, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.294
4LL1 The structure of the TRX and TXNIP complex Deposited 2013-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 3–317（315 aa） Fragment：UNP residues 3-317 Chain C 3–317（315 aa） Fragment：UNP residues 3-317	Mutation：C120S, C170S, C205S, C267S Mutation：C120S, C170S, C205S, C267S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294.15 K；0.16M tri-sodium citrate, 16% PEG3350, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 294.15K	Resolution 2.00 Å R-free 0.288
4LL4 The structure of the TRX and TXNIP complex Deposited 2013-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 3–317（315 aa） Fragment：UNP residues 3-317 Chain C 3–317（315 aa） Fragment：UNP residues 3-317	Mutation：C170S, C205S, C267S Mutation：C170S, C205S, C267S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294.15 K；0.16M tri-sodium citrate, 16% PEG3350, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 294.15K	Resolution 2.70 Å R-free 0.264
4ROF Crystal Structure of WW3 domain of ITCH in complex with TXNIP peptide Deposited 2014-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 327–338（12 aa） Fragment：UNP residues 327-338	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.8 M ammonium sulfate, 0.2 M sodium acetate, 0.1 M sodium cacodylate pH 5.5, vapor diffusion, sitting drop, temperature 293K	Resolution 2.03 Å R-free 0.297
4ROF Crystal Structure of WW3 domain of ITCH in complex with TXNIP peptide Deposited 2014-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 327–338（12 aa） Fragment：UNP residues 327-338	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.8 M ammonium sulfate, 0.2 M sodium acetate, 0.1 M sodium cacodylate pH 5.5, vapor diffusion, sitting drop, temperature 293K	Resolution 2.03 Å R-free 0.297
4ROJ Crystal Structure of the VAV2 SH2 domain in complex with TXNIP phosphorylated peptide Deposited 2014-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 327–338（12 aa） Fragment：UNP residues 327-338	Non-standard monomer：Yes (specific site not provided by mmCIF)	UNX UNKNOWN LIGAND × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG550-MME, 0.1 M ammonium sulfate, 0.1 M cacodylate pH 6.5, vapor diffusion, sitting drop, temperature 293K	Resolution 1.95 Å R-free 0.219
4ROJ Crystal Structure of the VAV2 SH2 domain in complex with TXNIP phosphorylated peptide Deposited 2014-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 327–338（12 aa） Fragment：UNP residues 327-338	Non-standard monomer：Yes (specific site not provided by mmCIF)	UNX UNKNOWN LIGAND × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG550-MME, 0.1 M ammonium sulfate, 0.1 M cacodylate pH 6.5, vapor diffusion, sitting drop, temperature 293K	Resolution 1.95 Å R-free 0.219
4ROJ Crystal Structure of the VAV2 SH2 domain in complex with TXNIP phosphorylated peptide Deposited 2014-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 327–338（12 aa） Fragment：UNP residues 327-338	Non-standard monomer：Yes (specific site not provided by mmCIF)	UNX UNKNOWN LIGAND × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG550-MME, 0.1 M ammonium sulfate, 0.1 M cacodylate pH 6.5, vapor diffusion, sitting drop, temperature 293K	Resolution 1.95 Å R-free 0.219
5CQ2 Crystal Structure of tandem WW domains of ITCH in complex with TXNIP peptide Deposited 2015-07-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 327–338（12 aa） Fragment：UNP Residues 327-338 Chain C 327–338（12 aa） Fragment：UNP Residues 327-338	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	UNX UNKNOWN LIGAND × 72	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；293 K；30% PEG4000, 0.2 M magnesium chloride, 0.1 M TRIS	Resolution 1.40 Å R-free 0.184
5DZD Crystal Structure of WW4 domain of ITCH in complex with TXNIP peptide Deposited 2015-09-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 327–338（12 aa） Fragment：UNP residues 327-338 Chain D 327–338（12 aa） Fragment：UNP residues 327-338	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	UNX UNKNOWN LIGAND × 17	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；2 M sodium formate, 0.1 M Tris, pH 8.5	Resolution 1.57 Å R-free 0.206

8 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TXNIP_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–151； UniProt 4–154

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4gfx
Deposition date deposition_date	2012-08-04
Structure title title	Crystal structure of the N-terminal domain of TXNIP
Keywords keywords	Arrestin-like fold, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.24 Å
Radius of gyration Rg (electron density) rg_electron	18.42 Å
Forward intensity I(0) i0	5242290.00
Molecular weight molecular_weight	16994.0 kDa
Excluded volume excluded_volume	21415 Å³
Envelope volume envelope_volume	25845 Å³
Hydration-shell volume shell_volume	13005 Å³
Envelope diameter envelope_diameter	64.3 Å
Shell Rg shell_rg	22.82 Å
Envelope Rg envelope_rg	18.70 Å
Shape Rg shape_rg	18.36 Å
Total Rg total_rg	19.35 Å
Total atoms total_atoms	1195
Residues n_residues	151
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	66.0 Å
Rg (real space) rg_real	19.39 Å
Rg uncertainty (real space) rg_real_error	0.56 Å
I(0) (real space) i0_real	5.2420e+06
I(0) uncertainty (real space) i0_real_error	7.8800e+04
Rg (reciprocal space) rg_reciprocal	19.37 Å
I(0) (reciprocal space) i0_reciprocal	5242000.0000
Solution quality estimate total_estimate	0.8458
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.3 Å
Skewness Skewness skewness	0.495
Kurtosis Kurtosis kurtosis	-0.352
Angular range angular_range	— – 0.4150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1286000.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.747; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.766; Smooth: 0.983

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Thioredoxin-interacting protein
Molecular weight formula_weight	17057.5 kDa
Mutation mutation	F4V,K5A,K6A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1310

VAAIKSFEVVFNDPEKVYGSGEKVAGRVIVEVCEVTRVKAVRILACGVAKVLWMQGSQQCKQTSEYLRYEDTLLLEDQPTGENEMVIMRPGNKYEYKFGFELPQGPLGTSFKGKYGCVDYWVKAFLDRPSQPTQETKKNFEVVDLVDVNTP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	100

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4gfxA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	640 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	37.431 Å
Unit-cell length b length_b	56.621 Å
Unit-cell length c length_c	67.660 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	18.780 Å
R factor r_factor	0.1742
R_work r_work	0.1714
R_free r_free	0.2271

fit	/app/data/saxs_computation/gf/4gfx/4gfx.fit
pddf	/app/data/pr_computation/gf/4gfx/4gfx.pr.out
profile	/app/data/saxs_computation/gf/4gfx/4gfx.dat

Crystal structure of the N-terminal domain of TXNIP

1. Protein Identity and Related Structures Protein Identity & Related Structures

Thioredoxin-interacting protein

State in the Current Structure

Other States of the Same Protein in the Database

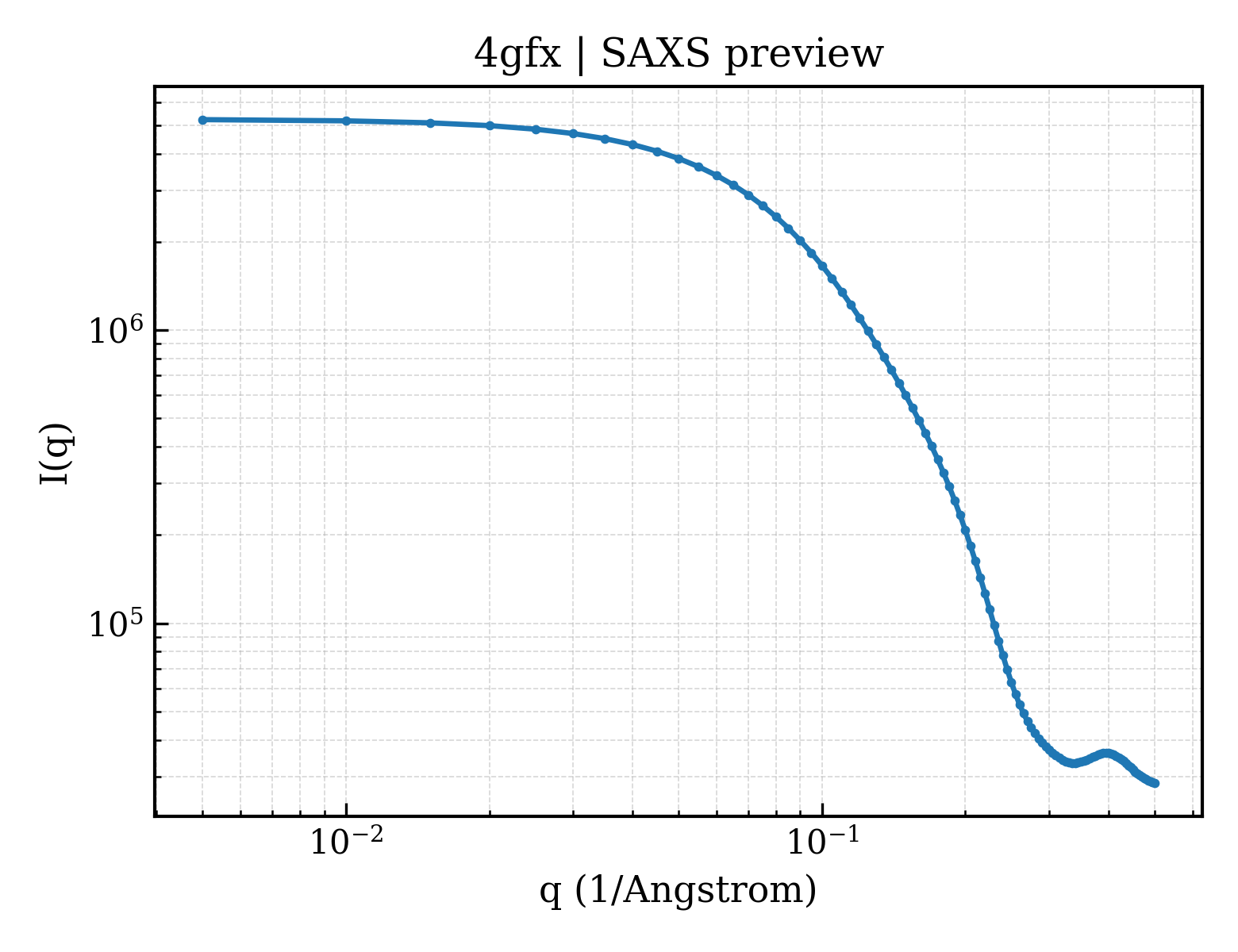

SAXS scattering curve SAXS Profile
