4gwm

Crystal structure of human promeprin beta

Method: X-RAY DIFFRACTION D_max: 111.1 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Meprin A subunit beta

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Homooligomer Protein × 2 其他Polymer 10 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 23–614 Chain B； UniProt 23–614	Fragment：Promeprin beta ectomoiety, UNP residues 23-614 Mutation：T23P, P24W	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 alpha-L-fucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 ;alpha-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 ZN ZINC ION × 2 NA SODIUM ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CL CHLORIDE ION × 5 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9；293 K；18.2%(wt/vol) PEG8000, 1M LiCl, 0.1M bicine, pH 9.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.85 Å R-free 0.188

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4GWM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4GWN Crystal structure of human mature meprin beta Deposited 2012-09-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 62–614（553 aa） Fragment：Mature meprin beta ectomoiety, UNP residues 62-614	Not recorded	CD CADMIUM ION × 2 NA SODIUM ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20%(wt/vol) PEG 3350, 0.2M sodium malonate, 0.1M bis-Tris propane, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.00 Å R-free 0.238
7AQ1 Crystal structure of human mature meprin beta in complex with the specific inhibitor MWT-S-270 Deposited 2020-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimer	Chain A 62–595（534 aa） Chain B 62–595（534 aa）	Not recorded	ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 5 RUE 3-[[(3-Carboxyphenyl)methyl-[2-(hydroxyamino)-2-oxoethyl]amino]methyl]benzoic acid × 2 CA CALCIUM ION × 4 CL CHLORIDE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；286 K；Protein was mixed with inhibitor in a molar ratio of 1 to 1.2 to a final protein concentration of 8 mg/mL in 30 mM Tris, 100 mM sodium chloride, pH 7.6. 200 nL protein/inhibitor was mixed with 200 nL praezipitation buffer and equilibrated against 55 micro Liter of praezipitation buffer, containing 25 percent (w/v) PEG 4000 and 30 percent (v/v) ethylene glycol.	Resolution 2.41 Å R-free 0.236
7AUW Inhibitory complex of human meprin beta with mouse fetuin-B. Deposited 2020-11-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 62–608（547 aa） Chain C 62–608（547 aa）	Not recorded	NA SODIUM ION × 2 ZN ZINC ION × 2 SO4 SULFATE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.3；293 K；20.0% PEG smear medium, 0.1M ammonium sulfate, 0.05M magnesium sulfate heptahydrate, 0.1M bicine pH 9.3, 10% ethylene glycol.	Resolution 2.80 Å R-free 0.261

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MEP1B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–592； UniProt 23–614 Author chain B； PDBConstruct 1–592； UniProt 23–614

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

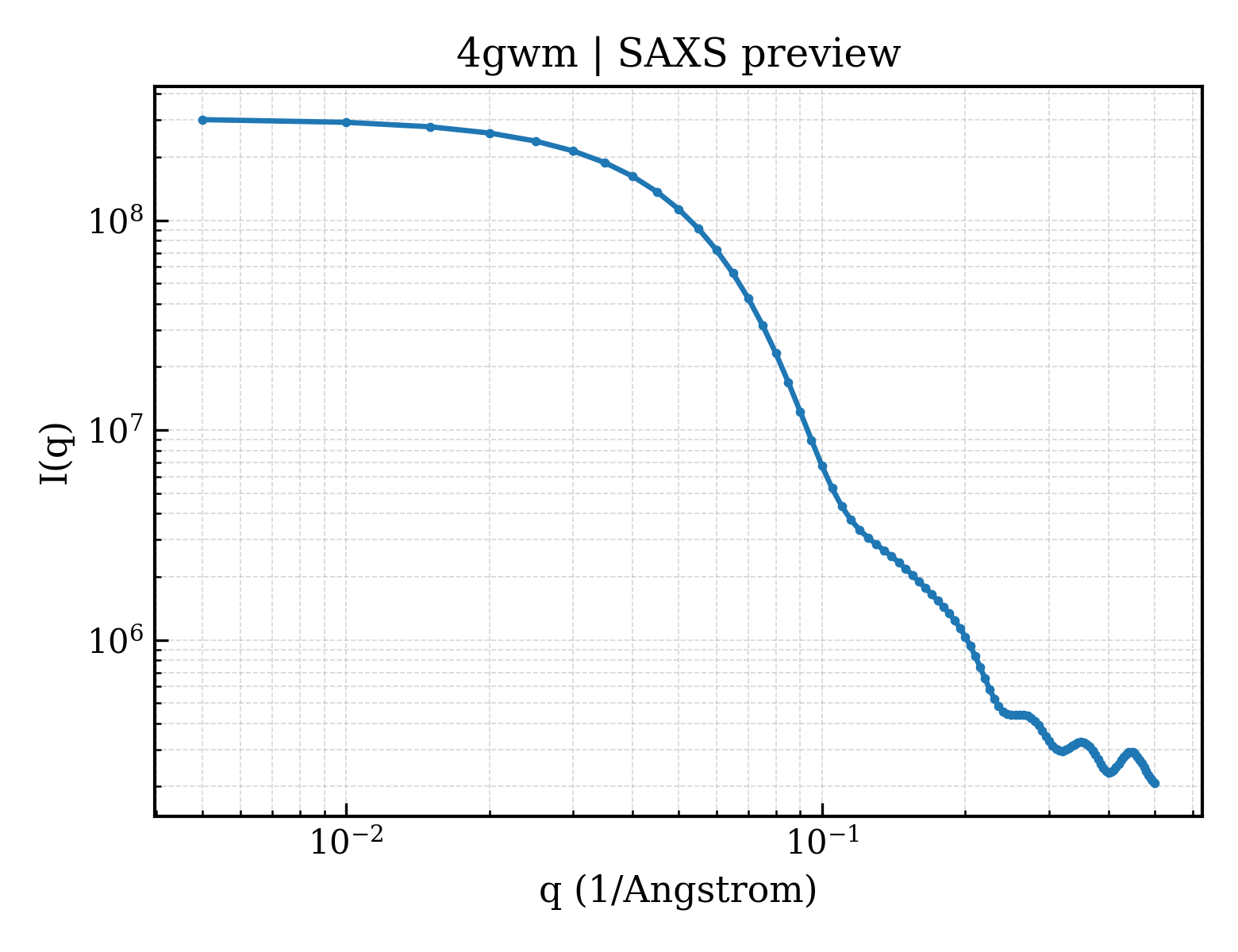

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4gwm
Deposition date deposition_date	2012-09-03
Structure title title	Crystal structure of human promeprin beta
Keywords keywords	Mulidomain structure, Hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.27 Å
Radius of gyration Rg (electron density) rg_electron	33.49 Å
Forward intensity I(0) i0	304713000.00
Molecular weight molecular_weight	136190.0 kDa
Excluded volume excluded_volume	168320 Å³
Envelope volume envelope_volume	219050 Å³
Hydration-shell volume shell_volume	52817 Å³
Envelope diameter envelope_diameter	118.2 Å
Shell Rg shell_rg	41.51 Å
Envelope Rg envelope_rg	33.41 Å
Shape Rg shape_rg	33.49 Å
Total Rg total_rg	34.03 Å
Total atoms total_atoms	9572
Residues n_residues	1115
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	111.1 Å
Rg (real space) rg_real	34.17 Å
Rg uncertainty (real space) rg_real_error	0.68 Å
I(0) (real space) i0_real	3.0470e+08
I(0) uncertainty (real space) i0_real_error	4.8000e+06
Rg (reciprocal space) rg_reciprocal	34.23 Å
I(0) (reciprocal space) i0_reciprocal	304700000.0000
Solution quality estimate total_estimate	0.6568
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	43.5 Å
Skewness Skewness skewness	0.285
Kurtosis Kurtosis kurtosis	-0.274
Angular range angular_range	— – 0.2300 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	48370000.0000
Real-space data points n_real_points	47
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.874; Stabil: 1.000; Sysdev: 0.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.921

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Description description	Meprin A subunit beta
Molecular weight formula_weight	67286.7 kDa
EC 编号 ec_number	3.4.24.63
Mutation mutation	T23P, P24W
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	10380

PWENFDVDGGMDQDIFDINEGLGLDLFEGDIRLDRAQIRNSIIGEKYRWPHTIPYVLEDSLEMNAKGVILNAFERYRLKTCIDFKPWAGETNYISVFKGSGCWSSVGNRRVGKQELSIGANCDRIATVQHEFLHALGFWHEQSRSDRDDYVRIMWDRILSGREHNFNTYSDDISDSLNVPYDYTSVMHYSKTAFQNGTEPTIVTRISDFEDVIGQRMDFSDSDLLKLNQLYNCSSSLSFMDSCSFELENVCGMIQSSGDNADWQRVSQVPRGPESDHSNMGQCQGSGFFMHFDSSSVNVGATAVLESRTLYPKRGFQCLQFYLYNSGSESDQLNIYIREYSADNVDGNLTLVEEIKEIPTGSWQLYHVTLKVTKKFRVVFEGRKGSGASLGGLSIDDINLSETRCPHHIWHIRNFTQFIGSPNGTLYSPPFYSSKGYAFQIYLNLAHVTNAGIYFHLISGANDDQLQWPCPWQQATMTLLDQNPDIRQRMSNQRSITTDPFMTTDNGNYFWDRPSKVGTVALFSNGTQFRRGGGYGTSAFITHERLKSRDFIKGDDVYILLTVEDISHLNSTQIQLTPAPSVQDLCSKTTCK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1203.1 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 branched

Description description	alpha-L-fucopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	367.3 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 branched

Description description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1559.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 6 Entity 6 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 7 Entity 7 branched

Description description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1041.0 kDa
Source method src_method	man
Copy count entity_count	1

Entity 8 Entity 8 branched

Description description	;alpha-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	716.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 10 Entity 10 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 12 Entity 12 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 13 Entity 13 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 14 Entity 14 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	808

▼

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	4gwmA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	390 — Collagenase (Catalytic Domain)
Homologous superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

Domain ID domain_id	4gwmA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	4gwmA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	210 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A
Homologous superfamily homologous superfamily	10 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A

Domain ID domain_id	4gwmB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	390 — Collagenase (Catalytic Domain)
Homologous superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

Domain ID domain_id	4gwmB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	4gwmB03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	210 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A
Homologous superfamily homologous superfamily	10 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A

▶

8. Citations (1)

▶

Unit-cell length a length_a	69.620 Å
Unit-cell length b length_b	71.120 Å
Unit-cell length c length_c	85.740 Å
Unit-cell angle α angle_alpha	74.87 °
Unit-cell angle β angle_beta	80.08 °
Unit-cell angle γ angle_gamma	65.13 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	48.450 Å
R factor r_factor	0.1684
R_work r_work	0.1682
R_free r_free	0.1879
