SAXSdb — 4k45

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

1-phosphatidylinositol 4,5-bisphosphate phosphodiesterase gamma-1

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 664–766 Chain B； UniProt 770–787	Fragment：C-terminal SH2 (cSH2) domain Fragment：residues 770 to 787 of PLC-gamma1 Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 6；293 K；100 mM MES, 200 mM ammonium acetate, 35% (w/v) PEG 4,000, microseeding, pH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 1.50 Å R-free 0.198

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4K45	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Y0M Crystal structure of of the SH3 domain of phospholipase C Gamma-1 Deposited 2004-11-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 791–851（61 aa） Fragment：SH3 domain: sequence database residues 791-851	Mutation：C794S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；Tacsimate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.20 Å R-free 0.177
1YWO Phospholipase Cgamma1 SH3 in complex with a SLP-76 motif Deposited 2005-02-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 790–851（62 aa）	Mutation：C5S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；malonate , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.81 Å R-free 0.221
1YWP Phospholipase Cgamma1 SH3 Deposited 2005-02-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 790–851（62 aa） Fragment：Phospholipase C-gamma1	Mutation：C5S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；298 K；PEG 4000, sodium acetate, Tris-HCl, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.60 Å R-free 0.188
2FJL Solution Structure of the Split PH domain in Phospholipase C-gamma1 Deposited 2006-01-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 489–547（59 aa） Fragment：the Split PH2 domain, residuse 1-35 and 112-148 Chain A 851–933（83 aa） Fragment：the Split PH2 domain, residuse 1-35 and 112-148	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；308 K；Pressure ambient NMR sample composition 1.0mM of the PHN-PHC tandem U-15N; 50mM potassium phosphate; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0mM of the PHN-PHC tandem U-15N,13C; 50mM potassium phosphate; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0mM of the PHN-PHC tandem U-15N,13C; 50mM potassium phosphate; 100% D2O \| 100% D2O NMR sample composition 1.0mM of the PHN-PHC tandem; 50mM potassium phosphate; 100% D2O \| 100% D2O	Resolution not provided
3GQI Crystal Structure of activated receptor tyrosine kinase in complex with substrates Deposited 2009-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 545–770（226 aa） Fragment：tandem SH2 domains	Not recorded	DVT DECAVANADATE × 1 ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；PEg 8000, taurine, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.289
4K44 Auto-inhibition and phosphorylation-induced activation of PLC-gamma isozymes Deposited 2013-04-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 664–766（103 aa） Fragment：C-terminal SH2 (cSH2) domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；100 mM MES, 200 mM ammonium acetate, 25% (w/v) PEG 4.000, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.223
4K44 Auto-inhibition and phosphorylation-induced activation of PLC-gamma isozymes Deposited 2013-04-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 664–766（103 aa） Fragment：C-terminal SH2 (cSH2) domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；100 mM MES, 200 mM ammonium acetate, 25% (w/v) PEG 4.000, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.223
5EG3 Crystal Structure of the Activated FGF Receptor 2 (FGFR2) Kinase Domain in complex with the cSH2 domain of Phospholipase C gamma (PLCgamma) Deposited 2015-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 661–773（113 aa） Fragment：UNP residues 661-773	Not recorded	ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；25 mM HEPES (pH 7.5), PEG20000 (12% 18%) and 2% (w/v) Benzamidine hydrochloride	Resolution 2.61 Å R-free 0.237
6PBC Structural basis for the activation of PLC-gamma isozymes by phosphorylation and cancer-associated mutations Deposited 2019-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 791–1215（425 aa）	Not recorded	CA CALCIUM ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；12.5% w/v PEG 3,350, 50 mM di-sodium tartrate, 5% v/v glycerol	Resolution 2.46 Å R-free 0.245
7Z3J Structure of crystallisable rat Phospholipase C gamma 1 in complex with inositol 1,4,5-trisphosphate Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–790（771 aa） Chain A 791–1215（425 aa）	Not recorded	CA CALCIUM ION × 2 I3P D-MYO-INOSITOL-1,4,5-TRIPHOSPHATE × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；18.7 % PEG 3350, 0.1 M CBTP	Resolution 2.00 Å R-free 0.256
9QB7 Structure of rat Phospholipase C gamma 1 mutant S345F Deposited 2025-02-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–765（765 aa） Chain A 791–1290（500 aa）	Mutation：S345F Mutation：S345F	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；18.7 % PEG 3350, 0.1 M CBTP, PH 7.0	Resolution 2.56 Å R-free 0.233

10 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLCG1_RAT
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 4–106； UniProt 664–766 Author chain B； PDBConstruct 1–18； UniProt 770–787

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4k45
Deposition date deposition_date	2013-04-11
Structure title title	Auto-inhibition and phosphorylation-induced activation of PLC-gamma isozymes
Keywords keywords	SH2 domain, PLC-gamma1, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

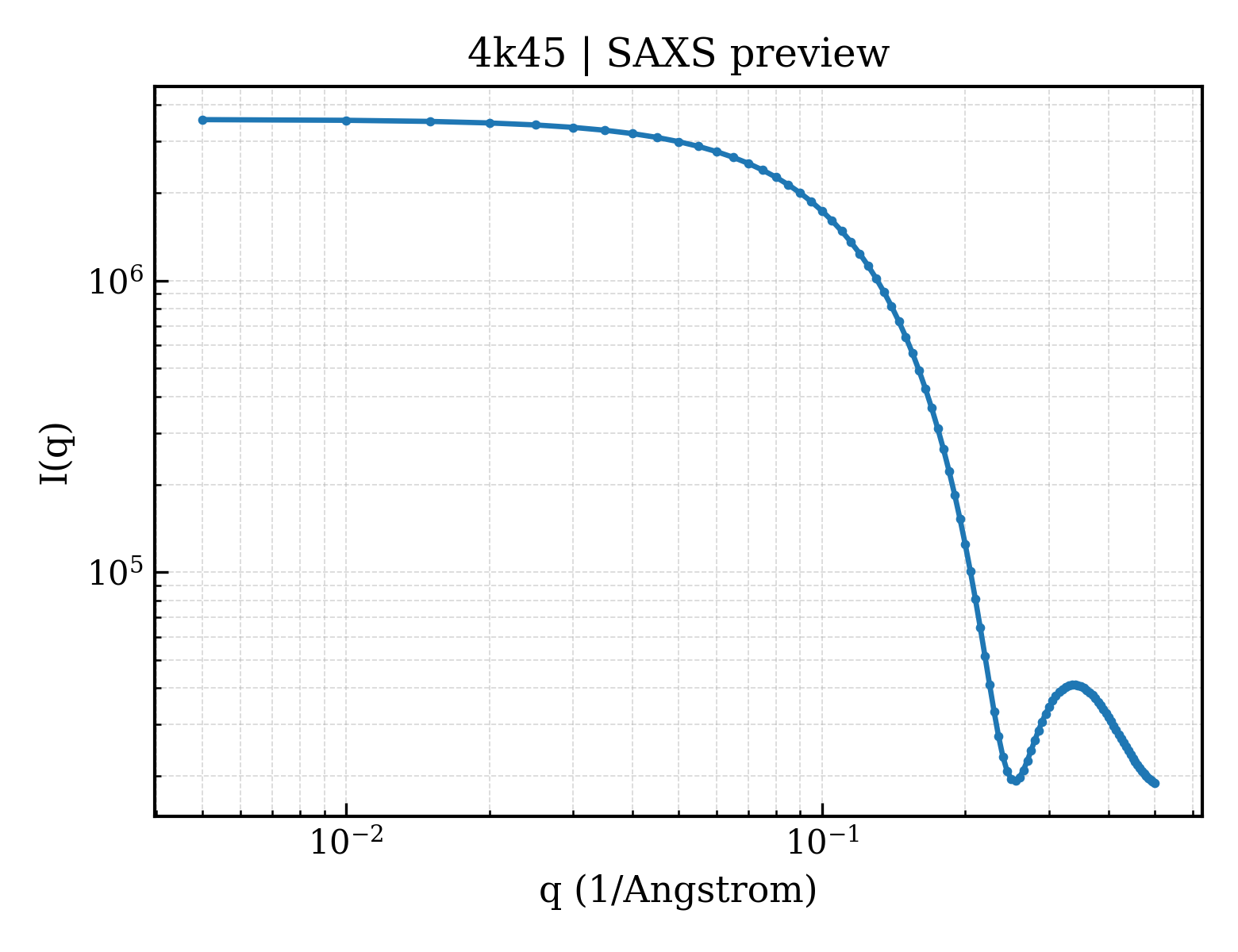

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.56 Å
Radius of gyration Rg (electron density) rg_electron	13.01 Å
Forward intensity I(0) i0	3567450.00
Molecular weight molecular_weight	12800.0 kDa
Excluded volume excluded_volume	15863 Å³
Envelope volume envelope_volume	17848 Å³
Hydration-shell volume shell_volume	11522 Å³
Envelope diameter envelope_diameter	44.3 Å
Shell Rg shell_rg	18.97 Å
Envelope Rg envelope_rg	13.44 Å
Shape Rg shape_rg	12.99 Å
Total Rg total_rg	14.38 Å
Total atoms total_atoms	900
Residues n_residues	109
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

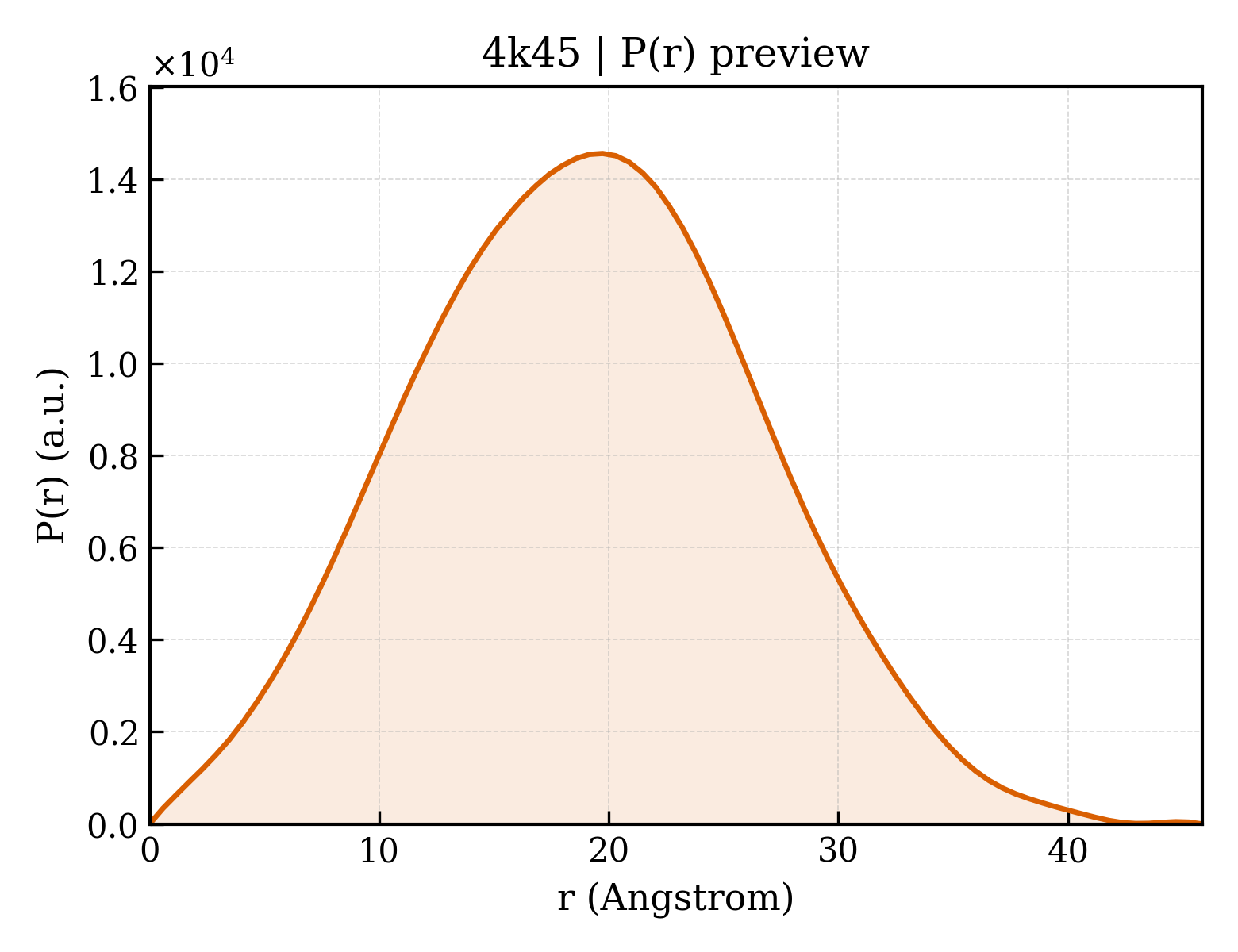

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	45.9 Å
Rg (real space) rg_real	14.45 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	3.5670e+06
I(0) uncertainty (real space) i0_real_error	4.0020e+04
Rg (reciprocal space) rg_reciprocal	14.46 Å
I(0) (reciprocal space) i0_reciprocal	3567000.0000
Solution quality estimate total_estimate	0.8871
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.7 Å
Skewness Skewness skewness	0.096
Kurtosis Kurtosis kurtosis	-0.343
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	872700.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.849; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.992

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	1-phosphatidylinositol 4,5-bisphosphate phosphodiesterase gamma-1
Molecular weight formula_weight	12438.2 kDa
EC 编号 ec_number	3.1.4.11
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	999

SQAESKEWYHASLTRAQAEHMLMRVPRDGAFLVRKRNEPNSYAISFRAEGKIKHCRVQQEGQTVMLGNSEFDSLVDLISYYEKHPLYRKMKLRYPINEEALEKIGT

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	1-phosphatidylinositol 4,5-bisphosphate phosphodiesterase gamma-1, short peptide
Molecular weight formula_weight	2116.1 kDa
EC 编号 ec_number	3.1.4.11
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DYGALYEGRNPGFYVEAN

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	80

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4k45A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	505 — SHC Adaptor Protein
Homologous superfamily homologous superfamily	10 — SH2 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	29.013 Å
Unit-cell length b length_b	54.506 Å
Unit-cell length c length_c	59.865 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	40.303 Å
R factor r_factor	0.1629
R_work r_work	0.1729
R_free r_free	0.1980

fit	/app/data/saxs_computation/k4/4k45/4k45.fit
pddf	/app/data/pr_computation/k4/4k45/4k45.pr.out
profile	/app/data/saxs_computation/k4/4k45/4k45.dat
