SAXSdb — 1ywo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

1-phosphatidylinositol-4,5-bisphosphate phosphodiesterase gamma 1

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 790–851	Mutation：C5S	Lymphocyte cytosolic protein 2 × 1 （Q13094）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；malonate , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.81 Å R-free 0.221

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1YWO	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Y0M Crystal structure of of the SH3 domain of phospholipase C Gamma-1 Deposited 2004-11-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 791–851（61 aa） Fragment：SH3 domain: sequence database residues 791-851	Mutation：C794S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；Tacsimate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.20 Å R-free 0.177
1YWP Phospholipase Cgamma1 SH3 Deposited 2005-02-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 790–851（62 aa） Fragment：Phospholipase C-gamma1	Mutation：C5S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；298 K；PEG 4000, sodium acetate, Tris-HCl, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.60 Å R-free 0.188
2FJL Solution Structure of the Split PH domain in Phospholipase C-gamma1 Deposited 2006-01-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 489–547（59 aa） Fragment：the Split PH2 domain, residuse 1-35 and 112-148 Chain A 851–933（83 aa） Fragment：the Split PH2 domain, residuse 1-35 and 112-148	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；308 K；Pressure ambient NMR sample composition 1.0mM of the PHN-PHC tandem U-15N; 50mM potassium phosphate; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0mM of the PHN-PHC tandem U-15N,13C; 50mM potassium phosphate; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0mM of the PHN-PHC tandem U-15N,13C; 50mM potassium phosphate; 100% D2O \| 100% D2O NMR sample composition 1.0mM of the PHN-PHC tandem; 50mM potassium phosphate; 100% D2O \| 100% D2O	Resolution not provided
3GQI Crystal Structure of activated receptor tyrosine kinase in complex with substrates Deposited 2009-03-24	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 545–770（226 aa） Fragment：tandem SH2 domains	Not recorded	DVT DECAVANADATE × 1 ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；PEg 8000, taurine, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.289
4K44 Auto-inhibition and phosphorylation-induced activation of PLC-gamma isozymes Deposited 2013-04-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 664–766（103 aa） Fragment：C-terminal SH2 (cSH2) domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；100 mM MES, 200 mM ammonium acetate, 25% (w/v) PEG 4.000, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.223
4K44 Auto-inhibition and phosphorylation-induced activation of PLC-gamma isozymes Deposited 2013-04-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 664–766（103 aa） Fragment：C-terminal SH2 (cSH2) domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；100 mM MES, 200 mM ammonium acetate, 25% (w/v) PEG 4.000, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.223
4K45 Auto-inhibition and phosphorylation-induced activation of PLC-gamma isozymes Deposited 2013-04-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 664–766（103 aa） Fragment：C-terminal SH2 (cSH2) domain Chain B 770–787（18 aa） Fragment：residues 770 to 787 of PLC-gamma1	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；100 mM MES, 200 mM ammonium acetate, 35% (w/v) PEG 4,000, microseeding, pH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 1.50 Å R-free 0.198
5EG3 Crystal Structure of the Activated FGF Receptor 2 (FGFR2) Kinase Domain in complex with the cSH2 domain of Phospholipase C gamma (PLCgamma) Deposited 2015-10-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 661–773（113 aa） Fragment：UNP residues 661-773	Not recorded	ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；25 mM HEPES (pH 7.5), PEG20000 (12% 18%) and 2% (w/v) Benzamidine hydrochloride	Resolution 2.61 Å R-free 0.237
6PBC Structural basis for the activation of PLC-gamma isozymes by phosphorylation and cancer-associated mutations Deposited 2019-06-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 791–1215（425 aa）	Not recorded	CA CALCIUM ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；12.5% w/v PEG 3,350, 50 mM di-sodium tartrate, 5% v/v glycerol	Resolution 2.46 Å R-free 0.245
7Z3J Structure of crystallisable rat Phospholipase C gamma 1 in complex with inositol 1,4,5-trisphosphate Deposited 2022-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–790（771 aa） Chain A 791–1215（425 aa）	Not recorded	CA CALCIUM ION × 2 I3P D-MYO-INOSITOL-1,4,5-TRIPHOSPHATE × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；18.7 % PEG 3350, 0.1 M CBTP	Resolution 2.00 Å R-free 0.256
9QB7 Structure of rat Phospholipase C gamma 1 mutant S345F Deposited 2025-02-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–765（765 aa） Chain A 791–1290（500 aa）	Mutation：S345F Mutation：S345F	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；18.7 % PEG 3350, 0.1 M CBTP, PH 7.0	Resolution 2.56 Å R-free 0.233

10 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLCG1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–64； UniProt 790–851

Lymphocyte cytosolic protein 2

OrganismNot specified

UniProt Q13094

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain P； UniProt 185–194	Not recorded	1-phosphatidylinositol-4,5-bisphosphate phosphodiesterase gamma 1 × 1 （P10686）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；malonate , pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.81 Å R-free 0.221

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1YWO	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1H3H Structural Basis for Specific Recognition of an RxxK-containing SLP-76 peptide by the Gads C-terminal SH3 domain Deposited 2002-09-03	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 226–235（10 aa） Fragment：RESIDUES 226-235	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；285 K；Ionic strength (raw mmCIF value) 100MM NACL, 50MM SODIUM PHOSPHATE；Pressure 1	Resolution not provided
2EAP Solution structure of the N-terminal SAM-domain of human lymphocyte cytosolic protein 2 Deposited 2007-01-31	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–83（83 aa） Fragment：N-terminal SAM domain, residues 8-90	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure AMBIENT NMR sample composition 1.16mM SAM DOMAIN; 20mM d-TRIS-HCL; 100mM NaCl; 1mM d-DTT; 0.02 % NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2ROR Solution structure of the VAV1 SH2 domain complexed with a tyrosine-phosphorylated peptide from SLP76 Deposited 2008-04-08	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 122–136（15 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120；Pressure ambient NMR sample composition 1.08mM [U-13C; U-15N] Proto-oncogene vav; 1.08mM tyrosine-phosphorylated peptide; 20mM [U-2H] TRIS; 100mM sodium chloride; 0.02% sodium azide; 1mM [U-2H] DTT; 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LCP2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain P； PDBConstruct 1–10； UniProt 185–194

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ywo
Deposition date deposition_date	2005-02-18
Structure title title	Phospholipase Cgamma1 SH3 in complex with a SLP-76 motif
Keywords keywords	SH3, Phospholipase C-gamma1, SLP-76, SH2 domain-containing leukocyte phosphoprotein of 76 kD, HYDROLASE, SIGNALING PROTEIN; HYDROLASE, SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.40 Å
Radius of gyration Rg (electron density) rg_electron	10.87 Å
Forward intensity I(0) i0	1277090.00
Molecular weight molecular_weight	7559.0 kDa
Excluded volume excluded_volume	9475 Å³
Envelope volume envelope_volume	10365 Å³
Hydration-shell volume shell_volume	8261 Å³
Envelope diameter envelope_diameter	37.1 Å
Shell Rg shell_rg	16.39 Å
Envelope Rg envelope_rg	11.40 Å
Shape Rg shape_rg	10.79 Å
Total Rg total_rg	12.58 Å
Total atoms total_atoms	536
Residues n_residues	65
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

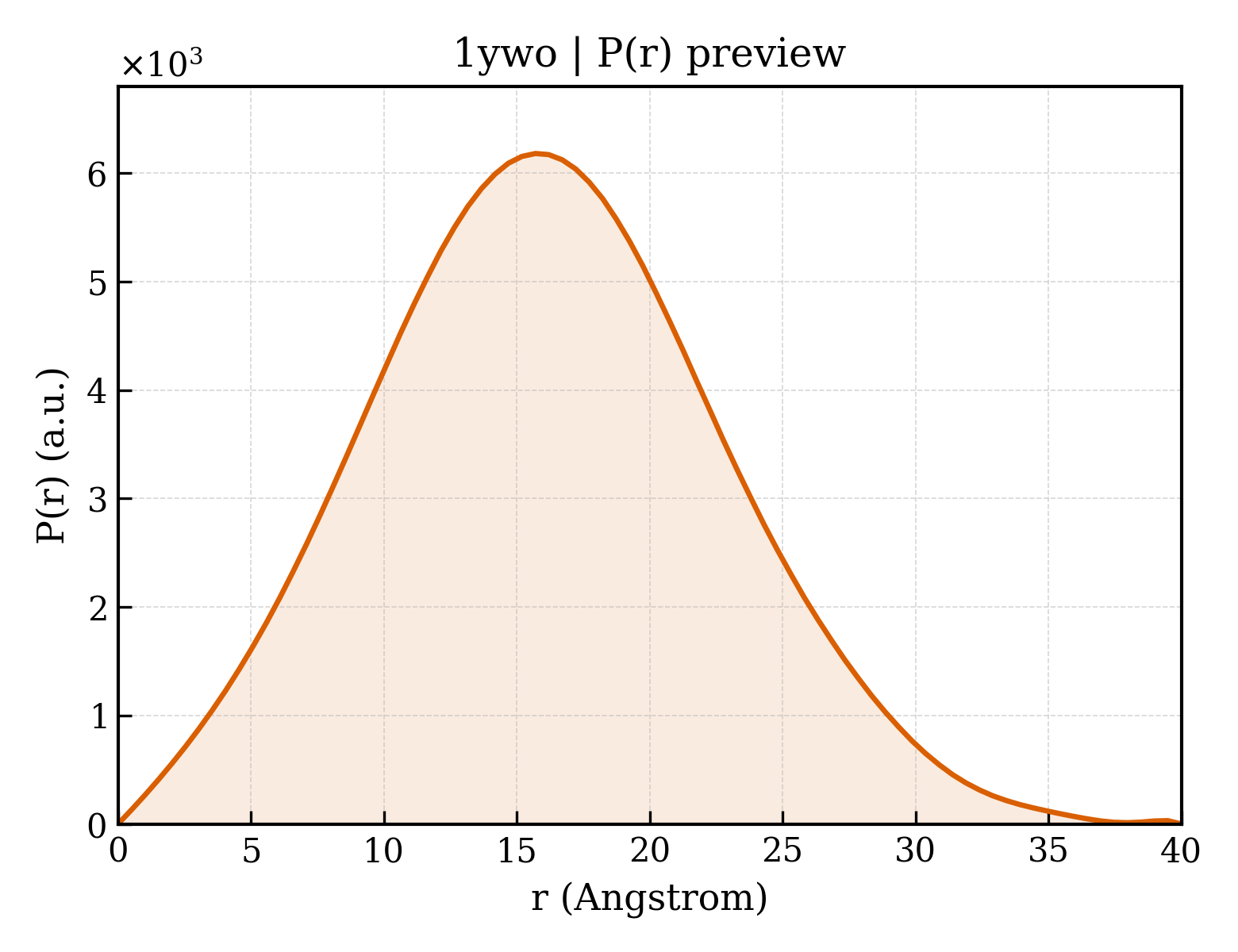

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	40.0 Å
Rg (real space) rg_real	12.32 Å
Rg uncertainty (real space) rg_real_error	0.25 Å
I(0) (real space) i0_real	1.2770e+06
I(0) uncertainty (real space) i0_real_error	1.2790e+04
Rg (reciprocal space) rg_reciprocal	12.33 Å
I(0) (reciprocal space) i0_reciprocal	1277000.0000
Solution quality estimate total_estimate	0.8797
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	15.7 Å
Skewness Skewness skewness	0.180
Kurtosis Kurtosis kurtosis	-0.244
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	428000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.819; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.979

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	1-phosphatidylinositol-4,5-bisphosphate phosphodiesterase gamma 1
Molecular weight formula_weight	7414.3 kDa
EC 编号 ec_number	3.1.4.11
Mutation mutation	C5S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	614

GSPTFKSAVKALFDYKAQREDELTFTKSAIIQNVEKQDGGWWRGDYGGKKQLWFPSNYVEEMIN

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Lymphocyte cytosolic protein 2
Molecular weight formula_weight	1147.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

QPPVPPQRPM

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	67

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ywoa_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.2 — SH3-domain
Family Family family	b.34.2.1 — SH3-domain

CATH v4.4 (1 domains)

Domain ID domain_id	1ywoA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

▶

8. Citations (1)

▶

Unit-cell length a length_a	46.723 Å
Unit-cell length b length_b	46.723 Å
Unit-cell length c length_c	58.112 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.810 Å
Low-resolution limit resolution_low	36.420 Å
R factor r_factor	0.1729
R_work r_work	0.1706
R_free r_free	0.2213

fit	/app/data/saxs_computation/yw/1ywo/1ywo.fit
pddf	/app/data/pr_computation/yw/1ywo/1ywo.pr.out
profile	/app/data/saxs_computation/yw/1ywo/1ywo.dat
