SAXSdb — 4klz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GTP-binding protein Rit1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 19–189	Fragment：GTP binding domain, unp residues 19-189	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；11-14% w/v PEG4000, 5-8% v/v Jeffamine M600, imidazole , VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.30 Å R-free 0.311

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4KLZ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9MEY Crystal structure of RIT1(GDP) bound to LZTR1(Kelch domain) Deposited 2024-12-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–197（196 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；277 K；44% Morpheus II PPT7, 100mM MonoSach II, 100mM MB6 buffer pH 8.2	Resolution 2.95 Å R-free 0.256
9MEY Crystal structure of RIT1(GDP) bound to LZTR1(Kelch domain) Deposited 2024-12-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 2–197（196 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；277 K；44% Morpheus II PPT7, 100mM MonoSach II, 100mM MB6 buffer pH 8.2	Resolution 2.95 Å R-free 0.256
9MF1 Crystal structure of RIT1 in the GDP state Deposited 2024-12-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–197（196 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；293 K；10% w/v PEG 6000, 0.1M Bicine pH 9.0	Resolution 2.20 Å R-free 0.230

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RIT1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–173； UniProt 19–189

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4klz
Deposition date deposition_date	2013-05-07
Structure title title	Inhibition of Small GTPases by Stabilization of the GDP Complex, a Novel Approach applied to Rit1, a Target for Rheumatoid Arthritis
Keywords keywords	small GTPase, molecular switch (GTPase), GDP/GTP binding, PROTEIN BINDING, GUANINE NUCLEOTIDE BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.17 Å
Radius of gyration Rg (electron density) rg_electron	14.79 Å
Forward intensity I(0) i0	6912120.00
Molecular weight molecular_weight	18609.0 kDa
Excluded volume excluded_volume	23067 Å³
Envelope volume envelope_volume	25599 Å³
Hydration-shell volume shell_volume	14351 Å³
Envelope diameter envelope_diameter	48.9 Å
Shell Rg shell_rg	20.98 Å
Envelope Rg envelope_rg	15.15 Å
Shape Rg shape_rg	14.80 Å
Total Rg total_rg	15.87 Å
Total atoms total_atoms	1307
Residues n_residues	156
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

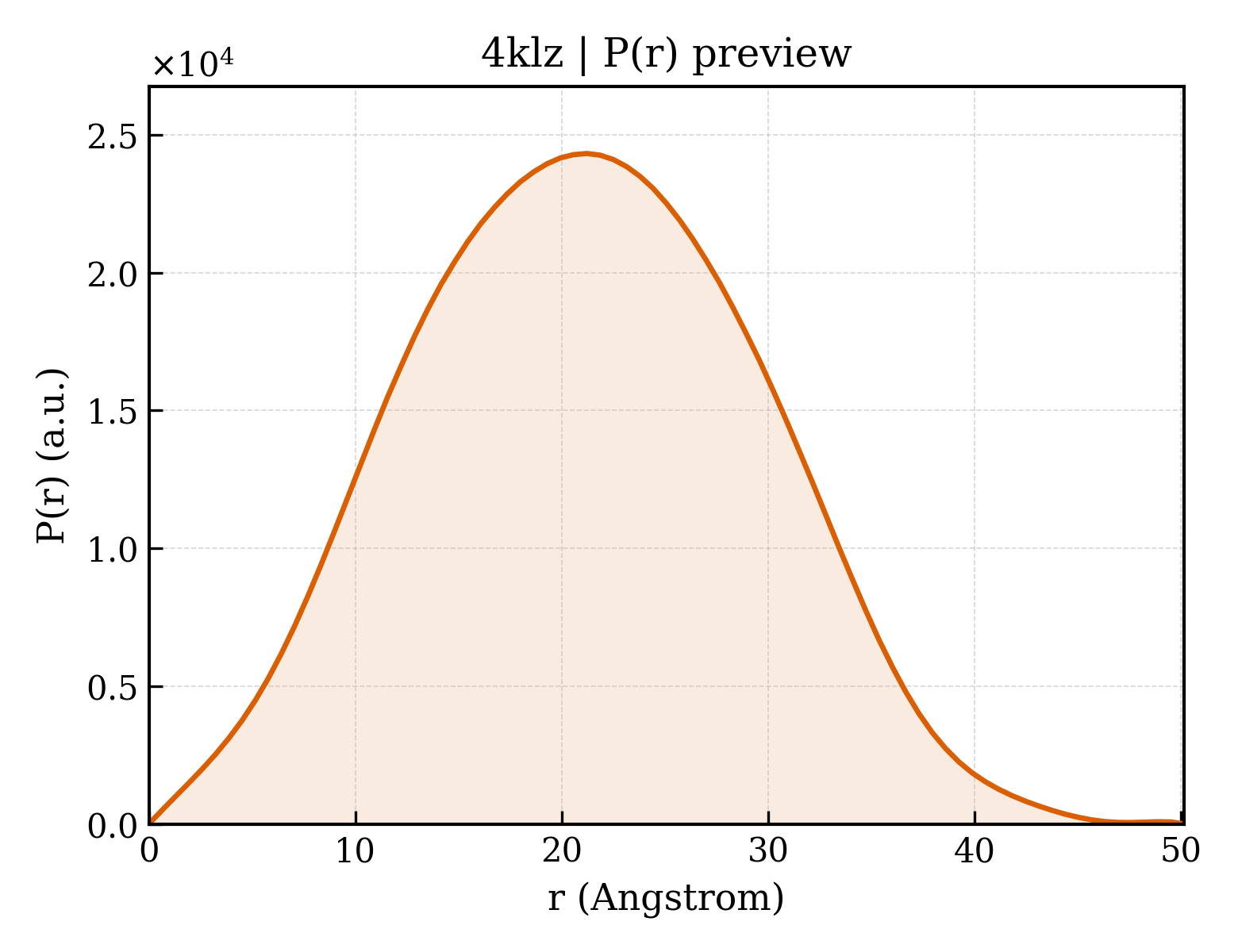

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	50.1 Å
Rg (real space) rg_real	16.04 Å
Rg uncertainty (real space) rg_real_error	0.21 Å
I(0) (real space) i0_real	6.9120e+06
I(0) uncertainty (real space) i0_real_error	6.9140e+04
Rg (reciprocal space) rg_reciprocal	16.06 Å
I(0) (reciprocal space) i0_reciprocal	6912000.0000
Solution quality estimate total_estimate	0.8986
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.2 Å
Skewness Skewness skewness	0.074
Kurtosis Kurtosis kurtosis	-0.464
Angular range angular_range	— – 0.4900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1535000.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.899; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.998

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	GTP-binding protein Rit1
Molecular weight formula_weight	20085.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1336

GSSREYKLVMLGAGGVGKSAMTMQFISHRFPEDHDPTIEDAYKIRIRIDDEPANLDILDTAGQAEFTAMRDQYMRAGEGFIICYSITDRRSFHEVREFKQLIYRVRRTDDTPVVLVGNKSDLKQLRQVTKEEGLALAREFSCPFFETSAAYRYYIDDVFHALVREIRRKEKEA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	18

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d4klza_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	4klzA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

8. Citations (1)

▶

Unit-cell length a length_a	40.278 Å
Unit-cell length b length_b	37.048 Å
Unit-cell length c length_c	40.736 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.90 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	40.500 Å
R factor r_factor	0.1979
R_work r_work	0.1854
R_free r_free	0.3110

fit	/app/data/saxs_computation/kl/4klz/4klz.fit
pddf	/app/data/pr_computation/kl/4klz/4klz.pr.out
profile	/app/data/saxs_computation/kl/4klz/4klz.dat
