4l3c

Structure of HLA-A2 in complex with D76N b2m mutant and NY-ESO1 double mutant

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class I histocompatibility antigen, A-2 alpha chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 3 GLYCEROL × 1 water × 2	Consistent with protein count
10	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 2 water × 2	Consistent with protein count
11	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 1 water × 2	Consistent with protein count
12	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 3 GLYCEROL × 1 water × 2	Consistent with protein count
13	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 2 water × 2	Consistent with protein count
14	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 1 water × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 3 GLYCEROL × 3 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 1 water × 2	Consistent with protein count
5	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 5 GLYCEROL × 1 water × 2	Consistent with protein count
6	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 2 water × 2	Consistent with protein count
7	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 3 GLYCEROL × 1 water × 2	Consistent with protein count
8	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 2 water × 2	Consistent with protein count
9	Protein heterocomplex	Heteromer	Protein 3	Beta-2-microglobulin × 1 （P61769） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 5 GLYCEROL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	1A02_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–276； UniProt 25–300 Author chain C； PDBConstruct 1–276； UniProt 25–300 Author chain E； PDBConstruct 1–276； UniProt 25–300 Author chain G； PDBConstruct 1–276； UniProt 25–300 Author chain I； PDBConstruct 1–276； UniProt 25–300 Author chain K； PDBConstruct 1–276； UniProt 25–300 Author chain M； PDBConstruct 1–276； UniProt 25–300 Author chain O； PDBConstruct 1–276； UniProt 25–300 Author chain Q； PDBConstruct 1–276； UniProt 25–300 Author chain S； PDBConstruct 1–276； UniProt 25–300 Author chain U； PDBConstruct 1–276； UniProt 25–300 Author chain W； PDBConstruct 1–276； UniProt 25–300 Author chain Y； PDBConstruct 1–276； UniProt 25–300 Author chain a； PDBConstruct 1–276； UniProt 25–300

Beta-2-microglobulin

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 3 GLYCEROL × 1 water × 2	Consistent with protein count
10	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 2 water × 2	Consistent with protein count
11	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 1 water × 2	Consistent with protein count
12	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 3 GLYCEROL × 1 water × 2	Consistent with protein count
13	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 2 water × 2	Consistent with protein count
14	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 1 water × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 3 GLYCEROL × 3 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 1 water × 2	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 1 water × 2	Consistent with protein count
5	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 5 GLYCEROL × 1 water × 2	Consistent with protein count
6	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 2 water × 2	Consistent with protein count
7	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 3 GLYCEROL × 1 water × 2	Consistent with protein count
8	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 2 GLYCEROL × 2 water × 2	Consistent with protein count
9	Protein heterocomplex	Heteromer	Protein 3	HLA class I histocompatibility antigen, A-2 alpha chain × 1 （P01892） NY-ESO1 double mutant (1Y, 9V) × 1 CHLORIDE ION × 5 GLYCEROL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–100； UniProt 21–119 Author chain D； PDBConstruct 2–100； UniProt 21–119 Author chain F； PDBConstruct 2–100； UniProt 21–119 Author chain H； PDBConstruct 2–100； UniProt 21–119 Author chain J； PDBConstruct 2–100； UniProt 21–119 Author chain L； PDBConstruct 2–100； UniProt 21–119 Author chain N； PDBConstruct 2–100； UniProt 21–119 Author chain P； PDBConstruct 2–100； UniProt 21–119 Author chain R； PDBConstruct 2–100； UniProt 21–119 Author chain T； PDBConstruct 2–100； UniProt 21–119 Author chain V； PDBConstruct 2–100； UniProt 21–119 Author chain X； PDBConstruct 2–100； UniProt 21–119 Author chain Z； PDBConstruct 2–100； UniProt 21–119 Author chain b； PDBConstruct 2–100； UniProt 21–119

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4l3c
Deposition date deposition_date	2013-06-05
Structure title title	Structure of HLA-A2 in complex with D76N b2m mutant and NY-ESO1 double mutant
Keywords keywords	MHC, beta-2 microglobulin, HLA_A0201, NY-ESO1, D76N variant, immunglobulin, beta sandwitch, immune system, amyloid aggregation; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4l3c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4l3c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

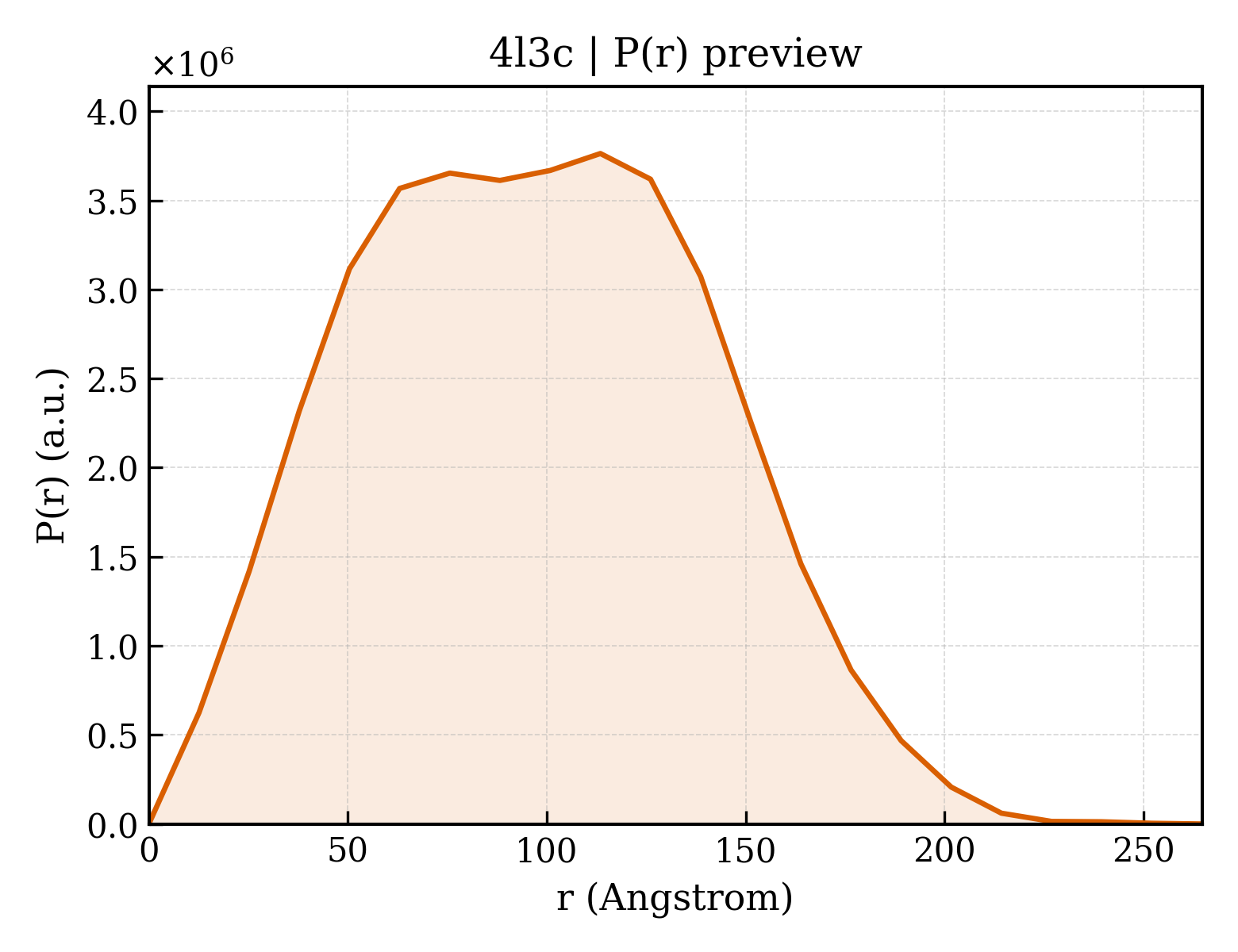

4l3c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.25 Å
Rg (electron density)	23.08 Å
Total Rg	23.94 Å
Atom count	3182
Residues	385
Excluded volume	55666 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4l3c__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4l3c__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`4l3c__assembly_3__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`4l3c__assembly_4__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`4l3c__assembly_5__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`4l3c__assembly_6__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`4l3c__assembly_7__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
8	1	`4l3c__assembly_8__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
9	1	`4l3c__assembly_9__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
10	1	`4l3c__assembly_10__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
11	1	`4l3c__assembly_11__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
12	1	`4l3c__assembly_12__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
13	1	`4l3c__assembly_13__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
14	1	`4l3c__assembly_14__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	HLA class I histocompatibility antigen, A-2 alpha chain
Molecular weight formula_weight	31951.3 kDa
Source method src_method	man
Copy count entity_count	14

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I,K,M,O,Q,S,U,W,Y,a
Atom count atom_count	44714

GSHSMRYFFTSVSRPGRGEPRFIAVGYVDDTQFVRFDSDAASQRMEPRAPWIEQEGPEYWDGETRKVKAHSQTHRVDLGTLRGYYNQSEAGSHTVQRMYGCDVGSDWRFLRGYHQYAYDGKDYIALKEDLRSWTAADMAAQTTKHKWEAAHVAEQLRAYLEGTCVEWLRRYLENGKETLQRTDAPKTHMTHHAVSDHEATLRCWALSFYPAEITLTWQRDGEDQTQDTELVETRPAGDGTFQKWAAVVVPSGQEQRYTCHVQHEGLPKPLTLRWEP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11878.4 kDa
Mutation mutation	D76N
Source method src_method	man
Copy count entity_count	14

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J,L,N,P,R,T,V,X,Z,b

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKNEYACRVNHVTLSQPKIVKWDRDM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	NY-ESO1 double mutant (1Y, 9V)
Molecular weight formula_weight	1166.4 kDa
Source method src_method	syn
Copy count entity_count	14

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	m,i,k,f,l,h,e,n,p,o,c,g,q,j

YLLMWITQV

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	38

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	20

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	134

▼

6. Fold Classification (SCOP + CATH) 81 domains

SCOP 2.08 (39 domains)

Domain ID domain_id	d4l3ca1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3ca2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cb_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3cc2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cd_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3ce1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3ce2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cf_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cg1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3cg2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3ch_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3ci1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3ci2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cj_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3ck1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3ck2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cl_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cm1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3cm2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cn_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3co1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3co2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cp_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cq1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3cq2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cr_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cs1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3cs2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3ct_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cu1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3cu2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cv_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cw1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3cw2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cx_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cy1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.1 — MHC antigen-recognition domain

Domain ID domain_id	d4l3cy2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d4l3cz_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (42 domains)

Domain ID domain_id	4l3cA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cE02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cF00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cG01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cG02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cH00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cI01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cI02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cJ00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cK01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cK02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cL00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cM01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cM02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cN00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cO01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cO02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cP00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cQ01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cQ02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cR00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cS01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cS02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cT00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cU01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cU02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cV00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cW01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cW02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cX00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cY01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3cY02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cZ00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3ca01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	500 — Murine Class I Major Histocompatibility Complex, H2-DB; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — MHC class I-like antigen recognition-like

Domain ID domain_id	4l3ca02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4l3cb00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	102.110 Å
Unit-cell length b length_b	314.500 Å
Unit-cell length c length_c	316.230 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	56

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.640 Å
Low-resolution limit resolution_low	66.480 Å
R factor r_factor	0.2001
R_work r_work	0.1991
R_free r_free	0.2183

Structure of HLA-A2 in complex with D76N b2m mutant and NY-ESO1 double mutant

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class I histocompatibility antigen, A-2 alpha chain

State in the Current Structure

Other States of the Same Protein in the Database

Beta-2-microglobulin

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

4l3c__assembly_1__model_1

4l3c__assembly_1__model_1 | I(q)

4l3c__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 81 domains

SCOP 2.08 (39 domains)

CATH v4.4 (42 domains)

7. Citations (1)

Structure of HLA-A2 in complex with D76N b2m mutant and NY-ESO1 double mutant

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class I histocompatibility antigen, A-2 alpha chain

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Beta-2-microglobulin

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

4l3c__assembly_1__model_1

4l3c__assembly_1__model_1 | I(q)

4l3c__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 81 domains

SCOP 2.08 (39 domains)

CATH v4.4 (42 domains)

7. Citations (1)
