SAXSdb — 4mxp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Defects in Rab1 recruitment protein A

Legionella pneumophila subsp. pneumophila

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 330–647	Fragment：GEF and P4M domains, UNP residues 330-647	DB4 (2R)-3-{[(R)-hydroxy{[(1R,2R,3R,4R,5S,6R)-2,3,5,6-tetrahydroxy-4-(phosphonooxy)cyclohexyl]oxy}phosphoryl]oxy}propane-1,2-diyl dibutanoate × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；4-6% PEG 3350, 100 mM Tris, 0.5 M NaCl, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.83 Å R-free 0.208

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4MXP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3JZ9 Crystal structure of the GEF domain of DrrA/SidM from Legionella pneumophila Deposited 2009-09-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 340–533（194 aa） Fragment：GEF domain: UNP residues 340-533	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；0.25 M Sodium sulfate, 21% w/v PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.80 Å R-free 0.198
3JZA Crystal structure of human Rab1b in complex with the GEF domain of DrrA/SidM from Legionella pneumophila Deposited 2009-09-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 340–533（194 aa） Fragment：GEF domain: UNP residues 340-533	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；292 K；0.1 M Sodium citrate, 35% v/v PEG 600, pH 5.75, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.80 Å R-free 0.234
3N6O Crystal structure of the GEF and P4M domain of DrrA/SidM from Legionella pneumophila Deposited 2010-05-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 340–647（308 aa） Fragment：GEF and P4M domains (UNP residues 340-647)	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.8；298 K；20% (w/v) PEG4000, 0.16 M ammonium sulfate, 0.1 M sodium acetate, 20% glycerol, pH 4.8, vapor diffusion, hanging drop, temperature 298K	Resolution 2.50 Å R-free 0.236
3N6O Crystal structure of the GEF and P4M domain of DrrA/SidM from Legionella pneumophila Deposited 2010-05-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 340–647（308 aa） Fragment：GEF and P4M domains (UNP residues 340-647)	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.8；298 K；20% (w/v) PEG4000, 0.16 M ammonium sulfate, 0.1 M sodium acetate, 20% glycerol, pH 4.8, vapor diffusion, hanging drop, temperature 298K	Resolution 2.50 Å R-free 0.236

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DRRA_LEGPH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–328； UniProt 330–647

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4mxp
Deposition date deposition_date	2013-09-26
Structure title title	Structural Basis for PI(4)P-Specific Membrane Recruitment of the Legionella pneumophila Effector DrrA/SidM
Keywords keywords	Protein-lipid complex, Guanine Nucleotide Exchange Factor, Rab1 binding, PI(4)P-BINDING PROTEIN; PI(4)P-BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.58 Å
Radius of gyration Rg (electron density) rg_electron	24.12 Å
Forward intensity I(0) i0	22370400.00
Molecular weight molecular_weight	35564.0 kDa
Excluded volume excluded_volume	44437 Å³
Envelope volume envelope_volume	55177 Å³
Hydration-shell volume shell_volume	20695 Å³
Envelope diameter envelope_diameter	91.6 Å
Shell Rg shell_rg	29.38 Å
Envelope Rg envelope_rg	24.62 Å
Shape Rg shape_rg	24.11 Å
Total Rg total_rg	24.83 Å
Total atoms total_atoms	2491
Residues n_residues	310
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

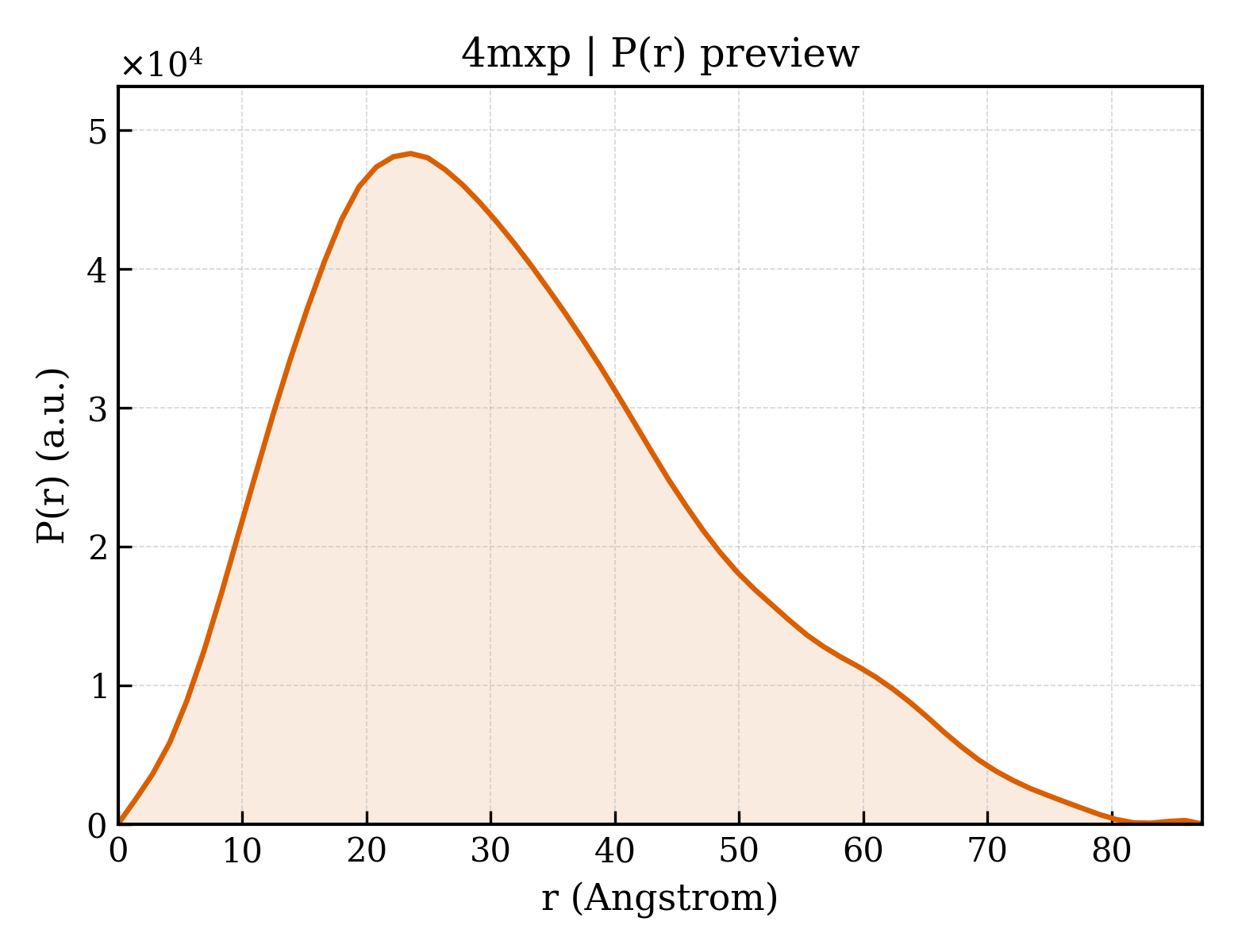

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	87.3 Å
Rg (real space) rg_real	24.85 Å
Rg uncertainty (real space) rg_real_error	0.89 Å
I(0) (real space) i0_real	2.2370e+07
I(0) uncertainty (real space) i0_real_error	3.2810e+05
Rg (reciprocal space) rg_reciprocal	24.79 Å
I(0) (reciprocal space) i0_reciprocal	22370000.0000
Solution quality estimate total_estimate	0.8178
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.6 Å
Skewness Skewness skewness	0.579
Kurtosis Kurtosis kurtosis	-0.172
Angular range angular_range	— – 0.3250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5049000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.686; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.615; Smooth: 0.957

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Defects in Rab1 recruitment protein A
Molecular weight formula_weight	37114.2 kDa
EC 编号 ec_number	2.7.7.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2696

MGHHHHHHGSAKIRELGVQRVTRIENLENAKKLWDNANSMLEKGNISGYLKAANELHKFMKEKNLKEDDLRPELSDKTISPKGYAILQSLWGAASDYSRAAATLTESTVEPGLVSAVNKMSAFFMDCKLSPNERATPDPDFKVGKSKILVGIMQFIKDVADPTSKIWMHNTKALMNHKIAAIQKLERSNNVNDETLESVLSSKGENLSEYLSYKYATKDEGREHRYTASTENFKNVKEKYQQMRGDALKTEILADFKDKLAEATDEQSLKQIVAELKSKDEYRILAKGQGLTTQLLGLKTSSVSSFEKMVEETRESIKSQERQTIKIK

来源 Source

来源生物 organism	Legionella pneumophila subsp. pneumophila
NCBI Class编号 ncbi_taxonomy_id	272624
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;(2R)-3-{[(R)-hydroxy{[(1R,2R,3R,4R,5S,6R)-2,3,5,6-tetrahydroxy-4-(phosphonooxy)cyclohexyl]oxy}phosphoryl]oxy}propane-1,2-diyl dibutanoate ;
Molecular weight formula_weight	554.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	195

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4mxpA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1260 — Ferritin
Homologous superfamily homologous superfamily	70 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	128.552 Å
Unit-cell length b length_b	128.552 Å
Unit-cell length c length_c	53.222 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 41
Space-group number int_tables_number	80
Crystal system crystal_system	—

Resolution resolution	1.830 Å
Low-resolution limit resolution_low	26.900 Å
R factor r_factor	0.1896
R_work r_work	0.1886
R_free r_free	0.2079

fit	/app/data/saxs_computation/mx/4mxp/4mxp.fit
pddf	/app/data/pr_computation/mx/4mxp/4mxp.pr.out
profile	/app/data/saxs_computation/mx/4mxp/4mxp.dat
