SAXSdb — 4nem

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 4–133	Not recorded	2JY 5-[(2,3-dichlorophenoxy)methyl]furan-2-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；34% PEG 8K, 0.1 M NaOAc, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.93 Å R-free 0.259

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4NEM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4NEJ Small molecular fragment bound to crystal contact interface of Interleukin-2 Deposited 2013-10-29	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 4–133（130 aa）	Not recorded	2K1 5-methylfuran-2-carboxylic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；34% PEG 8K, 0.1 M NaOAc, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.92 Å R-free 0.258
6VWU X-ray structure of ALKS 4230, a fusion of circularly permuted human Interleukin-2 and Interleukin-2 Receptor alpha Deposited 2020-02-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 75–133（59 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；An equal volume of protein was mixed with crystallization buffer, 25 % (w/v) PEG 3350, 0.2 M MgCl2, 0.1 M Hepes 7.5. Large crystals appeared within 48-72 hours, and were frozen in a cryoprotectant consisting of mother liquor with 10 % glycerol	Resolution 3.40 Å R-free 0.297

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q6QWN0_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–130； UniProt 4–133

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4nem
Deposition date deposition_date	2013-10-29
Structure title title	Small molecular fragment bound to crystal contact interface of Interleukin-2
Keywords keywords	fragment mapping, crystal contact, cytokine, Interleukin-2, helixbundle, CD25, extracellular, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.57 Å
Radius of gyration Rg (electron density) rg_electron	14.29 Å
Forward intensity I(0) i0	3321000.00
Molecular weight molecular_weight	13615.0 kDa
Excluded volume excluded_volume	17412 Å³
Envelope volume envelope_volume	19546 Å³
Hydration-shell volume shell_volume	11849 Å³
Envelope diameter envelope_diameter	52.4 Å
Shell Rg shell_rg	19.82 Å
Envelope Rg envelope_rg	14.79 Å
Shape Rg shape_rg	14.24 Å
Total Rg total_rg	15.63 Å
Total atoms total_atoms	953
Residues n_residues	114
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

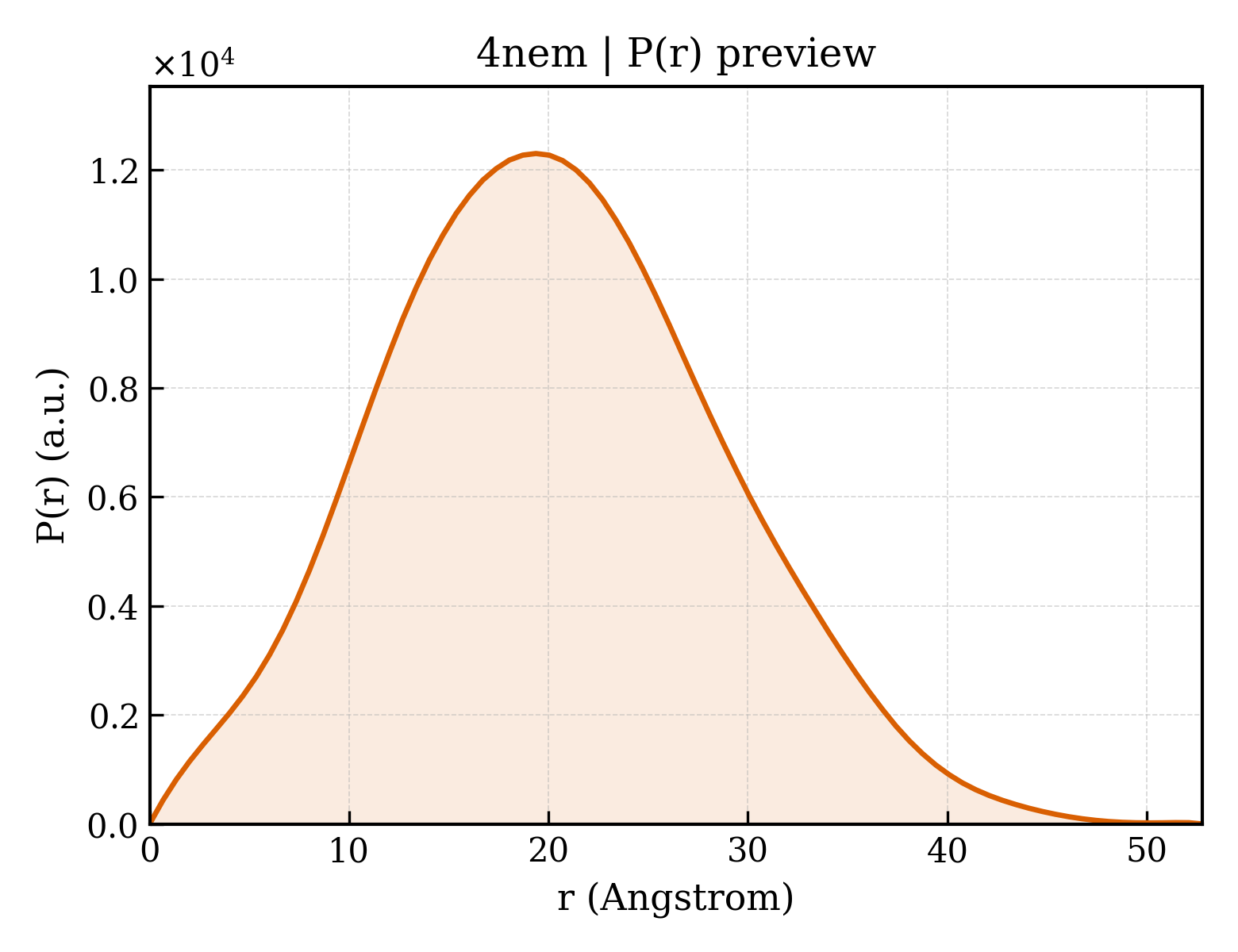

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	52.8 Å
Rg (real space) rg_real	15.51 Å
Rg uncertainty (real space) rg_real_error	0.31 Å
I(0) (real space) i0_real	3.3210e+06
I(0) uncertainty (real space) i0_real_error	3.6550e+04
Rg (reciprocal space) rg_reciprocal	15.51 Å
I(0) (reciprocal space) i0_reciprocal	3321000.0000
Solution quality estimate total_estimate	0.8693
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.4 Å
Skewness Skewness skewness	0.226
Kurtosis Kurtosis kurtosis	-0.241
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	500000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.767; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 1.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Interleukin-2
Molecular weight formula_weight	15150.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	968

SSSTKKTQLQLEHLLLDLQMILNGINNYKNPKLTRMLTFKFYMPKKATELKHLQCLEEELKPLEEVLNLAQSKNFHLRPRDLISNINVIVLELKGSETTFMCEYADETATIVEFLNRWITFSQSIISTLT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	5-[(2,3-dichlorophenoxy)methyl]furan-2-carboxylic acid
Molecular weight formula_weight	287.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	15

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d4nema_
Class class	a — All alpha proteins
Fold Fold fold	a.26 — 4-helical cytokines
Superfamily Superfamily superfamily	a.26.1 — 4-helical cytokines
Family Family family	a.26.1.2 — Short-chain cytokines

CATH v4.4 (1 domains)

Domain ID domain_id	4nemA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	31.709 Å
Unit-cell length b length_b	48.544 Å
Unit-cell length c length_c	79.767 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.934 Å
Low-resolution limit resolution_low	41.468 Å
R factor r_factor	0.2093
R_work r_work	0.2069
R_free r_free	0.2589
