SAXSdb — 4np9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Rabphilin-3A

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 378–510	Fragment：C2 domain, UNP RESIDUES 378-510	I3P D-MYO-INOSITOL-1,4,5-TRIPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；25-28% PEG 4K, 10-20mM Ammonium sulfate, 100mM HEPES pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.92 Å R-free 0.250

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4NP9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ZBD STRUCTURAL BASIS OF RAB EFFECTOR SPECIFICITY: CRYSTAL STRUCTURE OF THE SMALL G PROTEIN RAB3A COMPLEXED WITH THE EFFECTOR DOMAIN OF RABPHILIN-3A Deposited 1998-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 41–170（130 aa） Fragment：40-170, EFFECTOR DOMAIN	Mutation：C108S Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.60 Å R-free 0.263
1ZBD STRUCTURAL BASIS OF RAB EFFECTOR SPECIFICITY: CRYSTAL STRUCTURE OF THE SMALL G PROTEIN RAB3A COMPLEXED WITH THE EFFECTOR DOMAIN OF RABPHILIN-3A Deposited 1998-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 41–170（130 aa） Fragment：40-170, EFFECTOR DOMAIN	Mutation：C108S Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.60 Å R-free 0.263
2CHD Crystal structure of the C2A domain of Rabphilin-3A Deposited 2006-03-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 371–510（140 aa） Fragment：C2A DOMAIN, RESIDUES 371-510	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 25% PEG4000, 0.1M AMMONIUM SULPHATE, 0.1M SODIUM ACETATE, PH=4.6	Resolution 1.92 Å R-free 0.269
2CM5 crystal structure of the C2B domain of rabphilin Deposited 2006-05-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 519–684（166 aa） Fragment：C2B DOMAIN AND LINKER, RESIDUES 519-684	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions 0.1M HEPES PH 8.5,20 % PEG MME 2000 OR 20 % PEG 8000	Resolution 1.28 Å R-free 0.194
2CM6 crystal structure of the C2B domain of rabphilin3A Deposited 2006-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 519–684（166 aa） Fragment：C2B DOMAIN AND LINKER, RESIDUES 519-684	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M HEPES PH 7.6, 25 % PEG 8000, 200 MM CA	Resolution 1.85 Å R-free 0.268
2CM6 crystal structure of the C2B domain of rabphilin3A Deposited 2006-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 519–684（166 aa） Fragment：C2B DOMAIN AND LINKER, RESIDUES 519-684	Not recorded	CA CALCIUM ION × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M HEPES PH 7.6, 25 % PEG 8000, 200 MM CA	Resolution 1.85 Å R-free 0.268
3RPB THE C2B-DOMAIN OF RABPHILIN: STRUCTURAL VARIATIONS IN A JANUS-FACED DOMAIN Deposited 1999-04-19	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 541–680（140 aa） Fragment：C2B DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.1；304.5 K；Ionic strength (raw mmCIF value) 150 mM NMR sample composition 95% WATER/5% D2O	Resolution not provided
4LT7 Crystal structure of the c2a domain of rabphilin-3a in complex with a calcium Deposited 2013-07-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 378–510（133 aa） Fragment：C2 1 domain residues 378-510	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；10 mM CaCl2, 150mM NaCl, 25mM HEPES ph 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.289
4NS0 The C2A domain of Rabphilin 3A in complex with PI(4,5)P2 Deposited 2013-11-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 378–510（133 aa） Fragment：C2 domain, UNP RESIDUES 378-510	Not recorded	PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；25mM Hepes, 20mM Ammonuim Sulphate, 25% PEG 4K, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.226
5LO8 The C2B domain of Rabphilin 3A in complex with PI(4,5)P2 Deposited 2016-08-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 536–680（145 aa） Fragment：C2B domain, UNP Residues 536-680	Not recorded	CA CALCIUM ION × 2 GOL GLYCEROL × 4 SO4 SULFATE ION × 1 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；24% PEG3350 0.1M ammonium sulfate 50mM Tris pH 7.5	Resolution 2.50 Å R-free 0.265
5LO8 The C2B domain of Rabphilin 3A in complex with PI(4,5)P2 Deposited 2016-08-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 536–680（145 aa） Fragment：C2B domain, UNP Residues 536-680	Not recorded	CA CALCIUM ION × 2 GOL GLYCEROL × 3 PIO [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；24% PEG3350 0.1M ammonium sulfate 50mM Tris pH 7.5	Resolution 2.50 Å R-free 0.265
5LOB Structure of the Ca2+-bound Rabphilin3A C2B- SNAP25 complex (C2 space group) Deposited 2016-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 536–680（145 aa） Chain B 536–680（145 aa） Chain C 536–680（145 aa）	Not recorded	CA CALCIUM ION × 6 SO4 SULFATE ION × 10 GOL GLYCEROL × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；30% PEG3350 0.35 M Ammonium sulfate 0.1 M Tris pH 8.5	Resolution 3.30 Å R-free 0.286
5LOW Structure of the Ca2+-bound Rabphilin 3A C2B domain SNAP25 complex (P21 space group) Deposited 2016-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 536–680（145 aa） Chain B 536–680（145 aa） Chain C 536–680（145 aa）	Not recorded	GOL GLYCEROL × 3 CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；20% PEG3350 0.35 M Ammonium sulfate 0.1 M Tris (pH 8.5) al's oil	Resolution 2.80 Å R-free 0.269
5LOW Structure of the Ca2+-bound Rabphilin 3A C2B domain SNAP25 complex (P21 space group) Deposited 2016-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain H 536–680（145 aa） Chain I 536–680（145 aa） Chain J 536–680（145 aa）	Not recorded	GOL GLYCEROL × 4 CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；20% PEG3350 0.35 M Ammonium sulfate 0.1 M Tris (pH 8.5) al's oil	Resolution 2.80 Å R-free 0.269

10 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RP3A_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–133； UniProt 378–510

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4np9
Deposition date deposition_date	2013-11-21
Structure title title	Structure of Rabphilin C2A domain bound to IP3
Keywords keywords	RABPHILIN-3A, C2 DOMAIN, C2A, CALCIUM BINDING, SYNAPTIC EXOCYTOSIS METAL-BINDING, PROTEIN TRANSPORT, C-2 domain fold, EXOPHILIN-1; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

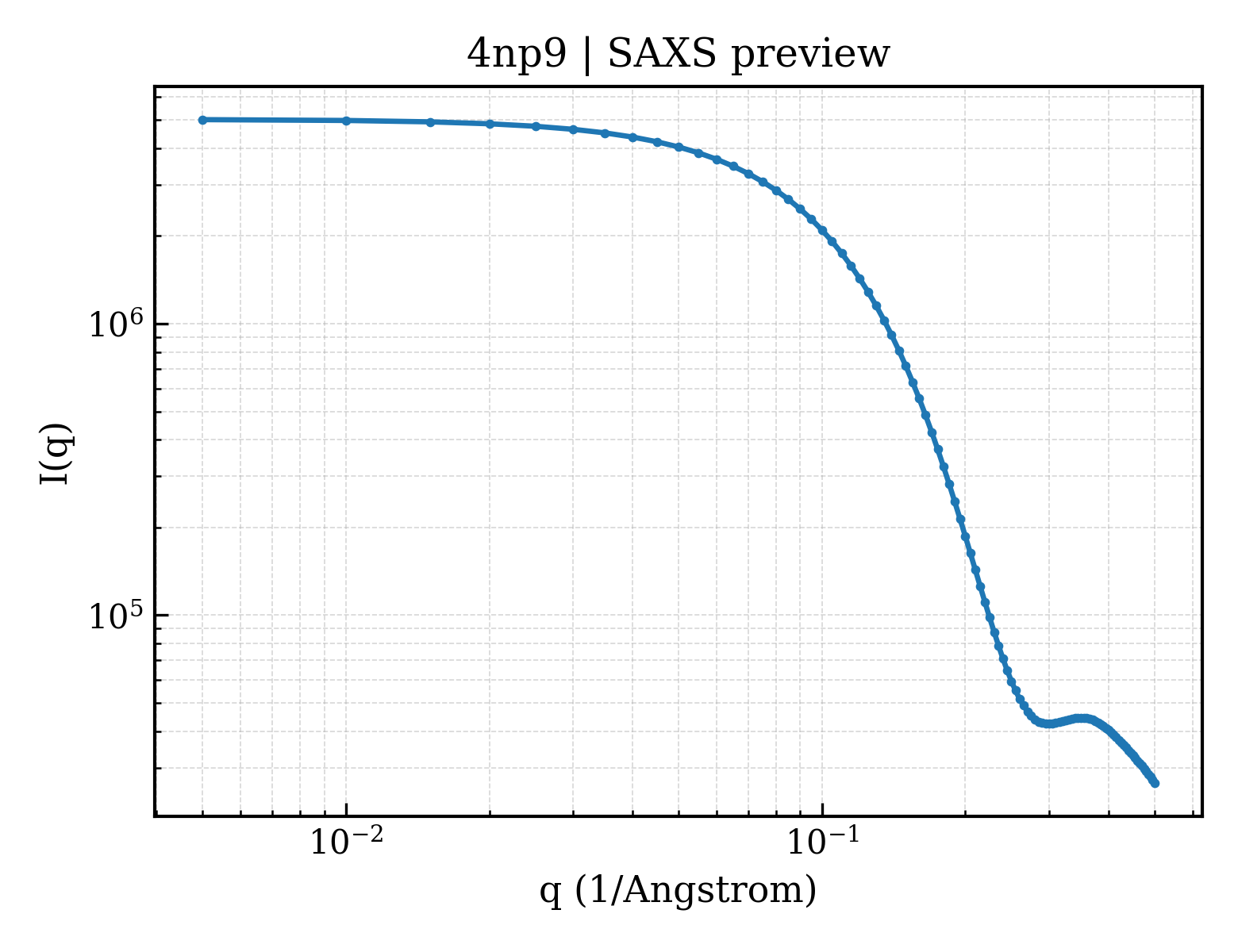

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.19 Å
Radius of gyration Rg (electron density) rg_electron	14.94 Å
Forward intensity I(0) i0	5023000.00
Molecular weight molecular_weight	15273.0 kDa
Excluded volume excluded_volume	18795 Å³
Envelope volume envelope_volume	21552 Å³
Hydration-shell volume shell_volume	12516 Å³
Envelope diameter envelope_diameter	54.5 Å
Shell Rg shell_rg	20.58 Å
Envelope Rg envelope_rg	15.39 Å
Shape Rg shape_rg	14.95 Å
Total Rg total_rg	15.97 Å
Total atoms total_atoms	1065
Residues n_residues	129
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

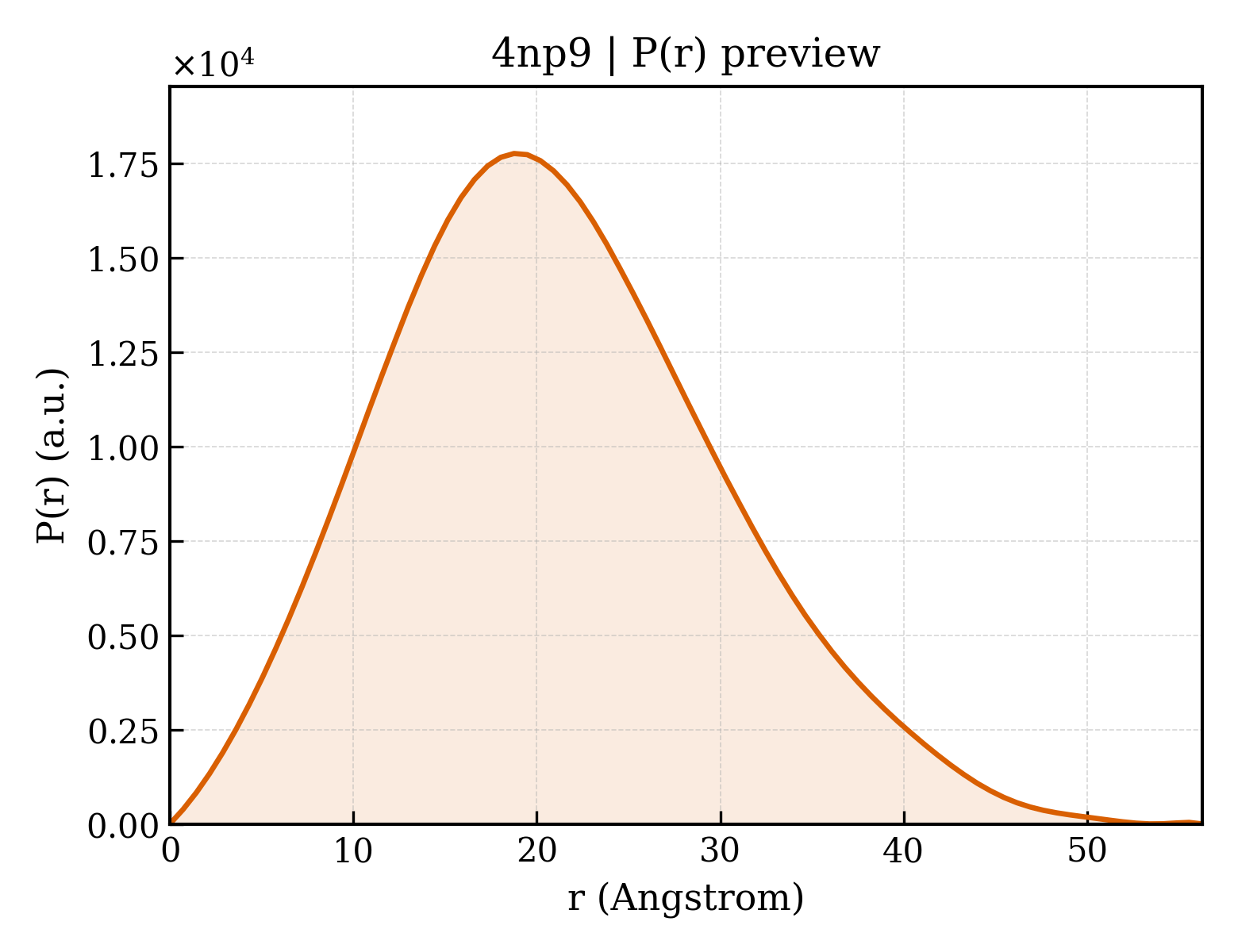

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	56.3 Å
Rg (real space) rg_real	16.17 Å
Rg uncertainty (real space) rg_real_error	0.34 Å
I(0) (real space) i0_real	5.0230e+06
I(0) uncertainty (real space) i0_real_error	6.2630e+04
Rg (reciprocal space) rg_reciprocal	16.17 Å
I(0) (reciprocal space) i0_reciprocal	5023000.0000
Solution quality estimate total_estimate	0.8625
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.8 Å
Skewness Skewness skewness	0.358
Kurtosis Kurtosis kurtosis	-0.184
Angular range angular_range	— – 0.4900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	861900.0000
Real-space data points n_real_points	79
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.746; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.983

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Rabphilin-3A
Molecular weight formula_weight	15305.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1204

DQATTLGALEFSLLYDQDNSNLQCTIIRAKGLKPMDSNGLADPYVKLHLLPGASKSNKLRTKTLRNTRNPVWNETLQYHGITEEDMQRKTLRISVCDEDKFGHNEFIGETRFSLKKLKANQRKNFNICLERVI

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	brown rat,rat,rats
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	D-MYO-INOSITOL-1,4,5-TRIPHOSPHATE
Molecular weight formula_weight	420.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	139

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d4np9a_
Class class	b — All beta proteins
Fold Fold fold	b.7 — C2 domain-like
Superfamily Superfamily superfamily	b.7.1 — C2 domain (Calcium/lipid-binding domain, CaLB)
Family Family family	b.7.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	4np9A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	150 — C2 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	38.270 Å
Unit-cell length b length_b	39.470 Å
Unit-cell length c length_c	89.260 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.920 Å
Low-resolution limit resolution_low	29.566 Å
R factor r_factor	0.2108
R_work r_work	0.2089
R_free r_free	0.2501

fit	/app/data/saxs_computation/np/4np9/4np9.fit
pddf	/app/data/pr_computation/np/4np9/4np9.pr.out
profile	/app/data/saxs_computation/np/4np9/4np9.dat
