4o0a

Fragment-Based Discovery of a Potent Inhibitor of Replication Protein A Protein-Protein Interactions

Method: X-RAY DIFFRACTION D_max: 55.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Replication protein A 70 kDa DNA-binding subunit

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–120	Fragment：N-terminal domain of Replication Protein A Mutation：E7R	2P9 5-{4-[({[4-(5-carboxyfuran-2-yl)-2-chlorophenyl]carbonothioyl}amino)methyl]phenyl}-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100 MM MES, 200 MM CALCIUM ACETATE, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.20 Å R-free 0.176

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4O0A	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EWI HUMAN REPLICATION PROTEIN A: GLOBAL FOLD OF THE N-TERMINAL RPA-70 DOMAIN REVEALS A BASIC CLEFT AND FLEXIBLE C-TERMINAL LINKER Deposited 2000-04-25	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–114（114 aa） Fragment：N-TERMINAL FRAGMENT (RESIDUES 1-114)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.6；298 K；Ionic strength (raw mmCIF value) 50 mM；Pressure ambient NMR sample composition 1mM d169, 100 mM Tris, 100 mM Tris-HCL, 0.25 mM EDTA, 50 mM NaCl, 0.2% NaN3 and 1mM DTT, pH 7.6 \| 90% H20, 10% D20	Resolution not provided
1FGU SSDNA-BINDING DOMAIN OF THE LARGE SUBUNIT OF REPLICATION PROTEIN A Deposited 2000-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 182–432（251 aa） Fragment：CENTRAL DOMAIN Chain B 182–432（251 aa） Fragment：CENTRAL DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；0.1 M K,NaH2PO4 0.1 M Tris 3.8 M NaCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.50 Å R-free 0.281
1JMC SINGLE STRANDED DNA-BINDING DOMAIN OF HUMAN REPLICATION PROTEIN A BOUND TO SINGLE STRANDED DNA, RPA70 SUBUNIT, RESIDUES 183-420 Deposited 1996-11-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 181–422（242 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；24-27% PEG2000 MME, 20MM NA_CL, 20MM MGCL2, 5MM DTT, 100MM MES PH 6.8, VAPOR DIFFUSION, SITTING DROP	Resolution 2.40 Å R-free 0.330
1L1O Structure of the human Replication Protein A (RPA) trimerization core Deposited 2002-02-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 436–616（181 aa） Fragment：RPA70 C-terminal domain (residues 436-616) Chain F 436–616（181 aa） Fragment：RPA70 C-terminal domain (residues 436-616)	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；300 K；0.1 M Hepes, 9% glycerol, and 1.6 M ammonium sulfate, pH 7.8, VAPOR DIFFUSION, SITTING DROP, temperature 300K	Resolution 2.80 Å R-free 0.282
2B29 N-terminal domain of the RPA70 subunit of human replication protein A. Deposited 2005-09-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：N-terminal domain (Residues 1-120)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；Ammonium Sulphate, Tris, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.60 Å R-free 0.261
2B3G p53N (fragment 33-60) bound to RPA70N Deposited 2005-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–120（120 aa） Fragment：N-terminal domain (Residues 1-120)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.9；298 K；Na3 Citrate, Hepes, pH 7.9, VAPOR DIFFUSION, SITTING DROP, temperature 298K, pH 7.90	Resolution 1.60 Å R-free 0.239
4IJH Fragment-based Discovery of Protein-Protein Interaction Inhibitors of Replication Protein A Deposited 2012-12-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：N-terminal domain (UNP residues 1-120)	Mutation：E7R	1EJ 3-chloro-6-[3-(4-fluorophenyl)-5-sulfanyl-4H-1,2,4-triazol-4-yl]-1-benzothiophene-2-carboxylic acid × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；100 mM MES, 200 mM calcium acetate, 15% PEG8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.50 Å R-free 0.189
4IJL Fragment-based Discovery of Protein-Protein Interaction Inhibitors of Replication Protein A Deposited 2012-12-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：N-terminal domain (UNP residues 1-120)	Mutation：E7R	1EK {[5-(3-chloro-1-benzothiophen-2-yl)-4-phenyl-4H-1,2,4-triazol-3-yl]sulfanyl}acetic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；100 mM MES, 200 calcium acetate, 15% PEG8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.70 Å R-free 0.233
4IPC Structure of the N-terminal domain of RPA70, E7R mutant Deposited 2013-01-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：E7R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100 mM MES, 200 mM Calcium Acetate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.22 Å R-free 0.175
4IPD Structure of the N-terminal domain of RPA70, E100R mutant Deposited 2013-01-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：E100R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；100 mM BIS-TRIS, 2M ammonium sulfate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.51 Å R-free 0.166
4IPG Structure of the N-terminal domain of RPA70, E7R, E100R mutant Deposited 2013-01-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：E7R, E100R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；294 K；100 mM Citrate, 200 mM NaCl, 30% PEG 8000, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.58 Å R-free 0.201
4IPH Structure of N-terminal domain of RPA70 in complex with VU079104 inhibitor Deposited 2013-01-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa）	Mutation：E7R	1FJ ~{N}-(2,3-dimethylphenyl)-7-oxidanylidene-12-sulfanylidene-5,11-dithia-1,8-diazatricyclo[7.3.0.0^{2,6}]dodeca-2(6),3,9-triene-10-carboxamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100 mM MES, 200 mM Calcium Acetate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.94 Å R-free 0.274
4LUO Fragment-Based Discovery of a Potent Inhibitor of Replication Protein A Protein-Protein Interactions Deposited 2013-07-25	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：RPA70N (unp residues 1-120)	Mutation：E7R	1DZ 1-(3-methylphenyl)-5-phenyl-1H-pyrazole-3-carboxylic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100 MM MES, 200 MM CALCIUM ACETATE, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.54 Å R-free 0.189
4LUV Fragment-Based Discovery of a Potent Inhibitor of Replication Protein A Protein-Protein Interactions Deposited 2013-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：RPA70N (unp residues 1-120)	Mutation：E7R	1XS 5-(3-chloro-4-fluorophenyl)furan-2-carboxylic acid × 1 1DZ 1-(3-methylphenyl)-5-phenyl-1H-pyrazole-3-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100 MM MES, 200 MM CALCIUM ACETATE, 20% PEG 8000, PH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.40 Å R-free 0.170
4LUZ Fragment-Based Discovery of a Potent Inhibitor of Replication Protein A Protein-Protein Interactions Deposited 2013-07-25	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：RPA70N (unp residues 1-120)	Mutation：E7R	1XT 5-(4-{[4-(5-carboxyfuran-2-yl)benzyl]oxy}phenyl)-1-(3-methylphenyl)-1H-pyrazole-3-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100 MM MES, 200 MM CALCIUM ACETATE, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.90 Å R-free 0.237
4LW1 Fragment-Based Discovery of a Potent Inhibitor of Replication Protein A Protein-Protein Interactions Deposited 2013-07-26	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：RPA70N (unp residues 1-120)	Mutation：E7R	1XS 5-(3-chloro-4-fluorophenyl)furan-2-carboxylic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100 MM MES, 200 MM CALCIUM ACETATE, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.63 Å R-free 0.210
4LWC Fragment-Based Discovery of a Potent Inhibitor of Replication Protein A Protein-Protein Interactions Deposited 2013-07-26	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：RPA70N (unp residues 1-120)	Mutation：E7R	1XU 5-[3-chloro-4-({4-[1-(3,4-dichlorophenyl)-1H-pyrazol-5-yl]benzyl}carbamothioyl)phenyl]furan-2-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100 MM MES, 200 MM CALCIUM ACETATE, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.61 Å R-free 0.215
4NB3 Crystal structure of RPA70N in complex with a 3,4 dichlorophenylalanine ATRIP derived peptide Deposited 2013-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Mutation：E7R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；100 mM Bis-Tris, 200 mM ammonium acetate, 25% PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.35 Å R-free 0.175
4NB3 Crystal structure of RPA70N in complex with a 3,4 dichlorophenylalanine ATRIP derived peptide Deposited 2013-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–120（120 aa）	Mutation：E7R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；295 K；100 mM Bis-Tris, 200 mM ammonium acetate, 25% PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 1.35 Å R-free 0.175
4R4C Structure of RPA70N in complex with 5-(4-((4-(5-carboxyfuran-2-yl)-2-chlorobenzamido)methyl)phenyl)-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid Deposited 2014-08-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：N-terminal domain (UNP residues 1-120)	Mutation：E7R	3HS 5-[4-({[4-(5-carboxyfuran-2-yl)-2-chlorobenzoyl]amino}methyl)phenyl]-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294 K；100 MM MES, 200 MM CALCIUM ACETATE, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 1.40 Å R-free 0.189
4R4I Structure of RPA70N in complex with 5-(4-((6-(5-carboxyfuran-2-yl)-1-thioxo-3,4-dihydroisoquinolin-2(1H)-yl)methyl)phenyl)-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid Deposited 2014-08-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：N-terminal domain (UNP residues 1-120)	Mutation：E7R	3HV 5-(4-{[6-(5-carboxyfuran-2-yl)-1-thioxo-3,4-dihydroisoquinolin-2(1H)-yl]methyl}phenyl)-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294 K；100 MM MES, 200 MM CALCIUM ACETATE, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 1.40 Å R-free 0.191
4R4O Crystal structure of RPA70N in complex with 5-(4-((4-(5-carboxyfuran-2-yl)benzyl)carbamothioyl)phenyl)-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid Deposited 2014-08-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：N-terminal domain (UNP residues 1-120)	Mutation：E7R	3HW 5-(4-{[4-(5-carboxyfuran-2-yl)benzyl]carbamothioyl}phenyl)-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294 K；100 mM MES, 200 mM Calcium Acetate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 1.33 Å R-free 0.195
4R4Q Crystal structure of RPA70N in complex with 5-(3-((N-(4-(5-carboxyfuran-2-yl)benzyl)acetamido)methyl)phenyl)-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid Deposited 2014-08-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：N-terminal domain (UNP residues 1-120)	Mutation：E7R	3HZ 5-[4-({acetyl[4-(5-carboxyfuran-2-yl)benzyl]amino}methyl)phenyl]-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294 K；100 mM MES, 200 mM Calcium Acetate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 1.35 Å R-free 0.188
4R4T Crystal Structure of RPA70N in complex with 5-(4-((4-(5-carboxyfuran-2-yl)phenylthioamido)methyl)phenyl)-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid Deposited 2014-08-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：N-terminal domain (UNP residues 1-120)	Mutation：E7R	3J0 5-{4-[({[4-(5-carboxyfuran-2-yl)phenyl]carbonothioyl}amino)methyl]phenyl}-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；294 K；100 mM MES, 200 mM Calcium Acetate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 294K	Resolution 1.28 Å R-free 0.175
5E7N Crystal Structure of RPA70N in complex with VU0085636 Deposited 2015-10-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：residues 1-120	Mutation：E7R	5KR 2-({3-[(4-bromophenyl)sulfamoyl]-4-methylbenzoyl}amino)benzoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100 mM MES, 200 mM Calcium Acetate, 20% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.21 Å R-free 0.215
5EAY Crystal structure of a Dna2 peptide in complex with Rpa 70N Deposited 2015-10-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 3–120（118 aa） Fragment：UNP residues 3-120 Chain B 3–120（118 aa） Fragment：UNP residues 3-120 Chain C 3–120（118 aa） Fragment：UNP residues 3-120 Chain D 3–120（118 aa） Fragment：UNP residues 3-120	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；50 mM Tris-HCl, 35 % PEG 1500, 2 mM TCEP, pH 8.0	Resolution 1.55 Å R-free 0.267
5N85 Structure of RPA70N in complex with PrimPol (fragment 514-525) Deposited 2017-02-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Mutation：E7R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293.15 K；0.2 M Ammonium acetate 0.1 M Sodium acetate 4.5 20 % w/v PEG 3350	Resolution 2.00 Å R-free 0.228
5N8A Structure of RPA70N in complex with PrimPol (fragment 480-560) Deposited 2017-02-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Mutation：E7R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293.15 K；0.2M imidazole malate, 30% w/v PEG 4000	Resolution 1.28 Å R-free 0.178
7XUT Crystal structure of RPA70N-WRN fusion Deposited 2022-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–121（121 aa） Chain B 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；278 K；20% PEG3350, 200 mM ammonium sulfate	Resolution 1.60 Å R-free 0.214
7XUV Crystal structure of RPA70N-RMI1 fusion Deposited 2022-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；278 K；30% PEG 2000 MME	Resolution 1.60 Å R-free 0.220
7XUW Crystal structure of RPA70N-BLMp2 fusion Deposited 2022-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；278 K；8% PEG 4000	Resolution 1.80 Å R-free 0.217
7XV0 Crystal structure of RPA70N-BLMp1 fusion Deposited 2022-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–121（121 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；278 K；2000 mM Ammonium sulfate	Resolution 1.50 Å R-free 0.200
7XV1 Crystal structure of RPA70N-HelB fusion Deposited 2022-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；278 K；20% PEG3350 200 mM Ammonium Acetate	Resolution 1.80 Å R-free 0.216
7XV4 Crystal structure of RPA70N-ATRIP fusion Deposited 2022-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；2400 mM ammonium sulfate	Resolution 1.60 Å R-free 0.224
8JZV RPA70N-ETAA1 fusion Deposited 2023-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PEG 3350, Ammonium chloride	Resolution 1.50 Å R-free 0.200
8JZY RPA70N-RAD9 fusion Deposited 2023-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PEG 3350, sodium phosphate	Resolution 1.50 Å R-free 0.200
8K00 RPA70N-MRE11 fusion Deposited 2023-07-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；Ammonium sulate	Resolution 1.40 Å R-free 0.199
8RK2 Human Replication protein A (RPA; trimeric core) - ssDNA complex Deposited 2023-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–616（616 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9J1S Human replication protein A: RPA70 subunit N-terminal domain Deposited 2024-08-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–120（120 aa） Fragment：N-terminal domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.2 M Ammonium sulfate, 0.1 M Bis-Tris, pH 7.0, 25% PEG 3350	Resolution 1.55 Å R-free 0.230
9MJ5 Catalytic domain of human DNA polymerase alpha in complex with DNA and RPA Deposited 2024-12-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain C 438–616（179 aa）	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9PD3 NER dual incision complex - DuIS Deposited 2025-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: 17-meric	Chain N 1–616（616 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9PD4 NER dual incision complex - DuIM Deposited 2025-06-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric	Chain N 1–616（616 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

41 other PDB entries and 42 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RFA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–123； UniProt 1–120

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

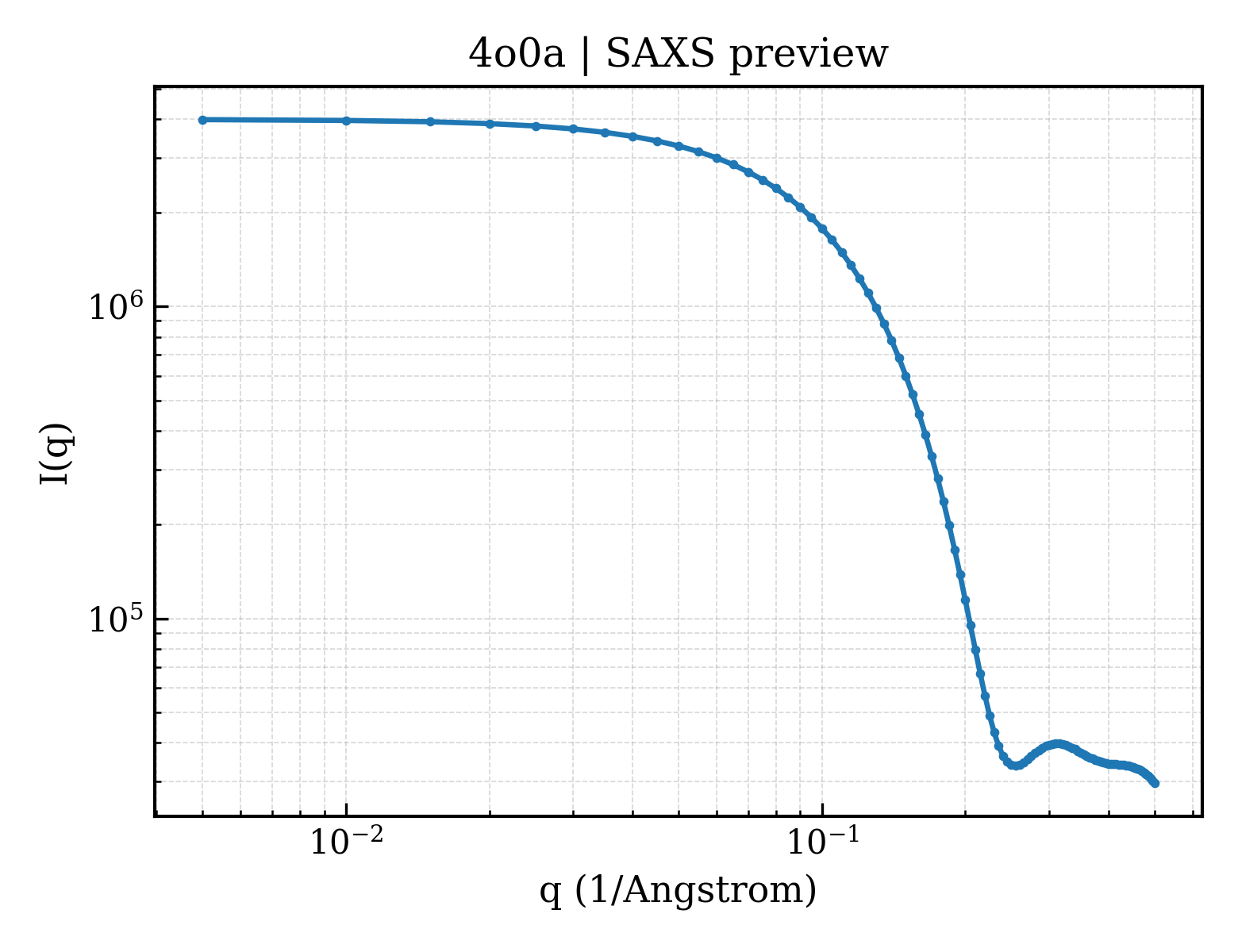

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4o0a
Deposition date deposition_date	2013-12-13
Structure title title	Fragment-Based Discovery of a Potent Inhibitor of Replication Protein A Protein-Protein Interactions
Keywords keywords	OB-Fold, Protein-Protein Interaction, DNA BINDING protein-inhibitor complex; DNA BINDING protein/inhibitor
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.37 Å
Radius of gyration Rg (electron density) rg_electron	13.87 Å
Forward intensity I(0) i0	3980750.00
Molecular weight molecular_weight	14113.0 kDa
Excluded volume excluded_volume	17681 Å³
Envelope volume envelope_volume	19743 Å³
Hydration-shell volume shell_volume	12134 Å³
Envelope diameter envelope_diameter	53.6 Å
Shell Rg shell_rg	19.77 Å
Envelope Rg envelope_rg	14.25 Å
Shape Rg shape_rg	13.89 Å
Total Rg total_rg	15.04 Å
Total atoms total_atoms	1971
Residues n_residues	123
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	55.3 Å
Rg (real space) rg_real	15.28 Å
Rg uncertainty (real space) rg_real_error	0.39 Å
I(0) (real space) i0_real	3.9810e+06
I(0) uncertainty (real space) i0_real_error	4.5030e+04
Rg (reciprocal space) rg_reciprocal	15.29 Å
I(0) (reciprocal space) i0_reciprocal	3981000.0000
Solution quality estimate total_estimate	0.8378
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.9 Å
Skewness Skewness skewness	0.174
Kurtosis Kurtosis kurtosis	-0.258
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	744900.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.635; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 1.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Replication protein A 70 kDa DNA-binding subunit
Molecular weight formula_weight	13497.7 kDa
Mutation mutation	E7R
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2430

GSHMVGQLSRGAIAAIMQKGDTNIKPILQVINIRPITTGNSPPRYRLLMSDGLNTLSSFMLATQLNPLVEEEQLSSNCVCQIHRFIVNTLKDGRRVVILMELEVLKSAEAVGVKIGNPVPYNE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;5-{4-[({[4-(5-carboxyfuran-2-yl)-2-chlorophenyl]carbonothioyl}amino)methyl]phenyl}-1-(3,4-dichlorophenyl)-1H-pyrazole-3-carboxylic acid ;
Molecular weight formula_weight	626.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	149

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4o0aa1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.3 — Single strand DNA-binding domain, SSB

Domain ID domain_id	d4o0aa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	4o0aA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

▶

8. Citations (1)

▶

Unit-cell length a length_a	37.912 Å
Unit-cell length b length_b	53.582 Å
Unit-cell length c length_c	53.932 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.200 Å
Low-resolution limit resolution_low	30.949 Å
R factor r_factor	0.1641
R_work r_work	0.1635
R_free r_free	0.1763
