9pd4

NER dual incision complex - DuIM

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TFIIH basal transcription factor complex helicase XPB subunit

Homo sapiens

UniProt P19447

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERCC3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–782； UniProt 1–782

General transcription and DNA repair factor IIH helicase subunit XPD

Homo sapiens

UniProt P18074

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERCC2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–760； UniProt 1–760

General transcription factor IIH subunit 1

Homo sapiens

UniProt P32780

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF2H1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–548； UniProt 1–548

General transcription factor IIH subunit 4, p52

Homo sapiens

UniProt Q92759

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF2H4_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–462； UniProt 1–462

General transcription factor IIH subunit 2

Homo sapiens

UniProt Q13888

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF2H2_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–395； UniProt 1–395

General transcription factor IIH subunit 3

Homo sapiens

UniProt Q13889

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF2H3_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–308； UniProt 1–308

General transcription factor IIH subunit 5

Homo sapiens

UniProt Q6ZYL4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF2H5_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain G； PDBConstruct 1–71； UniProt 1–71

DNA repair protein complementing XP-A cells

Homo sapiens

UniProt P23025

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XPA_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain K； PDBConstruct 1–273； UniProt 1–273

Replication protein A 70 kDa DNA-binding subunit

Homo sapiens

UniProt P27694

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFA1_HUMAN
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain N； PDBConstruct 1–616； UniProt 1–616

Replication protein A 32 kDa subunit

Homo sapiens

UniProt P15927

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFA2_HUMAN
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain O； PDBConstruct 1–270； UniProt 1–270

Replication protein A 14 kDa subunit

Homo sapiens

UniProt P35244

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFA3_HUMAN
Isoform	—
PDB entities	13
Chains and sequence ranges	Author chain P； PDBConstruct 1–121； UniProt 1–121

DNA repair endonuclease XPF

Homo sapiens

UniProt Q92889

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA excision repair protein ERCC-1 × 1 （P07992） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XPF_HUMAN
Isoform	—
PDB entities	14
Chains and sequence ranges	Author chain Q； PDBConstruct 1–916； UniProt 1–916

DNA excision repair protein ERCC-1

Homo sapiens

UniProt P07992

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-5 × 1 （P28715） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERCC1_HUMAN
Isoform	—
PDB entities	15
Chains and sequence ranges	Author chain R； PDBConstruct 1–295； UniProt 1–295

DNA excision repair protein ERCC-5

Homo sapiens

UniProt P28715

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 14 DNA 2	TFIIH basal transcription factor complex helicase XPB subunit × 1 （P19447） General transcription and DNA repair factor IIH helicase subunit XPD × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4, p52 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-A cells × 1 （P23025） DNA (Cy5) × 1 DNA × 1 Replication protein A 70 kDa DNA-binding subunit × 1 （P27694） Replication protein A 32 kDa subunit × 1 （P15927） Replication protein A 14 kDa subunit × 1 （P35244） DNA repair endonuclease XPF × 1 （Q92889） DNA excision repair protein ERCC-1 × 1 （P07992） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERCC5_HUMAN
Isoform	—
PDB entities	16
Chains and sequence ranges	Author chain S； PDBConstruct 1–1186； UniProt 1–1186

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9pd4
Deposition date deposition_date	2025-06-30
Structure title title	NER dual incision complex - DuIM
Keywords keywords	NER, XPA, XPG, XPF, DNA BINDING PROTEIN, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9pd4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9pd4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

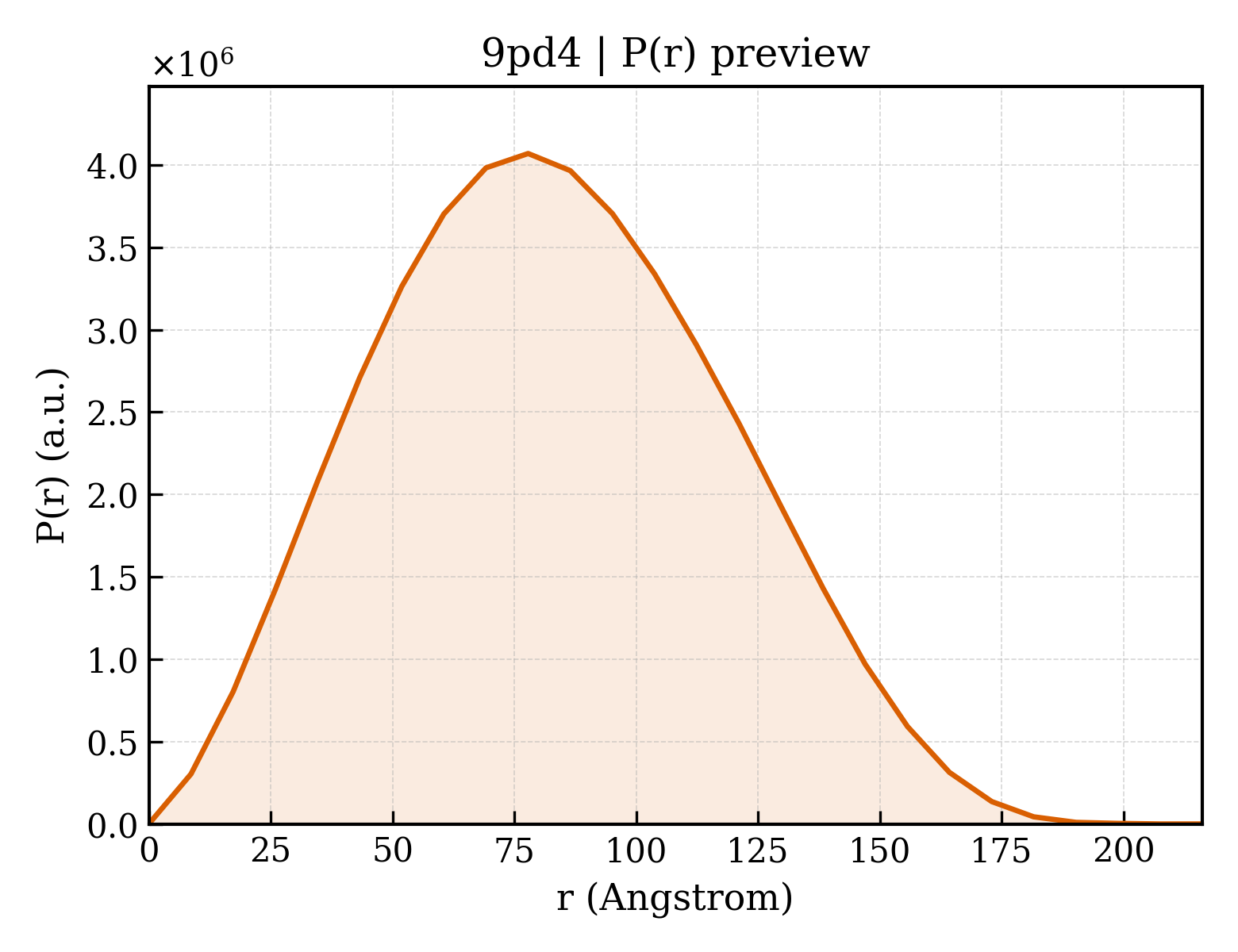

9pd4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	63.79 Å
Rg (electron density)	63.56 Å
Total Rg	63.60 Å
Atom count	40038
Residues	4834
Excluded volume	709780 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9pd4__assembly_1__model_1`	hexadecameric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (18)

Entity 1 Entity 1 polymer

Description description	TFIIH basal transcription factor complex helicase XPB subunit
Molecular weight formula_weight	89404.7 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	40053

MGKRDRADRDKKKSRKRHYEDEEDDEEDAPGNDPQEAVPSAAGKQVDESGTKVDEYGAKDYRLQMPLKDDHTSRPLWVAPDGHIFLEAFSPVYKYAQDFLVAIAEPVCRPTHVHEYKLTAYSLYAAVSVGLQTSDITEYLRKLSKTGVPDGIMQFIKLCTVSYGKVKLVLKHNRYFVESCHPDVIQHLLQDPVIRECRLRNSEGEATELITETFTSKSAISKTAESSGGPSTSRVTDPQGKSDIPMDLFDFYEQMDKDEEEEEETQTVSFEVKQEMIEELQKRCIHLEYPLLAEYDFRNDSVNPDINIDLKPTAVLRPYQEKSLRKMFGNGRARSGVIVLPCGAGKSLVGVTAACTVRKRCLVLGNSAVSVEQWKAQFKMWSTIDDSQICRFTSDAKDKPIGCSVAISTYSMLGHTTKRSWEAERVMEWLKTQEWGLMILDEVHTIPAKMFRRVLTIVQAHCKLGLTATLVREDDKIVDLNFLIGPKLYEANWMELQNNGYIAKVQCAEVWCPMSPEFYREYVAIKTKKRILLYTMNPNKFRACQFLIKFHERRNDKIIVFADNVFALKEYAIRLNKPYIYGPTSQGERMQILQNFKHNPKINTIFISKVGDTSFDLPEANVLIQISSHGGSRRQEAQRLGRVLRAKKGMVAEEYNAFFYSLVSQDTQEMAYSTKRQRFLVDQGYSFKVITKLAGMEEEDLAFSTKEEQQQLLQKVLAATDLDAEEEVVAGEFGSRSSQASRRFGTMSSMSGADDTVYMEYHSSRSKAPSKHVHPLFKRFRK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	General transcription and DNA repair factor IIH helicase subunit XPD
Molecular weight formula_weight	88018.0 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MKLNVDGLLVYFPYDYIYPEQFSYMRELKRTLDAKGHGVLEMPSGTGKTVSLLALIMAYQRAYPLEVTKLIYCSRTVPEIEKVIEELRKLLNFYEKQEGEKLPFLGLALSSRKNLCIHPEVTPLRFGKDVDGKCHSLTASYVRAQYQHDTSLPHCRFYEEFDAHGREVPLPAGIYNLDDLKALGRRQGWCPYFLARYSILHANVVVYSYHYLLDPKIADLVSKELARKAVVVFDEAHNIDNVCIDSMSVNLTRRTLDRCQGNLETLQKTVLRIKETDEQRLRDEYRRLVEGLREASAARETDAHLANPVLPDEVLQEAVPGSIRTAEHFLGFLRRLLEYVKWRLRVQHVVQESPPAFLSGLAQRVCIQRKPLRFCAERLRSLLHTLEITDLADFSPLTLLANFATLVSTYAKGFTIIIEPFDDRTPTIANPILHFSCMDASLAIKPVFERFQSVIITSGTLSPLDIYPKILDFHPVTMATFTMTLARVCLCPMIIGRGNDQVAISSKFETREDIAVIRNYGNLLLEMSAVVPDGIVAFFTSYQYMESTVASWYEQGILENIQRNKLLFIETQDGAETSVALEKYQEACENGRGAILLSVARGKVSEGIDFVHHYGRAVIMFGVPYVYTQSRILKARLEYLRDQFQIRENDFLTFDAMRHAAQCVGRAIRGKTDYGLMVFADKRFARGDKRGKLPRWIQEHLTDANLNLTVDEGVQVAKYFLRQMAQPFHREDQLGLSLLSLEQLESEETLKRIEQIAQQLDYKDDDDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	General transcription factor IIH subunit 1
Molecular weight formula_weight	62116.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MATSSEEVLLIVKKVRQKKQDGALYLMAERIAWAPEGKDRFTISHMYADIKCQKISPEGKAKIQLQLVLHAGDTTNFHFSNESTAVKERDAVKDLLQQLLPKFKRKANKELEEKNRMLQEDPVLFQLYKDLVVSQVISAEEFWANRLNVNATDSSSTSNHKQDVGISAAFLADVRPQTDGCNGLRYNLTSDIIESIFRTYPAVKMKYAENVPHNMTEKEFWTRFFQSHYFHRDRLNTGSKDLFAECAKIDEKGLKTMVSLGVKNPLLDLTALEDKPLDEGYGISSVPSASNSKSIKENSNAAIIKRFNHHSAMVLAAGLRKQEAQNEQTSEPSNMDGNSGDADCFQPAVKRAKLQESIEYEDLGKNNSVKTIALNLKKSDRYYHGPTPIQSLQYATSQDIINSFQSIRQEMEAYTPKLTQVLSSSAASSTITALSPGGALMQGGTQQAINQMVPNDIQSELKHLYVAVGELLRHFWSCFPVNTPFLEEKVVKMKSNLERFQVTKLCPFQEKIRRQYLSTNLVSHIEEMLQTAYNKLHTWQSRRLMKKT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	General transcription factor IIH subunit 4, p52
Molecular weight formula_weight	52245.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MESTPSRGLNRVHLQCRNLQEFLGGLSPGVLDRLYGHPATCLAVFRELPSLAKNWVMRMLFLEQPLPQAAVALWVKKEFSKAQEESTGLLSGLRIWHTQLLPGGLQGLILNPIFRQNLRIALLGGGKAWSDDTSQLGPDKHARDVPSLDKYAEERWEVVLHFMVGSPSAAVSQDLAQLLSQAGLMKSTEPGEPPCITSAGFQFLLLDTPAQLWYFMLQYLQTAQSRGMDLVEILSFLFQLSFSTLGKDYSVEGMSDSLLNFLQHLREFGLVFQRKRKSRRYYPTRLAINLSSGVSGAGGTVHQPGFIVVETNYRLYAYTESELQIALIALFSEMLYRFPNMVVAQVTRESVQQAIASGITAQQIIHFLRTRAHPVMLKQTPVLPPTITDQIRLWELERDRLRFTEGVLYNQFLSQVDFELLLAHARELGVLVFENSAKRLMVVTPAGHSDVKRFWKRQKHSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	General transcription factor IIH subunit 2
Molecular weight formula_weight	44482.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MDEEPERTKRWEGGYERTWEILKEDESGSLKATIEDILFKAKRKRVFEHHGQVRLGMMRHLYVVVDGSRTMEDQDLKPNRLTCTLKLLEYFVEEYFDQNPISQIGIIVTKSKRAEKLTELSGNPRKHITSLKKAVDMTCHGEPSLYNSLSIAMQTLKHMPGHTSREVLIIFSSLTTCDPSNIYDLIKTLKAAKIRVSVIGLSAEVRVCTVLARETGGTYHVILDESHYKELLTHHVSPPPASSSSECSLIRMGFPQHTIASLSDQDAKPSFSMAHLDGNTEPGLTLGGYFCPQCRAKYCELPVECKICGLTLVSAPHLARSYHHLFPLDAFQEIPLEEYNGERFCYGCQGELKDQHVYVCAVCQNVFCVDCDVFVHDSLHCCPGCIHKIPAPSGV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 6 Entity 6 polymer

Description description	General transcription factor IIH subunit 3
Molecular weight formula_weight	34416.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MVSDEDELNLLVIVVDANPIWWGKQALKESQFTLSKCIDAVMVLGNSHLFMNRSNKLAVIASHIQESRFLYPGKNGRLGDFFGDPGNPPEFNPSGSKDGKYELLTSANEVIVEEIKDLMTKSDIKGQHTETLLAGSLAKALCYIHRMNKEVKDNQEMKSRILVIKAAEDSALQYMNFMNVIFAAQKQNILIDACVLDSDSGLLQQACDITGGLYLKVPQMPSLLQYLLWVFLPDQDQRSQLILPPPVHVDYRAACFCHRNLIEIGYVCSVCLSIFCNFSPICTTCETAFKISLPPVLKAKKKKLKVSA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 7 Entity 7 polymer

Description description	General transcription factor IIH subunit 5
Molecular weight formula_weight	8060.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MVNVLKGVLIECDPAMKQFLLYLDESNALGKKFIIQDIDDTHVFVIAELVNVLQERVGELMDQNAFSLTQK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 8 Entity 8 polymer

Description description	DNA repair protein complementing XP-A cells
Molecular weight formula_weight	31422.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MAAADGALPEAAALEQPAELPASVRASIERKRQRALMLRQARLAARPYSATAAAATGGMANVKAAPKIIDTGGGFILEEEEEEEQKIGKVVHQPGPVMEFDYVICEECGKEFMDSYLMNHFDLPTCDNCRDADDKHKLITKTEAKQEYLLKDCDLEKREPPLKFIVKKNPHHSQWGDMKLYLKLQIVKRSLEVWGSQEALEEAKEVRQENREKMKQKKFDKKVKELRRAVRSSVWKRETIVHQHEYGPEENLEDDMYRKTCTMCGHELTYEKM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 9 Entity 9 polymer

Description description	DNA (Cy5)
Molecular weight formula_weight	28705.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	L

GCTGCGGTCCGTTGACGACATACAGCTCAACGATGCCACTTCAGCATTGCACTCATGTTCTGXCACTAGTACTACGACTACGCCTCGGCTCGA

Entity 10 Entity 10 polymer

Description description	DNA
Molecular weight formula_weight	29180.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	M

TCGAGCCGAGGCGTAGTCGTAGTACTAGTGTTCAGAATATGAGTACAATACTGAAGTGGCATCGTTGAGCTGTATGTCGTCAACGGACCGCAGC

Entity 11 Entity 11 polymer

Description description	Replication protein A 70 kDa DNA-binding subunit
Molecular weight formula_weight	68213.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MVGQLSEGAIAAIMQKGDTNIKPILQVINIRPITTGNSPPRYRLLMSDGLNTLSSFMLATQLNPLVEEEQLSSNCVCQIHRFIVNTLKDGRRVVILMELEVLKSAEAVGVKIGNPVPYNEGLGQPQVAPPAPAASPAASSRPQPQNGSSGMGSTVSKAYGASKTFGKAAGPSLSHTSGGTQSKVVPIASLTPYQSKWTICARVTNKSQIRTWSNSRGEGKLFSLELVDESGEIRATAFNEQVDKFFPLIEVNKVYYFSKGTLKIANKQFTAVKNDYEMTFNNETSVMPCEDDHHLPTVQFDFTGIDDLENKSKDSLVDIIGICKSYEDATKITVRSNNREVAKRNIYLMDTSGKVVTATLWGEDADKFDGSRQPVLAIKGARVSDFGGRSLSVLSSSTIIANPDIPEAYKLRGWFDAEGQALDGVSISDLKSGGVGGSNTNWKTLYEVKSENLGQGDKPDYFSSVATVVYLRKENCMYQACPTQDCNKKVIDQQNGLYRCEKCDTEFPNFKYRMILSVNIADFQENQWVTCFQESAEAILGQNAAYLGELKDKNEQAFEEVFQNANFRSFIFRVRVKVETYNDESRIKATVMDVKPVDYREYGRRLVMSIRRSALM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 12 Entity 12 polymer

Description description	Replication protein A 32 kDa subunit
Molecular weight formula_weight	29276.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

MWNSGFESYGSSSYGGAGGYTQSPGGFGSPAPSQAEKKSRARAQHIVPCTISQLLSATLVDEVFRIGNVEISQVTIVGIIRHAEKAPTNIVYKIDDMTAAPMDVRQWVDTDDTSSENTVVPPETYVKVAGHLRSFQNKKSLVAFKIMPLEDMNEFTTHILEVINAHMVLSKANSQPSAGRAPISNPGMSEAGNFGGNSFMPANGLTVAQNQVLNLIKACPRPEGLNFQDLKNQLKHMSVSSIKQAVDFLSNEGHIYSTVDDDHFKSTDAE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 13 Entity 13 polymer

Description description	Replication protein A 14 kDa subunit
Molecular weight formula_weight	13583.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

MVDMMDLPRSRINAGMLAQFIDKPVCFVGRLEKIHPTGKMFILSDGEGKNGTIELMEPLDEEISGIVEVVGRVTAKATILCTSYVQFKEDSHPFDLGLYNEAVKIIHDFPQFYPLGIVQHD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 14 Entity 14 polymer

Description description	DNA repair endonuclease XPF
Molecular weight formula_weight	104694.2 kDa
EC 编号 ec_number	3.1.-.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

MESGQPARRIAMAPLLEYERQLVLELLDTDGLVVCARGLGADRLLYHFLQLHCHPACLVLVLNTQPAEEEYFINQLKIEGVEHLPRRVTNEITSNSRYEVYTQGGVIFATSRILVVDFLTDRIPSDLITGILVYRAHRIIESCQEAFILRLFRQKNKRGFIKAFTDNAVAFDTGFCHVERVMRNLFVRKLYLWPRFHVAVNSFLEQHKPEVVEIHVSMTPTMLAIQTAILDILNACLKELKCHNPSLEVEDLSLENAIGKPFDKTIRHYLDPLWHQLGAKTKSLVQDLKILRTLLQYLSQYDCVTFLNLLESLRATEKAFGQNSGWLFLDSSTSMFINARARVYHLPDAKMSKKEKISEKMEIKEGEETKKELVLESNPKWEALTEVLKEIEAENKESEALGGPGQVLICASDDRTCSQLRDYITLGAEAFLLRLYRKTFEKDSKAEEVWMKFRKEDSSKRIRKSHKRPKDPQNKERASTKERTLKKKKRKLTLTQMVGKPEELEEEGDVEEGYRREISSSPESCPEEIKHEEFDVNLSSDAAFGILKEPLTIIHPLLGCSDPYALTRVLHEVEPRYVVLYDAELTFVRQLEIYRASRPGKPLRVYFLIYGGSTEEQRYLTALRKEKEAFEKLIREKASMVVPEEREGRDETNLDLVRGTASADVSTDTRKAGGQEQNGTQQSIVVDMREFRSELPSLIHRRDIDIEPVTLEVGDYILTPEMCVERKSISDLIGSLNNGRLYSQCISMSRYYKRPVLLIEFDPSKPFSLTSRGALFQEISSNDISSKLTLLTLHFPRLRILWCPSPHATAELFEELKQSKPQPDAATALAITADSETLPESEKYNPGPQDFLLKMPGVNAKNCRSLMHHVKNIAELAALSQDELTSILGNAANAKQLYDFIHTSFAEVVSKGKGKK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 15 Entity 15 polymer

Description description	DNA excision repair protein ERCC-1
Molecular weight formula_weight	32402.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MDPGKDKEGVPQPSGPPARKKFVIPLDEDEVPPGVAKPLFRSTQSLPTVDTSAQAAPQTYAEYAISQPLEGAGATCPTGSEPLAGETPNQALKPGAKSNSIIVSPRQRGNPVLKFVRNVPWEFGDVIPDYVLGQSTCALFLSLRYHNLHPDYIHGRLQSLGKNFALRVLLVQVDVKDPQQALKELAKMCILADCTLILAWSPEEAGRYLETYKAYEQKPADLLMEKLEQDFVSRVTECLTTVKSVNKTDSQTLLTTFGSLEQLIAASREDLALCPGLGPQKARRLFDVLHEPFLK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 16 Entity 16 polymer

Description description	DNA excision repair protein ERCC-5
Molecular weight formula_weight	133489.6 kDa
EC 编号 ec_number	3.1.-.-
Mutation mutation	D812N
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MGVQGLWKLLECSGRQVSPEALEGKILAVDISIWLNQALKGVRDRHGNSIENPHLLTLFHRLCKLLFFRIRPIFVFDGDAPLLKKQTLVKRRQRKDLASSDSRKTTEKLLKTFLKRQAIKTAFRSKRDEALPSLTQVRRENDLYVLPPLQEEEKHSSEEEDEKEWQERMNQKQALQEEFFHNPQAIDIESEDFSSLPPEVKHEILTDMKEFTKRRRTLFEAMPEESDDFSQYQLKGLLKKNYLNQHIEHVQKEMNQQHSGHIRRQYEDEGGFLKEVESRRVVSEDTSHYILIKGIQAKTVAEVDSESLPSSSKMHGMSFDVKSSPCEKLKTEKEPDATPPSPRTLLAMQAALLGSSSEEELESENRRQARGRNAPAAVDEGSISPRTLSAIKRALDDDEDVKVCAGDDVQTGGPGAEEMRINSSTENSDEGLKVRDGKGIPFTATLASSSVNSAEEHVASTNEGREPTDSVPKEQMSLVHVGTEAFPISDESMIKDRKDRLPLESAVVRHSDAPGLPNGRELTPASPTCTNSVSKNETHAEVLEQQNELCPYESKFDSSLLSSDDETKCKPNSASEVIGPVSLQETSSIVSVPSEAVDNVENVVSFNAKEHENFLETIQEQQTTESAGQDLISIPKAVEPMEIDSEESESDGSFIEVQSVISDEELQAEFPETSKPPSEQGEEELVGTREGEAPAESESLLRDNSERDDVDGEPQEAEKDAEDSLHEWQDINLEELETLESNLLAQQNSLKAQKQQQERIAATVTGQMFLESQELLRLFGIPYIQAPMEAEAQCAILDLTDQTSGTITDDSNIWLFGARHVYRNFFNKNKFVEYYQYVDFHNQLGLDRNKLINLAYLLGSDYTEGIPTVGCVTAMEILNEFPGHGLEPLLKFSEWWHEAQKNPKIRPNPHDTKVKKKLRTLQLTPGFPNPAVAEAYLKPVVDDSKGSFLWGKPDLDKIREFCQRYFGWNRTKTDESLFPVLKQLDAQQTQLRIDSFFRLAQQEKEDAKRIKSQRLNRAVTCMLRKEKEAAASEIEAVSVAMEKEFELLDKAKRKTQKRGITNTLEESSSLKRKRLSDSKRKNTCGGFLGETCLSESSDGSSSEDAESSSLMNVQRRTAAKEPKTSASDSQNSVKEAPVKNGGATTSSSSDSDDDGGKEKMVLVTARSVFGKKRRKLRRARGRKRKT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 17 Entity 17 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 18 Entity 18 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	7

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	140332

NER dual incision complex - DuIM

1. Protein Identity and Related Structures Protein Identity & Related Structures

TFIIH basal transcription factor complex helicase XPB subunit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription and DNA repair factor IIH helicase subunit XPD

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription factor IIH subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription factor IIH subunit 4, p52

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription factor IIH subunit 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription factor IIH subunit 3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription factor IIH subunit 5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA repair protein complementing XP-A cells

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Replication protein A 70 kDa DNA-binding subunit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Replication protein A 32 kDa subunit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
