28jm

Cryo-EM structure of the human holo-TFIIH and XPC initial encounter complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

General transcription and DNA repair factor IIH helicase subunit XPB

Homo sapiens

UniProt P19447

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	TFIIH basal transcription factor complex helicase XPD subunit × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） CDK-activating kinase assembly factor MAT1 × 1 （P51948） DNA repair protein complementing XP-C cells × 1 （Q01831） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERCC3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 16–797； UniProt 1–782

TFIIH basal transcription factor complex helicase XPD subunit

Homo sapiens

UniProt P18074

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	General transcription and DNA repair factor IIH helicase subunit XPB × 1 （P19447） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） CDK-activating kinase assembly factor MAT1 × 1 （P51948） DNA repair protein complementing XP-C cells × 1 （Q01831） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERCC2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–760； UniProt 1–760

General transcription factor IIH subunit 1

Homo sapiens

UniProt P32780

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	General transcription and DNA repair factor IIH helicase subunit XPB × 1 （P19447） TFIIH basal transcription factor complex helicase XPD subunit × 1 （P18074） General transcription factor IIH subunit 4 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） CDK-activating kinase assembly factor MAT1 × 1 （P51948） DNA repair protein complementing XP-C cells × 1 （Q01831） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF2H1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–548； UniProt 1–548

General transcription factor IIH subunit 4

Homo sapiens

UniProt Q92759

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	General transcription and DNA repair factor IIH helicase subunit XPB × 1 （P19447） TFIIH basal transcription factor complex helicase XPD subunit × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） CDK-activating kinase assembly factor MAT1 × 1 （P51948） DNA repair protein complementing XP-C cells × 1 （Q01831） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF2H4_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–462； UniProt 1–462

General transcription factor IIH subunit 2

Homo sapiens

UniProt Q13888

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	General transcription and DNA repair factor IIH helicase subunit XPB × 1 （P19447） TFIIH basal transcription factor complex helicase XPD subunit × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4 × 1 （Q92759） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） CDK-activating kinase assembly factor MAT1 × 1 （P51948） DNA repair protein complementing XP-C cells × 1 （Q01831） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF2H2_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–395； UniProt 1–395

General transcription factor IIH subunit 3

Homo sapiens

UniProt Q13889

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	General transcription and DNA repair factor IIH helicase subunit XPB × 1 （P19447） TFIIH basal transcription factor complex helicase XPD subunit × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） CDK-activating kinase assembly factor MAT1 × 1 （P51948） DNA repair protein complementing XP-C cells × 1 （Q01831） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF2H3_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–308； UniProt 1–308

General transcription factor IIH subunit 5

Homo sapiens

UniProt Q6ZYL4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	General transcription and DNA repair factor IIH helicase subunit XPB × 1 （P19447） TFIIH basal transcription factor complex helicase XPD subunit × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） CDK-activating kinase assembly factor MAT1 × 1 （P51948） DNA repair protein complementing XP-C cells × 1 （Q01831） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TF2H5_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain G； PDBConstruct 1–71； UniProt 1–71

CDK-activating kinase assembly factor MAT1

Homo sapiens

UniProt P51948

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	General transcription and DNA repair factor IIH helicase subunit XPB × 1 （P19447） TFIIH basal transcription factor complex helicase XPD subunit × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） DNA repair protein complementing XP-C cells × 1 （Q01831） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MAT1_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain H； PDBConstruct 1–309； UniProt 1–309

DNA repair protein complementing XP-C cells

Homo sapiens

UniProt Q01831

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	General transcription and DNA repair factor IIH helicase subunit XPB × 1 （P19447） TFIIH basal transcription factor complex helicase XPD subunit × 1 （P18074） General transcription factor IIH subunit 1 × 1 （P32780） General transcription factor IIH subunit 4 × 1 （Q92759） General transcription factor IIH subunit 2 × 1 （Q13888） General transcription factor IIH subunit 3 × 1 （Q13889） General transcription factor IIH subunit 5 × 1 （Q6ZYL4） CDK-activating kinase assembly factor MAT1 × 1 （P51948） IRON/SULFUR CLUSTER × 1 ZINC ION × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	XPC_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain I； PDBConstruct 1–940； UniProt 1–940

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	28jm
Deposition date deposition_date	2026-02-03
Structure title title	Cryo-EM structure of the human holo-TFIIH and XPC initial encounter complex
Keywords keywords	Nucleotide excision repair, DNA Repair, helicase, transcription factor, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

28jm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

28jm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

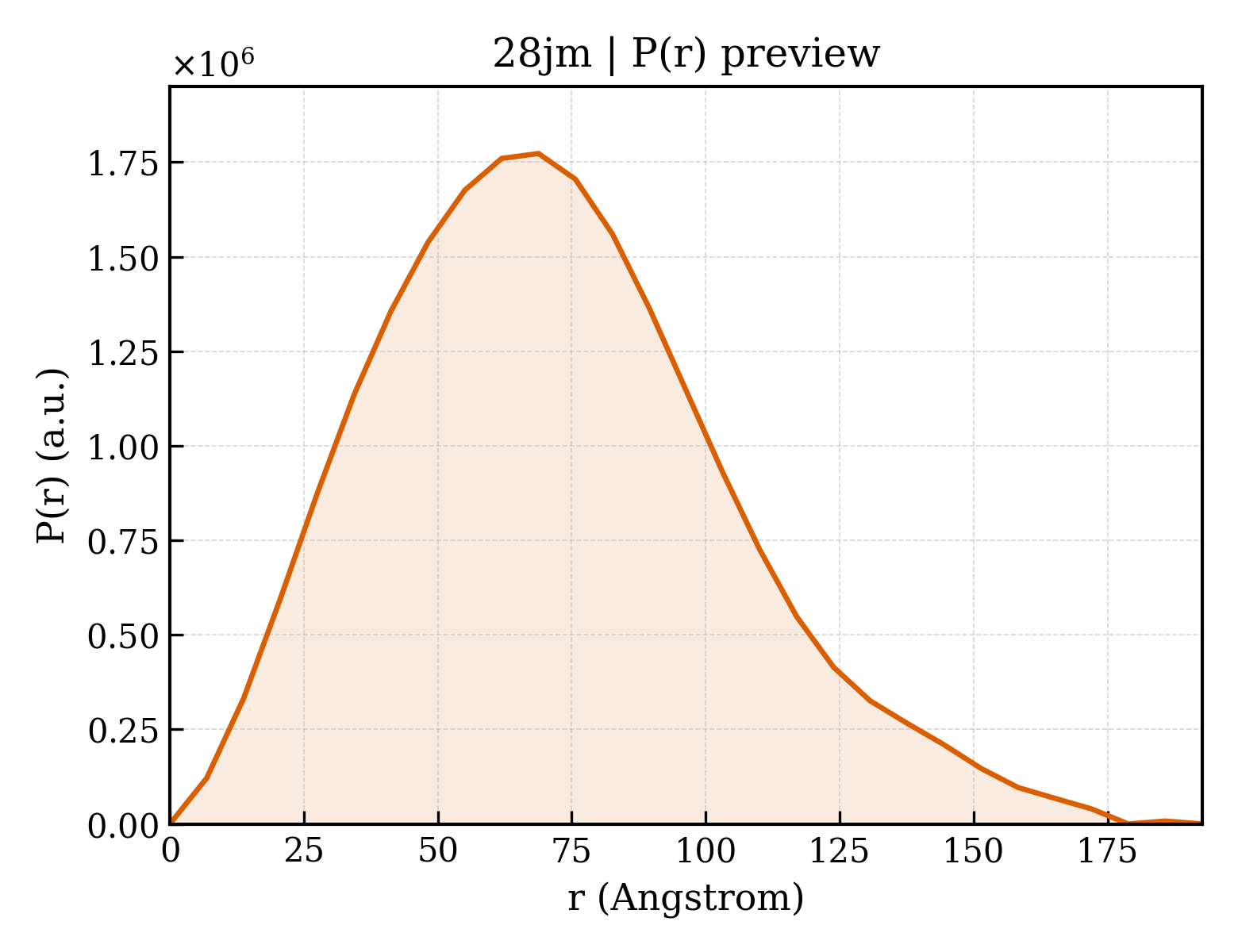

28jm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	55.26 Å
Rg (electron density)	55.12 Å
Total Rg	55.21 Å
Atom count	25112
Residues	3147
Excluded volume	449450 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`28jm__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	General transcription and DNA repair factor IIH helicase subunit XPB
Molecular weight formula_weight	91300.7 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	25112

HHHHHHENLYFQSNAMGKRDRADRDKKKSRKRHYEDEEDDEEDAPGNDPQEAVPSAAGKQVDESGTKVDEYGAKDYRLQMPLKDDHTSRPLWVAPDGHIFLEAFSPVYKYAQDFLVAIAEPVCRPTHVHEYKLTAYSLYAAVSVGLQTSDITEYLRKLSKTGVPDGIMQFIKLCTVSYGKVKLVLKHNRYFVESCHPDVIQHLLQDPVIRECRLRNSEGEATELITETFTSKSAISKTAESSGGPSTSRVTDPQGKSDIPMDLFDFYEQMDKDEEEEEETQTVSFEVKQEMIEELQKRCIHLEYPLLAEYDFRNDSVNPDINIDLKPTAVLRPYQEKSLRKMFGNGRARSGVIVLPCGAGKSLVGVTAACTVRKRCLVLGNSAVSVEQWKAQFKMWSTIDDSQICRFTSDAKDKPIGCSVAISTYSMLGHTTKRSWEAERVMEWLKTQEWGLMILDEVHTIPAKMFRRVLTIVQAHCKLGLTATLVREDDKIVDLNFLIGPKLYEANWMELQNNGYIAKVQCAEVWCPMSPEFYREYVAIKTKKRILLYTMNPNKFRACQFLIKFHERRNDKIIVFADNVFALKEYAIRLNKPYIYGPTSQGERMQILQNFKHNPKINTIFISKVGDTSFDLPEANVLIQISSHGGSRRQEAQRLGRVLRAKKGMVAEEYNAFFYSLVSQDTQEMAYSTKRQRFLVDQGYSFKVITKLAGMEEEDLAFSTKEEQQQLLQKVLAATDLDAEEEVVAGEFGSRSSQASRRFGTMSSMSGADDTVYMEYHSSRSKAPSKHVHPLFKRFRK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	TFIIH basal transcription factor complex helicase XPD subunit
Molecular weight formula_weight	88306.3 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MKLNVDGLLVYFPYDYIYPEQFSYMRELKRTLDAKGHGVLEMPSGTGKTVSLLALIMAYQRAYPLEVTKLIYCSRTVPEIEKVIEELRKLLNFYEKQEGEKLPFLGLALSSRKNLCIHPEVTPLRFGKDVDGKCHSLTASYVRAQYQHDTSLPHCRFYEEFDAHGREVPLPAGIYNLDDLKALGRRQGWCPYFLARYSILHANVVVYSYHYLLDPKIADLVSKELARKAVVVFDEAHNIDNVCIDSMSVNLTRRTLDRCQGNLETLQKTVLRIKETDEQRLRDEYRRLVEGLREASAARETDAHLANPVLPDEVLQEAVPGSIRTAEHFLGFLRRLLEYVKWRLRVQHVVQESPPAFLSGLAQRVCIQRKPLRFCAERLRSLLHTLEITDLADFSPLTLLANFATLVSTYAKGFTIIIEPFDDRTPTIANPILHFSCMDASLAIKPVFERFQSVIITSGTLSPLDIYPKILDFHPVTMATFTMTLARVCLCPMIIGRGNDQVAISSKFETREDIAVIRNYGNLLLEMSAVVPDGIVAFFTSYQYMESTVASWYEQGILENIQRNKLLFIETQDGAETSVALEKYQEACENGRGAILLSVARGKVSEGIDFVHHYGRAVIMFGVPYVYTQSRILKARLEYLRDQFQIRENDFLTFDAMRHAAQCVGRAIRGKTDYGLMVFADKRFARGDKRGKLPRWIQEHLTDANLNLTVDEGVQVAKYFLRQMAQPFHREDQLGLSLLSLEQLESEETLKRIEQIAQQLSSNDYKDDDDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	General transcription factor IIH subunit 1
Molecular weight formula_weight	66404.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MATSSEEVLLIVKKVRQKKQDGALYLMAERIAWAPEGKDRFTISHMYADIKCQKISPEGKAKIQLQLVLHAGDTTNFHFSNESTAVKERDAVKDLLQQLLPKFKRKANKELEEKNRMLQEDPVLFQLYKDLVVSQVISAEEFWANRLNVNATDSSSTSNHKQDVGISAAFLADVRPQTDGCNGLRYNLTSDIIESIFRTYPAVKMKYAENVPHNMTEKEFWTRFFQSHYFHRDRLNTGSKDLFAECAKIDEKGLKTMVSLGVKNPLLDLTALEDKPLDEGYGISSVPSASNSKSIKENSNAAIIKRFNHHSAMVLAAGLRKQEAQNEQTSEPSNMDGNSGDADCFQPAVKRAKLQESIEYEDLGKNNSVKTIALNLKKSDRYYHGPTPIQSLQYATSQDIINSFQSIRQEMEAYTPKLTQVLSSSAASSTITALSPGGALMQGGTQQAINQMVPNDIQSELKHLYVAVGELLRHFWSCFPVNTPFLEEKVVKMKSNLERFQVTKLCPFQEKIRRQYLSTNLVSHIEEMLQTAYNKLHTWQSRRLMKKTGSGGENLYFQSGSWSHPQFEKGGGSGGGSGGGSWSHPQFEKSG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	General transcription factor IIH subunit 4
Molecular weight formula_weight	52245.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MESTPSRGLNRVHLQCRNLQEFLGGLSPGVLDRLYGHPATCLAVFRELPSLAKNWVMRMLFLEQPLPQAAVALWVKKEFSKAQEESTGLLSGLRIWHTQLLPGGLQGLILNPIFRQNLRIALLGGGKAWSDDTSQLGPDKHARDVPSLDKYAEERWEVVLHFMVGSPSAAVSQDLAQLLSQAGLMKSTEPGEPPCITSAGFQFLLLDTPAQLWYFMLQYLQTAQSRGMDLVEILSFLFQLSFSTLGKDYSVEGMSDSLLNFLQHLREFGLVFQRKRKSRRYYPTRLAINLSSGVSGAGGTVHQPGFIVVETNYRLYAYTESELQIALIALFSEMLYRFPNMVVAQVTRESVQQAIASGITAQQIIHFLRTRAHPVMLKQTPVLPPTITDQIRLWELERDRLRFTEGVLYNQFLSQVDFELLLAHARELGVLVFENSAKRLMVVTPAGHSDVKRFWKRQKHSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 polymer

Description description	General transcription factor IIH subunit 2
Molecular weight formula_weight	44482.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MDEEPERTKRWEGGYERTWEILKEDESGSLKATIEDILFKAKRKRVFEHHGQVRLGMMRHLYVVVDGSRTMEDQDLKPNRLTCTLKLLEYFVEEYFDQNPISQIGIIVTKSKRAEKLTELSGNPRKHITSLKKAVDMTCHGEPSLYNSLSIAMQTLKHMPGHTSREVLIIFSSLTTCDPSNIYDLIKTLKAAKIRVSVIGLSAEVRVCTVLARETGGTYHVILDESHYKELLTHHVSPPPASSSSECSLIRMGFPQHTIASLSDQDAKPSFSMAHLDGNTEPGLTLGGYFCPQCRAKYCELPVECKICGLTLVSAPHLARSYHHLFPLDAFQEIPLEEYNGERFCYGCQGELKDQHVYVCAVCQNVFCVDCDVFVHDSLHCCPGCIHKIPAPSGV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 6 Entity 6 polymer

Description description	General transcription factor IIH subunit 3
Molecular weight formula_weight	34416.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MVSDEDELNLLVIVVDANPIWWGKQALKESQFTLSKCIDAVMVLGNSHLFMNRSNKLAVIASHIQESRFLYPGKNGRLGDFFGDPGNPPEFNPSGSKDGKYELLTSANEVIVEEIKDLMTKSDIKGQHTETLLAGSLAKALCYIHRMNKEVKDNQEMKSRILVIKAAEDSALQYMNFMNVIFAAQKQNILIDACVLDSDSGLLQQACDITGGLYLKVPQMPSLLQYLLWVFLPDQDQRSQLILPPPVHVDYRAACFCHRNLIEIGYVCSVCLSIFCNFSPICTTCETAFKISLPPVLKAKKKKLKVSA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 7 Entity 7 polymer

Description description	General transcription factor IIH subunit 5
Molecular weight formula_weight	8060.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MVNVLKGVLIECDPAMKQFLLYLDESNALGKKFIIQDIDDTHVFVIAELVNVLQERVGELMDQNAFSLTQK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 8 Entity 8 polymer

Description description	CDK-activating kinase assembly factor MAT1
Molecular weight formula_weight	35874.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MDDQGCPRCKTTKYRNPSLKLMVNVCGHTLCESCVDLLFVRGAGNCPECGTPLRKSNFRVQLFEDPTVDKEVEIRKKVLKIYNKREEDFPSLREYNDFLEEVEEIVFNLTNNVDLDNTKKKMEIYQKENKDVIQKNKLKLTREQEELEEALEVERQENEQRRLFIQKEEQLQQILKRKNKQAFLDELESSDLPVALLLAQHKDRSTQLEMQLEKPKPVKPVTFSTGIKMGQHISLAPIHKLEEALYEYQPLQIETYGPHVPELEMLGRLGYLNHVRAASPQDLAGGYTSSLACHRALQDAFSGLFWQPS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 9 Entity 9 polymer

Description description	DNA repair protein complementing XP-C cells
Molecular weight formula_weight	106142.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MARKRAAGGEPRGRELRSQKSKAKSKARREEEEEDAFEDEKPPKKSLLSKVSQGKRKRGCSHPGGSADGPAKKKVAKVTVKSENLKVIKDEALSDGDDLRDFPSDLKKAHHLKRGATMNEDSNEEEEESENDWEEVEELSEPVLGDVRESTAFSRSLLPVKPVEIEIETPEQAKTRERSEKIKLEFETYLRRAMKRFNKGVHEDTHKVHLLCLLANGFYRNNICSQPDLHAIGLSIIPARFTRVLPRDVDTYYLSNLVKWFIGTFTVNAELSASEQDNLQTTLERRFAIYSARDDEELVHIFLLILRALQLLTRLVLSLQPIPLKSATAKGKKPSKERLTADPGGSSETSSQVLENHTKPKTSKGTKQEETFAKGTCRPSAKGKRNKGGRKKRSKPSSSEEDEGPGDKQEKATQRRPHGRERRVASRVSYKEESGSDEAGSGSDFELSSGEASDPSDEDSEPGPPKQRKAPAPQRTKAGSKSASRTHRGSHRKDPSLPAASSSSSSSKRGKKMCSDGEKAEKRSIAGIDQWLEVFCEQEEKWVCVDCVHGVVGQPLTCYKYATKPMTYVVGIDSDGWVRDVTQRYDPVWMTVTRKCRVDAEWWAETLRPYQSPFMDREKKEDLEFQAKHMDQPLPTAIGLYKNHPLYALKRHLLKYEAIYPETAAILGYCRGEAVYSRDCVHTLHSRDTWLKKARVVRLGEVPYKMVKGFSNRARKARLAEPQLREENDLGLFGYWQTEEYQPPVAVDGKVPRNEFGNVYLFLPSMMPIGCVQLNLPNLHRVARKLDIDCVQAITGFDFHGGYSHPVTDGYIVCEEFKDVLLTAWENEQAVIERKEKEKKEKRALGNWKLLAKGLLIRERLKRRYGPKSEAAAPHTDAGGGLSSDEEEGTSSQAEAARILAASWPQNREDEEKQKLKGGPKKTKREKKAAASHLFPFEQL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 10 Entity 10 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 11 Entity 11 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	7

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.290 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.29 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	323811

Cryo-EM structure of the human holo-TFIIH and XPC initial encounter complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

General transcription and DNA repair factor IIH helicase subunit XPB

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

TFIIH basal transcription factor complex helicase XPD subunit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription factor IIH subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription factor IIH subunit 4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription factor IIH subunit 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription factor IIH subunit 3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

General transcription factor IIH subunit 5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

CDK-activating kinase assembly factor MAT1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA repair protein complementing XP-C cells

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

28jm__assembly_1__model_1

28jm__assembly_1__model_1 | I(q)

28jm__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment
