SAXSdb — 2jpd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA excision repair protein ERCC-1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 96–219	Fragment：residues 96-219	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 5.5；290 K；Ionic strength (raw mmCIF value) 0.2；Pressure ambient NMR sample composition：50 mM sodium phosphate, 100 mM sodium chloride, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2JPD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Z00 Solution structure of the C-terminal domain of ERCC1 complexed with the C-terminal domain of XPF Deposited 2005-03-01	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 220–297（78 aa） Fragment：C-TERMINAL DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；295.5 K；Ionic strength (raw mmCIF value) 50mM phosphate, 100mM NaCl；Pressure 1 NMR sample composition 1.5mM ERCC1-XPF U-15N,13C; 50mM phosphate buffer NA: 92% H2O, 8% D2O \| 92% H2O, 8% D2O NMR sample composition 1mM ERCC1-XPF U-15N; 50mM phosphate buffer NA: 92% H2O, 8% D2O \| 92% H2O, 8% D2O	Resolution not provided
2A1I Crystal Structure of the Central Domain of Human ERCC1 Deposited 2005-06-20	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 96–227（132 aa） Fragment：CENTRAL DOMAIN	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；MES, PEG 5000 MME, GLYCEROL, pH 6.5, VAPOR DIFFUSION, SITTING DROP,temperature 295K	Resolution 1.90 Å R-free 0.248
2A1J Crystal Structure of the Complex between the C-Terminal Domains of Human XPF and ERCC1 Deposited 2005-06-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 220–296（77 aa） Fragment：C-terminal domain	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；295 K；Sodium Citrate, Ammonium Sulfate, Sodium Chloride, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.70 Å R-free 0.275
2A1J Crystal Structure of the Complex between the C-Terminal Domains of Human XPF and ERCC1 Deposited 2005-06-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 220–296（77 aa） Fragment：C-terminal domain	Not recorded	HG MERCURY (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；295 K；Sodium Citrate, Ammonium Sulfate, Sodium Chloride, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.70 Å R-free 0.275
2JNW Solution structure of a ERCC1-XPA heterodimer Deposited 2007-02-07	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 96–214（119 aa） Fragment：Central domain, residues 96-214	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；295 K；Ionic strength (raw mmCIF value) 0.05；Pressure ambient NMR sample composition 0.25 mM [U-100% 13C; U-100% 15N] ERCC1, 20 mM Tris-HCl pH 7.2, 50 mM NaCl, 2 mM beta-mercaptoethanol, 0.1 mM EDTA, 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 0.25 mM [U-100% 15N, 100% 2H] ERCC1, 20 mM Tris-HCl pH 7.2, 50 mM NaCl, 2 mM beta-mercaptoethanol, 0.1 mM EDTA, 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
2MUT Solution structure of the F231L mutant ERCC1-XPF dimerization region Deposited 2014-09-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 220–297（78 aa） Fragment：UNP residues 220-297	Mutation：F231L	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；290 K；Ionic strength (raw mmCIF value) 250；Pressure ambient NMR sample composition 0.4 mM [U-100% 13C; U-100% 15N] protein_1, 0.4 mM [U-100% 13C; U-100% 15N] protein_2, 8 % D2O, 50 mM sodium phosphate, 100 mM sodium chloride, 92% H2O/8% D2O \| 92% H2O/8% D2O	Resolution not provided
6SXA XPF-ERCC1 Cryo-EM Structure, Apo-form Deposited 2019-09-25	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–297（297 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM HEPES pH 7.8, 150 mM NaCl, 1 mM TCEP, 0.01% CHAPS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6SXB XPF-ERCC1 Cryo-EM Structure, DNA-Bound form Deposited 2019-09-25	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain G 1–297（297 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；20 mM HEPES pH 7.8, 150 mM NaCl, 1 mM TCEP, 0.01% CHAPS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.90 Å
9PCP NER dual incision complex - NoG Deposited 2025-06-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 13 PDB declaration: 15-meric	Chain R 1–297（297 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 6 CA CALCIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
9PD3 NER dual incision complex - DuIS Deposited 2025-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: 17-meric	Chain R 1–295（295 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9PD4 NER dual incision complex - DuIM Deposited 2025-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 14 PDB declaration: hexadecameric	Chain R 1–295（295 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 1 ZN ZINC ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
9QEC Cryo-EM structure of the XPF-ERCC1-XPA complex Deposited 2025-03-08	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–297（297 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9QED Cryo-EM structure of the XPF-ERCC1-SLX4(330-555)-SLX4IP complex Deposited 2025-03-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–297（297 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9QEE Cryo-EM structure of a DNA-bound XPF-ERCC1-SLX4(330-555)-SLX4IP complex Deposited 2025-03-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: hexameric	Chain B 1–297（297 aa）	Not recorded	MN MANGANESE (II) ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

13 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ERCC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–125； UniProt 96–219

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jpd
Deposition date deposition_date	2007-05-06
Structure title title	Solution structure of the ERCC1 central domain
Keywords keywords	PROTEIN, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.05 Å
Radius of gyration Rg (electron density) rg_electron	13.79 Å
Forward intensity I(0) i0	1006900000.00
Molecular weight molecular_weight	282270.0 kDa
Excluded volume excluded_volume	358550 Å³
Envelope volume envelope_volume	28475 Å³
Hydration-shell volume shell_volume	15283 Å³
Envelope diameter envelope_diameter	51.8 Å
Shell Rg shell_rg	21.57 Å
Envelope Rg envelope_rg	15.79 Å
Shape Rg shape_rg	13.77 Å
Total Rg total_rg	13.99 Å
Total atoms total_atoms	40180
Residues n_residues	2480
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	48.3 Å
Rg (real space) rg_real	13.94 Å
Rg uncertainty (real space) rg_real_error	0.34 Å
I(0) (real space) i0_real	1.0070e+09
I(0) uncertainty (real space) i0_real_error	1.1730e+07
Rg (reciprocal space) rg_reciprocal	13.95 Å
I(0) (reciprocal space) i0_reciprocal	1007000000.0000
Solution quality estimate total_estimate	0.8500
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	17.7 Å
Skewness Skewness skewness	0.029
Kurtosis Kurtosis kurtosis	-0.398
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	346200.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.685; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.992

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2jpda_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.52 — Restriction endonuclease-like
Superfamily Superfamily superfamily	c.52.1 — Restriction endonuclease-like
Family Family family	c.52.1.20 — XPF/Rad1/Mus81 nuclease

CATH v4.4 (1 domains)

Domain ID domain_id	2jpdA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10130 —

▶

8. Citations (1)

▶

Description description	DNA excision repair protein ERCC-1
Molecular weight formula_weight	15461.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	40180

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/jp/2jpd/2jpd.fit
pddf	/app/data/pr_computation/jp/2jpd/2jpd.pr.out
profile	/app/data/saxs_computation/jp/2jpd/2jpd.dat

Solution structure of the ERCC1 central domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA excision repair protein ERCC-1

State in the Current Structure

Other States of the Same Protein in the Database

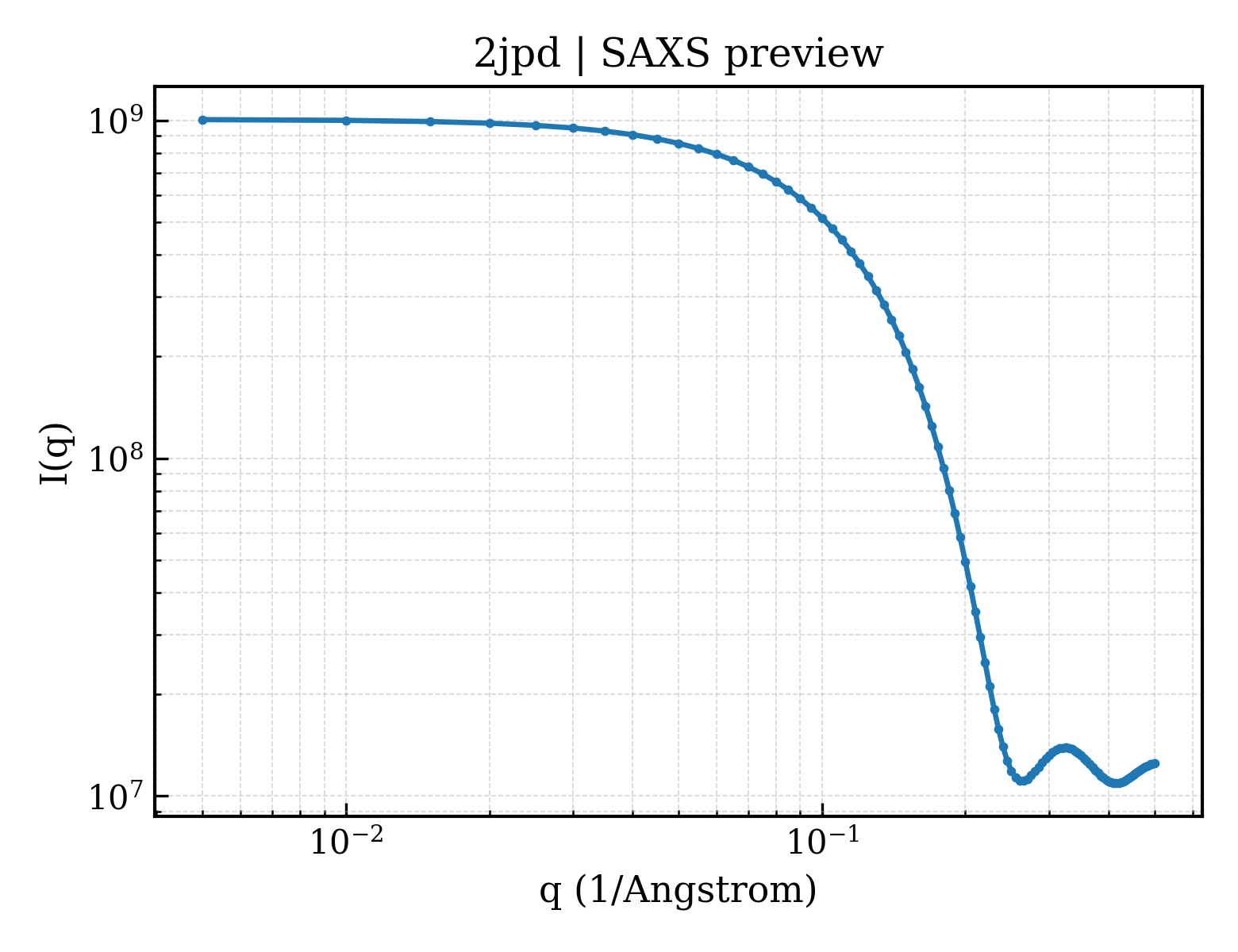

SAXS scattering curve SAXS Profile

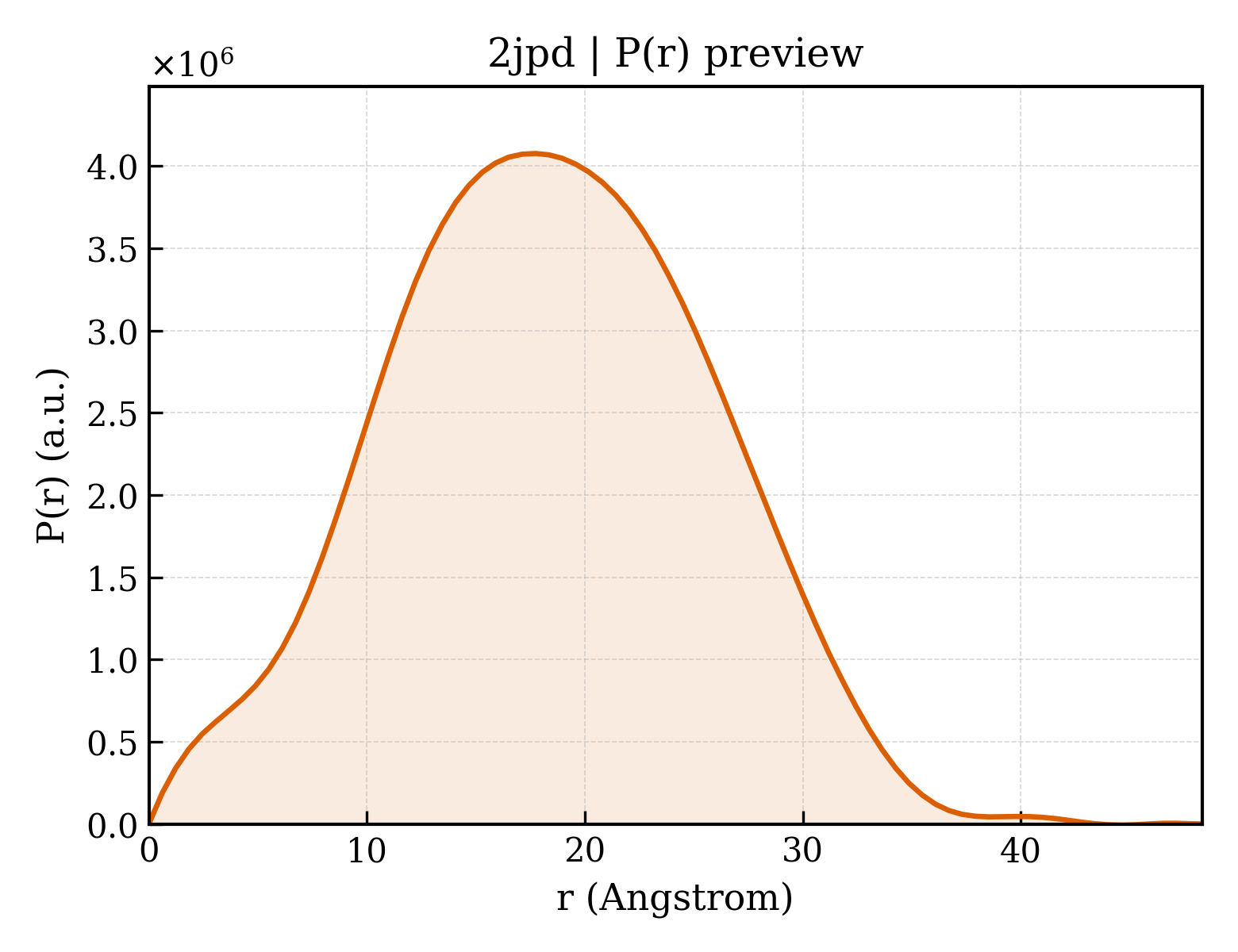

P(r) Distance Distribution P(r) Distribution
