SAXSdb — 4oqb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Poly [ADP-ribose] polymerase 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	DNA (26-MER) × 2 ZINC ION × 2 (2Z)-2-{4-[2-(morpholin-4-yl)ethoxy]benzylidene}-3-oxo-2,3-dihydro-1-benzofuran-7-carboxamide × 1	Consistent with all polymers
2	Protein–DNA	Homooligomer	Protein 2 DNA 2	DNA (26-MER) × 2 ZINC ION × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PARP1_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–97； UniProt 1–97 Author chain A； PDBConstruct 100–259； UniProt 207–366 Author chain D； PDBConstruct 1–97； UniProt 1–97 Author chain D； PDBConstruct 100–259； UniProt 207–366 Author chain C； PDBConstruct 1–497； UniProt 518–1014 Author chain F； PDBConstruct 1–497； UniProt 518–1014

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4oqb
Deposition date deposition_date	2014-02-07
Structure title title	Structure of Human PARP-1 bound to a DNA double strand break in complex with (2Z)-2-{4-[2-(morpholin-4-yl)ethoxy]benzylidene}-3-oxo-2,3-dihydro-1-benzofuran-7-carboxamide
Keywords keywords	zinc finger, DNA binding, PARP, polymerase, DNA repair, poly(ADP-ribosyl)ation, TRANSFERASE-DNA-TRANSFERASE INHIBITOR complex; TRANSFERASE/DNA/TRANSFERASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4oqb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4oqb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

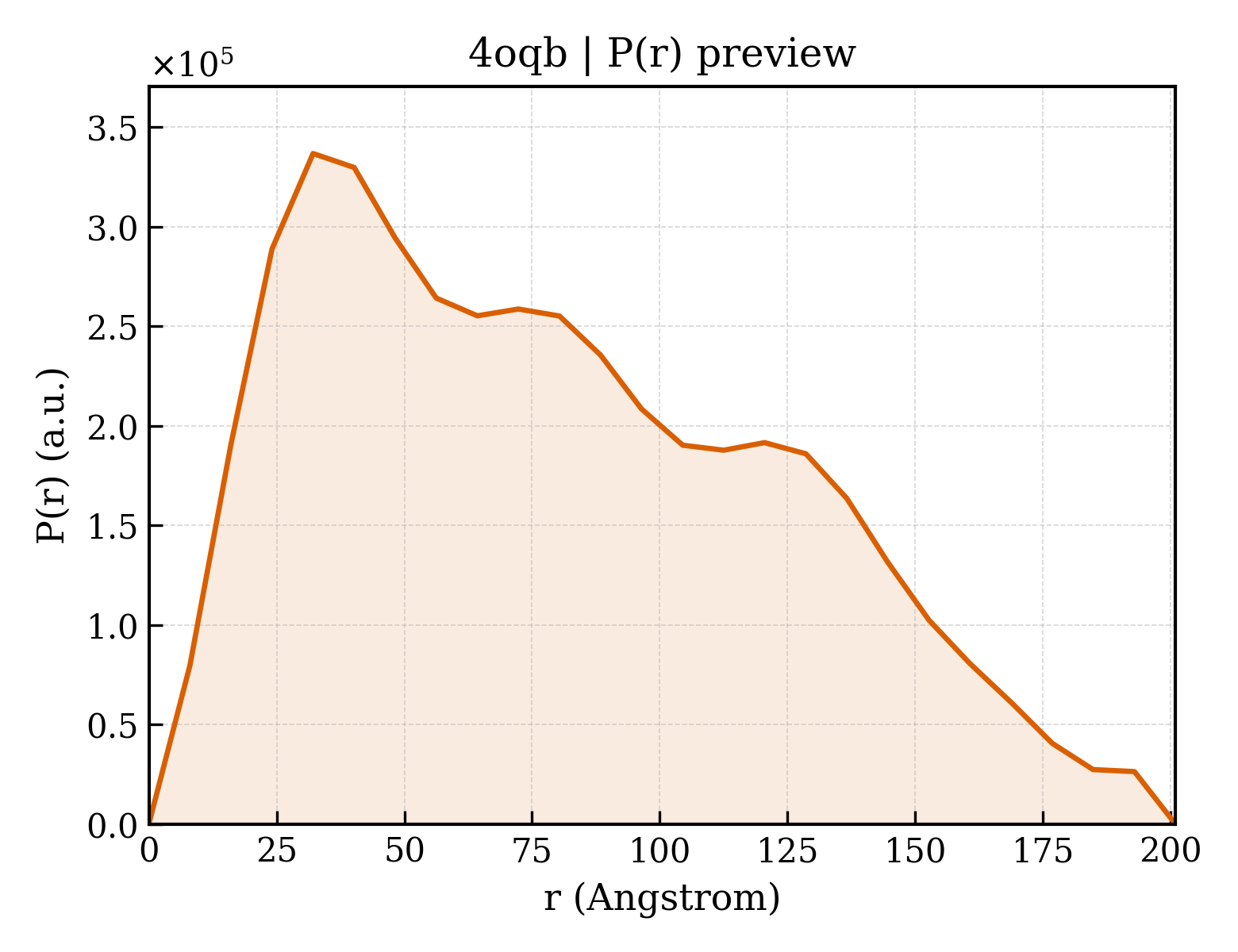

4oqb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.51 Å
Rg (electron density)	40.14 Å
Total Rg	40.49 Å
Atom count	6424
Residues	730
Excluded volume	111400 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4oqb__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4oqb__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Poly [ADP-ribose] polymerase 1
Molecular weight formula_weight	30520.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	11775

MAESSDKLYRVEYAKSGRASCKKCSESIPKDSLRMAIMVQSPMFDGKVPHWYHFSCFWKVGHSIRHPDVEVDGFSELRWDDQQKVKKTAEAGGVTGKDIKRKGDEVDGVDEVAKKKSKKEKDKDSKLEKALKAQNDLIWNIKDELKKVCSTNDLKELLIFNKQQVPSGESAILDRVADGMVFGALLPCEECSGQLVFKSDAYYCTGDVTAWTKCMVKTQTPNRKEWVTPKEFREISYLKKLKVKKQDRIFPPETSASVALEHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Poly [ADP-ribose] polymerase 1
Molecular weight formula_weight	57035.0 kDa
EC 编号 ec_number	2.4.2.30
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

KSEKRMKLTLKGGAAVDPDSGLEHSAHVLEKGGKVFSATLGLVDIVKGTNSYYKLQLLEDDKENRYWIFRSWGRVGTVIGSNKLEQMPSKEDAIEHFMKLYEEKTGNAWHSKNFTKYPKKFYPLEIDYGQDEEAVKKLTVNPGTKSKLPKPVQDLIKMIFDVESMKKAMVEYEIDLQKMPLGKLSKRQIQAAYSILSEVQQAVSQGSSDSQILDLSNRFYTLIPHDFGMKKPPLLNNADSVQAKVEMLDNLLDIEVAYSLLRGGSDDSSKDPIDVNYEKLKTDIKVVDRDSEEAEIIRKYVKNTHATTHNAYDLEVIDIFKIEREGECQRYKPFKQLHNRRLLWHGSRTTNFAGILSQGLRIAPPEAPVTGYMFGKGIYFADMVSKSANYCHTSQGDPIGLILLGEVALGNMYELKHASHISKLPKGKHSVKGLGKTTPDPSANISLDGVDVPLGTGISSGVNDTSLLYNEYIVYDIAQVNLKYLLKLKFNFKTSLWLEHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	DNA (26-MER)
Molecular weight formula_weight	7990.1 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	M,N

GCCTACCGGTTCGCGAACCGGTAGGC

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	(2Z)-2-{4-[2-(morpholin-4-yl)ethoxy]benzylidene}-3-oxo-2,3-dihydro-1-benzofuran-7-carboxamide
Molecular weight formula_weight	394.4 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	4oqbA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1740 — first zn-finger domain of poly(adp-ribose) polymerase-1
Homologous superfamily homologous superfamily	10 — Zinc finger, PARP-type

Domain ID domain_id	4oqbC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	228 — Phosphoenolpyruvate Carboxykinase; domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	4oqbC03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	142 — Poly(ADP-ribose) Polymerase; domain 1
Homologous superfamily homologous superfamily	10 — Poly(ADP-ribose) polymerase, regulatory domain

Domain ID domain_id	4oqbD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1740 — first zn-finger domain of poly(adp-ribose) polymerase-1
Homologous superfamily homologous superfamily	10 — Zinc finger, PARP-type

Domain ID domain_id	4oqbF02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	228 — Phosphoenolpyruvate Carboxykinase; domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	4oqbF03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	142 — Poly(ADP-ribose) Polymerase; domain 1
Homologous superfamily homologous superfamily	10 — Poly(ADP-ribose) polymerase, regulatory domain

▶

Unit-cell length a length_a	65.100 Å
Unit-cell length b length_b	113.080 Å
Unit-cell length c length_c	296.230 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.362 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.3231
R_work r_work	0.3217
R_free r_free	0.3490
