Structure of human ERK1 in complex with SCH772984 revealing a novel inhibitor-induced binding pocket

Method: X-RAY DIFFRACTION Dmax: 107.8 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitogen-activated protein kinase 3

Homo sapiens

UniProt P27361

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–379 Fragment：kinase domain EDO 1,2-ETHANEDIOL × 13 DMS DIMETHYL SULFOXIDE × 2 CL CHLORIDE ION × 1 SO4 SULFATE ION × 1 38Z (3R)-1-(2-oxo-2-{4-[4-(pyrimidin-2-yl)phenyl]piperazin-1-yl}ethyl)-N-[3-(pyridin-4-yl)-2H-indazol-5-yl]pyrrolidine-3-carboxamide × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277.15 K；33% PEG4000, 0.1 M Tris pH 8.0 and 0.2 M lithium sulphate, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K Resolution 1.40 Å R-free 0.175
2 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain B； UniProt 1–379 Fragment：kinase domain EDO 1,2-ETHANEDIOL × 7 DMS DIMETHYL SULFOXIDE × 1 CL CHLORIDE ION × 2 SO4 SULFATE ION × 1 38Z (3R)-1-(2-oxo-2-{4-[4-(pyrimidin-2-yl)phenyl]piperazin-1-yl}ethyl)-N-[3-(pyridin-4-yl)-2H-indazol-5-yl]pyrrolidine-3-carboxamide × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277.15 K；33% PEG4000, 0.1 M Tris pH 8.0 and 0.2 M lithium sulphate, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K Resolution 1.40 Å R-free 0.175

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 4QTB Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2ZOQ Structural dissection of human mitogen-activated kinase ERK1 Deposited 2008-06-01 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–379（379 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 1 NA SODIUM ION × 1 5ID (2R,3R,4S,5R)-2-(4-AMINO-5-IODO-7H-PYRROLO[2,3-D]PYRIMIDIN-7-YL)-5-(HYDROXYMETHYL)TETRAHYDROFURAN-3,4-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；2M ammonium sulphate, 2% polyethyleneglycol400, 0.1M, pH7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.39 Å R-free 0.267
2ZOQ Structural dissection of human mitogen-activated kinase ERK1 Deposited 2008-06-01 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–379（379 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 1 NA SODIUM ION × 1 5ID (2R,3R,4S,5R)-2-(4-AMINO-5-IODO-7H-PYRROLO[2,3-D]PYRIMIDIN-7-YL)-5-(HYDROXYMETHYL)TETRAHYDROFURAN-3,4-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；2M ammonium sulphate, 2% polyethyleneglycol400, 0.1M, pH7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.39 Å R-free 0.267
6GES Crystal structure of ERK1 covalently bound to SM1-71 Deposited 2018-04-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–379（379 aa）
Not recorded 6H3 N-{2-[(5-chloro-2-{[4-(4-methylpiperazin-1-yl)phenyl]amino}pyrimidin-4-yl)amino]phenyl}propanamide × 1 EWH ~{N}-[2-[[5-chloranyl-2-[[4-(4-methylpiperazin-1-yl)phenyl]amino]pyrimidin-4-yl]amino]phenyl]prop-2-enamide × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277.14 K；34% PEG 4k, 0.2M Li2SO4, 0.1M tris 7.5
Resolution 2.07 Å R-free 0.213
6GES Crystal structure of ERK1 covalently bound to SM1-71 Deposited 2018-04-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–379（379 aa）
Not recorded 6H3 N-{2-[(5-chloro-2-{[4-(4-methylpiperazin-1-yl)phenyl]amino}pyrimidin-4-yl)amino]phenyl}propanamide × 1 SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277.14 K；34% PEG 4k, 0.2M Li2SO4, 0.1M tris 7.5
Resolution 2.07 Å R-free 0.213
9TU0 Crystal structure of human ERK1 in complex with the KIM1 motif of the T. gondii protein GRA24 Deposited 2026-01-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–379（379 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1 M MES pH 7, 10% dioxane and 1.8 M ammonium sulphate
Resolution 2.17 Å R-free 0.292
9UUR The complex of human pMEK1 and uERK1 (ANP) Deposited 2025-05-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–379（379 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
9UUX The complex of human pMEK1 and ERK1 pT202 (ANP) Deposited 2025-05-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–379（379 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.12 Å
9UW3 The complex of human pMEK1 and ERK1 pY204 (ANP) Deposited 2025-05-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–379（379 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.36 Å
9UW4 The complex of human pMEK1 and uERK1 (ANP)(from pY204ERK1) Deposited 2025-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–379（379 aa）
Not recorded MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å

7 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MK03_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–380； UniProt 1–379 Author chain B； PDBConstruct 2–380； UniProt 1–379

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 4qtb

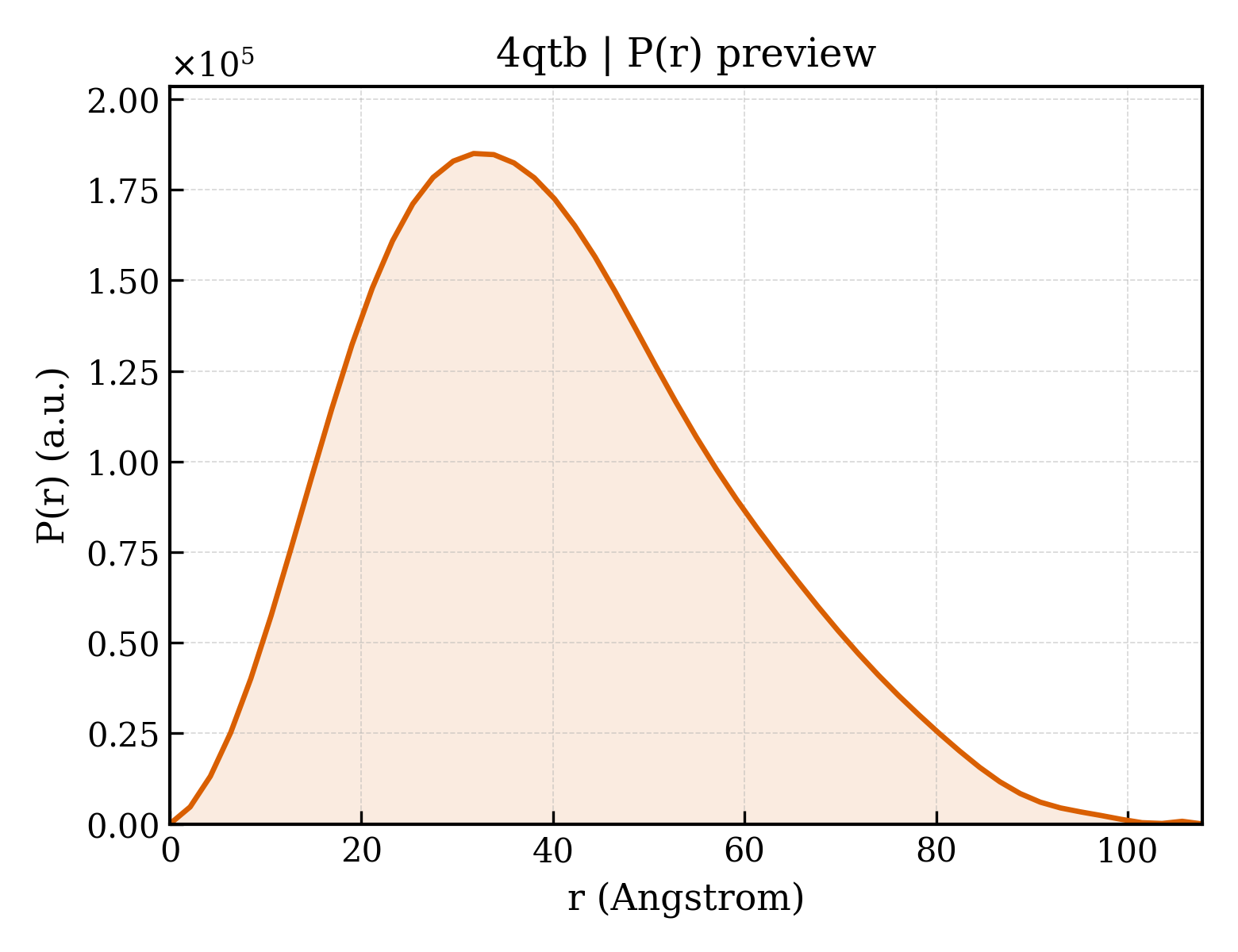

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 4qtb
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id4qtb
Deposition date deposition_date2014-07-07
Structure title titleStructure of human ERK1 in complex with SCH772984 revealing a novel inhibitor-induced binding pocket
Keywords keywords;Structural Genomics, Structural Genomics Consortium, SGC, TRANSFERASE, kinase, MAPK, signalling, inhibitor, allosteric, Structural Genomics Consortium (SGC), Transferase-transferase inhibitor complex ;; Transferase/transferase inhibitor
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier30.80 Å
Radius of gyration Rg (electron density) rg_electron30.37 Å
Forward intensity I(0) i0107179000.00
Molecular weight molecular_weight83778.0 kDa
Excluded volume excluded_volume105520 ų
Envelope volume envelope_volume127780 ų
Hydration-shell volume shell_volume35778 ų
Envelope diameter envelope_diameter113.6 Å
Shell Rg shell_rg36.64 Å
Envelope Rg envelope_rg30.64 Å
Shape Rg shape_rg30.34 Å
Total Rg total_rg31.00 Å
Total atoms total_atoms5885
Residues n_residues699
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax107.8 Å
Rg (real space) rg_real30.92 Å
Rg uncertainty (real space) rg_real_error1.09 Å
I(0) (real space) i0_real1.0720e+08
I(0) uncertainty (real space) i0_real_error1.7970e+06
Rg (reciprocal space) rg_reciprocal30.87 Å
I(0) (reciprocal space) i0_reciprocal107200000.0000
Solution quality estimate total_estimate0.6464
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary31.7 Å
Skewness Skewness skewness0.472
Kurtosis Kurtosis kurtosis-0.249
Angular range angular_range— – 0.2550 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha36270000.0000
Real-space data points n_real_points52
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.758; Stabil: 1.000; Sysdev: 0.115; Positv: 1.000; Valcen: 0.854; Smooth: 0.927
▶
