SAXSdb — 4quf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RE36324p

Drosophila melanogaster

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 19–85 Chain B； UniProt 19–85	Not recorded	H3(1-15)K9me3 peptide × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.2 M ammonium nitrate and 20% PEG3350, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.249
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 19–85 Chain D； UniProt 19–85	Not recorded	H3(1-15)K9me3 peptide × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.2 M ammonium nitrate and 20% PEG3350, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.249
3	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 19–85 Chain F； UniProt 19–85	Not recorded	H3(1-15)K9me3 peptide × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.2 M ammonium nitrate and 20% PEG3350, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.249

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4QUF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4QUC Crystal structure of chromodomain of Rhino Deposited 2014-07-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–85（67 aa） Fragment：chromodomain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.2M Sodium nitrate and 20%(w/v) PEG3350, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.50 Å R-free 0.253
4U68 Crystal structure of Rhino chromodomain in complex with H3K9me3 Deposited 2014-07-28	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 20–90（71 aa） Fragment：chromodomain, UNP residues 20-90	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；290 K；30 %(v/v) 2-methyl-2,4-pentanediol, 0.1 M sodium acetate, 25 % (w/v) PEG 1500	Resolution 1.80 Å R-free 0.206
4U68 Crystal structure of Rhino chromodomain in complex with H3K9me3 Deposited 2014-07-28	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 20–90（71 aa） Fragment：chromodomain, UNP residues 20-90 Chain C 20–90（71 aa） Fragment：chromodomain, UNP residues 20-90	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；290 K；30 %(v/v) 2-methyl-2,4-pentanediol, 0.1 M sodium acetate, 25 % (w/v) PEG 1500	Resolution 1.80 Å R-free 0.206

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q7JXA8_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–68； UniProt 19–85 Author chain B； PDBConstruct 2–68； UniProt 19–85 Author chain C； PDBConstruct 2–68； UniProt 19–85 Author chain D； PDBConstruct 2–68； UniProt 19–85 Author chain E； PDBConstruct 2–68； UniProt 19–85 Author chain F； PDBConstruct 2–68； UniProt 19–85

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4quf
Deposition date deposition_date	2014-07-10
Structure title title	crystal structure of chromodomain of Rhino with H3K9me3
Keywords keywords	piRNA biogensis, histone binding, protein binding; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.26 Å
Radius of gyration Rg (electron density) rg_electron	26.62 Å
Forward intensity I(0) i0	35835900.00
Molecular weight molecular_weight	46818.0 kDa
Excluded volume excluded_volume	58897 Å³
Envelope volume envelope_volume	75465 Å³
Hydration-shell volume shell_volume	24637 Å³
Envelope diameter envelope_diameter	97.1 Å
Shell Rg shell_rg	32.65 Å
Envelope Rg envelope_rg	26.37 Å
Shape Rg shape_rg	26.63 Å
Total Rg total_rg	27.29 Å
Total atoms total_atoms	3303
Residues n_residues	394
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

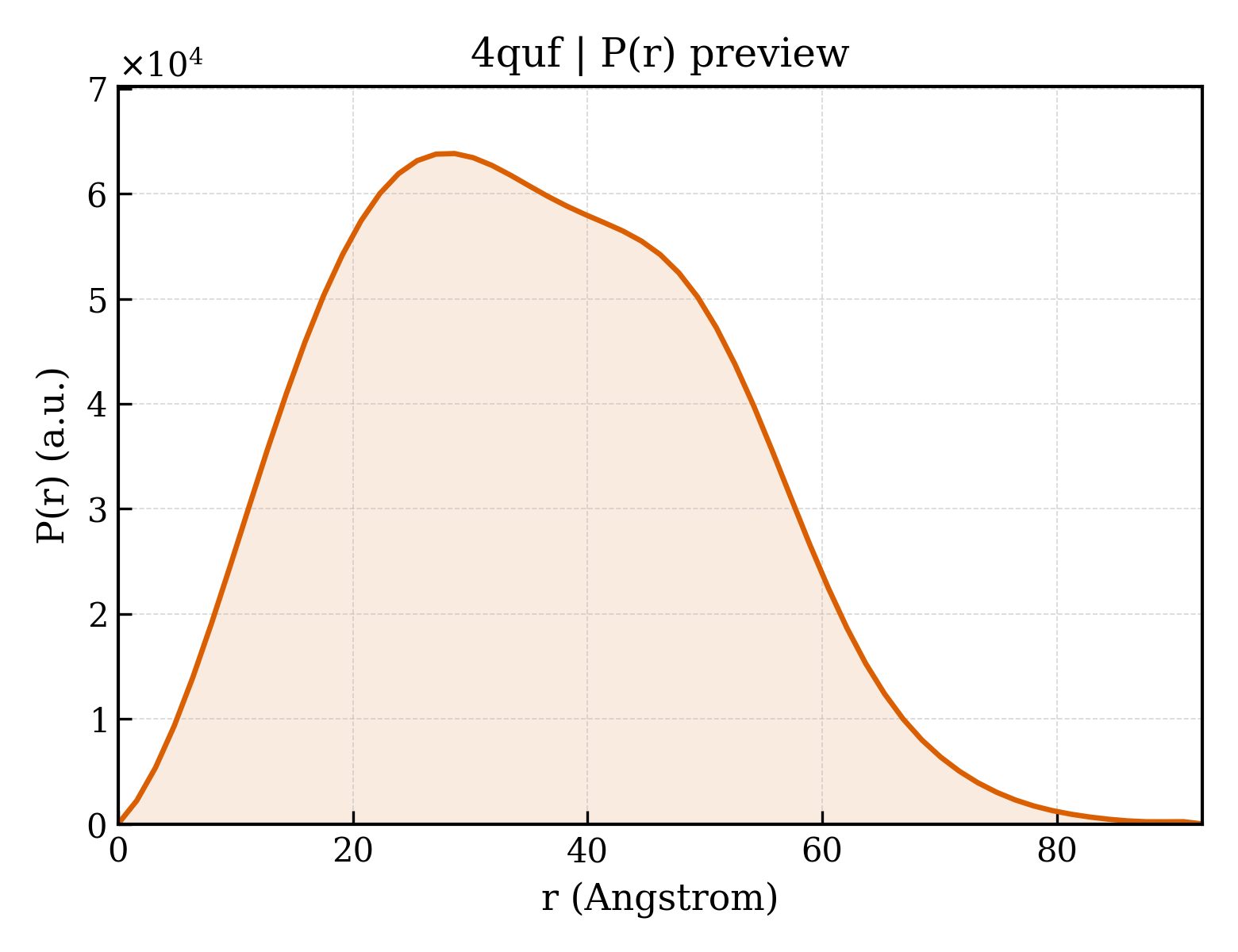

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	92.4 Å
Rg (real space) rg_real	27.25 Å
Rg uncertainty (real space) rg_real_error	0.75 Å
I(0) (real space) i0_real	3.5840e+07
I(0) uncertainty (real space) i0_real_error	5.0380e+05
Rg (reciprocal space) rg_reciprocal	27.25 Å
I(0) (reciprocal space) i0_reciprocal	35840000.0000
Solution quality estimate total_estimate	0.8892
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.7 Å
Skewness Skewness skewness	0.233
Kurtosis Kurtosis kurtosis	-0.549
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3821000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.869; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.993

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	RE36324p
Molecular weight formula_weight	7885.9 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	3506

SDHVEEYVVEKILGKRFVNGRPQVLVKWSGFPNENNTWEPLENVGNCMKLVSDFESEVFRLHRKAAAK

来源 Source

来源生物 organism	Drosophila melanogaster
通用名 common_name	Fruit fly
NCBI Class编号 ncbi_taxonomy_id	7227
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	H3(1-15)K9me3 peptide
Molecular weight formula_weight	1607.9 kDa
Source method src_method	syn
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,Q,R,T,V,U

ARTKQTARKSTGGKA

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	203

▼

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	4qufA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	4qufB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	4qufC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	4qufD00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	4qufE00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	4qufF00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	40 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	42.317 Å
Unit-cell length b length_b	79.932 Å
Unit-cell length c length_c	81.181 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	96.41 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.501 Å
Low-resolution limit resolution_low	37.216 Å
R factor r_factor	0.1976
R_work r_work	0.1948
R_free r_free	0.2494

fit	/app/data/saxs_computation/qu/4quf/4quf.fit
pddf	/app/data/pr_computation/qu/4quf/4quf.pr.out
profile	/app/data/saxs_computation/qu/4quf/4quf.dat

crystal structure of chromodomain of Rhino with H3K9me3
