Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | TRIETHYLENE GLYCOL × 1 ACETATE ION × 1 water × 1 | Consistent with protein count |
| UniProt name | B2MG_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 2–100； UniProt 21–119 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 4rmw |
| Deposition date deposition_date | 2014-10-22 |
| Structure title title | Crystal structure of the D76A Beta-2 Microglobulin mutant |
| Keywords keywords | immunoglobin, beta-sandwitch, amyloidosis, pathologic mutation, genetic disease, MHC class I, IMMUNE SYSTEM; IMMUNE SYSTEM |
| Experimental Method method | X-RAY DIFFRACTION |

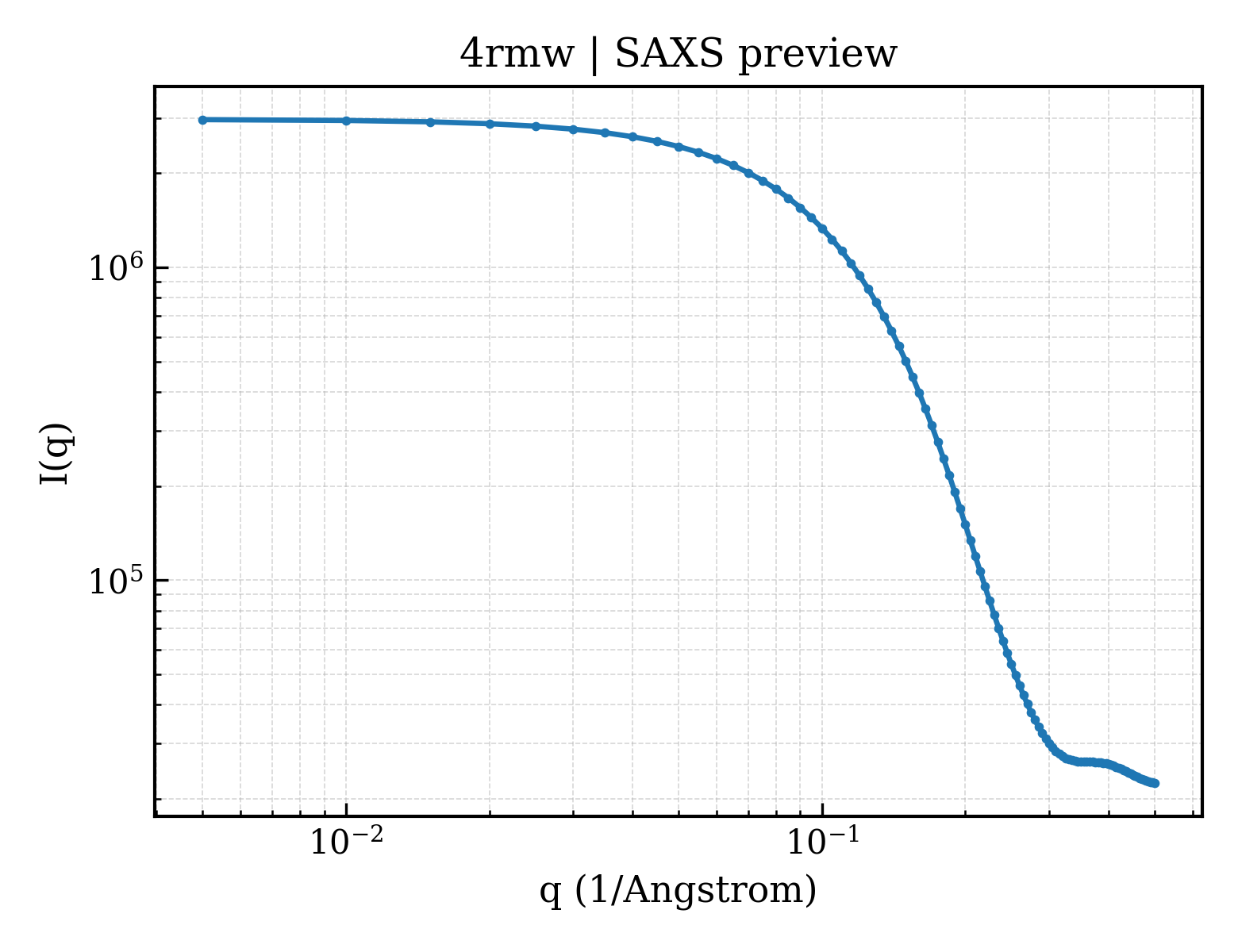

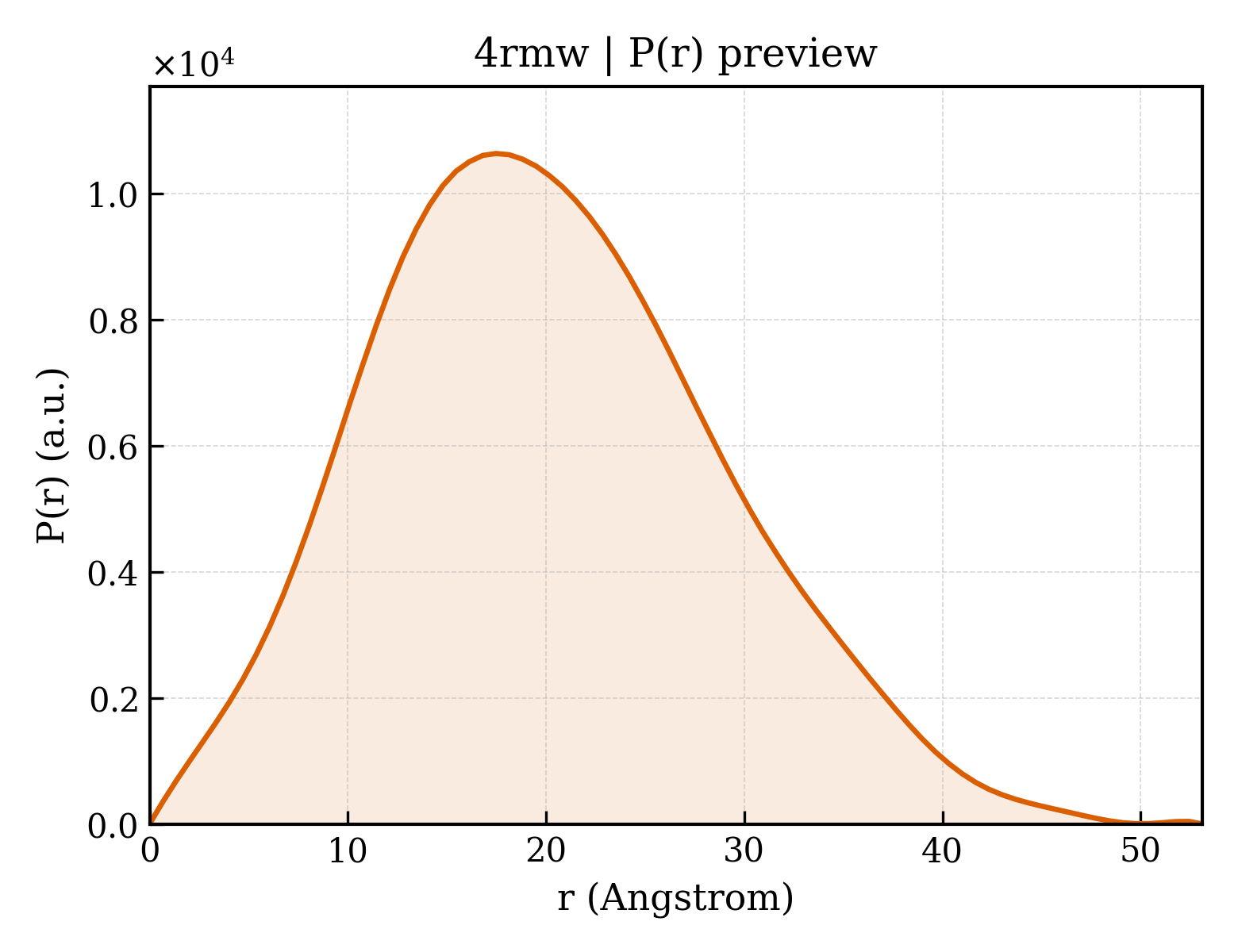

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 15.49 Å |
| Rg (electron density) | 14.35 Å |
| Total Rg | 15.50 Å |
| Atom count | 844 |
| Residues | 100 |
| Excluded volume | 14944 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d4rmwa_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.1 — Immunoglobulin-like beta-sandwich |
| Superfamily Superfamily superfamily | b.1.1 — Immunoglobulin |
| Family Family family | b.1.1.2 — C1 set domains (antibody constant domain-like) |
| Domain ID domain_id | 4rmwA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 60 — Sandwich |
| Topology topology | 40 — Immunoglobulin-like |
| Homologous superfamily homologous superfamily | 10 — Immunoglobulins |
