SAXSdb — 4u1c

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Eukaryotic translation initiation factor 3 subunit C

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: Dimeric（2） Consistent with protein copy count	Chain C； UniProt 247–812	Not recorded	Eukaryotic translation initiation factor 3 subunit A × 1 （P38249）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；292 K；PEG 6000, KSCN, Bis-Tris-propane	Resolution 3.50 Å R-free 0.293

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4U1C	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3JAP Structure of a partial yeast 48S preinitiation complex in closed conformation Deposited 2015-06-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain p 193–206（14 aa） Chain p 251–812（562 aa）	Not recorded	MG MAGNESIUM ION × 81 ZN ZINC ION × 4 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer 20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT；pH 6.5；20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT cryo-EM vitrification conditions Blot for 2.5 to 3 seconds before plunging；120 K；Cryogen ETHANE；Blot for 2.5 to 3 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).	Resolution 4.90 Å
5H7U NMR structure of eIF3 36-163 Deposited 2016-11-21	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–163（128 aa） Fragment：UNP RESIDUES 36-163	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 170；Pressure 1 NMR sample composition 0.4 mM [U-100% 13C; U-100% 15N] eIF3c 36-163, 20 mM sodium phosphate, 150 mM sodium chloride, 1 mM DTT, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
6FYX Structure of a partial yeast 48S preinitiation complex with eIF5 N-terminal domain (model C1) Deposited 2018-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain q 251–812（562 aa）	Not recorded	MG MAGNESIUM ION × 117 ZN ZINC ION × 5 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6FYY Structure of a partial yeast 48S preinitiation complex with eIF5 N-terminal domain (model C2) Deposited 2018-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain q 251–812（562 aa）	Not recorded	MG MAGNESIUM ION × 117 ZN ZINC ION × 5 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.02 Å
6GSM Structure of a partial yeast 48S preinitiation complex in open conformation. Deposited 2018-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain q 96–794（699 aa）	Not recorded	7NO [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-2-(phosphonooxymethyl)oxolan-3-yl] (2~{S})-2-azanyl-4-methylsulfanyl-butanoate × 1 MG MAGNESIUM ION × 82 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.15 Å
6GSN Structure of a partial yeast 48S preinitiation complex in closed conformation Deposited 2018-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain q 96–794（699 aa）	Not recorded	MG MAGNESIUM ION × 81 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.75 Å
6ZCE Structure of a yeast ABCE1-bound 43S pre-initiation complex Deposited 2020-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 45-meric	Chain q 1–812（812 aa）	Not recorded	ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 SF4 IRON/SULFUR CLUSTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
6ZU9 Structure of a yeast ABCE1-bound 48S initiation complex Deposited 2020-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 41 PDB declaration: 44-meric	Chain q 1–812（812 aa）	Not recorded	MG MAGNESIUM ION × 4 ZN ZINC ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 SF4 IRON/SULFUR CLUSTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
8S8E Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-3.1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 40 PDB declaration: 43-meric	Chain p 1–812（812 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.85 Å
8S8K Structure of a yeast 48S-AUC preinitiation complex in swivelled conformation (model py48S-AUC-swiv-eIF1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 40 PDB declaration: 43-meric	Chain n 1–812（812 aa）	Not recorded	MG MAGNESIUM ION × 96 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EIF3C_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 2–567； UniProt 247–812

Eukaryotic translation initiation factor 3 subunit A

Saccharomyces cerevisiae

UniProt P38249

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: Dimeric（2） Consistent with protein copy count	Chain A； UniProt 225–495	Not recorded	Eukaryotic translation initiation factor 3 subunit C × 1 （P32497）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；292 K；PEG 6000, KSCN, Bis-Tris-propane	Resolution 3.50 Å R-free 0.293

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4U1C	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3JAP Structure of a partial yeast 48S preinitiation complex in closed conformation Deposited 2015-06-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain o 1–495（495 aa）	Not recorded	MG MAGNESIUM ION × 81 ZN ZINC ION × 4 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer 20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT；pH 6.5；20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT cryo-EM vitrification conditions Blot for 2.5 to 3 seconds before plunging；120 K；Cryogen ETHANE；Blot for 2.5 to 3 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).	Resolution 4.90 Å
4K51 Crystal Structure of the PCI domain of eIF3a Deposited 2013-04-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 276–494（219 aa） Fragment：PCI, UNP residues 276-494	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；PEG, buffer, salt, pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.65 Å R-free 0.286
4K51 Crystal Structure of the PCI domain of eIF3a Deposited 2013-04-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 276–494（219 aa） Fragment：PCI, UNP residues 276-494	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；PEG, buffer, salt, pH 7, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.65 Å R-free 0.286
4U1D Structure of the PCI domain of translation initiation factor eIF3a Deposited 2014-07-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: Monomeric	Chain C 1–494（494 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；PEG 3350, KSCN, Bis-Tris-propane	Resolution 3.30 Å R-free 0.204
4U1D Structure of the PCI domain of translation initiation factor eIF3a Deposited 2014-07-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: Monomeric	Chain B 1–494（494 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；PEG 3350, KSCN, Bis-Tris-propane	Resolution 3.30 Å R-free 0.204
4U1D Structure of the PCI domain of translation initiation factor eIF3a Deposited 2014-07-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: Monomeric	Chain A 1–494（494 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；PEG 3350, KSCN, Bis-Tris-propane	Resolution 3.30 Å R-free 0.204
6FYX Structure of a partial yeast 48S preinitiation complex with eIF5 N-terminal domain (model C1) Deposited 2018-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain o 1–964（964 aa）	Not recorded	MG MAGNESIUM ION × 117 ZN ZINC ION × 5 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6FYY Structure of a partial yeast 48S preinitiation complex with eIF5 N-terminal domain (model C2) Deposited 2018-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain o 1–964（964 aa）	Not recorded	MG MAGNESIUM ION × 117 ZN ZINC ION × 5 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.02 Å
6GSM Structure of a partial yeast 48S preinitiation complex in open conformation. Deposited 2018-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain o 5–492（488 aa）	Not recorded	7NO [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-2-(phosphonooxymethyl)oxolan-3-yl] (2~{S})-2-azanyl-4-methylsulfanyl-butanoate × 1 MG MAGNESIUM ION × 82 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.15 Å
6GSN Structure of a partial yeast 48S preinitiation complex in closed conformation Deposited 2018-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain o 5–492（488 aa）	Not recorded	MG MAGNESIUM ION × 81 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.75 Å
6ZCE Structure of a yeast ABCE1-bound 43S pre-initiation complex Deposited 2020-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 45-meric	Chain o 1–964（964 aa）	Not recorded	ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 SF4 IRON/SULFUR CLUSTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.30 Å
6ZU9 Structure of a yeast ABCE1-bound 48S initiation complex Deposited 2020-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 41 PDB declaration: 44-meric	Chain o 1–964（964 aa）	Not recorded	MG MAGNESIUM ION × 4 ZN ZINC ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 SF4 IRON/SULFUR CLUSTER × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
8CAH Cryo-EM structure of native Otu2-bound ubiquitinated 43S pre-initiation complex Deposited 2023-01-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 48-meric	Chain o 1–964（964 aa）	Not recorded	MG MAGNESIUM ION × 80 ZN ZINC ION × 2 SF4 IRON/SULFUR CLUSTER × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8CAS Cryo-EM structure of native Otu2-bound ubiquitinated 48S initiation complex (partial) Deposited 2023-01-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 47 PDB declaration: 50-meric	Chain o 1–964（964 aa）	Not recorded	ZN ZINC ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 SF4 IRON/SULFUR CLUSTER × 2 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8S8E Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-3.1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 40 PDB declaration: 43-meric	Chain o 1–964（964 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.85 Å

12 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EIF3A_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 4–274； UniProt 225–495

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4u1c
Deposition date deposition_date	2014-07-15
Structure title title	Crystal structure of the eIF3a/eIF3c PCI-domain heterodimer
Keywords keywords	translation initiation, eIF3 complex, PCI-domains, translation; TRANSLATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.81 Å
Radius of gyration Rg (electron density) rg_electron	37.80 Å
Forward intensity I(0) i0	127186000.00
Molecular weight molecular_weight	94308.0 kDa
Excluded volume excluded_volume	119530 Å³
Envelope volume envelope_volume	168100 Å³
Hydration-shell volume shell_volume	38788 Å³
Envelope diameter envelope_diameter	129.6 Å
Shell Rg shell_rg	41.58 Å
Envelope Rg envelope_rg	37.70 Å
Shape Rg shape_rg	37.81 Å
Total Rg total_rg	38.06 Å
Total atoms total_atoms	6658
Residues n_residues	815
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

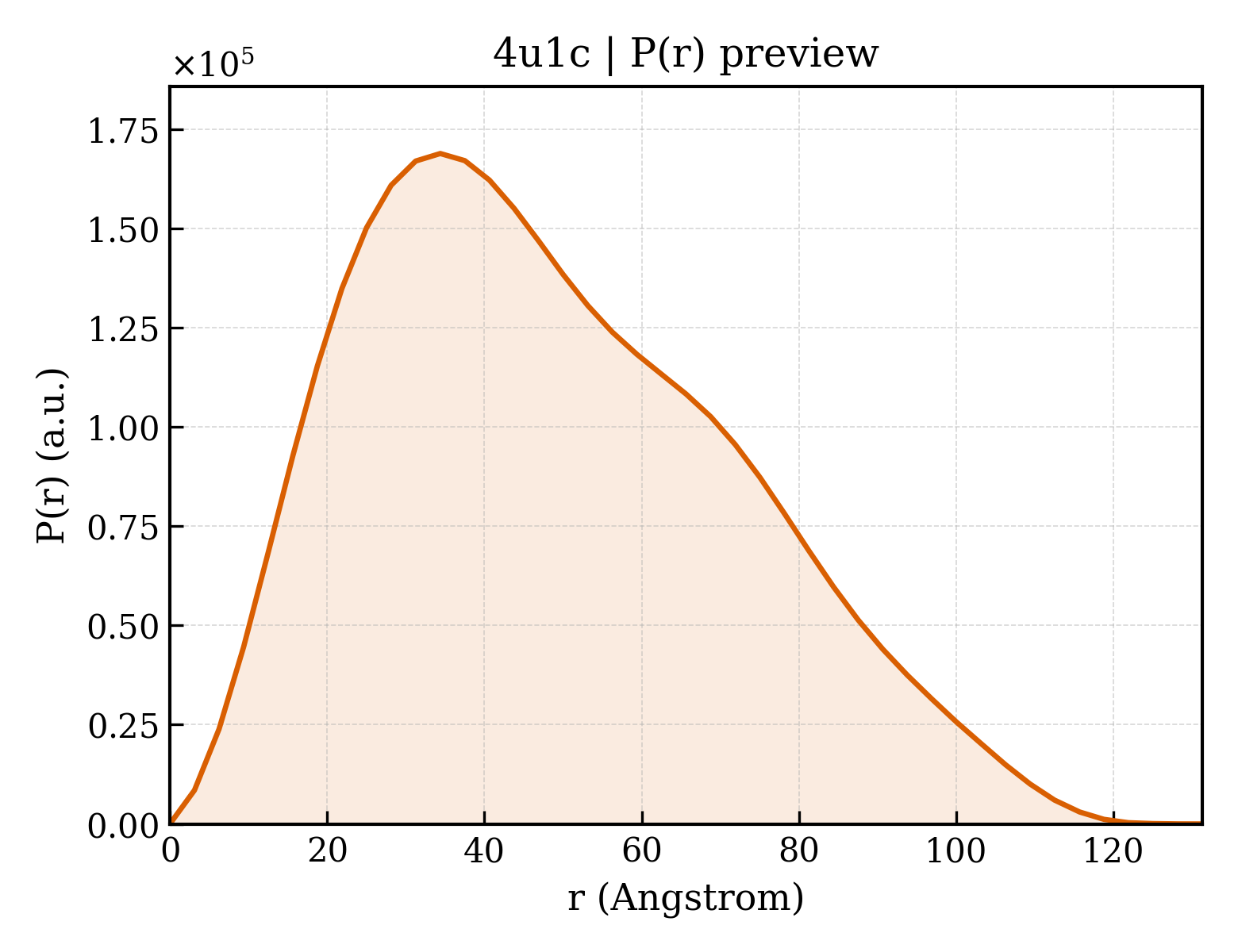

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	131.3 Å
Rg (real space) rg_real	38.09 Å
Rg uncertainty (real space) rg_real_error	1.51 Å
I(0) (real space) i0_real	1.2720e+08
I(0) uncertainty (real space) i0_real_error	2.1690e+06
Rg (reciprocal space) rg_reciprocal	37.92 Å
I(0) (reciprocal space) i0_reciprocal	127200000.0000
Solution quality estimate total_estimate	0.8527
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	34.4 Å
Skewness Skewness skewness	0.437
Kurtosis Kurtosis kurtosis	-0.512
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	20360000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.772; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.847; Smooth: 0.918

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Eukaryotic translation initiation factor 3 subunit C
Molecular weight formula_weight	65808.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	6658

MDQAVQEDFFTRLQTIIDSRGKKTVNQQSLISTLEELLTVAEKPYEFIMAYLTLIPSRFDASANLSYQPIDQWKSSFNDISKLLSILDQTIDTYQVNEFADPIDFIEDEPKEDSDGVKRILGSIFSFVERLDDEFMKSLLNIDPHSSDYLIRLRDEQSIYNLILRTQLYFEATLKDEHDLERALTRPFVKRLDHIYYKSENLIKIMETAAWNIIPAQFKSKFTSKDQLDSADYVDNLIDGLSTILSKQNNIAVQKRAILYNIYYTALNKDFQTAKDMLLTSQVQTNINQFDSSLQILFNRVVVQLGLSAFKLCLIEECHQILNDLLSSSHLREILGQQSLHRISLNSSNNASADERARQCLPYHQHINLDLIDVVFLTCSLLIEIPRMTAFYSGIKVKRIPYSPKSIRRSLEHYDKLSFQGPPETLRDYVLFAAKSMQKGNWRDSVKYLREIKSWALLPNMETVLNSLTERVQVESLKTYFFSFKRFYSSFSVAKLAELFDLPENKVVEVLQSVIAELEIPAKLNDEKTIFVVEKGDEITKLEEAMVKLNKEYKIAKERLNPPSNRR

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Eukaryotic translation initiation factor 3 subunit A
Molecular weight formula_weight	31683.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

SNAVDLSDADTLQRYLDQRFQQVDVSVKLELWHEAYRSIEDVFHLMKISKRAPKPSTLANYYENLVKVFFVSGDPLLHTTAWKKFYKLYSTNPRATEEEFKTYSSTIFLSAISTQLDEIPSIGYDPHLRMYRLLNLDAKPTRKEMLQSIIEDESIYGKVDEELKELYDIIEVNFDVDTVKQQLENLLVKLSSKTYFSQYIAPLRDVIMRRVFVAASQKFTTVSQSELYKLATLPAPLDLSAWDIEKSLLQAAVEDYVSITIDHESAKVTFAKDP

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli BL21(DE3)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4u1cA01
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	860 — DNA Excision Repair, Uvrb; Chain A
Homologous superfamily homologous superfamily	10 — UVR domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	155.550 Å
Unit-cell length b length_b	155.550 Å
Unit-cell length c length_c	91.220 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	44.903 Å
R factor r_factor	0.2636
R_work r_work	0.2603
R_free r_free	0.2928

fit	/app/data/saxs_computation/u1/4u1c/4u1c.fit
pddf	/app/data/pr_computation/u1/4u1c/4u1c.pr.out
profile	/app/data/saxs_computation/u1/4u1c/4u1c.dat
