SAXSdb — 4ui0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BONE MORPHOGENETIC PROTEIN 2

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 283–396 Chain B； UniProt 283–396	Fragment：C-TERMINAL DOMAIN SIGNALING DOMAIN, RESIDUES 283-396	RGM DOMAIN FAMILY MEMBER B × 1 （Q6NW40） MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 FLC CITRATE ANION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4；0.08 M CITRIC ACID PH 4.0, 15% (V/V) MPD	Resolution 2.80 Å R-free 0.267

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4UI0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ES7 COMPLEX BETWEEN BMP-2 AND TWO BMP RECEPTOR IA ECTODOMAINS Deposited 2000-04-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 283–396（114 aa） Chain C 283–396（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；sodium acetate, imidazole, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.90 Å R-free 0.229
1REU Structure of the bone morphogenetic protein 2 mutant L51P Deposited 2003-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 294–396（103 aa） Fragment：mature part	Mutation：L51P	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；lithium sulfate, tert-butanol, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.65 Å R-free 0.235
1REU Structure of the bone morphogenetic protein 2 mutant L51P Deposited 2003-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 294–396（103 aa） Fragment：mature part	Mutation：L51P	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；lithium sulfate, tert-butanol, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.65 Å R-free 0.235
1REW Structural refinement of the complex of bone morphogenetic protein 2 and its type IA receptor Deposited 2003-11-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 283–396（114 aa） Fragment：mature part Chain B 283–396（114 aa） Fragment：mature part	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；280 K；sodium acetate, imidazole, glucose, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 280K	Resolution 1.86 Å R-free 0.229
2GOO Ternary Complex of BMP-2 bound to BMPR-Ia-ECD and ActRII-ECD Deposited 2006-04-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 283–396（114 aa） Fragment：Residues 283-396 Chain D 283–396（114 aa） Fragment：Residues 283-396	Not recorded	NDG 2-acetamido-2-deoxy-alpha-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；4M sodium formate, 100mM Hepes, 3% dioxane, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.259
2H62 Crystal structure of a ternary ligand-receptor complex of BMP-2 Deposited 2006-05-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 283–396（114 aa） Chain B 283–396（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.75；294 K；50% PPG400, 0.1M Bis-Tris, pH 5.75, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.85 Å R-free 0.225
2H64 Crystal structure of a ternary ligand-receptor complex of BMP-2 Deposited 2006-05-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 283–396（114 aa）	Mutation：L100K, N102D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.75；294 K；30% PEG3350, 0.1M Tris-HCl pH 8.75, 0.2M NH4CH3COO, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.92 Å R-free 0.264
2QJ9 Crystal structure analysis of BMP-2 in complex with BMPR-IA variant B1 Deposited 2007-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 283–396（114 aa） Fragment：mature part (residues 283-396) Chain B 283–396（114 aa） Fragment：mature part (residues 283-396)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；298 K；0.8M K Na phosphate, 25% ethylene glycol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.44 Å R-free 0.253
2QJA Crystal structure analysis of BMP-2 in complex with BMPR-IA variant B12 Deposited 2007-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 283–396（114 aa） Fragment：mature part (residues 283-396) Chain B 283–396（114 aa） Fragment：mature part (residues 283-396)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；298 K；0.8M K Na phosphate, 25% ethylene glycol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.254
2QJB Crystal structure analysis of BMP-2 in complex with BMPR-IA variant IA/IB Deposited 2007-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 283–396（114 aa） Fragment：mature part (residues 283-396) Chain B 283–396（114 aa） Fragment：mature part (residues 283-396)	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；298 K；0.8M K Na phosphate, 25% ethylene glycol, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.263
3BK3 Crystal structure of the complex of BMP-2 and the first Von Willebrand domain type C of Crossveinless-2 Deposited 2007-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 283–396（114 aa） Chain B 283–396（114 aa）	Mutation：F41M, Y91M Mutation：F41M, Y91M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；2.2M ammonium phosphate, 0.1M Tris pH 7.5, 8% glycerol, 5% sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.70 Å R-free 0.245
3BK3 Crystal structure of the complex of BMP-2 and the first Von Willebrand domain type C of Crossveinless-2 Deposited 2007-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 283–396（114 aa） Chain B 283–396（114 aa）	Mutation：F41M, Y91M Mutation：F41M, Y91M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；2.2M ammonium phosphate, 0.1M Tris pH 7.5, 8% glycerol, 5% sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.70 Å R-free 0.245
3BK3 Crystal structure of the complex of BMP-2 and the first Von Willebrand domain type C of Crossveinless-2 Deposited 2007-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 283–396（114 aa）	Mutation：F41M, Y91M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；2.2M ammonium phosphate, 0.1M Tris pH 7.5, 8% glycerol, 5% sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.70 Å R-free 0.245
3BK3 Crystal structure of the complex of BMP-2 and the first Von Willebrand domain type C of Crossveinless-2 Deposited 2007-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 283–396（114 aa）	Mutation：F41M, Y91M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；2.2M ammonium phosphate, 0.1M Tris pH 7.5, 8% glycerol, 5% sucrose, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.70 Å R-free 0.245
3BMP HUMAN BONE MORPHOGENETIC PROTEIN-2 (BMP-2) Deposited 1999-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 283–396（114 aa）	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.4；CRYSTALLIZATION CONDITIONS: PROTEIN WAS CRYSTALLIZED FROM 100 MM LITHIUM SULFATE, 12% TERT-BUTANOL, 50 MM CITRATE, PH 5.4	Resolution 2.70 Å R-free 0.278
4N1D Nodal/BMP2 chimera NB250 Deposited 2013-10-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 283–305（23 aa） Chain A 362–396（35 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；288 K；0.2M NaCl, 0.1 M Na acetate pH 4.6, 30% 2-Methyl-2,4-pentanediol, VAPOR DIFFUSION, HANGING DROP, temperature 288K	Resolution 1.91 Å R-free 0.204
4UHY Crystal structure of the human RGMA-BMP2 complex Deposited 2015-03-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 283–396（114 aa） Fragment：C-TERMINAL DOMAIN SIGNALING DOMAIN, RESIDUES 283-396 Chain B 283–396（114 aa） Fragment：C-TERMINAL DOMAIN SIGNALING DOMAIN, RESIDUES 283-396	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4；0.1 M CITRIC ACID, PH 4.0, 20% (V/V) 2-METHYL-2,4-PENTANEDIOL (MPD), 0.2 M GLYCINE	Resolution 3.20 Å R-free 0.264
4UHZ Crystal structure of the human RGMB-BMP2 complex, crystal form 1 Deposited 2015-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 283–396（114 aa） Fragment：C-TERMINAL DOMAIN SIGNALING DOMAIN, RESIDUES 283-396	Not recorded	SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions 2 M AMMONIUM SULPHATE, 8% (V/V) 2,5- HEXANEDIOL	Resolution 2.85 Å R-free 0.229
4UI1 Crystal structure of the human RGMC-BMP2 complex Deposited 2015-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 283–396（114 aa） Fragment：C-TERMINAL DOMAIN SIGNALING DOMAIN, RESIDUES 283-396	Not recorded	NO3 NITRATE ION × 2 CL CHLORIDE ION × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；20% (W/V) PEG3350, 0.2 M AMMONIUM NITRATE, PH 7.5	Resolution 2.35 Å R-free 0.238
4UI1 Crystal structure of the human RGMC-BMP2 complex Deposited 2015-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 283–396（114 aa） Fragment：C-TERMINAL DOMAIN SIGNALING DOMAIN, RESIDUES 283-396	Not recorded	NO3 NITRATE ION × 4 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；20% (W/V) PEG3350, 0.2 M AMMONIUM NITRATE, PH 7.5	Resolution 2.35 Å R-free 0.238
4UI2 Crystal structure of the ternary RGMB-BMP2-NEO1 complex Deposited 2015-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain B 283–396（114 aa） Fragment：C-TERMINAL DOMAIN SIGNALING DOMAIN	Not recorded	SRT S,R MESO-TARTARIC ACID × 6 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS-HCL PH 8.5, 1.5 M AMMONIUM SULPHATE, 12% (V/V) GLYCEROL	Resolution 3.15 Å R-free 0.236
6OMN Glycosylated BMP2 homodimer Deposited 2019-04-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 289–396（108 aa） Chain F 289–396（108 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100mM TrisHCl pH 8.5, 100mM NaCl, 12% MPD	Resolution 2.68 Å R-free 0.243
6OMN Glycosylated BMP2 homodimer Deposited 2019-04-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 289–396（108 aa） Chain H 289–396（108 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；100mM TrisHCl pH 8.5, 100mM NaCl, 12% MPD	Resolution 2.68 Å R-free 0.243
7AG0 Complex between the bone morphogenetic protein 2 and its antagonist Noggin Deposited 2020-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 283–396（114 aa）	Not recorded	GOL GLYCEROL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；1.4 M NaKPO4	Resolution 3.10 Å R-free 0.280
8E3G BMP2/GDF5 heterodimer Deposited 2022-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 283–396（114 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Tris, magnesium formate	Resolution 2.80 Å R-free 0.234
8E3G BMP2/GDF5 heterodimer Deposited 2022-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 283–396（114 aa）	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Tris, magnesium formate	Resolution 2.80 Å R-free 0.234

19 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BMP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–114； UniProt 283–396 Author chain B； PDBConstruct 1–114； UniProt 283–396

RGM DOMAIN FAMILY MEMBER B

HOMO SAPIENS

UniProt Q6NW40

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 53–136	Fragment：N-TERMINAL DOMAIN, RESIDUES 53-136	BONE MORPHOGENETIC PROTEIN 2 × 2 （P12643） MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 FLC CITRATE ANION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4；0.08 M CITRIC ACID PH 4.0, 15% (V/V) MPD	Resolution 2.80 Å R-free 0.267

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4UI0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4BQ6 Crystal structure of the RGMB-NEO1 complex form 1 Deposited 2013-05-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 50–168（119 aa） Fragment：ECTODOMAIN, RESIDUES 50-168 Chain F 169–410（242 aa） Fragment：ECTODOMAIN, RESIDUES 169-410	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS-HCL, PH 8.5 0.2 M SODIUM ACETATE 30% PEG4000	Resolution 2.30 Å R-free 0.267
4BQ6 Crystal structure of the RGMB-NEO1 complex form 1 Deposited 2013-05-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 50–168（119 aa） Fragment：ECTODOMAIN, RESIDUES 50-168 Chain D 169–410（242 aa） Fragment：ECTODOMAIN, RESIDUES 169-410	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS-HCL, PH 8.5 0.2 M SODIUM ACETATE 30% PEG4000	Resolution 2.30 Å R-free 0.267
4BQ7 Crystal structure of the RGMB-Neo1 complex form 2 Deposited 2013-05-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 50–168（119 aa） Fragment：RESIDUES 50-168 Chain F 169–410（242 aa） Fragment：RESIDUES 169-410	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS-HCL, PH 8.5, 0.2 M LITHIUM SULPHATE, 25 % PEG3350	Resolution 6.60 Å R-free 0.280
4BQ7 Crystal structure of the RGMB-Neo1 complex form 2 Deposited 2013-05-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 50–168（119 aa） Fragment：RESIDUES 50-168 Chain D 169–410（242 aa） Fragment：RESIDUES 169-410	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS-HCL, PH 8.5, 0.2 M LITHIUM SULPHATE, 25 % PEG3350	Resolution 6.60 Å R-free 0.280
4BQ8 Crystal structure of the RGMB-NEO1 complex form 3 Deposited 2013-05-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 50–168（119 aa） Fragment：ECTODOMAIN, RESIDUES 50-168 Chain C 169–410（242 aa） Fragment：ECTODOMAIN, RESIDUES 169-410	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；0.1 M SODIUM ACETATE, PH 4.6, 0.18 M POTASSIUM ACETATE, 18 % PEG 3350	Resolution 2.80 Å R-free 0.199
4UHZ Crystal structure of the human RGMB-BMP2 complex, crystal form 1 Deposited 2015-03-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 52–137（86 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 52-137	Not recorded	SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions 2 M AMMONIUM SULPHATE, 8% (V/V) 2,5- HEXANEDIOL	Resolution 2.85 Å R-free 0.229
4UI2 Crystal structure of the ternary RGMB-BMP2-NEO1 complex Deposited 2015-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain C 50–168（119 aa） Fragment：RESIDUES 50-168 Chain D 169–410（242 aa） Fragment：RESIDUES 169-240	Not recorded	SRT S,R MESO-TARTARIC ACID × 6 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；0.1 M TRIS-HCL PH 8.5, 1.5 M AMMONIUM SULPHATE, 12% (V/V) GLYCEROL	Resolution 3.15 Å R-free 0.236
6Z3H Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) (crystal form 2) Deposited 2020-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 53–136（84 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.2 M (NH4)2SO4, 0.1 M sodium acetate pH 4.6, 35% w/v pentaerythritol ethoxylate (15/4 EO/OH; average MW 797 Da)	Resolution 3.16 Å R-free 0.268
6Z3J Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) (crystal form 1) Deposited 2020-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 53–136（84 aa） Chain D 53–136（84 aa）	Not recorded	SO4 SULFATE ION × 2 GOL GLYCEROL × 2 EDO 1,2-ETHANEDIOL × 3 CL CHLORIDE ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；294 K；0.2 M Li2SO4, 0.1 M HEPES pH 7.5, 25% v/v PEG 3350.	Resolution 1.65 Å R-free 0.219
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain C 53–412（360 aa） Chain D 53–412（360 aa） Chain S 53–412（360 aa） Chain T 53–412（360 aa） Chain c 53–412（360 aa） Chain d 53–412（360 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain I 53–412（360 aa） Chain J 53–412（360 aa） Chain U 53–412（360 aa） Chain V 53–412（360 aa） Chain i 53–412（360 aa） Chain j 53–412（360 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
6Z3M Repulsive Guidance Molecule B (RGMB) in complex with Growth Differentiation Factor 5 (GDF5) and Neogenin 1 (NEO1). Deposited 2020-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain O 53–412（360 aa） Chain P 53–412（360 aa） Chain W 53–412（360 aa） Chain X 53–412（360 aa） Chain o 53–412（360 aa） Chain p 53–412（360 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M NaCl, 20 mM MES pH 6.7, 6.6% w/v PEG 4000	Resolution 5.50 Å R-free 0.428
7NDG Cryo-EM structure of the ternary complex between Netrin-1, Neogenin and Repulsive Guidance Molecule B Deposited 2021-02-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: pentadecameric	Chain C 169–412（244 aa） Chain F 169–412（244 aa） Chain I 169–412（244 aa） Chain M 53–168（116 aa） Chain N 53–168（116 aa） Chain O 53–168（116 aa）	Not recorded	CA CALCIUM ION × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；10 mM HEPES pH 7.5, 150 mM NaCl, 2 mM CaCl2, 1 mM sucrose octasulfate, 0.01% NaN3 cryo-EM vitrification conditions Cryogen ETHANE；Lacey carbon grids with 3 nm ultrathin carbon support film were glow discharged for 30 seconds at high RF level using Harrick Plasma Cleaner, model PDC-002-CE, and then 3.5 microl of the sample was pipetted per grid. Excess protein was blotted away for 3 seconds using filter paper (round filter paper for Vitrobot from Agar Scientific, catalogue number 47000-100) and Vitrobot Mark IV (Thermo Fisher Scientific) (relative force -15) at 95-100% humidity. Grids were plunge frozen in liquid ethane.	Resolution 5.98 Å
7NE0 Structure of the ternary complex between Netrin-1, Repulsive-Guidance Molecule-B (RGMB) and Neogenin Deposited 2021-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 135–168（34 aa） Chain D 169–323（155 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 CA CALCIUM ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；298.15 K；0.1 M imidazole/MES pH 6.5, 10% (w/v) PEG 8000, 20% (v/v) ethylene glycol, 30 mM sodium nitrate, 30 mM sodium phosphate, 30 mM ammonium sulphate	Resolution 3.25 Å R-free 0.263

10 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RGMB_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 4–87； UniProt 53–136

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ui0
Deposition date deposition_date	2015-03-27
Structure title title	Crystal structure of the human RGMB-BMP2 complex, crystal form 2
Keywords keywords	;SIGNALING PROTEIN, REPULSIVE GUIDANCE MOLECULE, BONE MORPHOGENETIC PROTEIN PATHWAY, HEMOJUVELIN, MORPHOGEN, AXON GUIDANCE, CELL SURFACE RECEPTOR SIGNALING ;; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.95 Å
Radius of gyration Rg (electron density) rg_electron	21.70 Å
Forward intensity I(0) i0	16229500.00
Molecular weight molecular_weight	29262.0 kDa
Excluded volume excluded_volume	36149 Å³
Envelope volume envelope_volume	45382 Å³
Hydration-shell volume shell_volume	18452 Å³
Envelope diameter envelope_diameter	81.5 Å
Shell Rg shell_rg	27.23 Å
Envelope Rg envelope_rg	22.24 Å
Shape Rg shape_rg	21.75 Å
Total Rg total_rg	22.34 Å
Total atoms total_atoms	2040
Residues n_residues	261
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

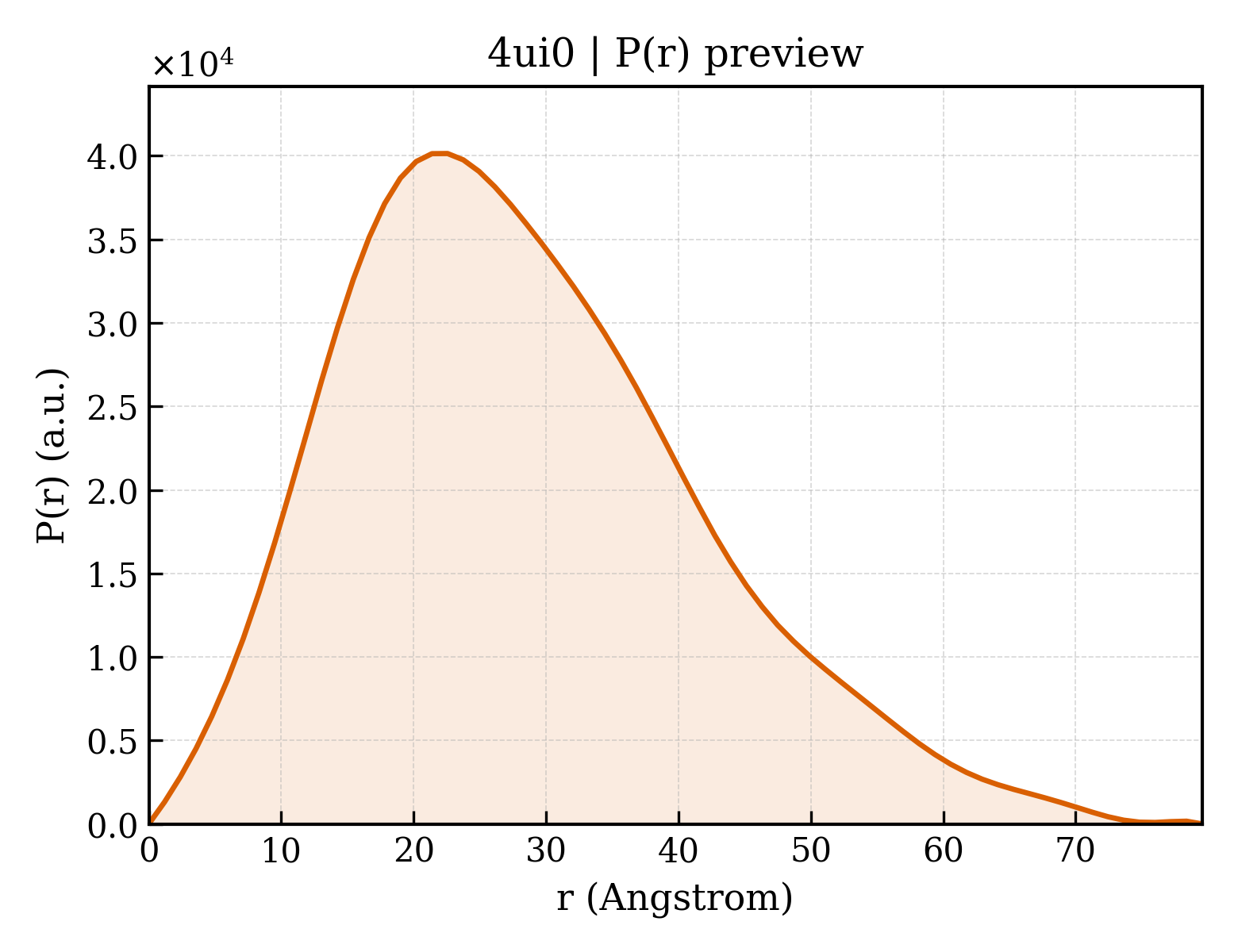

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	79.6 Å
Rg (real space) rg_real	22.13 Å
Rg uncertainty (real space) rg_real_error	0.53 Å
I(0) (real space) i0_real	1.6230e+07
I(0) uncertainty (real space) i0_real_error	2.0510e+05
Rg (reciprocal space) rg_reciprocal	22.10 Å
I(0) (reciprocal space) i0_reciprocal	16230000.0000
Solution quality estimate total_estimate	0.6225
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.6 Å
Skewness Skewness skewness	0.579
Kurtosis Kurtosis kurtosis	0.030
Angular range angular_range	— – 0.3600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3296000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.654; Stabil: 1.000; Sysdev: 0.145; Positv: 1.000; Valcen: 0.702; Smooth: 0.989

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	BONE MORPHOGENETIC PROTEIN 2
Molecular weight formula_weight	12923.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2060

QAKHKQRKRLKSSCKRHPLYVDFSDVGWNDWIVAPPGYHAFYCHGECPFPLADHLNSTNHAIVQTLVNSVNSKIPKACCVPTELSAISMLYLDENEKVVLKNYQDMVVEGCGCR

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	RGM DOMAIN FAMILY MEMBER B
Molecular weight formula_weight	10532.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

ETGQCRIQKCTTDFVSLTSHLNSAVDGFDSEFCKALRAYAGCTQRTSKACRGNLVYHSAVLGISDLMSQRNCSKDGPTSSTNPEVTHGTKHHHHHH

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	HOMO SAPIENS

Entity 3 Entity 3 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CITRATE ANION
Molecular weight formula_weight	189.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	20

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4ui0a_
Class class	g — Small proteins
Fold Fold fold	g.17 — Cystine-knot cytokines
Superfamily Superfamily superfamily	g.17.1 — Cystine-knot cytokines
Family Family family	g.17.1.2 — Transforming growth factor (TGF)-beta

Domain ID domain_id	d4ui0b_
Class class	g — Small proteins
Fold Fold fold	g.17 — Cystine-knot cytokines
Superfamily Superfamily superfamily	g.17.1 — Cystine-knot cytokines
Family Family family	g.17.1.2 — Transforming growth factor (TGF)-beta

CATH v4.4 (2 domains)

Domain ID domain_id	4ui0A00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

Domain ID domain_id	4ui0B00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	90 — Cystine Knot Cytokines, subunit B
Homologous superfamily homologous superfamily	10 — Cystine-knot cytokines

▶

8. Citations (1)

▶

Unit-cell length a length_a	85.021 Å
Unit-cell length b length_b	85.021 Å
Unit-cell length c length_c	115.182 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	45.000 Å
R factor r_factor	0.2344
R_work r_work	0.2327
R_free r_free	0.2665

fit	/app/data/saxs_computation/ui/4ui0/4ui0.fit
pddf	/app/data/pr_computation/ui/4ui0/4ui0.pr.out
profile	/app/data/saxs_computation/ui/4ui0/4ui0.dat
