SAXSdb — 4v1d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-MAMMAL TOXIN CN2

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	SINGLE CHAIN ANTIBODY FRAGMENT LR, HEAVY CHAIN × 1 SINGLE CHAIN ANTIBODY FRAGMENT LR, LIGHT CHAIN × 1 SINGLE CHAIN ANTIBODY FRAGMENT RU1, HEAVY CHAIN × 1 SINGLE CHAIN ANTIBODY FRAGMENT RU1, LIGHT CHAIN × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SCX2_CENNO
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–66； UniProt 17–82

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4v1d
Deposition date deposition_date	2014-09-25
Structure title title	Ternary complex among two human derived single chain antibody fragments and Cn2 toxin from scorpion Centruroides noxius.
Keywords keywords	TOXIN-IMMUNE SYSTEM COMPLEX, HUMAN SCFV, SCORPION VENOM NEUTRALIZATION, DIRECTED EVOLUTION, CN2 TOXIN.; TOXIN/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4v1d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

4v1d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

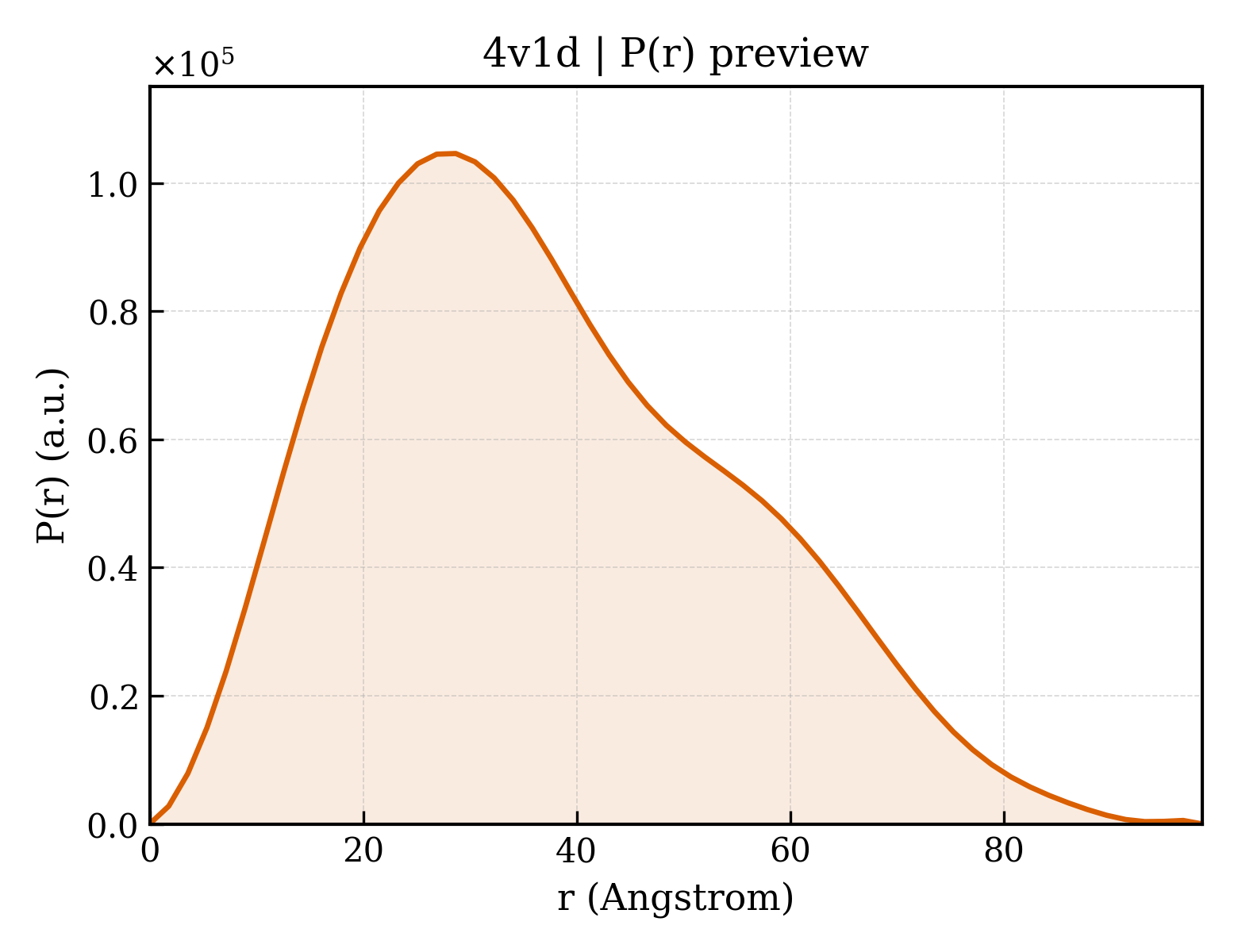

4v1d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.76 Å
Rg (electron density)	28.47 Å
Total Rg	29.08 Å
Atom count	4018
Residues	528
Excluded volume	70505 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4v1d__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	SINGLE CHAIN ANTIBODY FRAGMENT LR, HEAVY CHAIN
Molecular weight formula_weight	12581.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4046

EVQLVESGGGLVQPGGSLRLSCTGSGFTFDNYAMHWLRQVPGEGLEWVSGISRSSGDIDYADSVKGRFTISRDDAKKTLSLQMNSLRAEDTAVYYCARGGFGSFDTWGQGTMVTVSS

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	SINGLE CHAIN ANTIBODY FRAGMENT LR, LIGHT CHAIN
Molecular weight formula_weight	15418.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GGGGSGGGGSGGGGSEIVLTQSPATLSVSPGERATLSCRASQSVRSYLAWYQQKPGQAPRLLFSDASNRATGIPARFTGSGSGTDFTLTISSLEPEDFAIYYCQQYRYSPRTFGQGTKVEIKRAAAEQKLISEEDLNGAAHHHHHH

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 polymer

Description description	BETA-MAMMAL TOXIN CN2
Molecular weight formula_weight	7607.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

KEGYLVDKNTGCKYECLKLGDNDYCLRECKQQYGKGAGGYCYAFACWCTHLYEQAIVWPLPNKRCS

Entity 4 Entity 4 polymer

Description description	SINGLE CHAIN ANTIBODY FRAGMENT RU1, HEAVY CHAIN
Molecular weight formula_weight	13556.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

QVNLRESGGGLVQPGGSLRLSCAASGFSFGSYGMHWVRQAPGKGLEWVAVISYGGGNKYYADSVKGRFTISRDNSKNTLYLQMNSLRAEDTAVYYCAKDARDCLLCADWHFDLWGRGTLVTVSS

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 5 Entity 5 polymer

Description description	SINGLE CHAIN ANTIBODY FRAGMENT RU1, LIGHT CHAIN
Molecular weight formula_weight	15151.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

GGGGSGGGGSGGGGSNFMLTQPHSASGTPGQRVTISCSGSSSNIGSNTVNWYRHLPGSAPELLIGSHNQRPSGVPDRFSASKSDTSASLAISGLQSEDEADYYCAAWDDSLIGYVFGTGTKLTVLGAAAEQKLISEEDLNGAAHHHHHH

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	6

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (7 domains)

Domain ID domain_id	d4v1da_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d4v1db1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d4v1db2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d4v1dc_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.7 — Scorpion toxin-like
Family Family family	g.3.7.1 — Long-chain scorpion toxins

Domain ID domain_id	d4v1dd_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d4v1de1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d4v1de2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (5 domains)

Domain ID domain_id	4v1dA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4v1dB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4v1dC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	30 — Defensin A-like
Homologous superfamily homologous superfamily	10 — Knottin, scorpion toxin-like

Domain ID domain_id	4v1dD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4v1dE00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	45.576 Å
Unit-cell length b length_b	74.643 Å
Unit-cell length c length_c	140.239 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	38.214 Å
R factor r_factor	0.1871
R_work r_work	0.1848
R_free r_free	0.2294
