SAXSdb — 4yxl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major prion protein

Mesocricetus auratus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 90–232	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；295 K；25% PEG3350, 0.1 M BIS-TRIS, 0.2 M lithium sulphate	Resolution 2.60 Å R-free 0.310

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4YXL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B10 SOLUTION NMR STRUCTURE OF RECOMBINANT SYRIAN HAMSTER PRION PROTEIN RPRP(90-231) , 25 STRUCTURES Deposited 1998-11-25	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 90–231（142 aa） Fragment：90 - 231	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.2；303 K；Pressure 1	Resolution not provided
2KKG NMR structure of the octarepeat region of prion protein bound to pentosan polysulfate Deposited 2009-06-19	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–106（84 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；298 K；Pressure ambient NMR sample composition 0.5 mM [U-15N] octarepeats-1, 5 % [U-2H] D2O-2, 20 % [U-2H] DMSO-3, 20 mM pentosan polysulfate-4, 10 mM sodium acetate-5, 75 % H2O-6, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.5 mM [U-13C; U-15N] octarepeats-7, 5 % [U-2H] D2O-8, 20 % [U-2H] DMSO-9, 20 mM pentosan polysulfate-10, 10 mM sodium acetate-11, 75 % H2O-12, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.5 mM [U-13C; U-15N] octarepeats-13, 80 % [U-2H] D2O-14, 20 % [U-2H] DMSO-15, 20 mM pentosan polysulfate-16, 10 mM sodium acetate-17, 100% D2O \| 100% D2O	Resolution not provided
2LH8 Syrian hamster prion protein with thiamine Deposited 2011-08-05	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 125–228（104 aa） Fragment：UNP residues 125-228	Not recorded	VIB 3-(4-AMINO-2-METHYL-PYRIMIDIN-5-YLMETHYL)-5-(2-HYDROXY-ETHYL)-4-METHYL-THIAZOL-3-IUM × 1	SOLUTION NMR NMR measurement conditions pH 6.2；298 K；Ionic strength (raw mmCIF value) 0.02；Pressure ambient NMR sample composition 0.3 mM [U-100% 15N] shPrP, 10 mM thiamine, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM shPrP, 12.5 mM thiamine, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM shPrP, 10 mM thiamine, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3NVE MMHFGN segment 138-143 from Syrian Hamster prion Deposited 2010-07-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 138–143（6 aa） Chain B 138–143（6 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；1.2 M Ammonium sulfate, 200 mM BisTris pH 7.5, vapor diffusion, hanging drop, temperature 298K	Resolution 1.70 Å R-free 0.269
7LNA Infectious mammalian prion fibril (263K scrapie) Deposited 2021-02-06	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 90–231（142 aa） Chain B 90–231（142 aa） Chain C 90–231（142 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.14 Å
7YAT CryoEM tetra protofilament structure of the hamster prion 108-144 fibril Deposited 2022-06-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 24 PDB declaration: 24-meric	Chain A 119–143（25 aa） Chain B 119–143（25 aa） Chain C 119–143（25 aa） Chain D 119–143（25 aa） Chain E 119–143（25 aa） Chain F 119–143（25 aa） Chain G 119–143（25 aa） Chain H 119–143（25 aa） Chain I 119–143（25 aa） Chain J 119–143（25 aa） Chain K 119–143（25 aa） Chain L 119–143（25 aa） Chain M 119–143（25 aa） Chain N 119–143（25 aa） Chain O 119–143（25 aa） Chain P 119–143（25 aa） Chain Q 119–143（25 aa） Chain R 119–143（25 aa） Chain S 119–143（25 aa） Chain T 119–143（25 aa） Chain U 119–143（25 aa） Chain V 119–143（25 aa） Chain X 119–143（25 aa） Chain Y 119–143（25 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 3.7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.20 Å
8WZX Cryo-EM structure of the hamster prion 23-144 fibril at pH 3.7 Deposited 2023-11-02	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 20 PDB declaration: eicosameric	Chain A 23–144（122 aa） Chain B 23–144（122 aa） Chain C 23–144（122 aa） Chain D 23–144（122 aa） Chain E 23–144（122 aa） Chain F 23–144（122 aa） Chain G 23–144（122 aa） Chain H 23–144（122 aa） Chain I 23–144（122 aa） Chain J 23–144（122 aa） Chain K 23–144（122 aa） Chain L 23–144（122 aa） Chain M 23–144（122 aa） Chain N 23–144（122 aa） Chain O 23–144（122 aa） Chain P 23–144（122 aa） Chain Q 23–144（122 aa） Chain R 23–144（122 aa） Chain S 23–144（122 aa） Chain T 23–144（122 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 3.7；20 mM NaOAc, 140 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.88 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PRIO_MESAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–166； UniProt 90–232

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4yxl
Deposition date deposition_date	2015-03-23
Structure title title	Crystal structure of Syrian hamster prion protein complexed with POM1 FAB
Keywords keywords	prion, antibody, Immune system complex, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.28 Å
Radius of gyration Rg (electron density) rg_electron	29.94 Å
Forward intensity I(0) i0	60730000.00
Molecular weight molecular_weight	59024.0 kDa
Excluded volume excluded_volume	72838 Å³
Envelope volume envelope_volume	98432 Å³
Hydration-shell volume shell_volume	29330 Å³
Envelope diameter envelope_diameter	104.6 Å
Shell Rg shell_rg	34.79 Å
Envelope Rg envelope_rg	29.99 Å
Shape Rg shape_rg	29.91 Å
Total Rg total_rg	30.46 Å
Total atoms total_atoms	4147
Residues n_residues	534
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

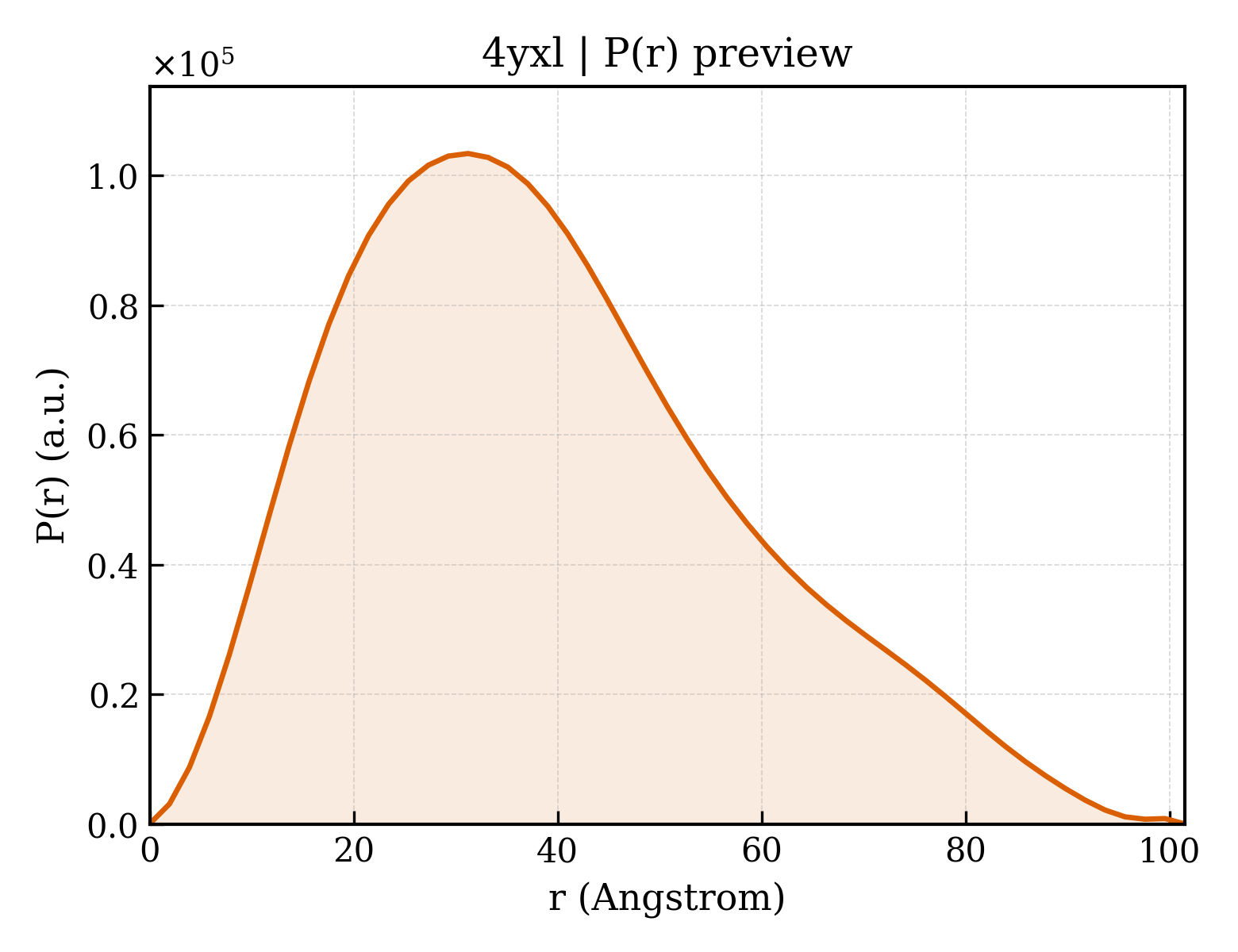

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.5 Å
Rg (real space) rg_real	30.53 Å
Rg uncertainty (real space) rg_real_error	0.92 Å
I(0) (real space) i0_real	6.0730e+07
I(0) uncertainty (real space) i0_real_error	9.7380e+05
Rg (reciprocal space) rg_reciprocal	30.42 Å
I(0) (reciprocal space) i0_reciprocal	60730000.0000
Solution quality estimate total_estimate	0.8480
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.2 Å
Skewness Skewness skewness	0.531
Kurtosis Kurtosis kurtosis	-0.278
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8437000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.831; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.824; Smooth: 0.703

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Major prion protein
Molecular weight formula_weight	18896.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4223

MGSSHHHHHHSSGLVPRGSHMLEGQGGGTHNQWNKPSKPKTNMKHMAGAAAAGAVVGGLGGYMLGSAMSRPMMHFGNDWEDRYYRENMNRYPNQVYYRPVDQYNNQNNFVHDCVNITIKQHTVTTTTKGENFTETDIKIMERVVEQMCTTQYQKESQAYYDGRRSS

来源 Source

来源生物 organism	Mesocricetus auratus
通用名 common_name	Golden hamster
NCBI Class编号 ncbi_taxonomy_id	10036
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	POM1 FAB HEAVY CHAIN
Molecular weight formula_weight	23367.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLQQSGTELVMPGASVKMSCKASGYTFTDYWMHWVKQRPGQGLEWIGSIDPSDSYTSHNEKFKGKATLTVDESSSTAYMQLSSLTSEDSAVYFCSRSGYGYYAMEYWGQGTSVTVSSAKTAPPSVYPLAPGGGATNSMVTLGCLVKGYFPEPVTVTWNSGSLSGGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPR

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Mus musculus

Entity 3 Entity 3 polymer

Description description	POM1 FAB LIGHT CHAIN
Molecular weight formula_weight	23509.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIVLTQSPAILSVSPGERVSFSCRASQNIGTSIHWYQQRTNESPRLIIKYASESISGIPSRFSGSGSGTDFTLSINSVESEDIADYYCQQSNTWPYTFGGGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSETDQDSKDSTYSMSSTLTLTKDEYERHNTYTCEATHKTSTSPIVKSFNRNE

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Mus musculus

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	76

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d4yxlh1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d4yxlh2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d4yxll1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d4yxll2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

Domain ID domain_id	4yxlH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4yxlH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4yxlL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	4yxlL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	83.916 Å
Unit-cell length b length_b	105.969 Å
Unit-cell length c length_c	76.326 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.37 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.604 Å
Low-resolution limit resolution_low	35.241 Å
R factor r_factor	0.2645
R_work r_work	0.2619
R_free r_free	0.3101

fit	/app/data/saxs_computation/yx/4yxl/4yxl.fit
pddf	/app/data/pr_computation/yx/4yxl/4yxl.pr.out
profile	/app/data/saxs_computation/yx/4yxl/4yxl.dat
