SAXSdb — 4zgn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cell division cycle protein 123

Schizosaccharomyces pombe

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–319	Not recorded	Eukaryotic translation initiation factor 2 subunit gamma × 1 （P32481） ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；25%PEG3350, 0.2MLiSO4, 0.1M TrispH8.0	Resolution 2.90 Å R-free 0.262

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4ZGN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4ZGO Structure of C-terminally truncated Cdc123 from Schizosaccharomyces pombe Deposited 2015-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–319（319 aa） Fragment：unp residues 21-389	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；298 K；12% PEG3350, 4% tacsimate	Resolution 2.06 Å R-free 0.230
4ZGO Structure of C-terminally truncated Cdc123 from Schizosaccharomyces pombe Deposited 2015-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–319（319 aa） Fragment：unp residues 21-389	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；298 K；12% PEG3350, 4% tacsimate	Resolution 2.06 Å R-free 0.230
4ZGP Structure of Cdc123 from Schizosaccharomyces pombe Deposited 2015-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–274（274 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；297 K；12% PEG3350, 4% tacsimate	Resolution 1.85 Å R-free 0.221
4ZGP Structure of Cdc123 from Schizosaccharomyces pombe Deposited 2015-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–274（274 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；297 K；12% PEG3350, 4% tacsimate	Resolution 1.85 Å R-free 0.221
4ZGQ Structure of Cdc123 bound to eIF2-gammaDIII domain Deposited 2015-04-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–319（319 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；25%PEG3350, 0.2M LISO4, 0.1M Tris pH 8.0	Resolution 3.00 Å R-free 0.252

3 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CD123_SCHPO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 20–338； UniProt 1–319

Eukaryotic translation initiation factor 2 subunit gamma

Saccharomyces cerevisiae

UniProt P32481

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 410–527	Fragment：residues 410-527	Cell division cycle protein 123 × 1 （Q9P7N5） ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；25%PEG3350, 0.2MLiSO4, 0.1M TrispH8.0	Resolution 2.90 Å R-free 0.262

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4ZGN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3J81 CryoEM structure of a partial yeast 48S preinitiation complex Deposited 2014-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 42-meric	Chain k 1–527（527 aa）	Mutation：U31:A39 double mutation	MG MAGNESIUM ION × 81 ZN ZINC ION × 3 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer 20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT；pH 6.5；20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT cryo-EM vitrification conditions Blot for 2.5 seconds before plunging；120 K；Cryogen ETHANE；Blot for 2.5 seconds before plunging into liquid ethane (FEI VITROBOT MARK I)	Resolution 4.00 Å
3JAP Structure of a partial yeast 48S preinitiation complex in closed conformation Deposited 2015-06-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 81 ZN ZINC ION × 4 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer 20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT；pH 6.5；20 mM MES-KOH, 40 mM potassium acetate, 10 mM ammonium acetate, 8 mM magnesium acetate, 2 mM DTT cryo-EM vitrification conditions Blot for 2.5 to 3 seconds before plunging；120 K；Cryogen ETHANE；Blot for 2.5 to 3 seconds before plunging into liquid ethane (FEI VITROBOT MARK I).	Resolution 4.90 Å
4ZGQ Structure of Cdc123 bound to eIF2-gammaDIII domain Deposited 2015-04-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 410–527（118 aa） Fragment：UNP residues 410-527	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；25%PEG3350, 0.2M LISO4, 0.1M Tris pH 8.0	Resolution 3.00 Å R-free 0.252
6FYX Structure of a partial yeast 48S preinitiation complex with eIF5 N-terminal domain (model C1) Deposited 2018-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 117 ZN ZINC ION × 5 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6FYY Structure of a partial yeast 48S preinitiation complex with eIF5 N-terminal domain (model C2) Deposited 2018-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 117 ZN ZINC ION × 5 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.02 Å
6GSM Structure of a partial yeast 48S preinitiation complex in open conformation. Deposited 2018-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain k 90–519（430 aa）	Not recorded	7NO [(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-2-(phosphonooxymethyl)oxolan-3-yl] (2~{S})-2-azanyl-4-methylsulfanyl-butanoate × 1 MG MAGNESIUM ION × 82 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.15 Å
6GSN Structure of a partial yeast 48S preinitiation complex in closed conformation Deposited 2018-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 44 PDB declaration: 47-meric	Chain k 90–519（430 aa）	Not recorded	MG MAGNESIUM ION × 81 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.75 Å
6I3M eIF2B:eIF2 complex, phosphorylated on eIF2 alpha serine 52. Deposited 2018-11-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain O 1–527（527 aa） Chain P 1–527（527 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Solutions for sample preparation were made fresh, filter sterilized, and degassed. cryo-EM vitrification conditions Cryogen ETHANE；Blot for 2 seconds before plunging	Resolution 3.93 Å
6I7T eIF2B:eIF2 complex Deposited 2018-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain O 1–527（527 aa） Chain P 1–527（527 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Solutions for sample preparation were made fresh, filter sterilized, and degassed. cryo-EM vitrification conditions Cryogen ETHANE；Blot for 1 second before plunging	Resolution 4.61 Å
6QG0 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model 1) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain M 1–527（527 aa） Chain N 1–527（527 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
6QG1 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model 2) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain M 1–527（527 aa） Chain N 1–527（527 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.25 Å
6QG2 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model A) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain M 1–527（527 aa） Chain N 1–527（527 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.55 Å
6QG3 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model B) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain M 1–527（527 aa） Chain N 1–527（527 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.40 Å
6QG5 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model C) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain M 1–527（527 aa） Chain N 1–527（527 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 10.10 Å
6QG6 Structure of eIF2B-eIF2 (phosphorylated at Ser51) complex (model D) Deposited 2019-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain M 1–527（527 aa） Chain N 1–527（527 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 10.40 Å
8RW1 Structure of a yeast 48S-AUC preinitiation complex in closed conformation Deposited 2024-02-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 41-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 115 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.35 Å
8S8D Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-2) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 41-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.45 Å
8S8E Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-3.1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 40 PDB declaration: 43-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.85 Å
8S8F Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-3.2) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 42-meric	Chain k 1–519（519 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å
8S8G Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-2.1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 41-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8S8H Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-2.2) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 38 PDB declaration: 41-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 116 ZN ZINC ION × 3 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8S8I Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-eIF1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 42-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 117 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
8S8J Structure of a yeast 48S-AUC preinitiation complex in closed conformation (model py48S-AUC-eIF5) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 39 PDB declaration: 42-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 115 ZN ZINC ION × 4 MET METHIONINE × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.70 Å
8S8K Structure of a yeast 48S-AUC preinitiation complex in swivelled conformation (model py48S-AUC-swiv-eIF1) Deposited 2024-03-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 40 PDB declaration: 43-meric	Chain k 1–527（527 aa）	Not recorded	MG MAGNESIUM ION × 96 ZN ZINC ION × 4 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MET METHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 6.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å

24 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IF2G_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–118； UniProt 410–527

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4zgn
Deposition date deposition_date	2015-04-23
Structure title title	Structure Cdc123 complexed with the C-terminal domain of eIF2gamma
Keywords keywords	ATP-grasp fold, cell cycle, eIF2 assembly; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.29 Å
Radius of gyration Rg (electron density) rg_electron	24.56 Å
Forward intensity I(0) i0	31332000.00
Molecular weight molecular_weight	44366.0 kDa
Excluded volume excluded_volume	56090 Å³
Envelope volume envelope_volume	73037 Å³
Hydration-shell volume shell_volume	24925 Å³
Envelope diameter envelope_diameter	91.3 Å
Shell Rg shell_rg	31.38 Å
Envelope Rg envelope_rg	25.45 Å
Shape Rg shape_rg	24.54 Å
Total Rg total_rg	25.48 Å
Total atoms total_atoms	3125
Residues n_residues	382
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

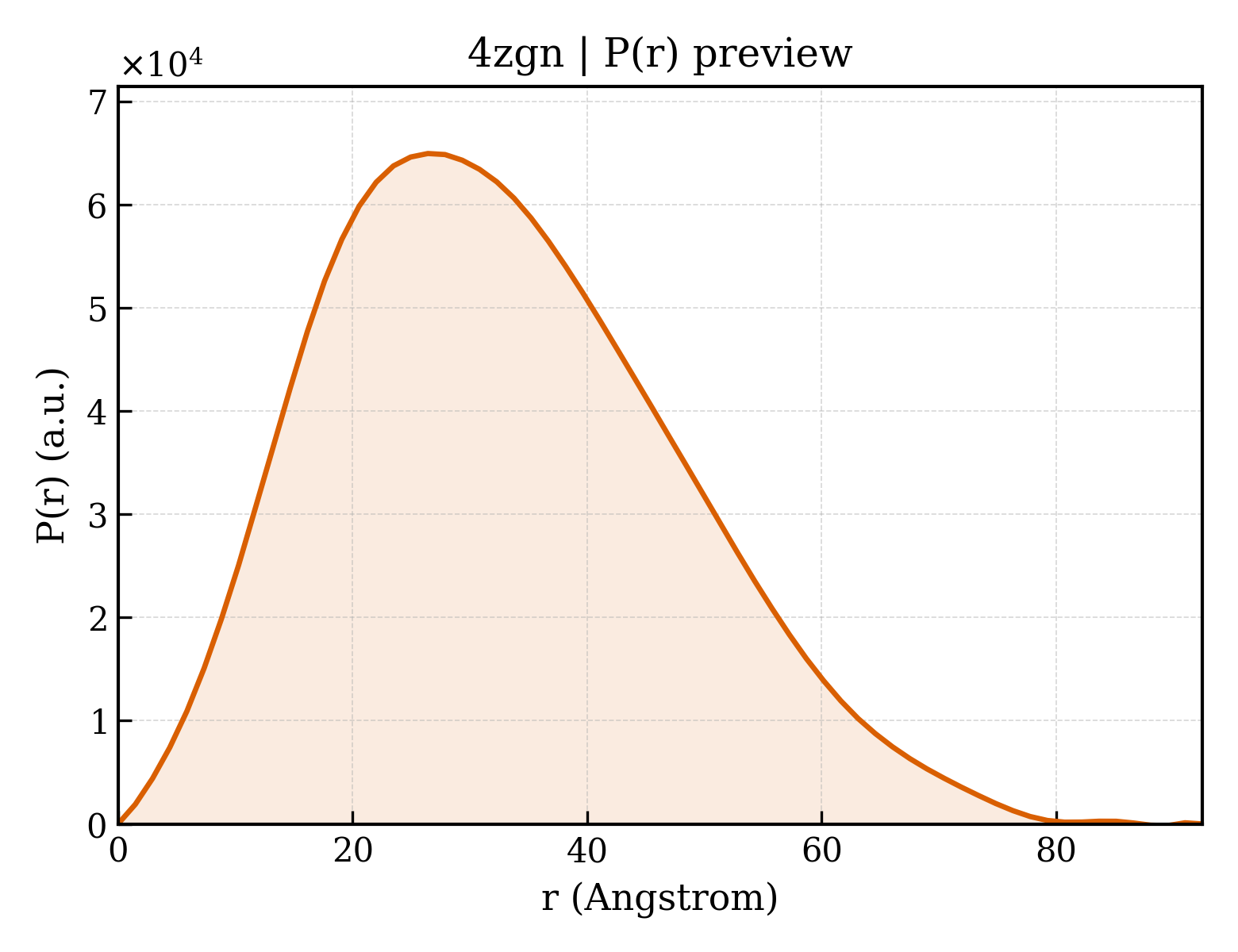

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	92.5 Å
Rg (real space) rg_real	25.34 Å
Rg uncertainty (real space) rg_real_error	0.90 Å
I(0) (real space) i0_real	3.1330e+07
I(0) uncertainty (real space) i0_real_error	4.5410e+05
Rg (reciprocal space) rg_reciprocal	25.32 Å
I(0) (reciprocal space) i0_reciprocal	31330000.0000
Solution quality estimate total_estimate	0.7577
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	26.4 Å
Skewness Skewness skewness	0.406
Kurtosis Kurtosis kurtosis	-0.301
Angular range angular_range	— – 0.3150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8032000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.697; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.756; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Cell division cycle protein 123
Molecular weight formula_weight	38979.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3130

GSSHHHHHHSSGLVPRGSHMTLILTKNQVLHCQFSSWYSLFRKLTPKAKVIKPIPATVLKYLHEDSIYVEQPMNTVEEVDSEEDEESAPAYYPEREAIQLIEKAIKELGGAVVPKLNWSTPKDALWITTTGSLKCTTAEEVLLLLKSSDFVAHDLNHAFDDCKDFDNADGSVPKDFSFELVLKEWFPMHASTEFRCFVKSKRLIAFCQRDDNYYEFLKENIDCYEKLISDLLKKLDTFPDPDFVFDVYIHKDRAWLIDINPFYPRTDGLLFSWSELESMNSENMKPEIRLIPKGSMPSTGSAKYYTNRVPFDMIAASEGENLLEFAQKWQDLTNKSNE

来源 Source

来源生物 organism	Schizosaccharomyces pombe
通用名 common_name	Fission yeast
NCBI Class编号 ncbi_taxonomy_id	284812
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Eukaryotic translation initiation factor 2 subunit gamma
Molecular weight formula_weight	13108.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DRLVGQVVGAKGHLPNIYTDIEINYFLLRRLLGVKTDGQKQAKVRKLEPNEVLMVNIGSTATGARVVAVKADMARLQLTSPACTEINEKIALSRRIEKHWRLIGWATIKKGTTLEPIA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	5

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4zgnB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

▶

8. Citations (1)

▶

Unit-cell length a length_a	74.260 Å
Unit-cell length b length_b	116.640 Å
Unit-cell length c length_c	132.580 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	45.000 Å
R factor r_factor	0.1983
R_work r_work	0.1951
R_free r_free	0.2615

fit	/app/data/saxs_computation/zg/4zgn/4zgn.fit
pddf	/app/data/pr_computation/zg/4zgn/4zgn.pr.out
profile	/app/data/saxs_computation/zg/4zgn/4zgn.dat
