SAXSdb — 5abs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SH3 DOMAIN-CONTAINING KINASE-BINDING PROTEIN 1

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 599–662	Fragment：COILED-COIL DOMAIN, RESIDUES 599-662 Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；0.05M ZN ACETATE, 20% PEG3350, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 298K, pH 7	Resolution 1.74 Å R-free 0.283

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5ABS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2BZ8 N-terminal Sh3 domain of CIN85 bound to Cbl-b peptide Deposited 2005-08-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–58（58 aa） Fragment：N-TERMINAL SH3 DOMAIN RESIDUES 1-58 Chain B 1–58（58 aa） Fragment：N-TERMINAL SH3 DOMAIN RESIDUES 1-58	Not recorded	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.8 M NA CITRATE, 0.1 M BIS-TRIS PH 7.5, 0.2 M NACL	Resolution 2.00 Å R-free 0.271
2K6D CIN85 Sh3-C domain in complex with ubiquitin Deposited 2008-07-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 267–328（62 aa） Fragment：CIN85 SH3-C domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.4；298 K；Ionic strength (raw mmCIF value) 0.150；Pressure ambient NMR sample composition 0.1 mM CIN85, 0.1 mM [U-100% 15N] ubiquitin, 50 mM sodium phosphate, 2 mM DTT, 5 mM DSS, 150 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.1 mM [U-100% 15N] CIN85, 0.1 mM ubiquitiny, 50 mM sodium phosphate, 2 mM DTT, 5 mM DSS, 150 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1.0 mM [U-100% 13C; U-100% 15N] CIN85, 50 mM sodium phosphate, 2 mM DTT, 5 mM DSS, 150 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2K9G Solution structure of the third SH3 domain of the Cin85 adapter protein Deposited 2008-10-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 262–333（72 aa） Fragment：SH3 domain C, UNP residues 262-333	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.4；298 K；Ionic strength (raw mmCIF value) 140；Pressure ambient NMR sample composition 1mM Cin85 SH3-C, 20mM sodium phosphate, 100mM sodium chloride, 1mM DTT, 1mM EDTA, 0.02% sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1mM [U-98% 13C; U-98% 15N] Cin85 SH3-C, 20mM sodium phosphate, 100mM sodium chloride, 1mM DTT, 1mM EDTA, 0.02% sodium azide, 100% D2O \| 100% D2O NMR sample composition 1mM [U-99% 15N] Cin85 SH3-C, 20mM sodium phosphate, 100mM sodium chloride, 1mM DTT, 1mM EDTA, 0.02% sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 1mM [U-99% 13C; U-99% 15N] Cin85 SH3-C, 20mM sodium phosphate, 100mM sodium chloride, 1mM DTT, 1mM EDTA, 0.02% sodium azide, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2N64 NMR Structure of the C-terminal Coiled-Coil Domain of CIN85 Deposited 2015-08-11	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 594–665（72 aa） Fragment：Coiled coil domain residues 594-665 Chain B 594–665（72 aa） Fragment：Coiled coil domain residues 594-665 Chain C 594–665（72 aa） Fragment：Coiled coil domain residues 594-665	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.9；305 K；Pressure ambient NMR sample composition 1-3 mM [U-13C; U-15N; U-2H] CIN85 CC-domain, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1-3 mM [U-13C; U-15N; U-2H] CIN85 CC-domain, 1-3 mM [U-2H] CIN85 CC-domain, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
2O2O Solution structure of domain B from human CIN85 PROTEIN Deposited 2006-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 92–168（77 aa） Fragment：CIN85_B	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.3；298 K；Ionic strength (raw mmCIF value) 20mM PO4, 100mM NACL, 1mM EDTA, 2mM DTT, 0.01% NAN3；Pressure AMBIENT NMR sample composition 1MM CIN85_B U-15N PHOSPHATE BUFFER; 1MM CIN85_B U-15N,13C; 20MM PHOSPHATE BUFFER; 1MM CIN85_B U-15N,13C; 20MM PHOSPHATE BUFFER	Resolution not provided
2YDL Crystal structure of SH3C from CIN85 Deposited 2011-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 270–328（59 aa） Fragment：SH3 C, RESIDUES 270-328	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.1M CITRATE PH 5.5, 2.0 M AMMONIUM SULPHATE	Resolution 2.05 Å R-free 0.252

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SH3K1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–66； UniProt 599–662

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5abs
Deposition date deposition_date	2015-08-07
Structure title title	CRYSTAL STRUCTURE OF THE C-TERMINAL COILED-COIL DOMAIN OF CIN85 IN SPACE GROUP P321
Keywords keywords	SIGNALING PROTEIN, CBL-INTERACTING PROTEIN OF 85 KDA, ADAPTER PROTEIN, COILED-COIL DOMAIN, B-CELL ANTIGEN RECEPTOR SIGNALING; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.67 Å
Radius of gyration Rg (electron density) rg_electron	26.62 Å
Forward intensity I(0) i0	1436320.00
Molecular weight molecular_weight	7794.0 kDa
Excluded volume excluded_volume	9407 Å³
Envelope volume envelope_volume	14714 Å³
Hydration-shell volume shell_volume	6365 Å³
Envelope diameter envelope_diameter	92.0 Å
Shell Rg shell_rg	25.71 Å
Envelope Rg envelope_rg	27.01 Å
Shape Rg shape_rg	26.72 Å
Total Rg total_rg	26.19 Å
Total atoms total_atoms	524
Residues n_residues	63
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.5 Å
Rg (real space) rg_real	26.42 Å
Rg uncertainty (real space) rg_real_error	1.27 Å
I(0) (real space) i0_real	1.4360e+06
I(0) uncertainty (real space) i0_real_error	2.1290e+04
Rg (reciprocal space) rg_reciprocal	26.19 Å
I(0) (reciprocal space) i0_reciprocal	1436000.0000
Solution quality estimate total_estimate	0.6236
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	10.9 Å
Skewness Skewness skewness	0.611
Kurtosis Kurtosis kurtosis	-0.528
Angular range angular_range	— – 0.3100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	40910.0000
Real-space data points n_real_points	63
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.055; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.010; Smooth: 0.929

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	SH3 DOMAIN-CONTAINING KINASE-BINDING PROTEIN 1
Molecular weight formula_weight	7885.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	554

GHMEPAASSQAAVEELRTQVRELRSIIETMKDQQKREIKQLLSELDEEKKIRLRLQMEVNDIKKAL

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	14

▶

8. Citations (1)

▶

Unit-cell length a length_a	40.968 Å
Unit-cell length b length_b	40.968 Å
Unit-cell length c length_c	90.036 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	—

Resolution resolution	1.740 Å
Low-resolution limit resolution_low	45.020 Å
R factor r_factor	0.2480
R_work r_work	0.2440
R_free r_free	0.2833

fit	/app/data/saxs_computation/ab/5abs/5abs.fit
pddf	/app/data/pr_computation/ab/5abs/5abs.pr.out
profile	/app/data/saxs_computation/ab/5abs/5abs.dat

CRYSTAL STRUCTURE OF THE C-TERMINAL COILED-COIL DOMAIN OF CIN85 IN SPACE GROUP P321

1. Protein Identity and Related Structures Protein Identity & Related Structures

SH3 DOMAIN-CONTAINING KINASE-BINDING PROTEIN 1

State in the Current Structure

Other States of the Same Protein in the Database

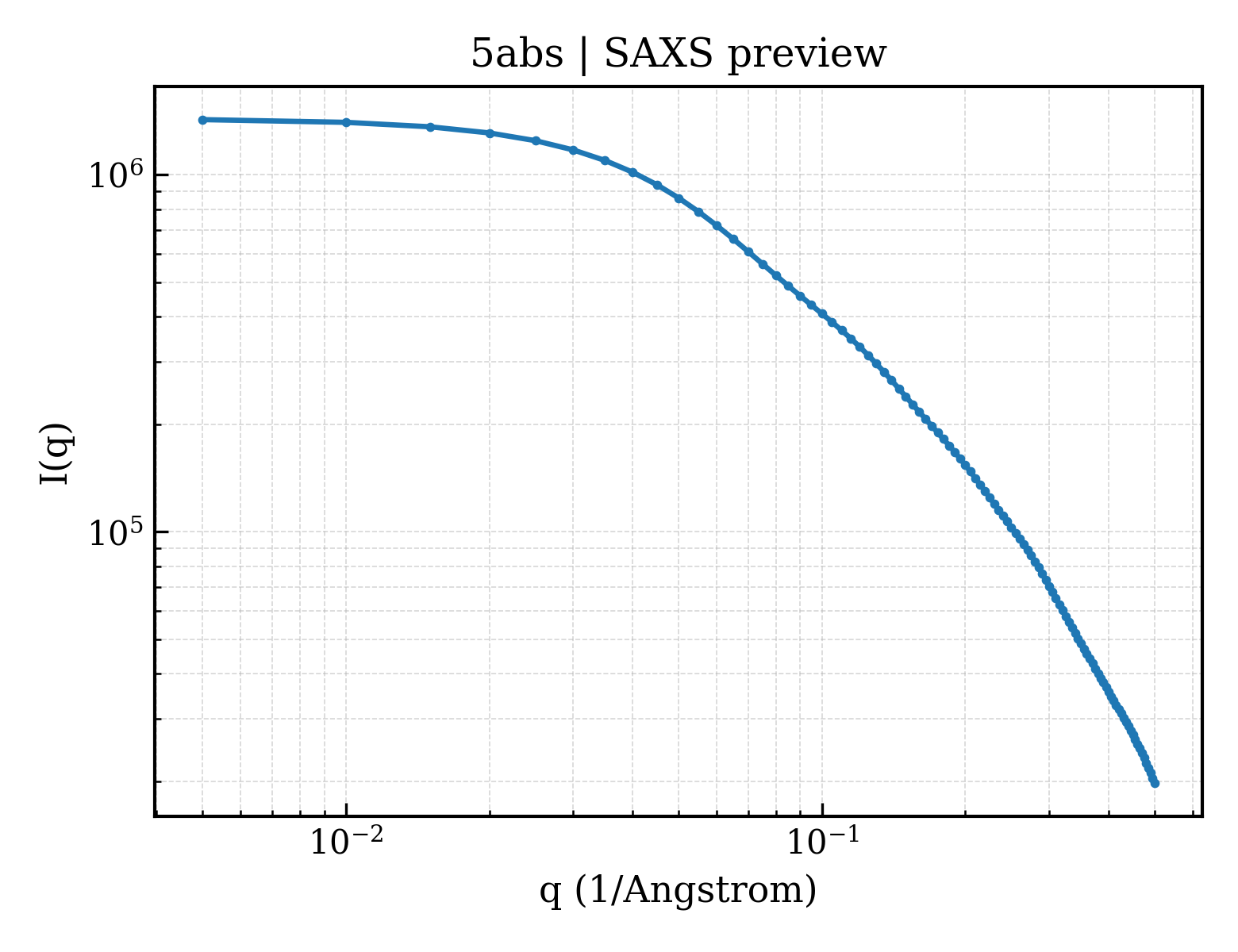

SAXS scattering curve SAXS Profile

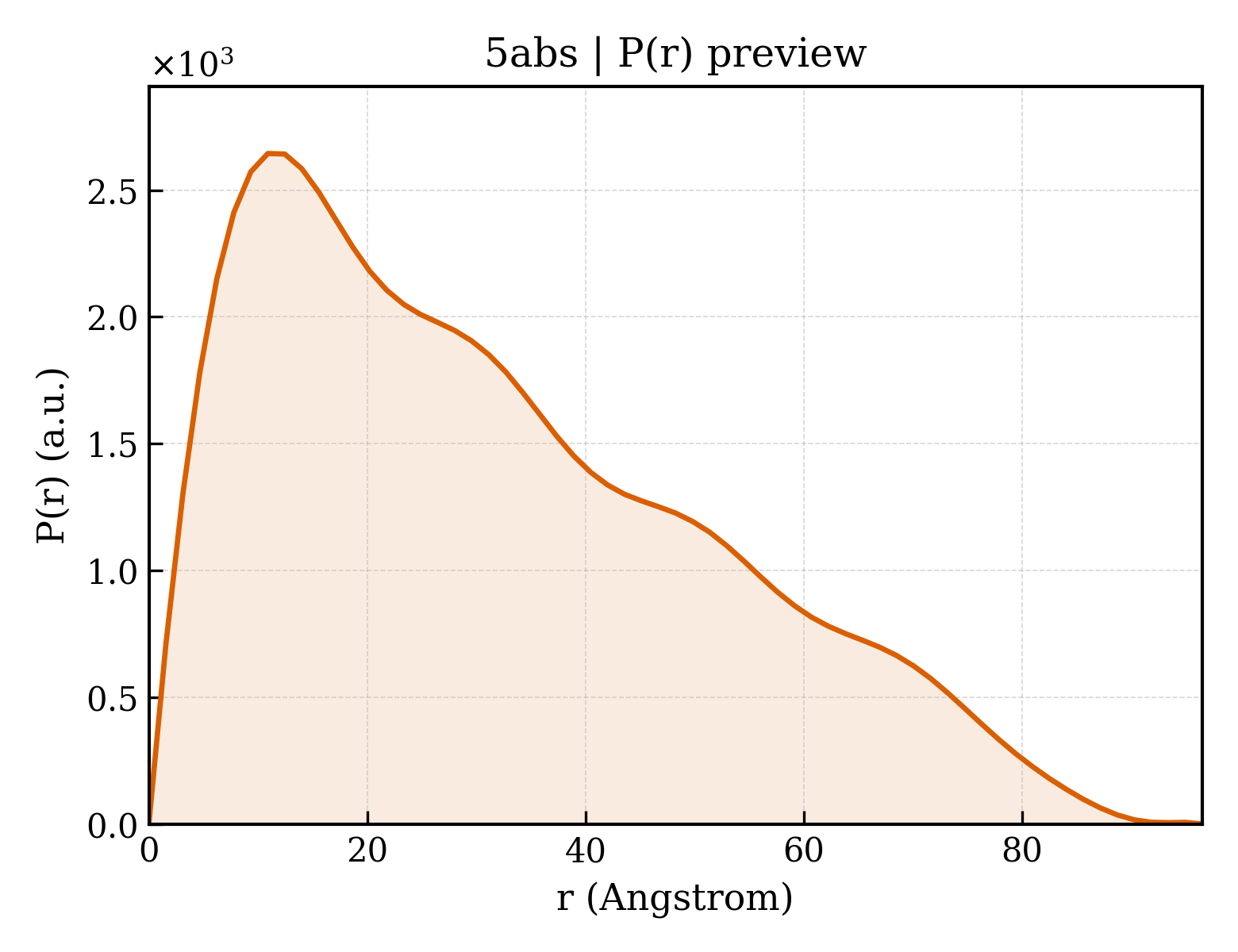

P(r) Distance Distribution P(r) Distribution
