SAXSdb — 2k6d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SH3 domain-containing kinase-binding protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin × 1 （P62988）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SH3K1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–62； UniProt 267–328

Ubiquitin

Homo sapiens

UniProt P62988

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	SH3 domain-containing kinase-binding protein 1 × 1 （Q96B97）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBIQ_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–75； UniProt 1–75

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2k6d
Deposition date deposition_date	2008-07-07
Structure title title	CIN85 Sh3-C domain in complex with ubiquitin
Keywords keywords	;CIN85, SH3 domain, ubiquitin, Alternative splicing, Apoptosis, Cell junction, Coiled coil, Cytoplasm, Cytoplasmic vesicle, Cytoskeleton, Endocytosis, Membrane, Phosphoprotein, Polymorphism, SH3-binding, Synapse, Synaptosome, Ubl conjugation, Nucleus, SH3 DOMAIN-UBIQUITIN COMPLEX ;; SH3 DOMAIN/UBIQUITIN
Experimental Method method	SOLUTION NMR

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2k6d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

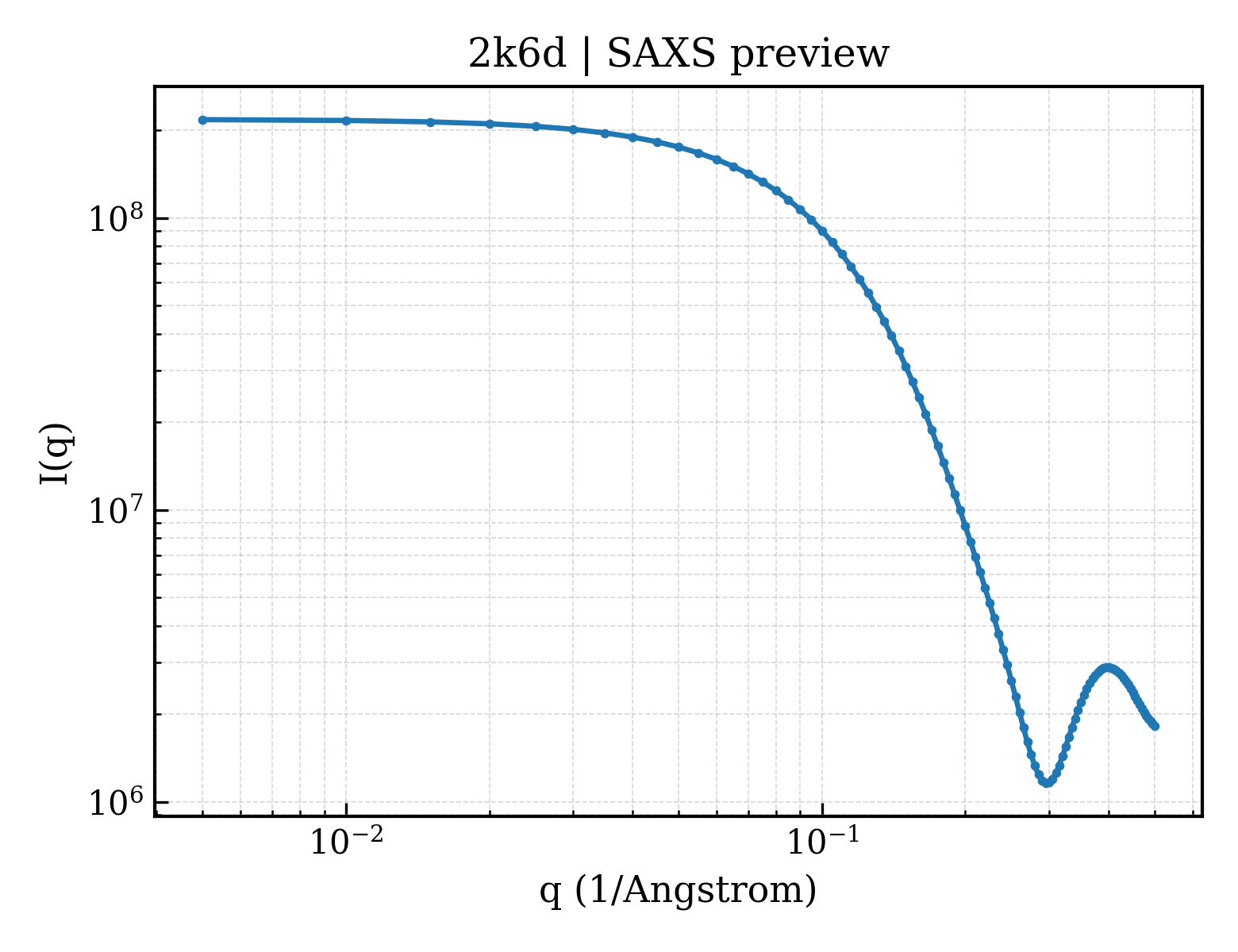

2k6d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

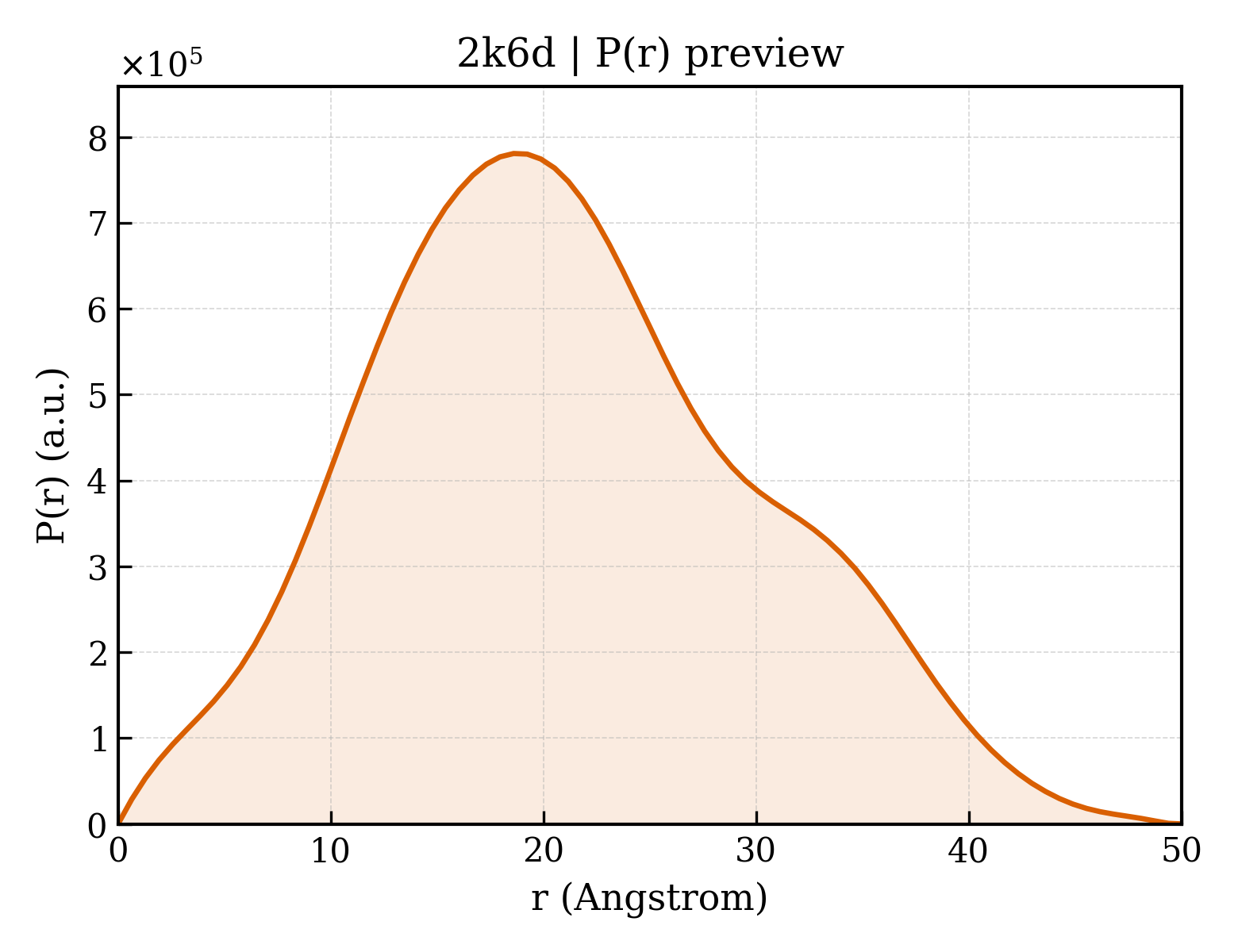

2k6d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.94 Å
Rg (electron density)	15.70 Å
Total Rg	16.87 Å
Atom count	2232
Residues	138
Excluded volume	19861 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2k6d__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`2k6d__assembly_1__model_2`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`2k6d__assembly_1__model_3`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`2k6d__assembly_1__model_4`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	5	`2k6d__assembly_1__model_5`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	6	`2k6d__assembly_1__model_6`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	7	`2k6d__assembly_1__model_7`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	8	`2k6d__assembly_1__model_8`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	SH3 domain-containing kinase-binding protein 1
Molecular weight formula_weight	7151.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	17856

KSKDYCKVIFPYEAQNDDELTIKEGDIVTLINKDCIDVGWWEGELNGRRGVFPDNFVKLLPP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Ubiquitin
Molecular weight formula_weight	8622.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2k6da_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.2 — SH3-domain
Family Family family	b.34.2.0 — automated matches

Domain ID domain_id	d2k6db2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d2k6db3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	2k6dA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

Domain ID domain_id	2k6dB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—
