SAXSdb — 1s1q

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tumor susceptibility gene 101 protein

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ubiquitin × 1 （P62988） COPPER (II) ION × 2 SULFATE ION × 2 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	ubiquitin × 1 （P62988） COPPER (II) ION × 2 SULFATE ION × 2 ACETIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TS101_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–145； UniProt 1–145 Author chain C； PDBConstruct 1–145； UniProt 1–145

ubiquitin

Homo sapiens

UniProt P62988

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Tumor susceptibility gene 101 protein × 1 （Q99816） COPPER (II) ION × 2 SULFATE ION × 2 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Tumor susceptibility gene 101 protein × 1 （Q99816） COPPER (II) ION × 2 SULFATE ION × 2 ACETIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBIQ_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–76； UniProt 1–76 Author chain D； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1s1q
Deposition date deposition_date	2004-01-07
Structure title title	TSG101(UEV) domain in complex with Ubiquitin
Keywords keywords	heterodimer, TRANSLATION, PROTEIN TURNOVER; TRANSLATION,PROTEIN TURNOVER
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1s1q__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1s1q__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

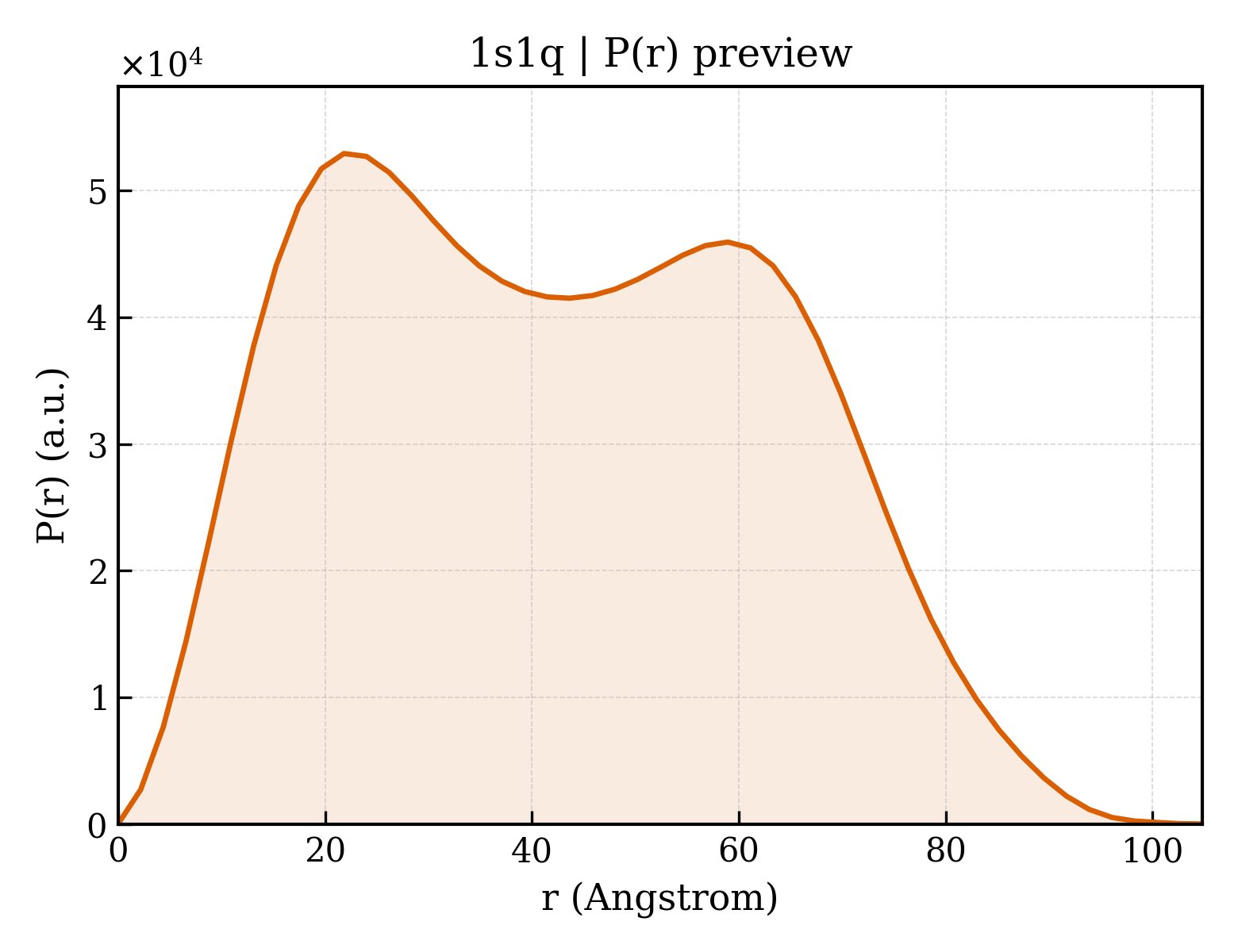

1s1q__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.65 Å
Rg (electron density)	18.45 Å
Total Rg	19.43 Å
Atom count	1724
Residues	208
Excluded volume	31222 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1s1q__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1s1q__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Tumor susceptibility gene 101 protein
Molecular weight formula_weight	16867.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	3821

MAVSESQLKKMVSKYKYRDLTVRETVNVITLYKDLKPVLDSYVFNDGSSRELMNLTGTIPVPYRGNTYNIPICLWLLDTYPYNPPICFVKPTSSMTIKTGKHVDANGKIYLPYLHEWKHPQSDLLGLIQVMIVVFGDEPPVFSRP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	ubiquitin
Molecular weight formula_weight	8623.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	350

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1s1qa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.2 — UEV domain

Domain ID domain_id	d1s1qb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d1s1qc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.20 — UBC-like
Superfamily Superfamily superfamily	d.20.1 — UBC-like
Family Family family	d.20.1.2 — UEV domain

Domain ID domain_id	d1s1qd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

CATH v4.4 (4 domains)

Domain ID domain_id	1s1qA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

Domain ID domain_id	1s1qB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1s1qC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	110 — Ubiquitin Conjugating Enzyme
Homologous superfamily homologous superfamily	10 — Ubiquitin Conjugating Enzyme

Domain ID domain_id	1s1qD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

Unit-cell length a length_a	143.634 Å
Unit-cell length b length_b	59.154 Å
Unit-cell length c length_c	93.998 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	128.67 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	72.550 Å
R factor r_factor	0.2032
R_work r_work	0.2012
R_free r_free	0.2400
