Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Gag Polyprotein × 1 （Q9IF21） | Consistent with protein count |
| UniProt name | TS101_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–145； UniProt 1–145 |
Human immunodeficiency virus 1
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Tumor Susceptibility gene 101 protein × 1 （Q99816） | Consistent with protein count |
| UniProt name | Q9IF21_9HIV1 |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–9； UniProt 453–461 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1m4q |
| Deposition date deposition_date | 2002-07-03 |
| Structure title title | STRUCTURE OF THE TSG101 UEV DOMAIN IN COMPLEX WITH A HIV-1 PTAP "LATE DOMAIN" PEPTIDE, CNS ENSEMBLE |
| Keywords keywords | Tsg101 UEV domain, virus budding, vacuolar protein sorting, late domain, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN |
| Experimental Method method | SOLUTION NMR |

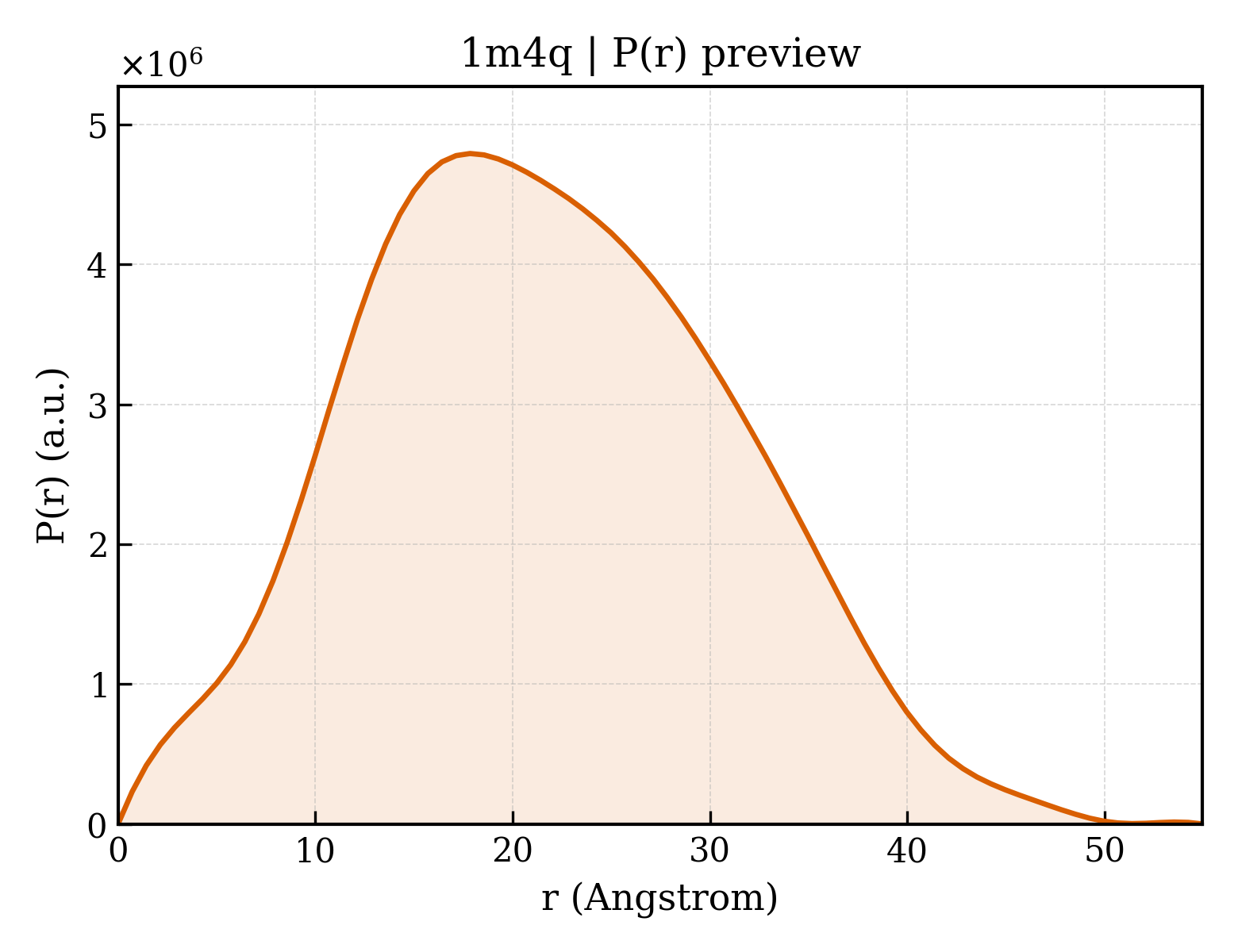

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.79 Å |
| Rg (electron density) | 16.26 Å |
| Total Rg | 17.37 Å |
| Atom count | 2474 |
| Residues | 153 |
| Excluded volume | 22240 ų |
| Maximum q | 0.500 Å⁻¹ |
| Assembly | Model | Structure unit | Oligomeric description | Status | CRYSOL | Actions |
|---|---|---|---|---|---|---|
| 1 | 1 | 1m4q__assembly_1__model_1 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 2 | 1m4q__assembly_1__model_2 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 3 | 1m4q__assembly_1__model_3 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 4 | 1m4q__assembly_1__model_4 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 5 | 1m4q__assembly_1__model_5 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 6 | 1m4q__assembly_1__model_6 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 7 | 1m4q__assembly_1__model_7 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 8 | 1m4q__assembly_1__model_8 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 9 | 1m4q__assembly_1__model_9 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 10 | 1m4q__assembly_1__model_10 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 11 | 1m4q__assembly_1__model_11 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 12 | 1m4q__assembly_1__model_12 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 13 | 1m4q__assembly_1__model_13 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 14 | 1m4q__assembly_1__model_14 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 15 | 1m4q__assembly_1__model_15 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 16 | 1m4q__assembly_1__model_16 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 17 | 1m4q__assembly_1__model_17 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 18 | 1m4q__assembly_1__model_18 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 19 | 1m4q__assembly_1__model_19 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 20 | 1m4q__assembly_1__model_20 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| Domain ID domain_id | d1m4qa_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.20 — UBC-like |
| Superfamily Superfamily superfamily | d.20.1 — UBC-like |
| Family Family family | d.20.1.2 — UEV domain |
| Domain ID domain_id | 1m4qA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 10 — Roll |
| Topology topology | 110 — Ubiquitin Conjugating Enzyme |
| Homologous superfamily homologous superfamily | 10 — Ubiquitin Conjugating Enzyme |
