SAXSdb — 1xd3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin Carboxyl-terminal esterase L3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	UBC protein × 1 （P62988） MAGNESIUM ION × 3 METHYL 4-AMINOBUTANOATE × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	UBC protein × 1 （P62988） MAGNESIUM ION × 7 METHYL 4-AMINOBUTANOATE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UCHL3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–230； UniProt 1–230 Author chain C； PDBConstruct 1–230； UniProt 1–230

UBC protein

Homo sapiens

UniProt P62988

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin Carboxyl-terminal esterase L3 × 1 （P15374） MAGNESIUM ION × 3 METHYL 4-AMINOBUTANOATE × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Ubiquitin Carboxyl-terminal esterase L3 × 1 （P15374） MAGNESIUM ION × 7 METHYL 4-AMINOBUTANOATE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBIQ_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–75； UniProt 229–303 Author chain D； PDBConstruct 1–75； UniProt 229–303

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1xd3
Deposition date deposition_date	2004-09-03
Structure title title	Crystal structure of UCHL3-UbVME complex
Keywords keywords	Enzyme-Ligand complex, active site crossover loop, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1xd3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1xd3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

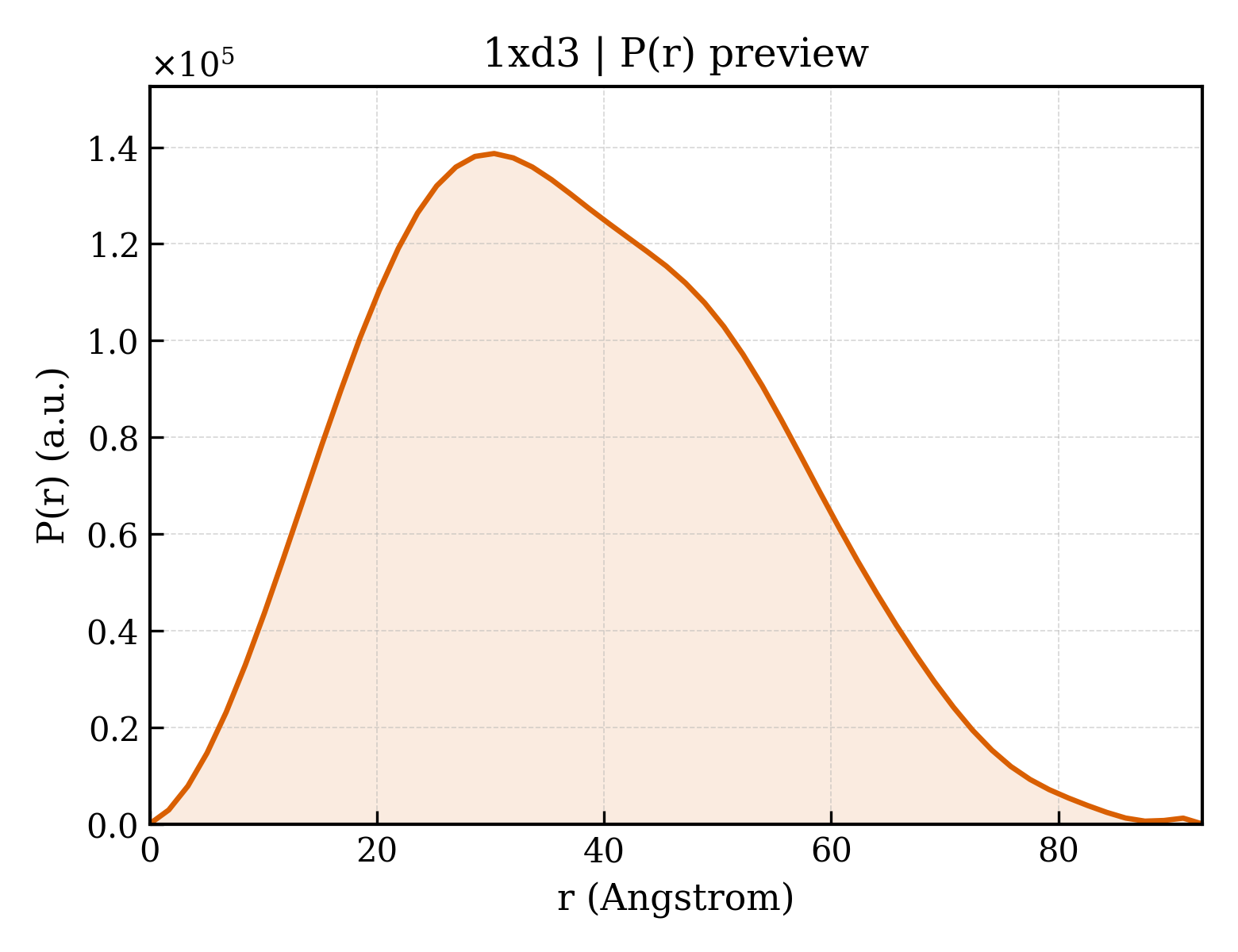

1xd3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.83 Å
Rg (electron density)	19.59 Å
Total Rg	20.53 Å
Atom count	2437
Residues	304
Excluded volume	43368 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1xd3__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1xd3__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Ubiquitin Carboxyl-terminal esterase L3
Molecular weight formula_weight	26213.6 kDa
EC 编号 ec_number	3.4.19.12
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6182

MEGQRWLPLEANPEVTNQFLKQLGLHPNWQFVDVYGMDPELLSMVPRPVCAVLLLFPITEKYEVFRTEEEEKIKSQGQDVTSSVYFMKQTISNACGTIGLIHAIANNKDKMHFESGSTLKKFLEESVSMSPEERARYLENYDAIRVTHETSAHEGQTEAPSIDEKVDLHFIALVHVDGHLYELDGRKPFPINHGETSDETLLEDAIEVCKKFMERDPDELRFNAIALSAA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	UBC protein
Molecular weight formula_weight	8519.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 4 Entity 4 non-polymer

Description description	METHYL 4-AMINOBUTANOATE
Molecular weight formula_weight	117.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1057

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1xd3a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.6 — Ubiquitin carboxyl-terminal hydrolase UCH-L

Domain ID domain_id	d1xd3b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d1xd3c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.3 — Cysteine proteinases
Superfamily Superfamily superfamily	d.3.1 — Cysteine proteinases
Family Family family	d.3.1.6 — Ubiquitin carboxyl-terminal hydrolase UCH-L

Domain ID domain_id	d1xd3d_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

CATH v4.4 (4 domains)

Domain ID domain_id	1xd3A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	532 — Ubiquitin C-terminal Hydrolase UCH-l3
Homologous superfamily homologous superfamily	10 — Peptidase C12, ubiquitin carboxyl-terminal hydrolase

Domain ID domain_id	1xd3B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	1xd3C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	532 — Ubiquitin C-terminal Hydrolase UCH-l3
Homologous superfamily homologous superfamily	10 — Peptidase C12, ubiquitin carboxyl-terminal hydrolase

Domain ID domain_id	1xd3D00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

Unit-cell length a length_a	46.110 Å
Unit-cell length b length_b	49.290 Å
Unit-cell length c length_c	67.620 Å
Unit-cell angle α angle_alpha	86.12 °
Unit-cell angle β angle_beta	75.03 °
Unit-cell angle γ angle_gamma	76.78 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.450 Å
Low-resolution limit resolution_low	23.760 Å
R factor r_factor	0.1770
R_work r_work	0.1660
R_free r_free	0.1920
