SAXSdb — 5c4v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mothers against decapentaplegic homolog 4

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 314–549	Fragment：residues 314-549	Ski-like protein × 1 （P12757） GOL GLYCEROL × 1 ZN ZINC ION × 1 NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；2.8-3.3 M sodium chloride, 0.1 M Bis-Tris pH 5.5	Resolution 2.60 Å R-free 0.242
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 314–549	Fragment：residues 314-549	Ski-like protein × 1 （P12757） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；2.8-3.3 M sodium chloride, 0.1 M Bis-Tris pH 5.5	Resolution 2.60 Å R-free 0.242
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 314–549	Fragment：residues 314-549	Ski-like protein × 1 （P12757） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；2.8-3.3 M sodium chloride, 0.1 M Bis-Tris pH 5.5	Resolution 2.60 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5C4V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DD1 CRYSTAL STRUCTURE ANALYSIS OF THE SMAD4 ACTIVE FRAGMENT Deposited 1999-11-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 285–552（268 aa） Fragment：SMAD4 ACTIVE FRAGMENT Chain B 285–552（268 aa） Fragment：SMAD4 ACTIVE FRAGMENT Chain C 285–552（268 aa） Fragment：SMAD4 ACTIVE FRAGMENT	Not recorded	SO4 SULFATE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；PEG 4000, LISO4, HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.62 Å R-free 0.175
1DD1 CRYSTAL STRUCTURE ANALYSIS OF THE SMAD4 ACTIVE FRAGMENT Deposited 1999-11-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 285–552（268 aa） Fragment：SMAD4 ACTIVE FRAGMENT Chain B 285–552（268 aa） Fragment：SMAD4 ACTIVE FRAGMENT Chain C 285–552（268 aa） Fragment：SMAD4 ACTIVE FRAGMENT	Not recorded	SO4 SULFATE ION × 18	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；PEG 4000, LISO4, HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.62 Å R-free 0.175
1G88 S4AFL3ARG515 MUTANT Deposited 2000-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 285–552（268 aa） Fragment：SMAD4 ACTIVE FRAGMENT Chain B 285–552（268 aa） Fragment：SMAD4 ACTIVE FRAGMENT Chain C 285–552（268 aa） Fragment：SMAD4 ACTIVE FRAGMENT	Mutation：R515S Mutation：R515S Mutation：R515S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.00 Å R-free 0.263
1MR1 Crystal Structure of a Smad4-Ski Complex Deposited 2002-09-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 319–552（234 aa） Fragment：MH2 domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；dioxane, potassium phosphate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.85 Å R-free 0.280
1MR1 Crystal Structure of a Smad4-Ski Complex Deposited 2002-09-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 319–552（234 aa） Fragment：MH2 domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；295 K；dioxane, potassium phosphate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.85 Å R-free 0.280
1U7F Crystal Structure of the phosphorylated Smad3/Smad4 heterotrimeric complex Deposited 2004-08-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 314–552（239 aa） Fragment：MH2 and Linker domains	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；50 mM Tris-HCl, 0-15 mM magnesium chloride, 5-15% ethanol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.247
1U7V Crystal Structure of the phosphorylated Smad2/Smad4 heterotrimeric complex Deposited 2004-08-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 314–549（236 aa） Fragment：MH2 and Linker domains	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；50 mM Tris-HCl, 0-15 mM magnesium chloride, 5-15% ethanol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.279
1YGS CRYSTAL STRUCTURE OF THE SMAD4 TUMOR SUPPRESSOR C-TERMINAL DOMAIN Deposited 1997-10-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 319–552（234 aa） Fragment：C-TERMINAL DOMAIN, RESIDUES 319 - 552	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；100 MM NAMES, PH6.5, 25% PEG MONOMETHYLETHER 5000, 5 MM DTT, 200 MM (NH4)2SO4	Resolution 2.10 Å R-free 0.279
5MEY Crystal structure of Smad4-MH1 bound to the GGCGC site. Deposited 2016-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 10–140（131 aa）	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 8 PEG DI(HYDROXYETHYL)ETHER × 4 EDO 1,2-ETHANEDIOL × 2 CA CALCIUM ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；17% PEG 6000, 0.2 M NaCl, 0.1 M sodium acetate pH 5.0	Resolution 2.05 Å R-free 0.238
5MEZ Crystal structure of Smad4-MH1 bound to the GGCT site. Deposited 2016-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 10–140（131 aa） Chain B 10–140（131 aa）	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；24% PEG 3350, 0.2 M calcium chloride	Resolution 2.98 Å R-free 0.252
5MF0 Crystal structure of Smad4-MH1 bound to the GGCCG site. Deposited 2016-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 10–140（131 aa） Chain B 10–140（131 aa）	Not recorded	ZN ZINC ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；16% PEG MME 2000 and 0.1 M sodium acetate pH 5.0	Resolution 3.03 Å R-free 0.270

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SMAD4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 23–258； UniProt 314–549 Author chain C； PDBConstruct 23–258； UniProt 314–549 Author chain E； PDBConstruct 23–258； UniProt 314–549

Ski-like protein

Homo sapiens

UniProt P12757

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 238–356	Fragment：residues 238-356	Mothers against decapentaplegic homolog 4 × 1 （Q13485） GOL GLYCEROL × 1 ZN ZINC ION × 1 NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；2.8-3.3 M sodium chloride, 0.1 M Bis-Tris pH 5.5	Resolution 2.60 Å R-free 0.242
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 238–356	Fragment：residues 238-356	Mothers against decapentaplegic homolog 4 × 1 （Q13485） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；2.8-3.3 M sodium chloride, 0.1 M Bis-Tris pH 5.5	Resolution 2.60 Å R-free 0.242
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 238–356	Fragment：residues 238-356	Mothers against decapentaplegic homolog 4 × 1 （Q13485） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；2.8-3.3 M sodium chloride, 0.1 M Bis-Tris pH 5.5	Resolution 2.60 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5C4V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain J 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain K 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 12 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain L 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274
3EQ5 Crystal structure of fragment 137 to 238 of the human Ski-like protein Deposited 2008-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 137–238（102 aa） Fragment：UNP Residues 137-238	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M Ammonium nitrate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.45 Å R-free 0.274

1 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SKIL_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–120； UniProt 238–356 Author chain D； PDBConstruct 2–120； UniProt 238–356 Author chain F； PDBConstruct 2–120； UniProt 238–356

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5c4v
Deposition date deposition_date	2015-06-18
Structure title title	Ski-like protein
Keywords keywords	Complex, signaling protein; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.98 Å
Radius of gyration Rg (electron density) rg_electron	32.41 Å
Forward intensity I(0) i0	150966000.00
Molecular weight molecular_weight	95624.0 kDa
Excluded volume excluded_volume	118480 Å³
Envelope volume envelope_volume	155870 Å³
Hydration-shell volume shell_volume	40784 Å³
Envelope diameter envelope_diameter	110.6 Å
Shell Rg shell_rg	38.38 Å
Envelope Rg envelope_rg	32.48 Å
Shape Rg shape_rg	32.36 Å
Total Rg total_rg	33.05 Å
Total atoms total_atoms	6699
Residues n_residues	856
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	105.4 Å
Rg (real space) rg_real	32.97 Å
Rg uncertainty (real space) rg_real_error	1.04 Å
I(0) (real space) i0_real	1.5100e+08
I(0) uncertainty (real space) i0_real_error	2.4880e+06
Rg (reciprocal space) rg_reciprocal	32.98 Å
I(0) (reciprocal space) i0_reciprocal	151000000.0000
Solution quality estimate total_estimate	0.8997
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	35.1 Å
Skewness Skewness skewness	0.297
Kurtosis Kurtosis kurtosis	-0.513
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	37730000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.932; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.906

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Mothers against decapentaplegic homolog 4
Molecular weight formula_weight	28294.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	6835

MHHHHHHSSGVDLGTENLYFQSISNHPAPEYWCSIAYFEMDVQVGETFKVPSSCPIVTVDGYVDPSGGDRFCLGQLSNVHRTEAIERARLHIGKGVQLECKGEGDVWVRCLSDHAVFVQSYYLDREAGRAPGDAVHKIYPSAYIKVFDLRQCHRQMQQQAATAQAAAAAQAAAVAGNIPGPGSVGGIAPAISLSAAAGIGVDDLRRLCILRMSFVKGWGPDYPRQSIKETPCWIEIHLHRALQLLDEVLHTMPIADPQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Ski-like protein
Molecular weight formula_weight	14617.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

MTFPQNGSVLPAKSSLAQLKETGSAFEVEHECLGKCQGLFAPQFYVQPDAPCIQCLECCGMFAPQTFVMHSHRSPDKRTCHWGFESAKWHCYLHVNQKYLGTPEEKKLKIILEEMKEKFSAHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	130

▼

7. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d5c4va_
Class class	b — All beta proteins
Fold Fold fold	b.26 — SMAD/FHA domain
Superfamily Superfamily superfamily	b.26.1 — SMAD/FHA domain
Family Family family	b.26.1.1 — SMAD domain

Domain ID domain_id	d5c4vc_
Class class	b — All beta proteins
Fold Fold fold	b.26 — SMAD/FHA domain
Superfamily Superfamily superfamily	b.26.1 — SMAD/FHA domain
Family Family family	b.26.1.1 — SMAD domain

Domain ID domain_id	d5c4ve_
Class class	b — All beta proteins
Fold Fold fold	b.26 — SMAD/FHA domain
Superfamily Superfamily superfamily	b.26.1 — SMAD/FHA domain
Family Family family	b.26.1.1 — SMAD domain

CATH v4.4 (6 domains)

Domain ID domain_id	5c4vA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	200 — Tumour Suppressor Smad4
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5c4vB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	390 — SAND domain
Homologous superfamily homologous superfamily	10 — SAND domain-like

Domain ID domain_id	5c4vC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	200 — Tumour Suppressor Smad4
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5c4vD00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	390 — SAND domain
Homologous superfamily homologous superfamily	10 — SAND domain-like

Domain ID domain_id	5c4vE00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	200 — Tumour Suppressor Smad4
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5c4vF00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	390 — SAND domain
Homologous superfamily homologous superfamily	10 — SAND domain-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	213.540 Å
Unit-cell length b length_b	122.830 Å
Unit-cell length c length_c	51.570 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.72 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	40.300 Å
R factor r_factor	0.2092
R_work r_work	0.2077
R_free r_free	0.2421

fit	/app/data/saxs_computation/c4/5c4v/5c4v.fit
pddf	/app/data/pr_computation/c4/5c4v/5c4v.pr.out
profile	/app/data/saxs_computation/c4/5c4v/5c4v.dat

Ski-like protein

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mothers against decapentaplegic homolog 4

State in the Current Structure

Other States of the Same Protein in the Database

Ski-like protein

State in the Current Structure

Other States of the Same Protein in the Database

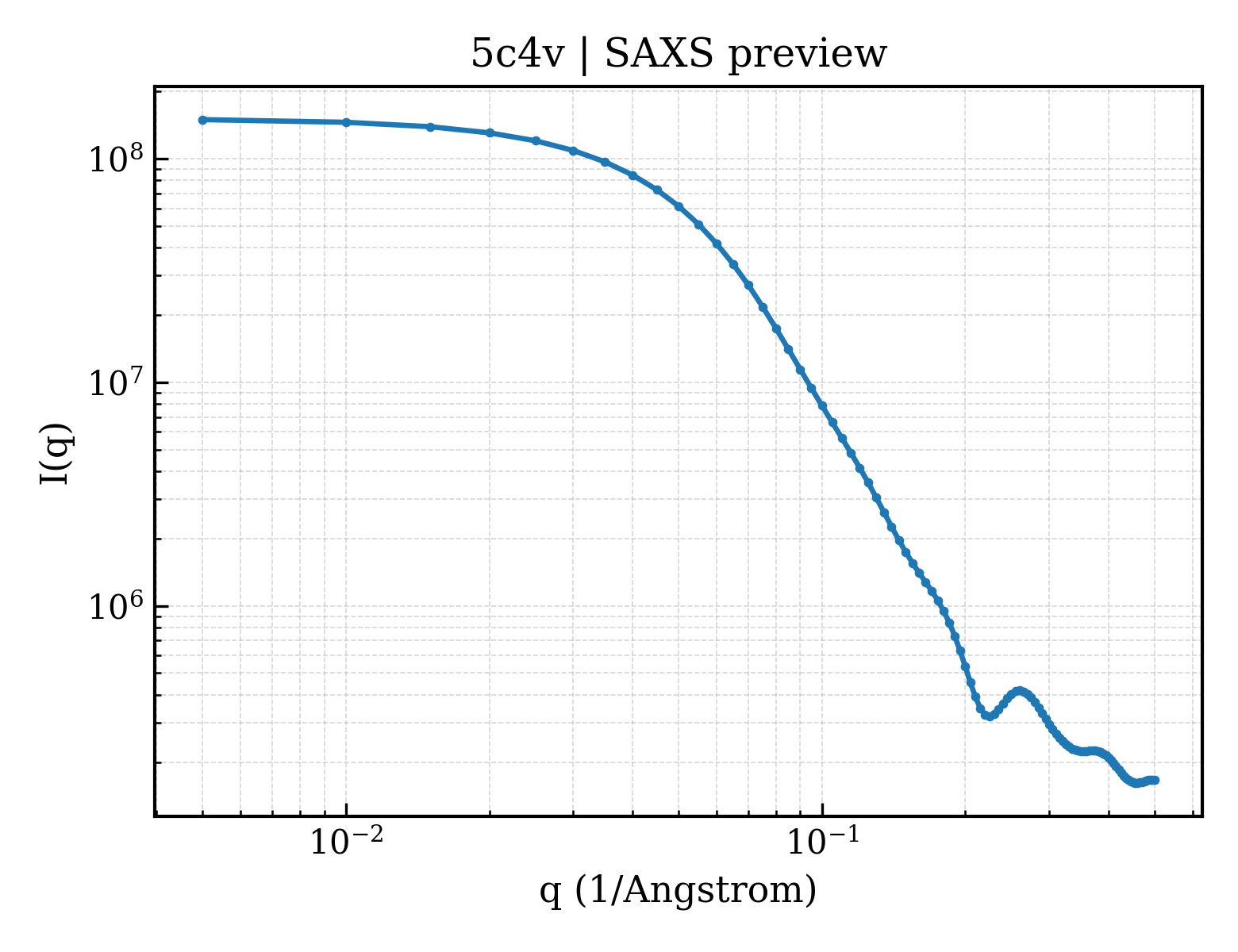

SAXS scattering curve SAXS Profile
