SAXSdb — 5mez

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MH1 domain of human Smad4

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	;DNA (5'-D(PGPCPAPGPGPCPTPAPGPCPCPTPGPCP*A)-3') ; × 2 ZINC ION × 2 CHLORIDE ION × 1 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMAD4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–135； UniProt 10–140 Author chain B； PDBConstruct 5–135； UniProt 10–140

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5mez
Deposition date deposition_date	2016-11-16
Structure title title	Crystal structure of Smad4-MH1 bound to the GGCT site.
Keywords keywords	Smads, transcription factor, DNA complex, transcription; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5mez__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5mez__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

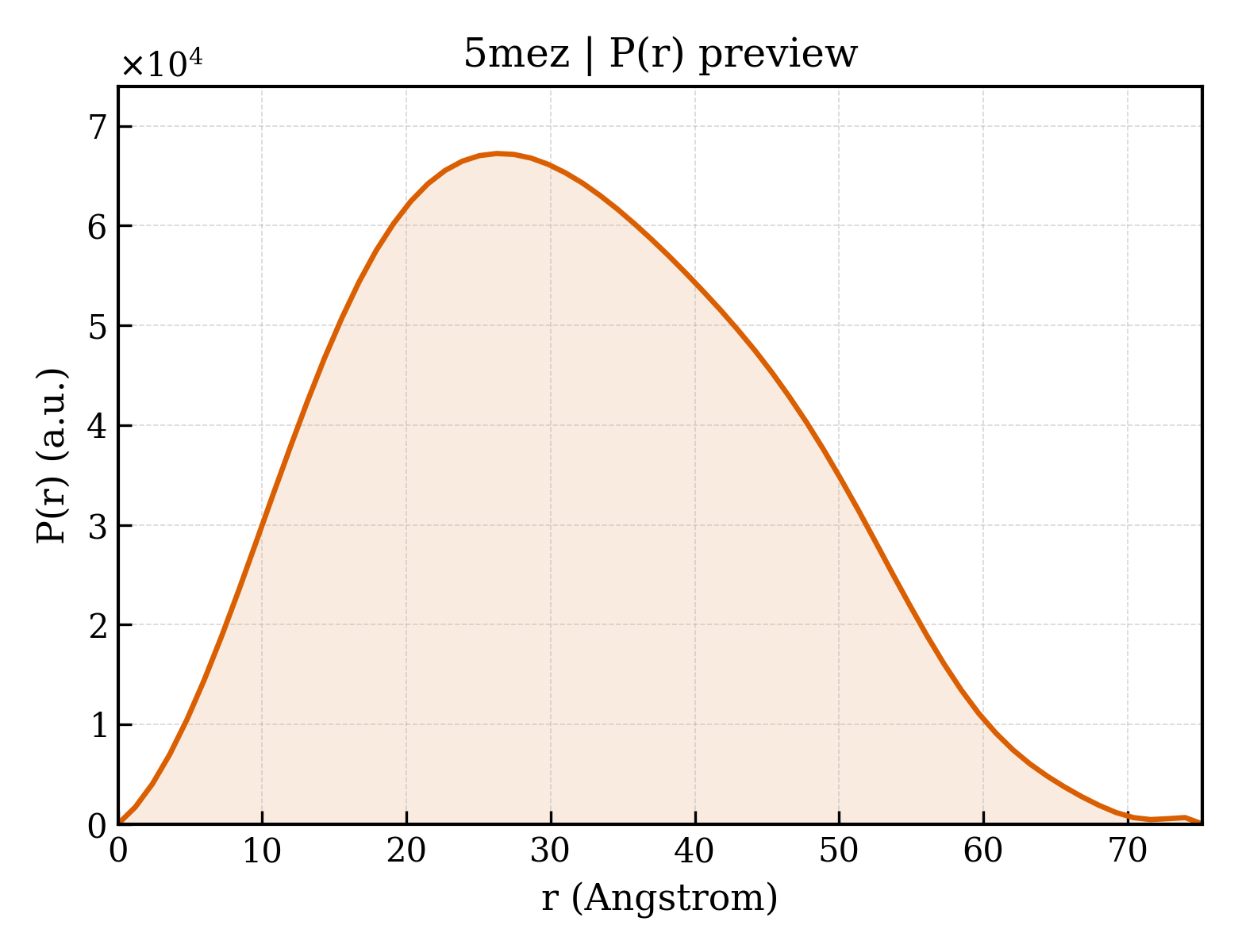

5mez__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.25 Å
Rg (electron density)	22.98 Å
Total Rg	23.75 Å
Atom count	2523
Residues	277
Excluded volume	42548 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5mez__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	MH1 domain of human Smad4
Molecular weight formula_weight	15237.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2530

GAMGPTSNDACLSIVHSLMCHRQGGESETFAKRAIESLVKKLKEKKDELDSLITAITTNGAHPSKCVTIQRTLDGRLQVAGRKGFPHVIYARLWRWPDLHKNELKHVKYCQYAFDLKCDSVCVNPYHYERVVSPG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(PGPCPAPGPGPCPTPAPGPCPCPTPGPCP*A)-3') ;
Molecular weight formula_weight	4899.2 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D,E

TGCAGGCTAGCCTGCA

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	7

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5mezA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	520 — Smad3; Chain A
Homologous superfamily homologous superfamily	10 — SMAD MH1 domain

Domain ID domain_id	5mezB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	520 — Smad3; Chain A
Homologous superfamily homologous superfamily	10 — SMAD MH1 domain

▶

Unit-cell length a length_a	64.790 Å
Unit-cell length b length_b	79.060 Å
Unit-cell length c length_c	114.160 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.980 Å
Low-resolution limit resolution_low	29.050 Å
R factor r_factor	0.2180
R_work r_work	0.2170
R_free r_free	0.2520

Crystal structure of Smad4-MH1 bound to the GGCT site.
