Crystal structure of a 4-oxalocrotonate tautomerase mutant at 2.7 Angstrom

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-hydroxymuconate tautomerase

Pseudomonas putida

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	water × 6	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 6	water × 4	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 6	water × 4	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 6	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	4OT1_PSEPU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–57； UniProt 2–58 Author chain B； PDBConstruct 1–57； UniProt 2–58 Author chain C； PDBConstruct 1–57； UniProt 2–58 Author chain D； PDBConstruct 1–57； UniProt 2–58 Author chain E； PDBConstruct 1–57； UniProt 2–58 Author chain F； PDBConstruct 1–57； UniProt 2–58 Author chain G； PDBConstruct 1–57； UniProt 2–58 Author chain H； PDBConstruct 1–57； UniProt 2–58 Author chain I； PDBConstruct 1–57； UniProt 2–58 Author chain J； PDBConstruct 1–57； UniProt 2–58 Author chain K； PDBConstruct 1–57； UniProt 2–58 Author chain L； PDBConstruct 1–57； UniProt 2–58

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5cln
Deposition date deposition_date	2015-07-16
Structure title title	Crystal structure of a 4-oxalocrotonate tautomerase mutant at 2.7 Angstrom
Keywords keywords	4-Oxalocrotonate tautomerase, beta-alpha-beta structural motif, tautomerase superfamily, isomerase; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5cln__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

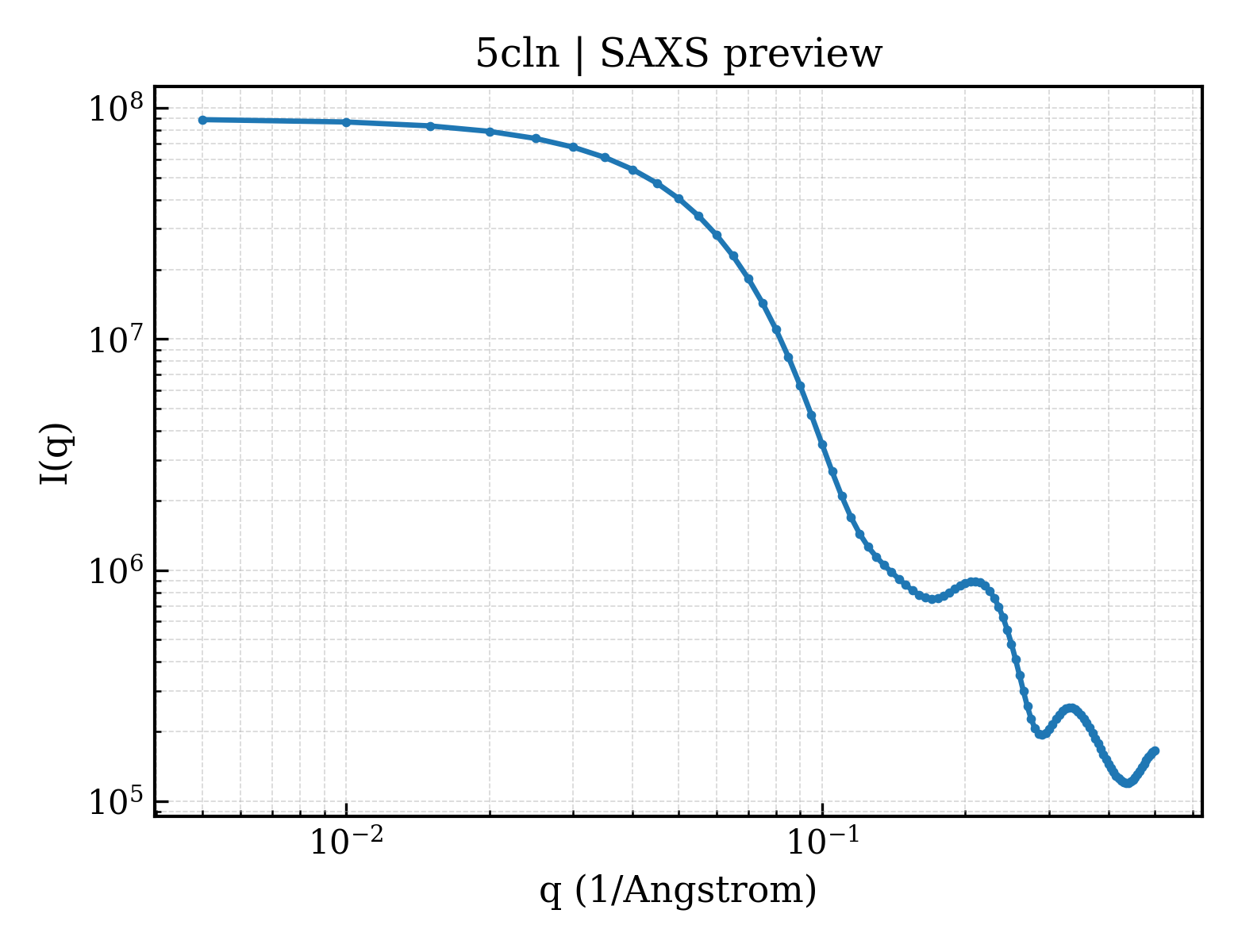

5cln__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

5cln__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.46 Å
Rg (electron density)	18.95 Å
Total Rg	19.91 Å
Atom count	2586
Residues	342
Excluded volume	46019 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5cln__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5cln__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`5cln__assembly_3__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`5cln__assembly_4__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`5cln__assembly_5__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d5clna_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clnb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clnc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clnd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clne_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clnf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clng_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clnh_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clni_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clnj_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clnk_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

Domain ID domain_id	d5clnl_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.80 — Tautomerase/MIF
Superfamily Superfamily superfamily	d.80.1 — Tautomerase/MIF
Family Family family	d.80.1.1 — 4-oxalocrotonate tautomerase-like

CATH v4.4 (12 domains)

Domain ID domain_id	5clnA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnG00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnH00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnI00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnJ00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnK00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

Domain ID domain_id	5clnL00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	429 — Macrophage Migration Inhibitory Factor
Homologous superfamily homologous superfamily	10 — Macrophage Migration Inhibitory Factor

▶

Unit-cell length a length_a	87.163 Å
Unit-cell length b length_b	87.258 Å
Unit-cell length c length_c	97.284 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	113.73 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.710 Å
Low-resolution limit resolution_low	57.600 Å
R factor r_factor	0.2340
R_work r_work	0.2325
R_free r_free	0.2634

Description description	2-hydroxymuconate tautomerase
Molecular weight formula_weight	6147.9 kDa
EC 编号 ec_number	5.3.2.6
Mutation mutation	M45Y, F50A
Source method src_method	man
Copy count entity_count	12

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	5222

Crystal structure of a 4-oxalocrotonate tautomerase mutant at 2.7 Angstrom

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-hydroxymuconate tautomerase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

5cln__assembly_1__model_1

5cln__assembly_1__model_1 | I(q)

5cln__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Source organism organism	Pseudomonas putida
NCBI taxonomy ID ncbi_taxonomy_id	303
Host organism host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	50
