SAXSdb — 5drv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ras GTPase-activating protein-binding protein 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–139	Fragment：NTF2-like domain, UNP residues 1-139	Non-structural protein 3 × 2 （P08411）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.4；293 K；0.9 M tri-sodium citrate, 20 % glycerol, 0.1 M sodium cacodylate (pH 6.4)	Resolution 2.75 Å R-free 0.299

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5DRV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9OS2 Cryo-EM structure of the DDB1/CRBN-MRT-5702-G3BP2 ternary complex Deposited 2025-05-23	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–482（482 aa） Chain D 1–482（482 aa）	Not recorded	ZN ZINC ION × 1 A1CED (1S,3S)-2-[(2-chlorophenyl)methanesulfonyl]-N-{[(4R)-3-(2,4-dioxo-1,3-diazinan-1-yl)imidazo[1,2-a]pyridin-7-yl]methyl}-1-methyl-1,2,3,4-tetrahydroisoquinoline-3-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	G3BP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–142； UniProt 1–139

Non-structural protein 3

OrganismNot specified

UniProt P08411

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1785–1792	Fragment：UNP residues 1785-1792	Ras GTPase-activating protein-binding protein 2 × 2 （Q9UN86）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.4；293 K；0.9 M tri-sodium citrate, 20 % glycerol, 0.1 M sodium cacodylate (pH 6.4)	Resolution 2.75 Å R-free 0.299

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5DRV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FW5 SOLUTION STRUCTURE OF MEMBRANE BINDING PEPTIDE OF SEMLIKI FOREST VIRUS MRNA CAPPING ENZYME NSP1 Deposited 2000-09-21	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 245–264（20 aa） Fragment：RESIDUES 245-364 OF NSP1	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
5FW5 Crystal structure of human G3BP1 in complex with Semliki Forest Virus nsP3-25 comprising two FGDF motives Deposited 2016-02-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1785–1809（25 aa） Fragment：RESIDUES 449-473	Not recorded	SO4 SULFATE ION × 8 ACT ACETATE ION × 4 GOL GLYCEROL × 8 K POTASSIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 0.1 M SODIUM ACETATE TRIHYDRATE PH 4.6, 2 M AMMONIUMSULFATE	Resolution 1.92 Å R-free 0.202

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	POLN_SFV
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–8； UniProt 1785–1792

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5drv
Deposition date deposition_date	2015-09-16
Structure title title	Crystal structure of the G3BP2 NTF2-like domain in complex with a peptide
Keywords keywords	NTF2-like, G3BP, peptide complex, protein binding; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.64 Å
Radius of gyration Rg (electron density) rg_electron	15.22 Å
Forward intensity I(0) i0	5096200.00
Molecular weight molecular_weight	15998.0 kDa
Excluded volume excluded_volume	19929 Å³
Envelope volume envelope_volume	24026 Å³
Hydration-shell volume shell_volume	13501 Å³
Envelope diameter envelope_diameter	56.5 Å
Shell Rg shell_rg	21.05 Å
Envelope Rg envelope_rg	15.85 Å
Shape Rg shape_rg	15.15 Å
Total Rg total_rg	16.55 Å
Total atoms total_atoms	1130
Residues n_residues	138
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

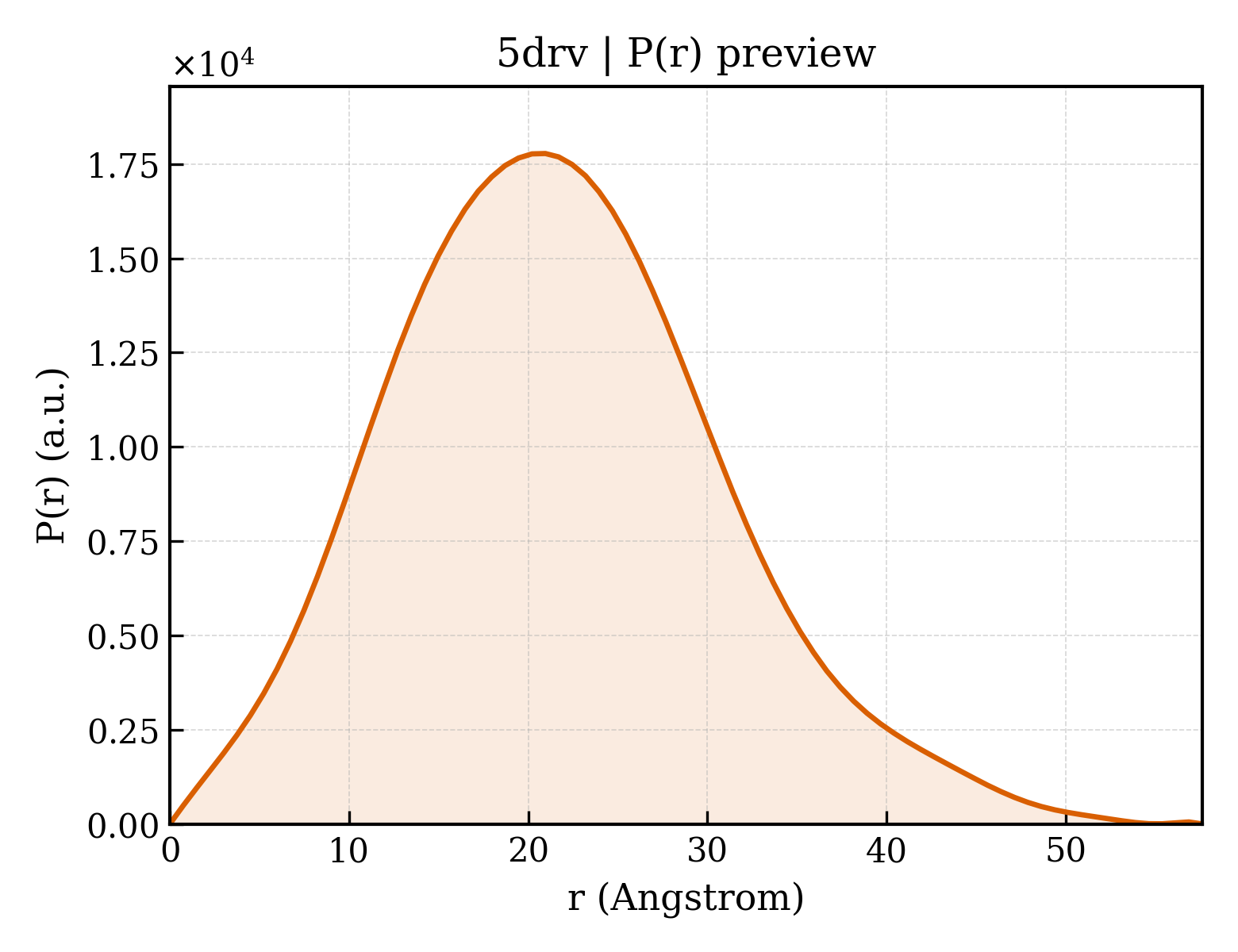

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	57.6 Å
Rg (real space) rg_real	16.60 Å
Rg uncertainty (real space) rg_real_error	0.40 Å
I(0) (real space) i0_real	5.0960e+06
I(0) uncertainty (real space) i0_real_error	6.5010e+04
Rg (reciprocal space) rg_reciprocal	16.60 Å
I(0) (reciprocal space) i0_reciprocal	5096000.0000
Solution quality estimate total_estimate	0.8497
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.0 Å
Skewness Skewness skewness	0.360
Kurtosis Kurtosis kurtosis	-0.009
Angular range angular_range	— – 0.4800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1194000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.692; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.970

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Ras GTPase-activating protein-binding protein 2
Molecular weight formula_weight	16138.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1130

GSHMVMEKPSPLLVGREFVRQYYTLLNKAPEYLHRFYGRNSSYVHGGVDASGKPQEAVYGQNDIHHKVLSLNFSECHTKIRHVDAHATLSDGVVVQVMGLLSNSGQPERKFMQTFVLAPEGSVPNKFYVHNDMFRYEDEVFG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Non-structural protein 3
Molecular weight formula_weight	943.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

LTFGDFDE

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	5drvA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	50 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	94.850 Å
Unit-cell length b length_b	94.850 Å
Unit-cell length c length_c	114.030 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	38.641 Å
R factor r_factor	0.2503
R_work r_work	0.2446
R_free r_free	0.2991

fit	/app/data/saxs_computation/dr/5drv/5drv.fit
pddf	/app/data/pr_computation/dr/5drv/5drv.pr.out
profile	/app/data/saxs_computation/dr/5drv/5drv.dat
