SAXSdb — 5dui

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Forkhead box protein O1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Homooligomer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain A； UniProt 151–259 Chain B； UniProt 151–259	Fragment：unp residues 151-259	;DNA (5'-D(TPTPTPTPCPTPAPTPTPTPTPAPCPGPTPAPAPAPTPCPA)-3') ; × 1 ;DNA (5'-D(APTPGPAPTPTPTPAPCPGPTPAPAPAPAPTPAPGPAPAPA)-3') ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；14-18% PEG 8000 0.1M Ammonium sulfate 20mM Magnesium chloride 50mM MES pH 5.6 10% glycerol	Resolution 2.31 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5DUI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3CO6 Crystal Structure of FoxO1 DBD Bound to DBE1 DNA Deposited 2008-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 151–249（99 aa）	Not recorded	CL CHLORIDE ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.9；277 K；22% PEG 4000, pH 7.9, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.256
3CO7 Crystal Structure of FoxO1 DBD Bound to DBE2 DNA Deposited 2008-03-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 151–266（116 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；277 K；21% PEG 4000, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.91 Å R-free 0.276
3CO7 Crystal Structure of FoxO1 DBD Bound to DBE2 DNA Deposited 2008-03-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain F 151–266（116 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；277 K；21% PEG 4000, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.91 Å R-free 0.276
3COA Crystal Structure of FoxO1 DBD Bound to IRE DNA Deposited 2008-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 151–266（116 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；30% PEG 4000, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.250
3COA Crystal Structure of FoxO1 DBD Bound to IRE DNA Deposited 2008-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain F 151–266（116 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；30% PEG 4000, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.250
4LG0 Structure of a ternary FOXO1-ETS1 DNA complex Deposited 2013-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 143–270（128 aa） Fragment：DNA Binding Domain, UNP residues 143-270	Not recorded	CA CALCIUM ION × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；30% PEG 400, 0.05M 2-Amino-2-hydroxymethyl-propane-1,3-diol, 0.1M potassium chloride, 0.01M magnesium chloride, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.19 Å R-free 0.243
6LBI Crystal Structure of FOXO1-DBD homodimer bound to a palindromic DNA sequence Deposited 2019-11-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 151–265（115 aa） Chain D 151–265（115 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM NaAc, pH 4.7, 12%-18% PEG4000 (w/v), 200 mM NaCl, 10 mM MgCl2 and 1 mM TCEP.	Resolution 3.07 Å R-free 0.264
6LBI Crystal Structure of FOXO1-DBD homodimer bound to a palindromic DNA sequence Deposited 2019-11-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain G 151–265（115 aa） Chain H 151–265（115 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM NaAc, pH 4.7, 12%-18% PEG4000 (w/v), 200 mM NaCl, 10 mM MgCl2 and 1 mM TCEP.	Resolution 3.07 Å R-free 0.264
6LBI Crystal Structure of FOXO1-DBD homodimer bound to a palindromic DNA sequence Deposited 2019-11-14	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain K 151–265（115 aa） Chain L 151–265（115 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM NaAc, pH 4.7, 12%-18% PEG4000 (w/v), 200 mM NaCl, 10 mM MgCl2 and 1 mM TCEP.	Resolution 3.07 Å R-free 0.264
6QVW Solution structure of the free FOXO1 DNA binding domain Deposited 2019-03-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 159–272（114 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 70；Pressure 1 NMR sample composition 380 uM [U-13C; U-15N] FOXO1 DBD, 20 mM sodium phosphate, 50 mM potassium chloride, 2 mM TCEP, 100 % n/a n/a, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6QZR 14-3-3 sigma in complex with FOXO1 pT24 peptide Deposited 2019-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain N 19–29（11 aa） Chain O 19–29（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1M Bis-Tris propane pH 7, 0.2M Sodium nitrate, 28% (w/v) PEG400, 5% (w/v) glycerol	Resolution 2.30 Å R-free 0.267
6QZR 14-3-3 sigma in complex with FOXO1 pT24 peptide Deposited 2019-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 19–29（11 aa） Chain P 19–29（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1M Bis-Tris propane pH 7, 0.2M Sodium nitrate, 28% (w/v) PEG400, 5% (w/v) glycerol	Resolution 2.30 Å R-free 0.267
6QZR 14-3-3 sigma in complex with FOXO1 pT24 peptide Deposited 2019-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain J 19–29（11 aa） Chain U 19–29（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1M Bis-Tris propane pH 7, 0.2M Sodium nitrate, 28% (w/v) PEG400, 5% (w/v) glycerol	Resolution 2.30 Å R-free 0.267
6QZR 14-3-3 sigma in complex with FOXO1 pT24 peptide Deposited 2019-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 19–29（11 aa） Chain T 19–29（11 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1M Bis-Tris propane pH 7, 0.2M Sodium nitrate, 28% (w/v) PEG400, 5% (w/v) glycerol	Resolution 2.30 Å R-free 0.267
8A62 Small molecule stabilizer (compound 2) for FOXO1 and 14-3-3 Deposited 2022-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 20–29（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4 L7L (3~{S})-1-[3,5-bis(chloranyl)-4-oxidanyl-phenyl]carbonyl-~{N}-[2-[2-(dimethylamino)ethyldisulfanyl]ethyl]piperidine-3-carboxamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH 7.5, 0.19 M CaCl2, 5% glycerol, 24% PEG 400	Resolution 1.60 Å R-free 0.182
8A65 Small molecule stabilizer (compound 3) for FOXO1 and 14-3-3 Deposited 2022-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 21–28（8 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 4 L70 (3~{S})-1-[2-azanyl-3,5-bis(chloranyl)phenyl]carbonyl-~{N}-[2-[2-(dimethylamino)ethyldisulfanyl]ethyl]piperidine-3-carboxamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH 7.3, 0.19 M CaCl2, 5% glycerol, 25% PEG 400	Resolution 1.60 Å R-free 0.193

9 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FOXO1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–111； UniProt 151–259 Author chain B； PDBConstruct 3–111； UniProt 151–259

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5dui
Deposition date deposition_date	2015-09-18
Structure title title	Identification of a new FoxO1 binding site that precludes CREB binding at the glucose-6-phosphatase catalytic subunit gene promoter
Keywords keywords	transcription factor, winged helix, DNA binding, protein-DNA complex, diabetes, transcription regulation, TRANSCRIPTION-dna complex; TRANSCRIPTION/dna
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.51 Å
Radius of gyration Rg (electron density) rg_electron	28.75 Å
Forward intensity I(0) i0	27003500.00
Molecular weight molecular_weight	32256.0 kDa
Excluded volume excluded_volume	36826 Å³
Envelope volume envelope_volume	52801 Å³
Hydration-shell volume shell_volume	17135 Å³
Envelope diameter envelope_diameter	99.9 Å
Shell Rg shell_rg	32.45 Å
Envelope Rg envelope_rg	28.38 Å
Shape Rg shape_rg	28.79 Å
Total Rg total_rg	28.98 Å
Total atoms total_atoms	2223
Residues n_residues	213
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	94.3 Å
Rg (real space) rg_real	27.97 Å
Rg uncertainty (real space) rg_real_error	0.93 Å
I(0) (real space) i0_real	2.7000e+07
I(0) uncertainty (real space) i0_real_error	4.4300e+05
Rg (reciprocal space) rg_reciprocal	27.83 Å
I(0) (reciprocal space) i0_reciprocal	27000000.0000
Solution quality estimate total_estimate	0.7587
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.1 Å
Skewness Skewness skewness	0.529
Kurtosis Kurtosis kurtosis	-0.611
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2021000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.518; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.374; Smooth: 0.930

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Forkhead box protein O1
Molecular weight formula_weight	12445.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2274

GSKSSSSRRNAWGNLSYADLITKAIESSAEKRLTLSQIYEWMVKSVPYFKDKGDSNSSAGWKNSIRHNLSLHSKFIRVQNEGTGKSSWWMLNPEGGKSGKSPRRRAASMDN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(TPTPTPTPCPTPAPTPTPTPTPAPCPGPTPAPAPAPTPCP*A)-3') ;
Molecular weight formula_weight	6377.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

TTTTCTATTTTACGTAAATCA

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(APTPGPAPTPTPTPAPCPGPTPAPAPAPAPTPAPGPAPAP*A)-3') ;
Molecular weight formula_weight	6502.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

ATGATTTACGTAAAATAGAAA

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	51

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5duiA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	5duiB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	46.610 Å
Unit-cell length b length_b	79.026 Å
Unit-cell length c length_c	48.266 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.79 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.306 Å
Low-resolution limit resolution_low	40.144 Å
R factor r_factor	0.2102
R_work r_work	0.2083
R_free r_free	0.2452

fit	/app/data/saxs_computation/du/5dui/5dui.fit
pddf	/app/data/pr_computation/du/5dui/5dui.pr.out
profile	/app/data/saxs_computation/du/5dui/5dui.dat

Identification of a new FoxO1 binding site that precludes CREB binding at the glucose-6-phosphatase catalytic subunit gene promoter

1. Protein Identity and Related Structures Protein Identity & Related Structures

Forkhead box protein O1

State in the Current Structure

Other States of the Same Protein in the Database

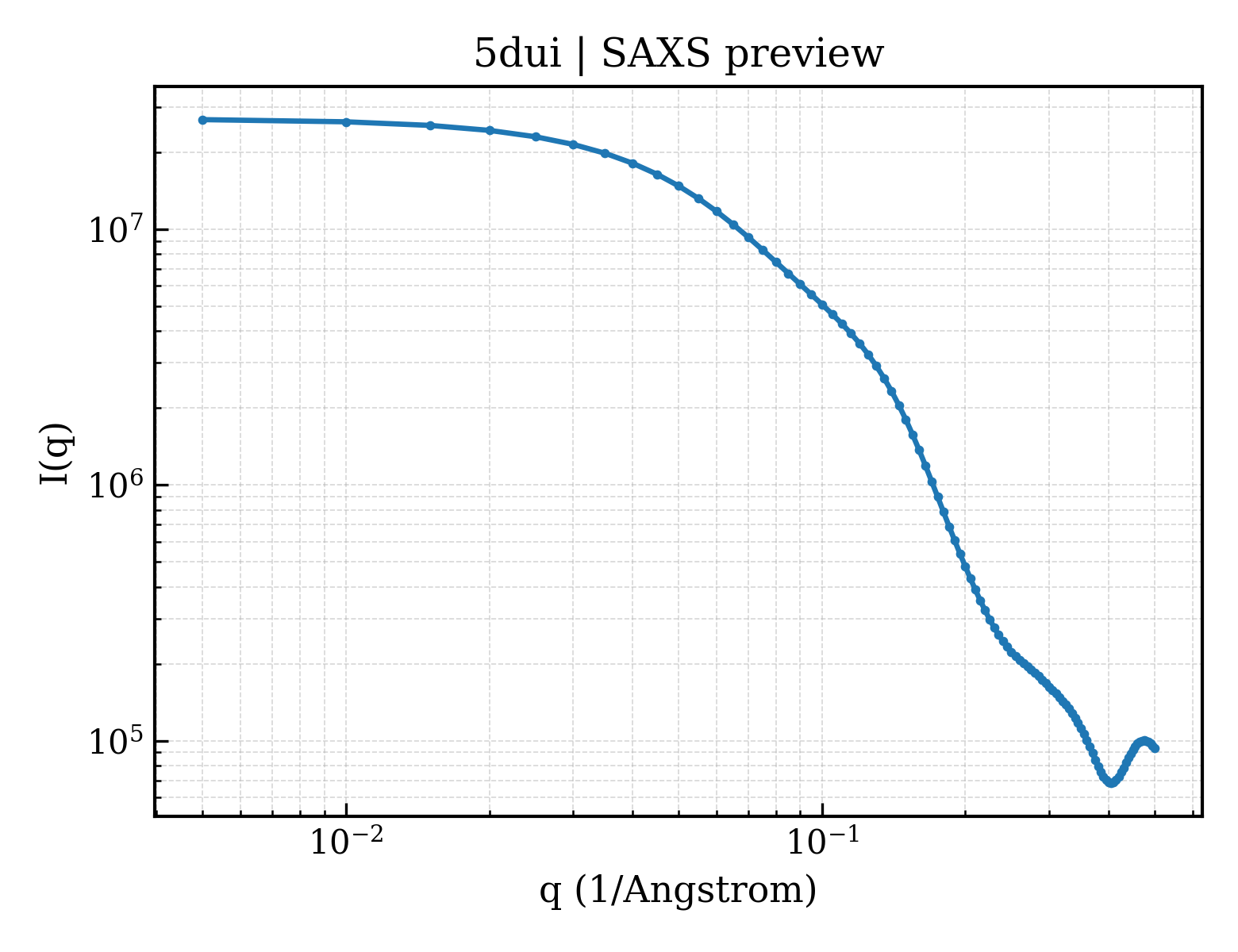

SAXS scattering curve SAXS Profile

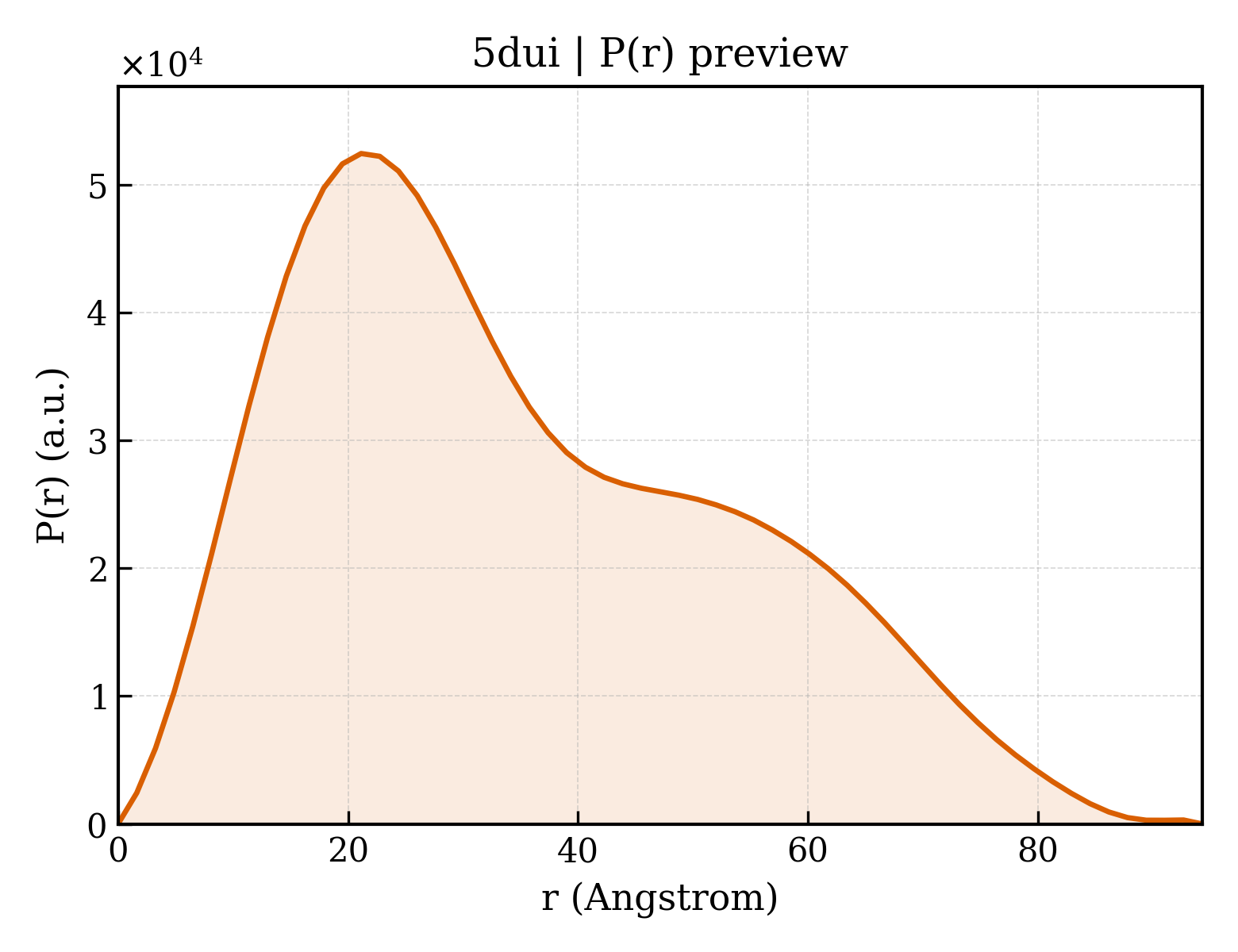

P(r) Distance Distribution P(r) Distribution
