SAXSdb — 5e1n

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calmodulin

Paramecium tetraurelia

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–149	Non-standard monomer：Yes (specific site not provided by mmCIF)	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；50 mM sodium cacodylate, 50% MPD	Resolution 1.00 Å R-free 0.150

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5E1N	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CLM STRUCTURE OF PARAMECIUM TETRAURELIA CALMODULIN AT 1.8 ANGSTROMS RESOLUTION Deposited 1993-01-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
1EXR THE 1.0 ANGSTROM CRYSTAL STRUCTURE OF CA+2 BOUND CALMODULIN Deposited 2000-05-03	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–149（148 aa）	Not recorded	CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；278 K；MPD, calcium chloride, sodium cacodylate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 1.00 Å R-free 0.163
1N0Y Crystal Structure of Pb-bound Calmodulin Deposited 2002-10-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	PB LEAD (II) ION × 7 CAC CACODYLATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；MPD, sodium cacodylate, sodium acetate, lead nitrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.75 Å R-free 0.223
1N0Y Crystal Structure of Pb-bound Calmodulin Deposited 2002-10-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–148（148 aa）	Not recorded	PB LEAD (II) ION × 7 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；MPD, sodium cacodylate, sodium acetate, lead nitrate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.75 Å R-free 0.223
1OSA CRYSTAL STRUCTURE OF RECOMBINANT PARAMECIUM TETRAURELIA CALMODULIN AT 1.68 ANGSTROMS RESOLUTION Deposited 1993-08-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.68 Å
2KXW Structure of the C-domain Fragment of apo Calmodulin Bound to the IQ motif of Nav1.2 Deposited 2010-05-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 77–149（73 aa） Fragment：C-domain (UNP Residues 77-149)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 1.5 mM [U-100% 13C; U-100% 15N] C-domain of apo Calmodulin, 1.5 mM Voltage-dependent Sodium Channel v 1.2, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1.5 mM Voltage-dependent Sodium Channel v 1.2, 1.5 mM [U-100% 13C; U-100% 15N] C-domain of apo Calmodulin, 100% D2O \| 100% D2O	Resolution not provided
2M5E Structure of the C-domain of Calcium-saturated Calmodulin bound to the IQ motif of NaV1.2 Deposited 2013-02-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 77–149（73 aa） Fragment：UNP residues 77-149	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Pressure ambient NMR sample composition 1.5 mM [U-100% 13C; U-100% 15N] C-domain of Calmodulin, 1.5 mM IQ motif peptide of NaV1.2, 3.3 mM CALCIUM ION, 10 mM [U-2H] imidazole, 100 mM potassium chloride, 0.01 % sodium azide, 50 uM [U-2H] EDTA, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 1.5 mM [U-100% 13C; U-100% 15N] C-domain of Calmodulin, 1.5 mM IQ motif peptide of NaV1.2, 3.3 mM CALCIUM ION, 10 mM [U-2H] imidazole, 100 mM potassium chloride, 0.01 % sodium azide, 50 uM [U-2H] EDTA, 100% D2O \| 100% D2O	Resolution not provided
5E1K Selenomethionine Ca2+-Calmodulin from Paramecium tetraurelia SAD data Deposited 2015-09-29	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–149（148 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 5 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；50 mM sodium cacodylate, 50% MPD	Resolution 1.00 Å R-free 0.165
5E1P Ca(2+)-Calmodulin from Paramecium tetraurelia qFit disorder model Deposited 2015-09-29	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–149（148 aa）	Not recorded	CA CALCIUM ION × 5 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；50 mM sodium cacodylate, 50% MPD	Resolution 1.01 Å R-free 0.142

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CALM_PARTE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–148； UniProt 2–149

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5e1n
Deposition date deposition_date	2015-09-29
Structure title title	Selenomethionine Ca2+-Calmodulin from Paramecium tetraurelia qFit disorder model
Keywords keywords	calcium signaling, EF hand, calcium binding, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.39 Å
Radius of gyration Rg (electron density) rg_electron	23.12 Å
Forward intensity I(0) i0	1894990.00
Molecular weight molecular_weight	8923.0 kDa
Excluded volume excluded_volume	10702 Å³
Envelope volume envelope_volume	19488 Å³
Hydration-shell volume shell_volume	8198 Å³
Envelope diameter envelope_diameter	69.0 Å
Shell Rg shell_rg	25.97 Å
Envelope Rg envelope_rg	21.10 Å
Shape Rg shape_rg	23.21 Å
Total Rg total_rg	23.39 Å
Total atoms total_atoms	1150
Residues n_residues	81
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	69.6 Å
Rg (real space) rg_real	23.54 Å
Rg uncertainty (real space) rg_real_error	0.70 Å
I(0) (real space) i0_real	1.8950e+06
I(0) uncertainty (real space) i0_real_error	2.8940e+04
Rg (reciprocal space) rg_reciprocal	23.51 Å
I(0) (reciprocal space) i0_reciprocal	1895000.0000
Solution quality estimate total_estimate	0.7512
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	15.0 Å
Skewness Skewness skewness	0.116
Kurtosis Kurtosis kurtosis	-1.178
Angular range angular_range	— – 0.3400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	92090.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.482; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.348; Smooth: 0.969

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Calmodulin
Molecular weight formula_weight	17062.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6066

AEQLTEEQIAEFKEAFALFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLSLMARKMKEQDSEEELIEAFKVFDRDGNGLISAAELRHVMTNLGEKLTDDEVDEMIREADIDGDGHINYEEFVRMMVSK

来源 Source

来源生物 organism	Paramecium tetraurelia
NCBI Class编号 ncbi_taxonomy_id	5888
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	178

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d5e1na_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	25.036 Å
Unit-cell length b length_b	29.409 Å
Unit-cell length c length_c	52.793 Å
Unit-cell angle α angle_alpha	89.45 °
Unit-cell angle β angle_beta	86.29 °
Unit-cell angle γ angle_gamma	82.39 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.000 Å
Low-resolution limit resolution_low	24.760 Å
R factor r_factor	0.1350
R_work r_work	0.1340
R_free r_free	0.1500

fit	/app/data/saxs_computation/e1/5e1n/5e1n.fit
pddf	/app/data/pr_computation/e1/5e1n/5e1n.pr.out
profile	/app/data/saxs_computation/e1/5e1n/5e1n.dat

Selenomethionine Ca2+-Calmodulin from Paramecium tetraurelia qFit disorder model

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calmodulin

State in the Current Structure

Other States of the Same Protein in the Database

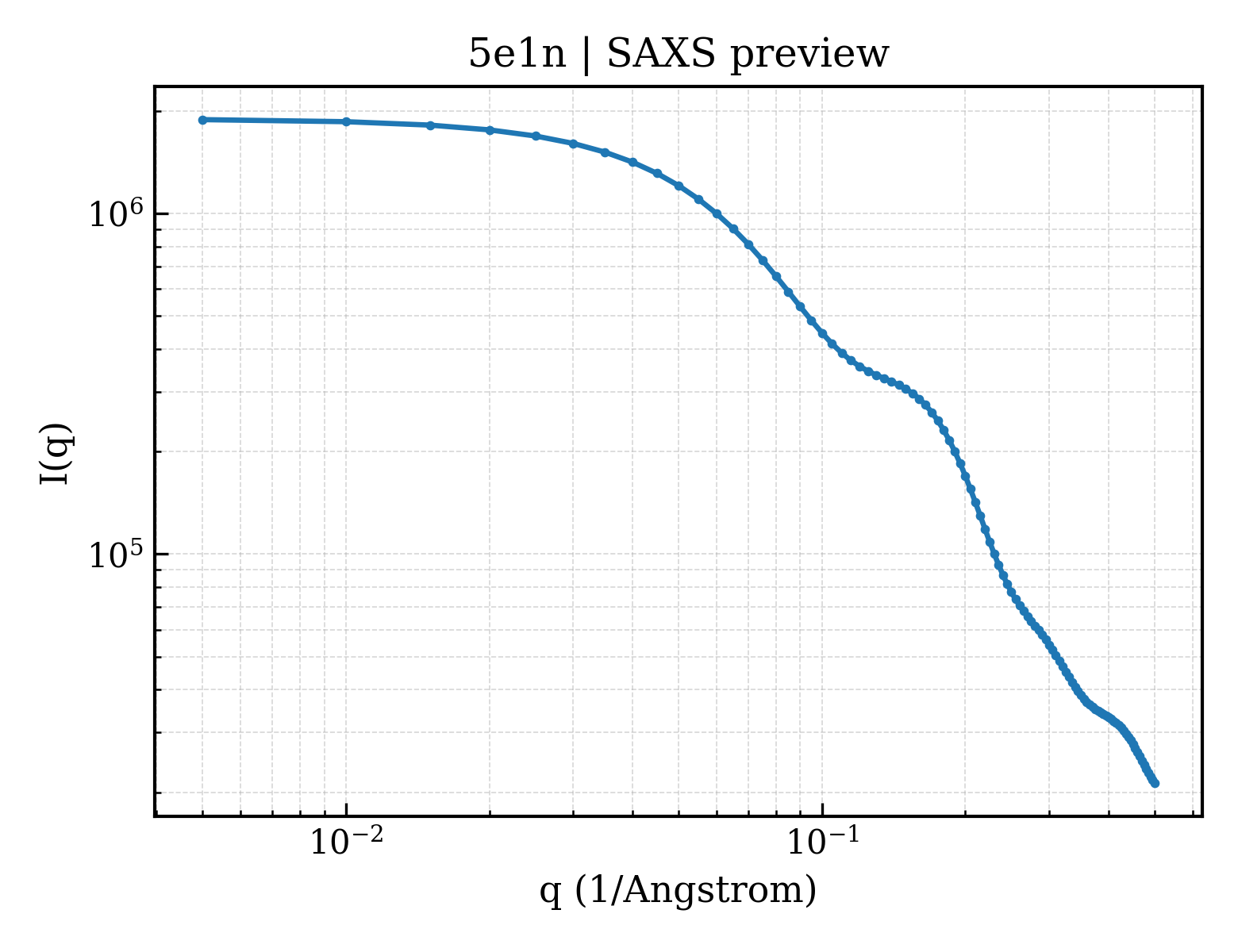

SAXS scattering curve SAXS Profile

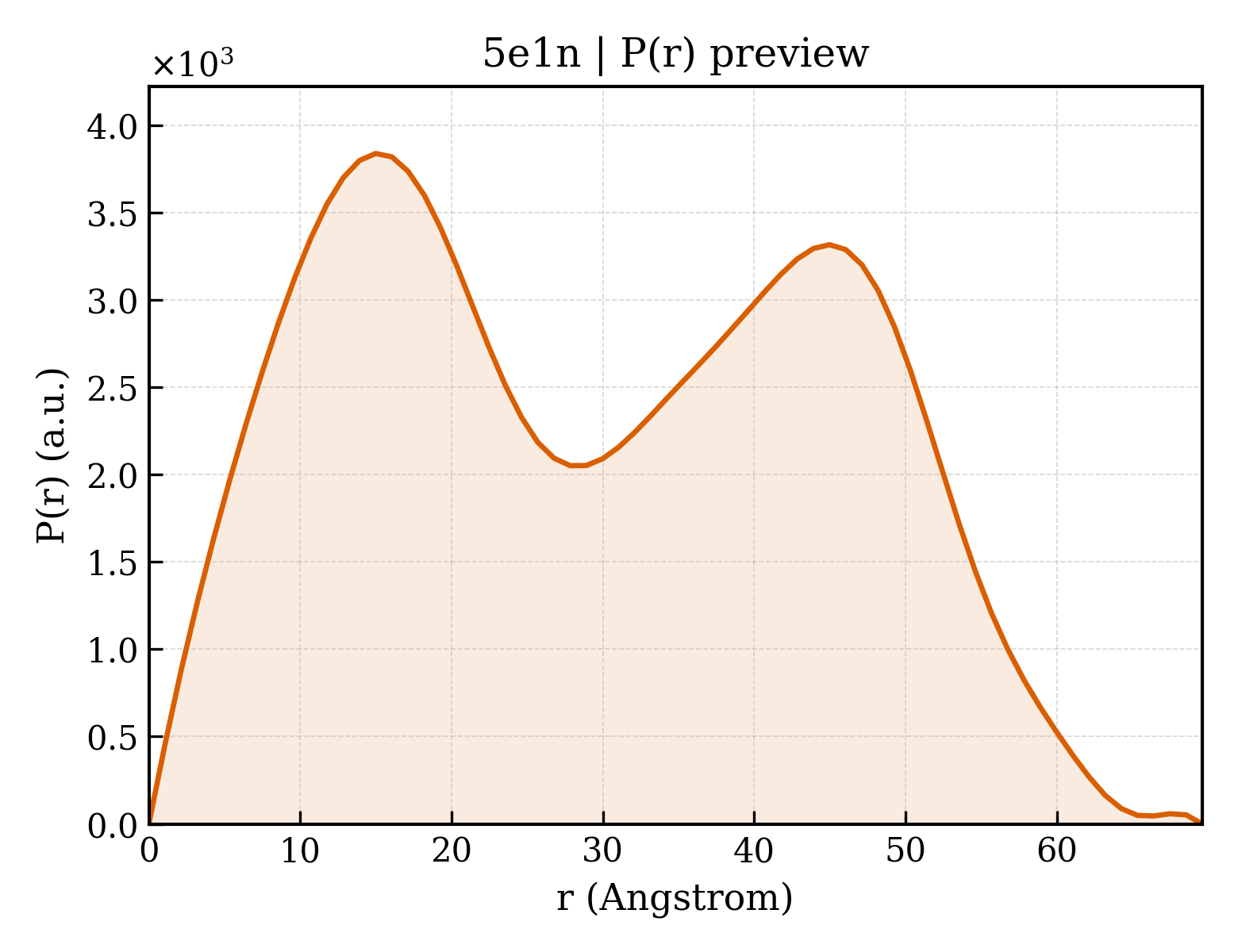

P(r) Distance Distribution P(r) Distribution
