SAXSdb — 5e8i

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Friend leukemia integration 1 transcription factor

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Homooligomer Protein × 2 DNA 4 PDB declaration: hexameric（6） Consistent with all polymer counts	Chain A； UniProt 276–399 Chain G； UniProt 276–399	Fragment：UNP residues 276-399	;DNA (5'-D(APCPCPGPGPAPAPGPTPG)-3') ; × 2 ;DNA (5'-D(CPAPCPTPTPCPCPGPGPT)-3') ; × 2 CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.1 M Na cacodylate pH 6.5, 0.2 M CaCl2, 14% w/v PEG 8000	Resolution 3.45 Å R-free 0.271
2	Protein–DNA Homooligomer Protein × 2 DNA 4 PDB declaration: hexameric（6） Consistent with all polymer counts	Chain D； UniProt 276–399 Chain J； UniProt 276–399	Fragment：UNP residues 276-399	;DNA (5'-D(APCPCPGPGPAPAPGPTPG)-3') ; × 2 ;DNA (5'-D(CPAPCPTPTPCPCPGPGPT)-3') ; × 2 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.1 M Na cacodylate pH 6.5, 0.2 M CaCl2, 14% w/v PEG 8000	Resolution 3.45 Å R-free 0.271

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5E8I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FLI DNA-BINDING DOMAIN OF FLI-1 Deposited 1994-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 276–373（98 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1X66 Solution structure of the SAM_PNT-domain of the human friend LEUKEMIAINTEGRATION 1 transcription factor Deposited 2005-05-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 114–198（85 aa） Fragment：SAM_PNT DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120 mM；Pressure ambient NMR sample composition 1.17mM SAM_PNT DOMAIN, 20mM TRIS-HCL, 100mM NaCl, 1mM d-DTT, 0.02% NaN3 \| 90% H2O/10% D2O	Resolution not provided
2YTU Solution structure of the SAM_PNT-domain of the human friend LEUKEMIAINTEGRATION 1 transcription factor Deposited 2007-04-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 100–220（121 aa） Fragment：SAM_PNT domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120 mM；Pressure AMBIENT NMR sample composition 0.24mM SAM_PNT DOMAIN, 20mM d-TRIS-HCL, 100mM NaCl, 1mM d-DTT, 0.02% NaN3, 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
5E8G Crystal structure of the DNA binding domain of human transcription factor FLI1 Deposited 2015-10-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 276–399（124 aa） Fragment：UNP residues 276-399 Chain C 276–399（124 aa） Fragment：UNP residues 276-399	Not recorded	CO COBALT (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；0.1 M sodium acetate pH 5.5, 0.1 M Co2+ sulfate heptahydrate, 24% PEG 4000	Resolution 2.70 Å R-free 0.248
5E8G Crystal structure of the DNA binding domain of human transcription factor FLI1 Deposited 2015-10-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 276–399（124 aa） Fragment：UNP residues 276-399 Chain D 276–399（124 aa） Fragment：UNP residues 276-399	Not recorded	CO COBALT (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；0.1 M sodium acetate pH 5.5, 0.1 M Co2+ sulfate heptahydrate, 24% PEG 4000	Resolution 2.70 Å R-free 0.248
5JVT Crystal structure of the DNA binding domain of transcription factor FLI1 in complex with an 11-mer DNA GACCGGAAGTG Deposited 2016-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 276–375（100 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；294 K；1.6 M ammonium sulphate, 0.1 M sodium acetate pH 4.6	Resolution 3.10 Å R-free 0.237
5JVT Crystal structure of the DNA binding domain of transcription factor FLI1 in complex with an 11-mer DNA GACCGGAAGTG Deposited 2016-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain D 276–375（100 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；294 K；1.6 M ammonium sulphate, 0.1 M sodium acetate pH 4.6	Resolution 3.10 Å R-free 0.237
5JVT Crystal structure of the DNA binding domain of transcription factor FLI1 in complex with an 11-mer DNA GACCGGAAGTG Deposited 2016-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain G 276–375（100 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；294 K；1.6 M ammonium sulphate, 0.1 M sodium acetate pH 4.6	Resolution 3.10 Å R-free 0.237
6VG2 Crystal structure of the DNA binding domain of human transcription factor FLI1 in complex with 16-mer DNA CAGAGGATGTGGCTTC Deposited 2020-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 276–375（100 aa） Fragment：DNA binding domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；1.6 M ammonium sulfate	Resolution 3.90 Å R-free 0.294
6VG2 Crystal structure of the DNA binding domain of human transcription factor FLI1 in complex with 16-mer DNA CAGAGGATGTGGCTTC Deposited 2020-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain D 276–375（100 aa） Fragment：DNA binding domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；1.6 M ammonium sulfate	Resolution 3.90 Å R-free 0.294
6VG8 Crystal structure of the DNA binding domains of human FLI1 and Runx2 in complex with 16-mer DNA CAGAGGATGTGGCTTC Deposited 2020-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 276–375（100 aa） Fragment：DNA binding domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；7% w/v PEG 4000, 50 mM Na Citrate, pH 5.6, 4% v/v isopropanol	Resolution 4.31 Å R-free 0.283
6VGD Crystal structure of the DNA binding domain (DBD) of human FLI1 and the complex of the DBD of human Runx2 with core binding factor beta (Cbfb), in complex with 16mer DNA CAGAGGATGTGGCTTC Deposited 2020-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain A 276–375（100 aa） Fragment：DNA binding domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；0.6 M K/Na Tartrate, 0.1 M Hepes, pH7.0	Resolution 4.20 Å R-free 0.293
9CP6 Crystal structure of the DNA binding domain of FLI1 (residues 259-371) Deposited 2024-07-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 259–371（113 aa）	Not recorded	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.1 M Hepes, pH 6.5, 1 M Na citrate	Resolution 1.66 Å R-free 0.235
9MWY Crystal structure of the DNA binding domain of FLI1 in complex with a DNA containing four contiguous GGAA sites Deposited 2025-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric	Chain A 259–399（141 aa） Fragment：DNA-binding domain (residues 259-399) Chain C 259–399（141 aa） Fragment：DNA-binding domain (residues 259-399) Chain D 259–399（141 aa） Fragment：DNA-binding domain (residues 259-399) Chain L 259–399（141 aa） Fragment：DNA-binding domain (residues 259-399)	Mutation：F362A Mutation：F362A Mutation：F362A Mutation：F362A	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.1 M Tris, pH 6.5, 0.7 M sodium acetate	Resolution 3.28 Å R-free 0.281
9MX8 Crystal structure of the DNA binding domain of FLI1 in complex with a DNA containing three contiguous GGAA sites Deposited 2025-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 3 PDB declaration: pentameric	Chain A 259–375（117 aa） Fragment：DNA-binding domain (residues 259-375) Chain C 259–375（117 aa） Fragment：DNA-binding domain (residues 259-375) Chain D 259–375（117 aa） Fragment：DNA-binding domain (residues 259-375)	Mutation：F362A Mutation：F362A Mutation：F362A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；0.1 M sodium cacodylate, pH 7.0, 1.6 M sodium acetate, added cryoprotectant: 34% sucrose	Resolution 3.15 Å R-free 0.278
9MX9 Crystal structure of the DNA binding domain of FLI1 (F362A) in complex with a DNA containing two contiguous GGAA sites Deposited 2025-01-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–399（141 aa） Fragment：DNA-binding domain (residues 259-399) Chain D 259–399（141 aa） Fragment：DNA-binding domain (residues 259-399)	Mutation：F362A Mutation：F362A	CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.2 M calcium acetate, 0.1 M sodium cacodylate, pH 6.5, 18% PEG8000	Resolution 2.55 Å R-free 0.250
9MXA Crystal structure of the DNA binding domain of FLI1 (wild-type) in complex with a DNA containing two contiguous GGAA sites Deposited 2025-01-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 259–399（141 aa） Fragment：DNA-binding domain (residues 259-399) Chain D 259–399（141 aa） Fragment：DNA-binding domain (residues 259-399)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；294 K；0.1 M Tris, pH 8.5, 2 M ammonium phosphate	Resolution 2.59 Å R-free 0.287

13 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FLI1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–128； UniProt 276–399 Author chain D； PDBConstruct 5–128； UniProt 276–399 Author chain G； PDBConstruct 5–128； UniProt 276–399 Author chain J； PDBConstruct 5–128； UniProt 276–399

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5e8i
Deposition date deposition_date	2015-10-14
Structure title title	Crystal structure of the DNA binding domain of human transcription factor FLI1 in complex with a 10-mer DNA ACCGGAAGTG
Keywords keywords	Transcription, DNA binding, Ewing sarcoma, Winged helix, ETS family, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.85 Å
Radius of gyration Rg (electron density) rg_electron	28.01 Å
Forward intensity I(0) i0	114511000.00
Molecular weight molecular_weight	68491.0 kDa
Excluded volume excluded_volume	78659 Å³
Envelope volume envelope_volume	105330 Å³
Hydration-shell volume shell_volume	31715 Å³
Envelope diameter envelope_diameter	100.3 Å
Shell Rg shell_rg	34.80 Å
Envelope Rg envelope_rg	27.46 Å
Shape Rg shape_rg	27.86 Å
Total Rg total_rg	28.90 Å
Total atoms total_atoms	4717
Residues n_residues	452
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

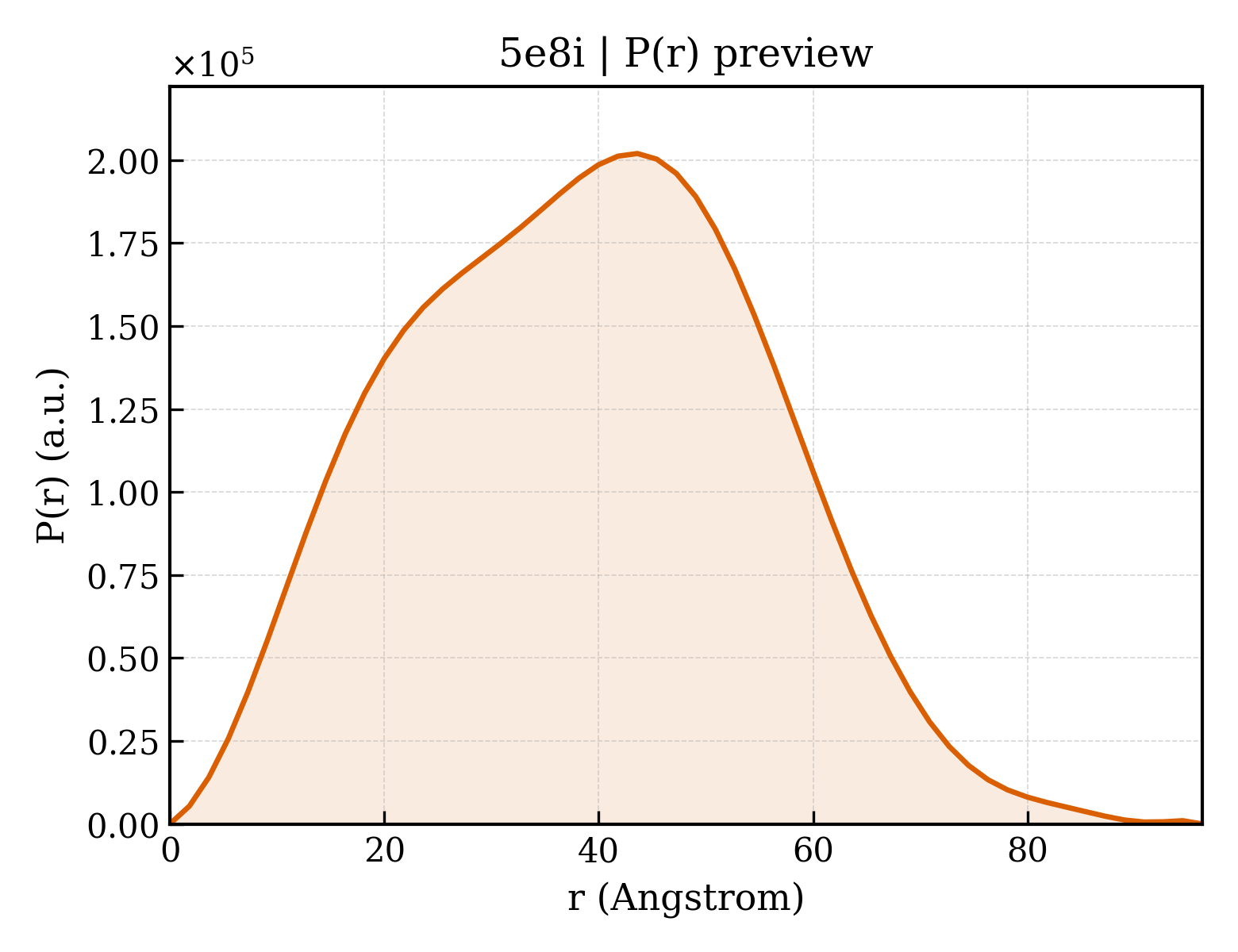

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.3 Å
Rg (real space) rg_real	29.73 Å
Rg uncertainty (real space) rg_real_error	0.78 Å
I(0) (real space) i0_real	1.1450e+08
I(0) uncertainty (real space) i0_real_error	1.9550e+06
Rg (reciprocal space) rg_reciprocal	29.78 Å
I(0) (reciprocal space) i0_reciprocal	114500000.0000
Solution quality estimate total_estimate	0.8963
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	43.6 Å
Skewness Skewness skewness	0.102
Kurtosis Kurtosis kurtosis	-0.534
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11230000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.890; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.980

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Friend leukemia integration 1 transcription factor
Molecular weight formula_weight	14946.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D,G,J
Atom count atom_count	4721

GPHMPGSGQIQLWQFLLELLSDSANASCITWEGTNGEFKMTDPDEVARRWGERKSKPNMNYDKLSRALRYYYDKNIMTKVHGKRYAYKFDFHGIAQALQPHPTESSMYKYPSDISYMPSYHAHQQKVN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(APCPCPGPGPAPAPGPTPG)-3') ;
Molecular weight formula_weight	3094.0 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B,E,H,K

ACCGGAAGTG

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(CPAPCPTPTPCPCPGPGPT)-3') ;
Molecular weight formula_weight	2996.0 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,F,I,L

CACTTCCGGT

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	4

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	5e8iA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	5e8iD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	5e8iG00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	5e8iJ00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	86.647 Å
Unit-cell length b length_b	86.647 Å
Unit-cell length c length_c	230.282 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.450 Å
Low-resolution limit resolution_low	35.000 Å
R factor r_factor	0.2248
R_work r_work	0.2225
R_free r_free	0.2714

fit	/app/data/saxs_computation/e8/5e8i/5e8i.fit
pddf	/app/data/pr_computation/e8/5e8i/5e8i.pr.out
profile	/app/data/saxs_computation/e8/5e8i/5e8i.dat
