5ecn

Crystal Structure of FIN219-FIP1 complex with JA, Leu and ATP

Method: X-RAY DIFFRACTION D_max: 207.0 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Jasmonic acid-amido synthetase JAR1

Arabidopsis thaliana

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–575	Not recorded	Glutathione S-transferase U20 × 2 （Q8L7C9） JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.72 Å R-free 0.188
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain D； UniProt 1–575	Not recorded	Glutathione S-transferase U20 × 2 （Q8L7C9） JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.72 Å R-free 0.188

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5ECN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4EPL Crystal Structure of Arabidopsis thaliana GH3.11 (JAR1) in Complex with JA-Ile Deposited 2012-04-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–575（575 aa）	Not recorded	JAI N-({(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetyl)-L-isoleucine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；1.5 M tartrate, 0.1 M MOPSO, 5 mM ATP, 5 mM MgCl2, 5mM jasmonic acid, 5 mM isoleucine, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.01 Å R-free 0.210
4EPL Crystal Structure of Arabidopsis thaliana GH3.11 (JAR1) in Complex with JA-Ile Deposited 2012-04-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–575（575 aa）	Not recorded	JAI N-({(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetyl)-L-isoleucine × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；1.5 M tartrate, 0.1 M MOPSO, 5 mM ATP, 5 mM MgCl2, 5mM jasmonic acid, 5 mM isoleucine, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.01 Å R-free 0.210
5ECH Crystal Structure of FIN219-FIP1 complex with JA and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 2.14 Å R-free 0.180
5ECH Crystal Structure of FIN219-FIP1 complex with JA and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 2.14 Å R-free 0.180
5ECI Crystal Structure of FIN219-FIP1 complex with JA, ATP and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.56 Å R-free 0.225
5ECI Crystal Structure of FIN219-FIP1 complex with JA, ATP and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.56 Å R-free 0.225
5ECK Crystal Structure of FIN219-FIP1 complex with JA, Ile and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa）	Not recorded	ILE ISOLEUCINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.54 Å R-free 0.175
5ECK Crystal Structure of FIN219-FIP1 complex with JA, Ile and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–575（575 aa）	Not recorded	ILE ISOLEUCINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.54 Å R-free 0.175
5ECL Crystal Structure of FIN219-FIP1 complex with JA, Ile and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ILE ISOLEUCINE × 1 MG MAGNESIUM ION × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.85 Å R-free 0.219
5ECL Crystal Structure of FIN219-FIP1 complex with JA, Ile and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ILE ISOLEUCINE × 1 MG MAGNESIUM ION × 3 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.85 Å R-free 0.219
5ECM Crystal Structure of FIN219-FIP1 complex with JA and Leu Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.60 Å R-free 0.245
5ECM Crystal Structure of FIN219-FIP1 complex with JA and Leu Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.60 Å R-free 0.245
5ECO Crystal Structure of FIN219-FIP1 complex with JA, Leu and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 MG MAGNESIUM ION × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.80 Å R-free 0.239
5ECO Crystal Structure of FIN219-FIP1 complex with JA, Leu and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.80 Å R-free 0.239
5ECP Crystal Structure of FIN219-FIP1 complex with JA, MET and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 MET METHIONINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 2.25 Å R-free 0.208
5ECP Crystal Structure of FIN219-FIP1 complex with JA, MET and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 MET METHIONINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 2.25 Å R-free 0.208
5ECQ Crystal Structure of FIN219-FIP1 complex with JA, VAL and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 VAL VALINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.66 Å R-free 0.234
5ECQ Crystal Structure of FIN219-FIP1 complex with JA, VAL and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 VAL VALINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.66 Å R-free 0.234
5ECR Crystal Structure of FIN219-FIP1 complex with JA, VAL and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 VAL VALINE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.72 Å R-free 0.281
5ECR Crystal Structure of FIN219-FIP1 complex with JA, VAL and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 VAL VALINE × 1 GSH Glutathione × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.72 Å R-free 0.281
5GZZ Crystal Structure of FIN219-SjGST complex with JA Deposited 2016-10-02	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；297 K；0.2 M Magnesium chloride hexahydrate, 0.1 M Tris-HCl, 40%(w/v) PEG 4000	Resolution 2.39 Å R-free 0.234

11 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	JAR1_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–575； UniProt 1–575 Author chain D； PDBConstruct 1–575； UniProt 1–575

Glutathione S-transferase U20

Arabidopsis thaliana

UniProt Q8L7C9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–217 Chain C； UniProt 1–217	Not recorded	Jasmonic acid-amido synthetase JAR1 × 1 （Q9SKE2） JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.72 Å R-free 0.188
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain E； UniProt 1–217 Chain F； UniProt 1–217	Not recorded	Jasmonic acid-amido synthetase JAR1 × 1 （Q9SKE2） JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.72 Å R-free 0.188

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 5ECN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5ECH Crystal Structure of FIN219-FIP1 complex with JA and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–217（217 aa） Chain C 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 2.14 Å R-free 0.180
5ECH Crystal Structure of FIN219-FIP1 complex with JA and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–217（217 aa） Chain F 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 2.14 Å R-free 0.180
5ECI Crystal Structure of FIN219-FIP1 complex with JA, ATP and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–217（217 aa） Chain C 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.56 Å R-free 0.225
5ECI Crystal Structure of FIN219-FIP1 complex with JA, ATP and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–217（217 aa） Chain F 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.56 Å R-free 0.225
5ECK Crystal Structure of FIN219-FIP1 complex with JA, Ile and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–217（217 aa） Chain C 1–217（217 aa）	Not recorded	ILE ISOLEUCINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.54 Å R-free 0.175
5ECK Crystal Structure of FIN219-FIP1 complex with JA, Ile and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–217（217 aa） Chain F 1–217（217 aa）	Not recorded	ILE ISOLEUCINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.54 Å R-free 0.175
5ECL Crystal Structure of FIN219-FIP1 complex with JA, Ile and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–217（217 aa） Chain C 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ILE ISOLEUCINE × 1 MG MAGNESIUM ION × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.85 Å R-free 0.219
5ECL Crystal Structure of FIN219-FIP1 complex with JA, Ile and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–217（217 aa） Chain F 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 ILE ISOLEUCINE × 1 MG MAGNESIUM ION × 3 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.85 Å R-free 0.219
5ECM Crystal Structure of FIN219-FIP1 complex with JA and Leu Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–217（217 aa） Chain C 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.60 Å R-free 0.245
5ECM Crystal Structure of FIN219-FIP1 complex with JA and Leu Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–217（217 aa） Chain F 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.60 Å R-free 0.245
5ECO Crystal Structure of FIN219-FIP1 complex with JA, Leu and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–217（217 aa） Chain C 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 MG MAGNESIUM ION × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.80 Å R-free 0.239
5ECO Crystal Structure of FIN219-FIP1 complex with JA, Leu and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–217（217 aa） Chain F 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 LEU LEUCINE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.80 Å R-free 0.239
5ECP Crystal Structure of FIN219-FIP1 complex with JA, MET and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–217（217 aa） Chain C 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 MET METHIONINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 2.25 Å R-free 0.208
5ECP Crystal Structure of FIN219-FIP1 complex with JA, MET and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–217（217 aa） Chain F 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 MET METHIONINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 2.25 Å R-free 0.208
5ECQ Crystal Structure of FIN219-FIP1 complex with JA, VAL and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–217（217 aa） Chain C 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 VAL VALINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.66 Å R-free 0.234
5ECQ Crystal Structure of FIN219-FIP1 complex with JA, VAL and ATP Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–217（217 aa） Chain F 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 VAL VALINE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.66 Å R-free 0.234
5ECR Crystal Structure of FIN219-FIP1 complex with JA, VAL and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–217（217 aa） Chain C 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 VAL VALINE × 1 GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.72 Å R-free 0.281
5ECR Crystal Structure of FIN219-FIP1 complex with JA, VAL and Mg Deposited 2015-10-20	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–217（217 aa） Chain F 1–217（217 aa）	Not recorded	JAA {(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid × 1 VAL VALINE × 1 GSH Glutathione × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.72 Å R-free 0.281
5ECS Crystal Structure of FIP1 with GSH Deposited 2015-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–217（217 aa）	Not recorded	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.65 Å R-free 0.188
5ECS Crystal Structure of FIP1 with GSH Deposited 2015-10-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–217（217 aa）	Not recorded	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；297 K；0.2 M sodium acetate trihydrate, 0.1 M Tris-HCl, 30%(w/v) PEG 3000	Resolution 1.65 Å R-free 0.188

10 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GSTUK_ARATH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 7–223； UniProt 1–217 Author chain C； PDBConstruct 7–223； UniProt 1–217 Author chain E； PDBConstruct 7–223； UniProt 1–217 Author chain F； PDBConstruct 7–223； UniProt 1–217

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

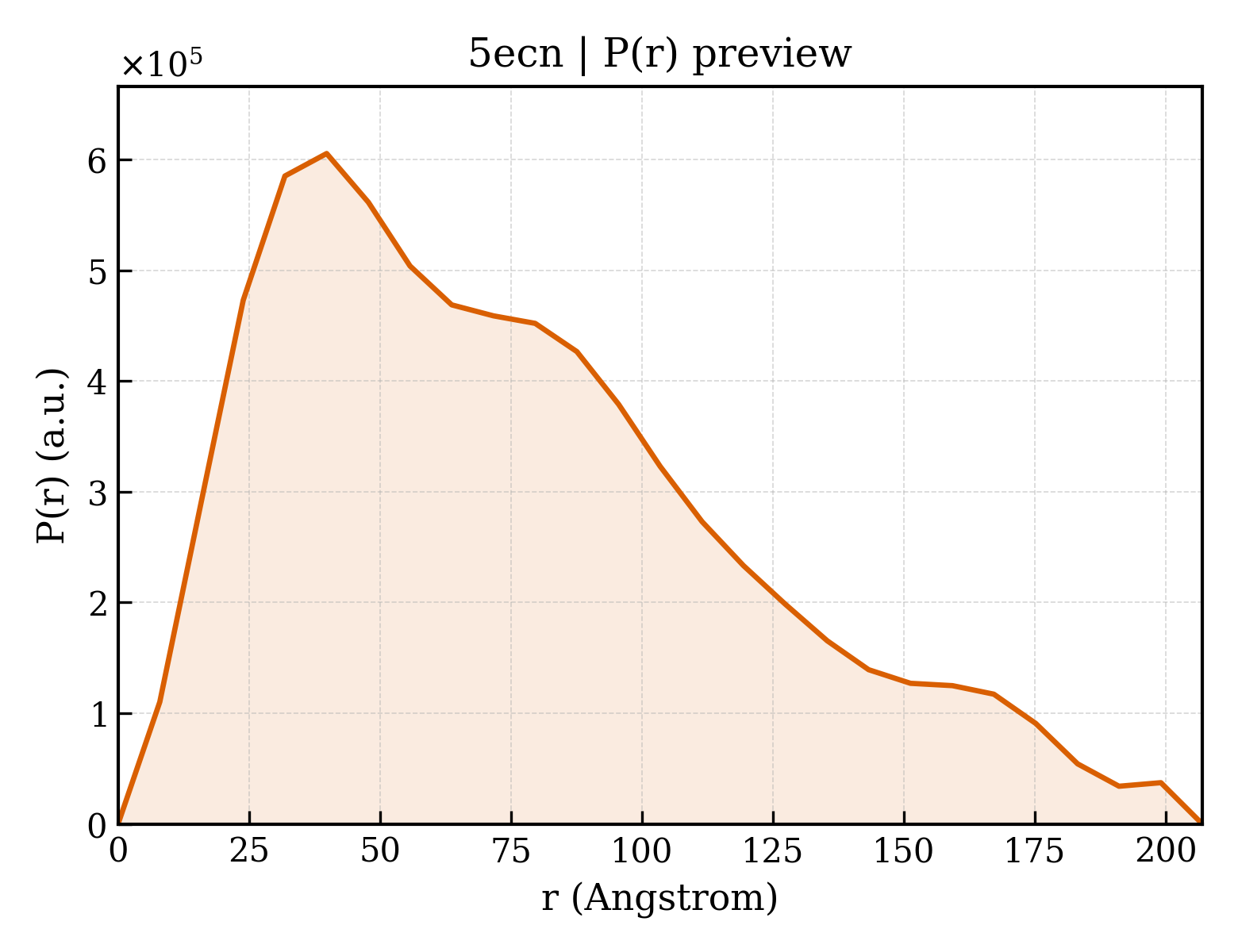

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5ecn
Deposition date deposition_date	2015-10-20
Structure title title	Crystal Structure of FIN219-FIP1 complex with JA, Leu and ATP
Keywords keywords	Jasmonate-amido synthetase, Glutathione S-transferase, Ligase-Transferase complex; LIGASE/TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	60.07 Å
Radius of gyration Rg (electron density) rg_electron	61.77 Å
Forward intensity I(0) i0	724019000.00
Molecular weight molecular_weight	228790.0 kDa
Excluded volume excluded_volume	288000 Å³
Envelope volume envelope_volume	407810 Å³
Hydration-shell volume shell_volume	63639 Å³
Envelope diameter envelope_diameter	224.5 Å
Shell Rg shell_rg	49.60 Å
Envelope Rg envelope_rg	62.12 Å
Shape Rg shape_rg	61.77 Å
Total Rg total_rg	61.38 Å
Total atoms total_atoms	16140
Residues n_residues	1994
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	207.0 Å
Rg (real space) rg_real	61.42 Å
Rg uncertainty (real space) rg_real_error	2.56 Å
I(0) (real space) i0_real	7.2400e+08
I(0) uncertainty (real space) i0_real_error	1.5940e+07
Rg (reciprocal space) rg_reciprocal	58.91 Å
I(0) (reciprocal space) i0_reciprocal	721100000.0000
Solution quality estimate total_estimate	0.6961
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	39.8 Å
Skewness Skewness skewness	0.688
Kurtosis Kurtosis kurtosis	-0.216
Angular range angular_range	— – 0.1300 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	28730000.0000
Real-space data points n_real_points	27
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.451; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.602; Smooth: 0.091

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Jasmonic acid-amido synthetase JAR1
Molecular weight formula_weight	64416.2 kDa
EC 编号 ec_number	6.3.2.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	18400

MLEKVETFDMNRVIDEFDEMTRNAHQVQKQTLKEILLKNQSAIYLQNCGLNGNATDPEEAFKSMVPLVTDVELEPYIKRMVDGDTSPILTGHPVPAISLSSGTSQGRPKFIPFTDELMENTLQLFRTAFAFRNRDFPIDDNGKALQFIFSSKQYISTGGVPVGTATTNVYRNPNFKAGMKSITSPSCSPDEVIFSPDVHQALYCHLLSGILFRDQVQYVFAVFAHGLVHAFRTFEQVWEEIVTDIKDGVLSNRITVPSVRTAMSKLLTPNPELAETIRTKCMSLSNWYGLIPALFPNAKYVYGIMTGSMEPYVPKLRHYAGDLPLVSHDYGSSEGWIAANVTPRLSPEEATFAVIPNLGYFEFLPVSETGEGEEKPVGLTQVKIGEEYEVVITNYAGLYRYRLGDVVKVIGFYNNTPQLKFICRRNLILSINIDKNTERDLQLSVESAAKRLSEEKIEVIDFSSYIDVSTDPGHYAIFWEISGETNEDVLQDCCNCLDRAFIDAGYVSSRKCKTIGALELRVVAKGTFRKIQEHFLGLGSSAGQFKMPRCVKPSNAKVLQILCENVVSSYFSTAF

来源 Source

来源生物 organism	Arabidopsis thaliana
通用名 common_name	Mouse-ear cress
NCBI Class编号 ncbi_taxonomy_id	3702
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Glutathione S-transferase U20
Molecular weight formula_weight	25867.3 kDa
EC 编号 ec_number	2.5.1.18
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C,E,F

HHHHHHMANLPILLDYWPSMFGMRARVALREKGVEFEYREEDFSNKSPLLLQSNPIHKKIPVLVHNGKPVCESLNVVQYVDEAWPEKNPFFPSDPYGRAQARFWADFVDKKFTDAQFKVWGKKGEEQEAGKKEFIEAVKILESELGDKPYFGGDSFGYVDISLITFSSWFQAYEKFGNFSIESESPKLIAWAKRCMEKESVSKSLPDSEKIVAYAAEYRKNNL

来源 Source

来源生物 organism	Arabidopsis thaliana
通用名 common_name	Mouse-ear cress
NCBI Class编号 ncbi_taxonomy_id	3702
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	{(1R,2R)-3-oxo-2-[(2Z)-pent-2-en-1-yl]cyclopentyl}acetic acid
Molecular weight formula_weight	210.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	LEUCINE
Molecular weight formula_weight	131.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	GLUTATHIONE
Molecular weight formula_weight	307.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2260

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d5ecnb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d5ecnb2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.0 — automated matches

Domain ID domain_id	d5ecnc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d5ecnc2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.0 — automated matches

Domain ID domain_id	d5ecne1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d5ecne2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.0 — automated matches

Domain ID domain_id	d5ecnf1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d5ecnf2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.0 — automated matches

CATH v4.4 (8 domains)

Domain ID domain_id	5ecnB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	5ecnB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5ecnC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	5ecnC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5ecnE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	5ecnE02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	5ecnF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	5ecnF02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (2)

▶

Unit-cell length a length_a	53.833 Å
Unit-cell length b length_b	53.877 Å
Unit-cell length c length_c	196.790 Å
Unit-cell angle α angle_alpha	92.27 °
Unit-cell angle β angle_beta	97.16 °
Unit-cell angle γ angle_gamma	113.60 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.720 Å
Low-resolution limit resolution_low	24.189 Å
R factor r_factor	0.1707
R_work r_work	0.1688
R_free r_free	0.1879

fit	/app/data/saxs_computation/ec/5ecn/5ecn.fit
pddf	/app/data/pr_computation/ec/5ecn/5ecn.pr.out
profile	/app/data/saxs_computation/ec/5ecn/5ecn.dat

Crystal Structure of FIN219-FIP1 complex with JA, Leu and ATP

1. Protein Identity and Related Structures Protein Identity & Related Structures

Jasmonic acid-amido synthetase JAR1

State in the Current Structure

Other States of the Same Protein in the Database

Glutathione S-transferase U20

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 water

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)
