SAXSdb — 5f0k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Vacuolar protein sorting-associated protein 35

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 14–470	Fragment：Residues 14-470	EDO 1,2-ETHANEDIOL × 5 GOL GLYCEROL × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；1.7 M AmSO4, 2% PEG 1000, 0.1 M Hepes pH 7.6	Resolution 3.07 Å R-free 0.255
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 14–470	Fragment：Residues 14-470	EDO 1,2-ETHANEDIOL × 2 GOL GLYCEROL × 3 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；1.7 M AmSO4, 2% PEG 1000, 0.1 M Hepes pH 7.6	Resolution 3.07 Å R-free 0.255
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 14–470	Fragment：Residues 14-470	EDO 1,2-ETHANEDIOL × 2 GOL GLYCEROL × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；1.7 M AmSO4, 2% PEG 1000, 0.1 M Hepes pH 7.6	Resolution 3.07 Å R-free 0.255
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 14–470	Fragment：Residues 14-470	EDO 1,2-ETHANEDIOL × 3 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；1.7 M AmSO4, 2% PEG 1000, 0.1 M Hepes pH 7.6	Resolution 3.07 Å R-free 0.255
5	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain E； UniProt 14–470	Fragment：Residues 14-470	EDO 1,2-ETHANEDIOL × 2 GOL GLYCEROL × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.6；291 K；1.7 M AmSO4, 2% PEG 1000, 0.1 M Hepes pH 7.6	Resolution 3.07 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5F0K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2R17 Functional architecture of the retromer cargo-recognition complex Deposited 2007-08-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 483–780（298 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions hanging drop；pH 8；291 K；20% PEG 3350, 1M NaCl,50mM Tris, pH 8.0, hanging drop, temperature 291K	Resolution 2.80 Å R-free 0.268
2R17 Functional architecture of the retromer cargo-recognition complex Deposited 2007-08-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 483–780（298 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions hanging drop；pH 8；291 K；20% PEG 3350, 1M NaCl,50mM Tris, pH 8.0, hanging drop, temperature 291K	Resolution 2.80 Å R-free 0.268
5F0J Structure of retromer VPS26-VPS35 subunits bound to SNX3 Deposited 2015-11-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 14–470（457 aa） Fragment：Residues 14-470	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 5 EDO 1,2-ETHANEDIOL × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；0.9 M AmSO4, 0.1 M MES pH 6.0	Resolution 2.70 Å R-free 0.246
5F0L Structure of retromer VPS26-VPS35 subunits bound to SNX3 and DMT1 Deposited 2015-11-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 14–470（457 aa） Fragment：Residues 14-470	Not recorded	SO4 SULFATE ION × 10 GOL GLYCEROL × 6 EDO 1,2-ETHANEDIOL × 18	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；0.75 M AmSO4, 0.1 M MES pH 6.0, 15% Glycerol	Resolution 3.20 Å R-free 0.259
5F0M Structure of retromer VPS26-VPS35 subunits bound to SNX3 and DMT1 (SeMet labeled) Deposited 2015-11-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 14–470（457 aa） Fragment：Residues 14-470	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 5 EDO 1,2-ETHANEDIOL × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；0.8 M AmSO4, 0.1 M MES pH 6.0, 5% Glycerol	Resolution 3.10 Å R-free 0.254
5F0P Structure of retromer VPS26-VPS35 subunits bound to SNX3 and DMT1(L557M) (SeMet labeled) Deposited 2015-11-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 14–470（457 aa） Fragment：Residues 14-470	Not recorded	SO4 SULFATE ION × 6 GOL GLYCEROL × 4 EDO 1,2-ETHANEDIOL × 20 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；0.8 M AmSO4, 0.1 M MES pH 6.0, 10% Glycerol	Resolution 2.78 Å R-free 0.261
5OSH Structure of retromer VPS29-VPS35C subunits complexed with RidL N-terminal domain (1-236) Deposited 2017-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 482–780（299 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.1 M sodium chloride 0.1 M Tris pH 8.0 4-8% PEG6000.	Resolution 4.30 Å R-free 0.311
5OSH Structure of retromer VPS29-VPS35C subunits complexed with RidL N-terminal domain (1-236) Deposited 2017-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 482–780（299 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.1 M sodium chloride 0.1 M Tris pH 8.0 4-8% PEG6000.	Resolution 4.30 Å R-free 0.311
5OSH Structure of retromer VPS29-VPS35C subunits complexed with RidL N-terminal domain (1-236) Deposited 2017-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 482–780（299 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.1 M sodium chloride 0.1 M Tris pH 8.0 4-8% PEG6000.	Resolution 4.30 Å R-free 0.311
5OSH Structure of retromer VPS29-VPS35C subunits complexed with RidL N-terminal domain (1-236) Deposited 2017-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 482–780（299 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.1 M sodium chloride 0.1 M Tris pH 8.0 4-8% PEG6000.	Resolution 4.30 Å R-free 0.311
5OSI Structure of retromer VPS29-VPS35C subunits complexed with RidL harpin loop (163-176) Deposited 2017-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 471–781（311 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M NaCl, 20% PEG3350 0.1 M Tris pH 8.5	Resolution 2.52 Å R-free 0.267
5OSI Structure of retromer VPS29-VPS35C subunits complexed with RidL harpin loop (163-176) Deposited 2017-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 471–781（311 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M NaCl, 20% PEG3350 0.1 M Tris pH 8.5	Resolution 2.52 Å R-free 0.267
5OSI Structure of retromer VPS29-VPS35C subunits complexed with RidL harpin loop (163-176) Deposited 2017-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 471–781（311 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M NaCl, 20% PEG3350 0.1 M Tris pH 8.5	Resolution 2.52 Å R-free 0.267
5OSI Structure of retromer VPS29-VPS35C subunits complexed with RidL harpin loop (163-176) Deposited 2017-08-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 471–781（311 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 5 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M NaCl, 20% PEG3350 0.1 M Tris pH 8.5	Resolution 2.52 Å R-free 0.267
7BLN VPS35/VPS29 arch of metazoan membrane-assembled retromer:SNX3 complex modelled with human proteins Deposited 2021-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–796（796 aa） Chain C 1–796（796 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.90 Å
7BLO VPS26 dimer region of metazoan membrane-assembled retromer:SNX3 complex modelled with human proteins Deposited 2021-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 12–363（352 aa） Chain C 12–363（352 aa）	Not recorded	PIB 2-(BUTANOYLOXY)-1-{[(HYDROXY{[2,3,4,6-TETRAHYDROXY-5-(PHOSPHONOOXY)CYCLOHEXYL]OXY}PHOSPHORYL)OXY]METHYL}ETHYL BUTANOATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.50 Å
8R02 Crystal structure of the retromer complex VPS29/VPS35 with the ligand bis-1,3-phenyl guanylhydrazone, 2a Deposited 2023-10-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 476–780（305 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；20% PEG 3350, 150 mM NaK tartrate, 100 mM NaCl, pH 7.4	Resolution 2.50 Å R-free 0.264
8R02 Crystal structure of the retromer complex VPS29/VPS35 with the ligand bis-1,3-phenyl guanylhydrazone, 2a Deposited 2023-10-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 476–780（305 aa）	Not recorded	XFZ Bis-1,3-phenyl guanylhydrazon × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；20% PEG 3350, 150 mM NaK tartrate, 100 mM NaCl, pH 7.4	Resolution 2.50 Å R-free 0.264
8R0J Crystal structure of the retromer complex VPS29/VPS35 with the ligand bis-1,3-phenyl guanylhydrazone, 2a Deposited 2023-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 476–780（305 aa）	Not recorded	XFZ Bis-1,3-phenyl guanylhydrazon × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；18% PEG 3350, 150 mM NaK tartrate, pH 7.4;	Resolution 2.40 Å R-free 0.250
8R0J Crystal structure of the retromer complex VPS29/VPS35 with the ligand bis-1,3-phenyl guanylhydrazone, 2a Deposited 2023-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 476–780（305 aa）	Not recorded	TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；18% PEG 3350, 150 mM NaK tartrate, pH 7.4;	Resolution 2.40 Å R-free 0.250
8RKS Structure of VPS29-VPS35 bound to the LFa motif R21 of Fam21. Deposited 2023-12-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 471–781（311 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M NaCl, 20% PEG3350 0.1 M Tris pH 8.5	Resolution 3.10 Å R-free 0.288
8RKS Structure of VPS29-VPS35 bound to the LFa motif R21 of Fam21. Deposited 2023-12-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 471–781（311 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M NaCl, 20% PEG3350 0.1 M Tris pH 8.5	Resolution 3.10 Å R-free 0.288
8RKS Structure of VPS29-VPS35 bound to the LFa motif R21 of Fam21. Deposited 2023-12-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 471–781（311 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M NaCl, 20% PEG3350 0.1 M Tris pH 8.5	Resolution 3.10 Å R-free 0.288
8RKS Structure of VPS29-VPS35 bound to the LFa motif R21 of Fam21. Deposited 2023-12-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 471–781（311 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M NaCl, 20% PEG3350 0.1 M Tris pH 8.5	Resolution 3.10 Å R-free 0.288

12 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VPS35_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–462； UniProt 14–470 Author chain B； PDBConstruct 6–462； UniProt 14–470 Author chain C； PDBConstruct 6–462； UniProt 14–470 Author chain D； PDBConstruct 6–462； UniProt 14–470 Author chain E； PDBConstruct 6–462； UniProt 14–470

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5f0k
Deposition date deposition_date	2015-11-27
Structure title title	Structure of VPS35 N terminal region
Keywords keywords	protein transport, retromer, sorting nexin; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	43.71 Å
Radius of gyration Rg (electron density) rg_electron	42.88 Å
Forward intensity I(0) i0	881620000.00
Molecular weight molecular_weight	250960.0 kDa
Excluded volume excluded_volume	317120 Å³
Envelope volume envelope_volume	471410 Å³
Hydration-shell volume shell_volume	87426 Å³
Envelope diameter envelope_diameter	134.8 Å
Shell Rg shell_rg	52.43 Å
Envelope Rg envelope_rg	41.04 Å
Shape Rg shape_rg	42.90 Å
Total Rg total_rg	43.29 Å
Total atoms total_atoms	35584
Residues n_residues	2158
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

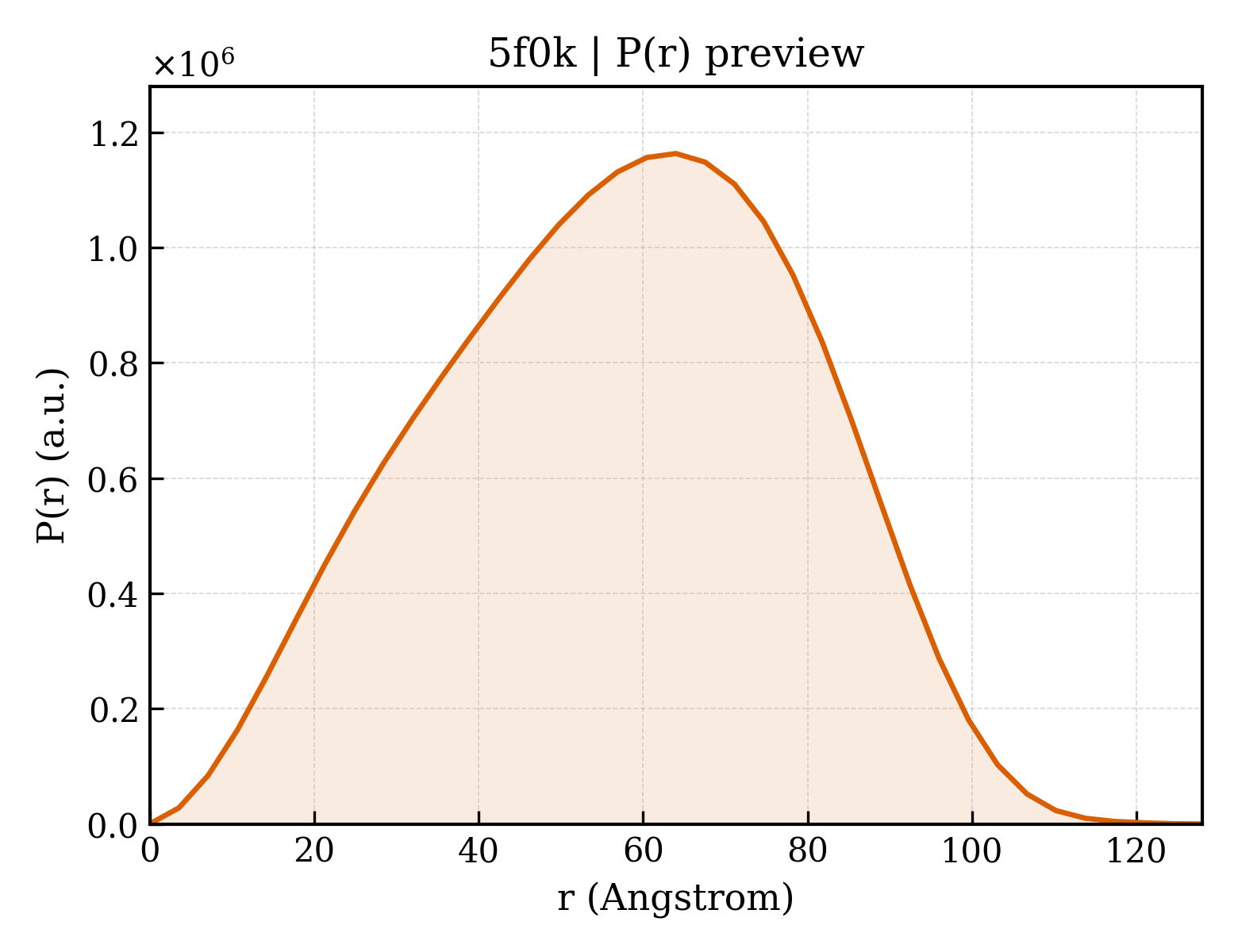

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	128.0 Å
Rg (real space) rg_real	43.33 Å
Rg uncertainty (real space) rg_real_error	0.56 Å
I(0) (real space) i0_real	8.8160e+08
I(0) uncertainty (real space) i0_real_error	1.5040e+07
Rg (reciprocal space) rg_reciprocal	43.70 Å
I(0) (reciprocal space) i0_reciprocal	882000000.0000
Solution quality estimate total_estimate	0.8975
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	64.0 Å
Skewness Skewness skewness	-0.110
Kurtosis Kurtosis kurtosis	-0.652
Angular range angular_range	— – 0.1800 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	113100000.0000
Real-space data points n_real_points	37
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.926; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.927

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Vacuolar protein sorting-associated protein 35
Molecular weight formula_weight	53288.3 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	35602

GAMGSKLLDEAIQAVKVQSFQMKRCLDKNKLMDALKHASNMLGELRTSMLSPKSYYELYMAISDELHYLEVYLTDEFAKGRKVADLYELVQYAGNIIPRLYLLITVGVVYVKSFPQSRKDILKDLVEMCRGVQHPLRGLFLRNYLLQCTRNILPDEGEPTDEETTGDISDSMDFVLLNFAEMNKLWVRMQHQGHSRDREKRERERQELRILVGTNLVRLSQLEGVNVERYKQIVLTGILEQVVNCRDALAQEYLMECIIQVFPDEFHLQTLNPFLRACAELHQNVNVKNIIIALIDRLALFAHREDGPGIPADIKLFDIFSQQVATVIQSRQDMPSEDVVSLQVSLINLAMKCYPDRVDYVDKVLETTVEIFNKLNLEHIATSSAVSKELTRLLKIPVDTYNNILTVLKLKHFHPLFEYFDYESRKSMSCYVLSNVLDYNTEIVSQDQVDSIMNLVSTLIQD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	18

▶

8. Citations (1)

▶

Unit-cell length a length_a	200.700 Å
Unit-cell length b length_b	108.600 Å
Unit-cell length c length_c	167.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	125.50 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	20

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.074 Å
Low-resolution limit resolution_low	47.914 Å
R factor r_factor	0.2084
R_work r_work	0.2058
R_free r_free	0.2553

fit	/app/data/saxs_computation/f0/5f0k/5f0k.fit
pddf	/app/data/pr_computation/f0/5f0k/5f0k.pr.out
profile	/app/data/saxs_computation/f0/5f0k/5f0k.dat
