SAXSdb — 5fwc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SPECTRIN ALPHA CHAIN, NON-ERYTHROCYTIC 1

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 965–1022	Fragment：SH3, RESIDUES 965-1022 Mutation：YES	EDO 1,2-ETHANEDIOL × 2 NH4 AMMONIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 1.40 Å R-free 0.238

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5FWC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2FOT Crystal structure of the complex between calmodulin and alphaII-spectrin Deposited 2006-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1172–1211（40 aa） Fragment：Calmodulin binding domain	Mutation：L1211R	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；50mM Tris,pH 8.00, 30% PEG 8000, 0.1M ammonium-sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.45 Å R-free 0.269
3F31 Crystal Structure of the N-terminal region of AlphaII-spectrin Tetramerization Domain Deposited 2008-10-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–147（147 aa） Chain B 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；PEG8000:PEG1000 (1:2), 4% 1,4-butane-diol, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.280
3F31 Crystal Structure of the N-terminal region of AlphaII-spectrin Tetramerization Domain Deposited 2008-10-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；PEG8000:PEG1000 (1:2), 4% 1,4-butane-diol, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.280
3F31 Crystal Structure of the N-terminal region of AlphaII-spectrin Tetramerization Domain Deposited 2008-10-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–147（147 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；293 K；PEG8000:PEG1000 (1:2), 4% 1,4-butane-diol, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.280
3FB2 Crystal structure of the human brain alpha spectrin repeats 15 and 16. Northeast Structural Genomics Consortium target HR5563a. Deposited 2008-11-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1337–1544（208 aa） Fragment：Repeats 15 and 16	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions microbatch crystallization under oil；pH 5；277 K；12% PEG 20000, 0.1M magnesium sulfate, 0.1M sodium acetate, pH 5.0, microbatch crystallization under oil, temperature 277K	Resolution 2.30 Å R-free 0.248
3FB2 Crystal structure of the human brain alpha spectrin repeats 15 and 16. Northeast Structural Genomics Consortium target HR5563a. Deposited 2008-11-18	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1337–1544（208 aa） Fragment：Repeats 15 and 16	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions microbatch crystallization under oil；pH 5；277 K；12% PEG 20000, 0.1M magnesium sulfate, 0.1M sodium acetate, pH 5.0, microbatch crystallization under oil, temperature 277K	Resolution 2.30 Å R-free 0.248
5FW9 Human Spectrin SH3 domain D48G, E7Y, K60Y Deposited 2016-02-12	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 965–1025（61 aa） Fragment：SH3 DOMAIN, RESIDUES 965-1025	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.55 Å R-free 0.249
5FWB Human Spectrin SH3 domain D48G, E7F, K60F Deposited 2016-02-12	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 965–1022（58 aa） Fragment：SH3, UNP RESIDUES 965-1025	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.50 Å R-free 0.236
6ZEH Structure of PP1-spectrin alpha II chimera [PP1(7-304) + linker (G/S)x9 + spectrin alpha II (1025-1039)] bound to Phactr1 (516-580) Deposited 2020-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1025–1039（15 aa）	Mutation：N-terminal Vector derived sequence GHMGS	MN MANGANESE (II) ION × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% (w/v) polyethylene glycol 3350, 0.2 M NaI and 0.1 M BIS-Tris propane pH 8.5	Resolution 1.30 Å R-free 0.169
6ZEH Structure of PP1-spectrin alpha II chimera [PP1(7-304) + linker (G/S)x9 + spectrin alpha II (1025-1039)] bound to Phactr1 (516-580) Deposited 2020-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1025–1039（15 aa）	Mutation：N-terminal Vector derived sequence GHMGS	MN MANGANESE (II) ION × 2 PO4 PHOSPHATE ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；20% (w/v) polyethylene glycol 3350, 0.2 M NaI and 0.1 M BIS-Tris propane pH 8.5	Resolution 1.30 Å R-free 0.169

6 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPTN1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–59； UniProt 965–1022

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5fwc
Deposition date deposition_date	2016-02-12
Structure title title	Human Spectrin SH3 domain D48G, E7A, K60A
Keywords keywords	STRUCTURAL PROTEIN, SPECTRIN SH3; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

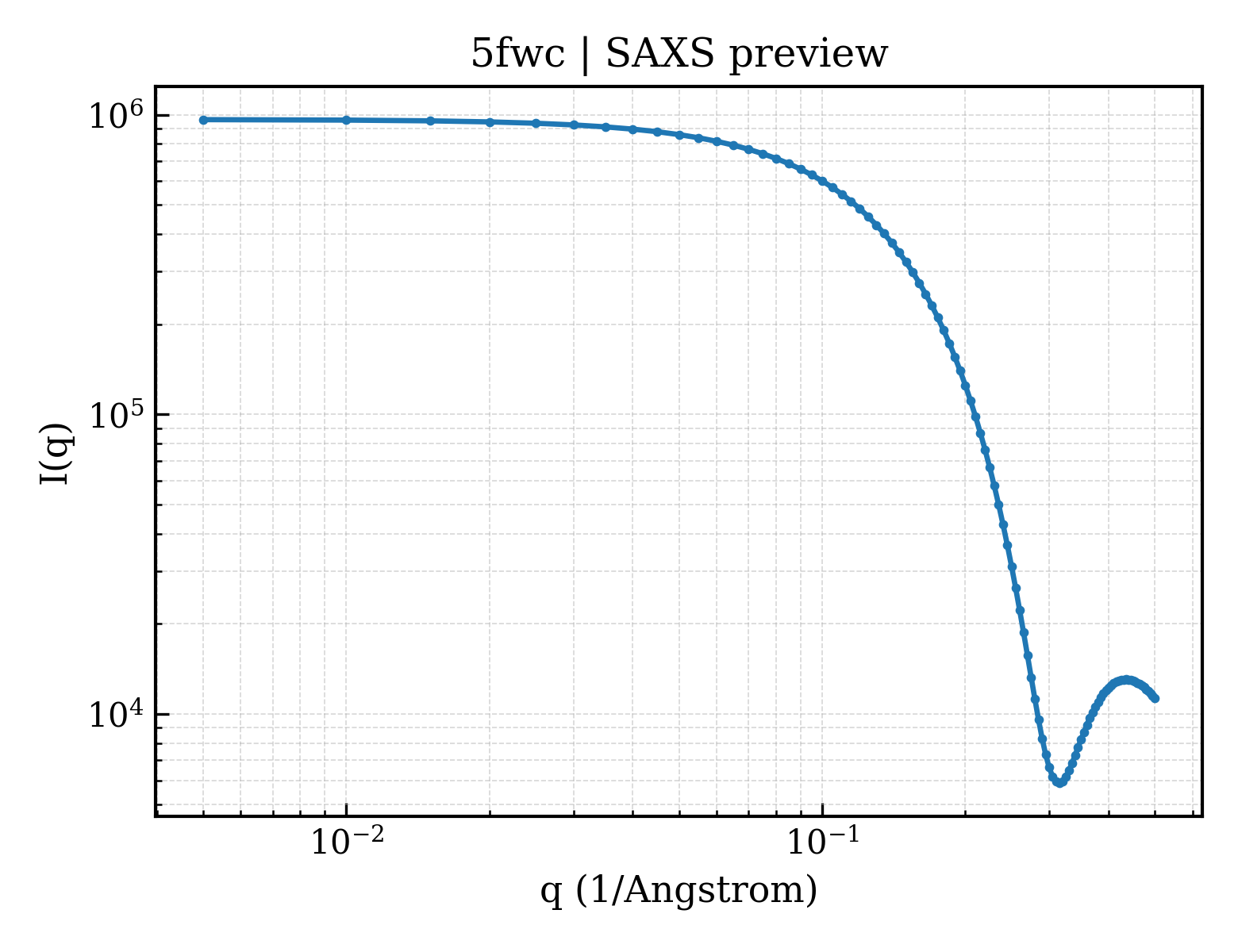

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	11.85 Å
Radius of gyration Rg (electron density) rg_electron	10.30 Å
Forward intensity I(0) i0	964619.00
Molecular weight molecular_weight	6639.0 kDa
Excluded volume excluded_volume	8478 Å³
Envelope volume envelope_volume	9251 Å³
Hydration-shell volume shell_volume	7772 Å³
Envelope diameter envelope_diameter	33.8 Å
Shell Rg shell_rg	15.79 Å
Envelope Rg envelope_rg	10.73 Å
Shape Rg shape_rg	10.25 Å
Total Rg total_rg	12.10 Å
Total atoms total_atoms	468
Residues n_residues	57
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

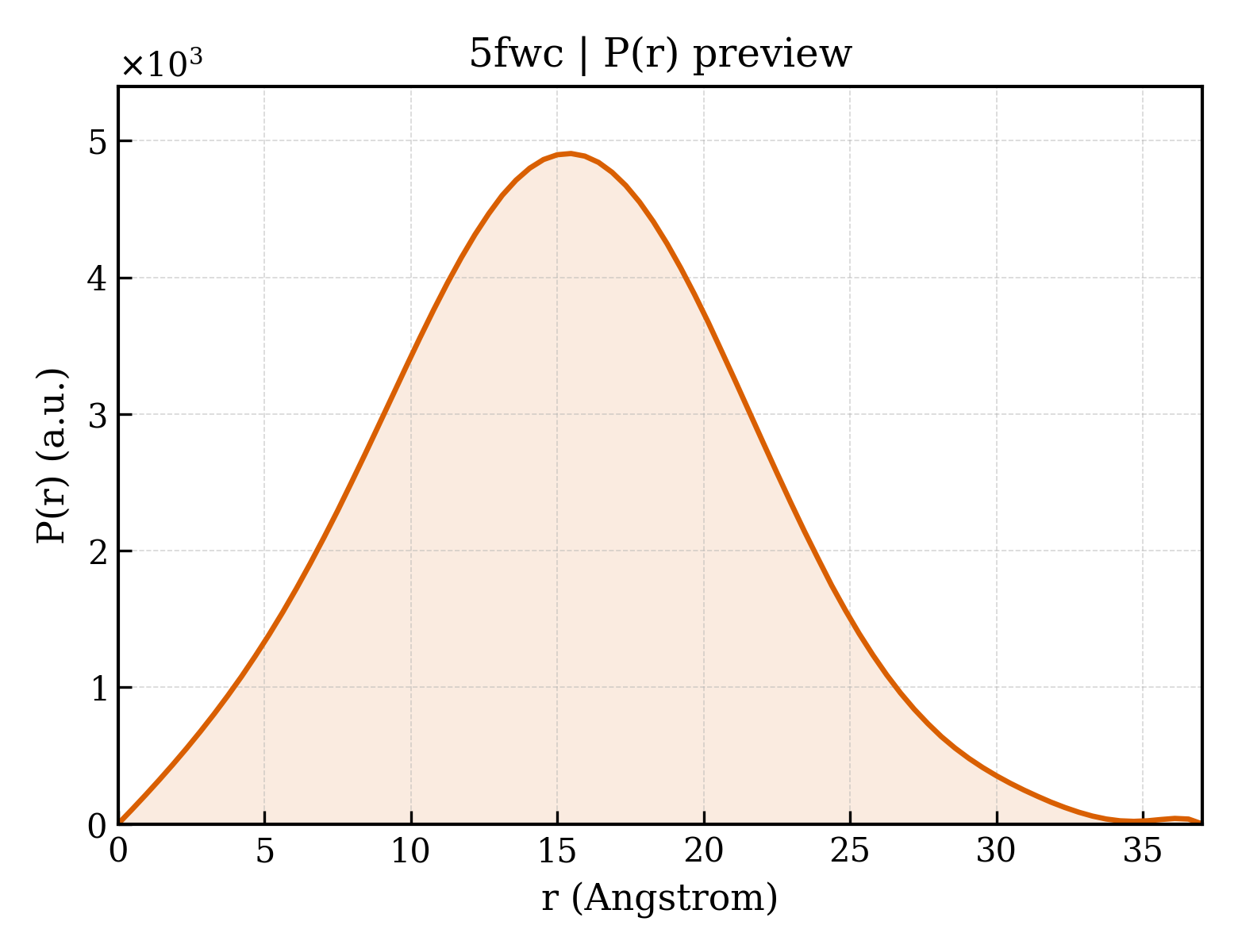

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	37.0 Å
Rg (real space) rg_real	11.77 Å
Rg uncertainty (real space) rg_real_error	0.18 Å
I(0) (real space) i0_real	9.6460e+05
I(0) uncertainty (real space) i0_real_error	9.1740e+03
Rg (reciprocal space) rg_reciprocal	11.78 Å
I(0) (reciprocal space) i0_reciprocal	964600.0000
Solution quality estimate total_estimate	0.8883
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	15.5 Å
Skewness Skewness skewness	0.127
Kurtosis Kurtosis kurtosis	-0.268
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	358800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.858; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.981

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	SPECTRIN ALPHA CHAIN, NON-ERYTHROCYTIC 1
Molecular weight formula_weight	7055.1 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	550

MDETGKALVLALYDYQEKSPREVTMKKGDILTLLNSTNKDWWKVEVNGRQGFVPAAYVKALD

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	AMMONIUM ION
Molecular weight formula_weight	18.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	55

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d5fwca1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.2 — SH3-domain
Family Family family	b.34.2.1 — SH3-domain

Domain ID domain_id	d5fwca2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	5fwcA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

▶

8. Citations (1)

▶

Unit-cell length a length_a	33.685 Å
Unit-cell length b length_b	42.212 Å
Unit-cell length c length_c	48.963 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.400 Å
Low-resolution limit resolution_low	31.970 Å
R factor r_factor	0.2154
R_work r_work	0.2143
R_free r_free	0.2381

fit	/app/data/saxs_computation/fw/5fwc/5fwc.fit
pddf	/app/data/pr_computation/fw/5fwc/5fwc.pr.out
profile	/app/data/saxs_computation/fw/5fwc/5fwc.dat
