5hzn

Structure of NVP-AEW541 in complex with IGF-1R kinase

Method: X-RAY DIFFRACTION D_max: 161.5 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Insulin-like growth factor 1 receptor

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 983–1286	Not recorded	66A 7-[cis-3-(azetidin-1-ylmethyl)cyclobutyl]-5-[3-(benzyloxy)phenyl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.25；293 K；25% PEG8000, 0.1M MES PH6.25, 0.2 M AMMONIUM SULFATE, 4% GLYCEROL	Resolution 2.20 Å R-free 0.218
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 983–1286	Not recorded	66A 7-[cis-3-(azetidin-1-ylmethyl)cyclobutyl]-5-[3-(benzyloxy)phenyl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.25；293 K；25% PEG8000, 0.1M MES PH6.25, 0.2 M AMMONIUM SULFATE, 4% GLYCEROL	Resolution 2.20 Å R-free 0.218
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 983–1286	Not recorded	66A 7-[cis-3-(azetidin-1-ylmethyl)cyclobutyl]-5-[3-(benzyloxy)phenyl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.25；293 K；25% PEG8000, 0.1M MES PH6.25, 0.2 M AMMONIUM SULFATE, 4% GLYCEROL	Resolution 2.20 Å R-free 0.218
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 983–1286	Not recorded	66A 7-[cis-3-(azetidin-1-ylmethyl)cyclobutyl]-5-[3-(benzyloxy)phenyl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.25；293 K；25% PEG8000, 0.1M MES PH6.25, 0.2 M AMMONIUM SULFATE, 4% GLYCEROL	Resolution 2.20 Å R-free 0.218
5	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain E； UniProt 983–1286	Not recorded	66A 7-[cis-3-(azetidin-1-ylmethyl)cyclobutyl]-5-[3-(benzyloxy)phenyl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.25；293 K；25% PEG8000, 0.1M MES PH6.25, 0.2 M AMMONIUM SULFATE, 4% GLYCEROL	Resolution 2.20 Å R-free 0.218
6	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain F； UniProt 983–1286	Not recorded	66A 7-[cis-3-(azetidin-1-ylmethyl)cyclobutyl]-5-[3-(benzyloxy)phenyl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.25；293 K；25% PEG8000, 0.1M MES PH6.25, 0.2 M AMMONIUM SULFATE, 4% GLYCEROL	Resolution 2.20 Å R-free 0.218
7	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain G； UniProt 983–1286	Not recorded	66A 7-[cis-3-(azetidin-1-ylmethyl)cyclobutyl]-5-[3-(benzyloxy)phenyl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.25；293 K；25% PEG8000, 0.1M MES PH6.25, 0.2 M AMMONIUM SULFATE, 4% GLYCEROL	Resolution 2.20 Å R-free 0.218
8	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain H； UniProt 983–1286	Not recorded	66A 7-[cis-3-(azetidin-1-ylmethyl)cyclobutyl]-5-[3-(benzyloxy)phenyl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.25；293 K；25% PEG8000, 0.1M MES PH6.25, 0.2 M AMMONIUM SULFATE, 4% GLYCEROL	Resolution 2.20 Å R-free 0.218

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5HZN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IGR Type 1 Insulin-like growth factor receptor (DOMAINS 1-3) Deposited 1998-09-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 31–492（462 aa） Fragment：UNP residues 31-492	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；PROTEIN WAS CRYSTALLIZED FROM 2.0 M AMMONIUM SULFATE, 100 MM HEPES, PH 7.5	Resolution 2.60 Å R-free 0.304
1JQH IGF-1 receptor kinase domain Deposited 2001-08-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 979–1286（308 aa） Fragment：kinase domain	Mutation：E979G, Y980S	MG MAGNESIUM ION × 1 SO4 SULFATE ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；magnesium chloride, Tris, ammonium sulphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.219
1JQH IGF-1 receptor kinase domain Deposited 2001-08-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 979–1286（308 aa） Fragment：kinase domain	Mutation：E979G, Y980S	SO4 SULFATE ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；magnesium chloride, Tris, ammonium sulphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.219
1JQH IGF-1 receptor kinase domain Deposited 2001-08-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 979–1286（308 aa） Fragment：kinase domain	Mutation：E979G, Y980S	SO4 SULFATE ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；magnesium chloride, Tris, ammonium sulphate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.219
1K3A Structure of the Insulin-like Growth Factor 1 Receptor Kinase Deposited 2001-10-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 988–1286（299 aa） Fragment：beta chain, kinase domain (residues 988-1286)	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG 8000, sodium chloride, HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.251
1M7N Crystal Structure of Unactivated APO Insulin-like Growth Factor-1 Receptor Kinase Domain Deposited 2002-07-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 974–1294（321 aa） Fragment：kinase domain (residues 974-1286)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.1M Tris-HCl, 0.2M MgCl2, 29% PEG 8000, 2% Ethylene glycol, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.70 Å R-free 0.294
1M7N Crystal Structure of Unactivated APO Insulin-like Growth Factor-1 Receptor Kinase Domain Deposited 2002-07-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 974–1294（321 aa） Fragment：kinase domain (residues 974-1286)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.1M Tris-HCl, 0.2M MgCl2, 29% PEG 8000, 2% Ethylene glycol, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.70 Å R-free 0.294
1P4O Structure of Apo unactivated IGF-1R KInase domain at 1.5A resolution. Deposited 2003-04-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 974–1294（321 aa） Fragment：kinase domain	Mutation：E1067A, E1069A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；8% PEG 8k, 0.1M LiCl, 10% ethylene glycol, 10% glycerol and 0.1M Tris-HCl buffer, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.50 Å R-free 0.236
1P4O Structure of Apo unactivated IGF-1R KInase domain at 1.5A resolution. Deposited 2003-04-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 974–1294（321 aa） Fragment：kinase domain	Mutation：E1067A, E1069A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；8% PEG 8k, 0.1M LiCl, 10% ethylene glycol, 10% glycerol and 0.1M Tris-HCl buffer, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.50 Å R-free 0.236
1P4O Structure of Apo unactivated IGF-1R KInase domain at 1.5A resolution. Deposited 2003-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 974–1294（321 aa） Fragment：kinase domain Chain B 974–1294（321 aa） Fragment：kinase domain	Mutation：E1067A, E1069A Mutation：E1067A, E1069A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；8% PEG 8k, 0.1M LiCl, 10% ethylene glycol, 10% glycerol and 0.1M Tris-HCl buffer, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.50 Å R-free 0.236
2OJ9 Structure of IGF-1R kinase domain complexed with a benzimidazole inhibitor Deposited 2007-01-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 982–1286（305 aa） Fragment：KINASE DOMAIN, RESIDUES 982-1286	Not recorded	BMI 3-[5-(1H-IMIDAZOL-1-YL)-7-METHYL-1H-BENZIMIDAZOL-2-YL]-4-[(PYRIDIN-2-YLMETHYL)AMINO]PYRIDIN-2(1H)-ONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions 277 K；VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.276
2ZM3 Complex Structure of Insulin-like Growth Factor Receptor and Isoquinolinedione Inhibitor Deposited 2008-04-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 981–1286（306 aa） Fragment：UNP residues 981-1286, IGF-1R Kinase domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	575 (4Z)-6-bromo-4-({[4-(pyrrolidin-1-ylmethyl)phenyl]amino}methylidene)isoquinoline-1,3(2H,4H)-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.1M Tris-HCl, pH8, 2M NaCl, 13-16% PEG6K, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.257
2ZM3 Complex Structure of Insulin-like Growth Factor Receptor and Isoquinolinedione Inhibitor Deposited 2008-04-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 981–1286（306 aa） Fragment：UNP residues 981-1286, IGF-1R Kinase domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	575 (4Z)-6-bromo-4-({[4-(pyrrolidin-1-ylmethyl)phenyl]amino}methylidene)isoquinoline-1,3(2H,4H)-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.1M Tris-HCl, pH8, 2M NaCl, 13-16% PEG6K, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.257
2ZM3 Complex Structure of Insulin-like Growth Factor Receptor and Isoquinolinedione Inhibitor Deposited 2008-04-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 981–1286（306 aa） Fragment：UNP residues 981-1286, IGF-1R Kinase domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	575 (4Z)-6-bromo-4-({[4-(pyrrolidin-1-ylmethyl)phenyl]amino}methylidene)isoquinoline-1,3(2H,4H)-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.1M Tris-HCl, pH8, 2M NaCl, 13-16% PEG6K, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.257
2ZM3 Complex Structure of Insulin-like Growth Factor Receptor and Isoquinolinedione Inhibitor Deposited 2008-04-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 981–1286（306 aa） Fragment：UNP residues 981-1286, IGF-1R Kinase domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	575 (4Z)-6-bromo-4-({[4-(pyrrolidin-1-ylmethyl)phenyl]amino}methylidene)isoquinoline-1,3(2H,4H)-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.1M Tris-HCl, pH8, 2M NaCl, 13-16% PEG6K, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.257
2ZM3 Complex Structure of Insulin-like Growth Factor Receptor and Isoquinolinedione Inhibitor Deposited 2008-04-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 981–1286（306 aa） Fragment：UNP residues 981-1286, IGF-1R Kinase domain Chain B 981–1286（306 aa） Fragment：UNP residues 981-1286, IGF-1R Kinase domain Chain C 981–1286（306 aa） Fragment：UNP residues 981-1286, IGF-1R Kinase domain Chain D 981–1286（306 aa） Fragment：UNP residues 981-1286, IGF-1R Kinase domain	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	575 (4Z)-6-bromo-4-({[4-(pyrrolidin-1-ylmethyl)phenyl]amino}methylidene)isoquinoline-1,3(2H,4H)-dione × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.1M Tris-HCl, pH8, 2M NaCl, 13-16% PEG6K, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.257
3D94 Crystal structure of the insulin-like growth factor-1 receptor kinase in complex with PQIP Deposited 2008-05-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 986–1286（301 aa） Fragment：Protein Kinase domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 2 D94 3-[cis-3-(4-methylpiperazin-1-yl)cyclobutyl]-1-(2-phenylquinolin-7-yl)imidazo[1,5-a]pyrazin-8-amine × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；293 K；12% PEG8000, 0.1 M imidazole, pH 7.5 and 0.2 M calcium acetate, VAPOR DIFFUSION, temperature 293K	Resolution 2.30 Å R-free 0.236
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain J 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain K 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 12 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain M 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 13 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain L 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 14 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain R 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 15 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain S 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 16 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain T 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 17 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain C 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286 Chain D 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286 Chain G 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286 Chain H 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286 Chain K 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286 Chain L 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286 Chain M 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286 Chain R 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3F5P Complex Structure of Insulin-like Growth Factor Receptor and 3-Cyanoquinoline Inhibitor Deposited 2008-11-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 981–1286（306 aa） Fragment：IGF-1R Kinase Domain, UNP residues 981-1286	Non-standard monomer：Yes (specific site not provided by mmCIF)	741 4-[[3-chloro-4-(1-methylimidazol-2-yl)sulfanyl-phenyl]amino]-7-[3-(2-hydroxyethyl-methyl-amino)propoxy]-6-methoxy-quinoline-3-carbonitrile × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.1M Tris-HCl, pH8.5, 2M NaCl, 14% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.258
3I81 Crystal structure of insulin-like growth factor 1 receptor (IGF-1R-WT) complex with BMS-754807 [1-(4-((5-cyclopropyl-1H-pyrazol-3-yl)amino)pyrrolo[2,1-f][1,2,4]triazin-2-yl)-N-(6-fluoro-3-pyridinyl)-2-methyl-L-prolinamide] Deposited 2009-07-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 982–1286（305 aa） Fragment：Protein kinase domain, UNP residues 982-1286	Not recorded	EBI 1-{4-[(3-cyclopropyl-1H-pyrazol-5-yl)amino]pyrrolo[2,1-f][1,2,4]triazin-2-yl}-N-(6-fluoropyridin-3-yl)-2-methyl-L-proli namide × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.08 Å R-free 0.265
3LVP Crystal structure of bisphosphorylated IGF1-R Kinase domain (2P) in complex with a bis-azaindole inhibitor Deposited 2010-02-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 951–1286（336 aa） Fragment：kinase domain (2P)	Not recorded	PDR 3-(4-chloro-1H-pyrrolo[2,3-b]pyridin-2-yl)-5,6-dimethoxy-1-methyl-1H-pyrrolo[3,2-b]pyridine × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；2.4M Ammonium Sulfate, 100mM Hepes, 5% glycerol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.00 Å R-free 0.279
3LVP Crystal structure of bisphosphorylated IGF1-R Kinase domain (2P) in complex with a bis-azaindole inhibitor Deposited 2010-02-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 951–1286（336 aa） Fragment：kinase domain (2P)	Not recorded	PDR 3-(4-chloro-1H-pyrrolo[2,3-b]pyridin-2-yl)-5,6-dimethoxy-1-methyl-1H-pyrrolo[3,2-b]pyridine × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；2.4M Ammonium Sulfate, 100mM Hepes, 5% glycerol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.00 Å R-free 0.279
3LVP Crystal structure of bisphosphorylated IGF1-R Kinase domain (2P) in complex with a bis-azaindole inhibitor Deposited 2010-02-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 951–1286（336 aa） Fragment：kinase domain (2P)	Not recorded	PDR 3-(4-chloro-1H-pyrrolo[2,3-b]pyridin-2-yl)-5,6-dimethoxy-1-methyl-1H-pyrrolo[3,2-b]pyridine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；2.4M Ammonium Sulfate, 100mM Hepes, 5% glycerol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.00 Å R-free 0.279
3LVP Crystal structure of bisphosphorylated IGF1-R Kinase domain (2P) in complex with a bis-azaindole inhibitor Deposited 2010-02-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 951–1286（336 aa） Fragment：kinase domain (2P)	Not recorded	PDR 3-(4-chloro-1H-pyrrolo[2,3-b]pyridin-2-yl)-5,6-dimethoxy-1-methyl-1H-pyrrolo[3,2-b]pyridine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；2.4M Ammonium Sulfate, 100mM Hepes, 5% glycerol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.00 Å R-free 0.279
3LW0 IGF-1RK in complex with ligand MSC1609119A-1 Deposited 2010-02-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 983–1286（304 aa） Fragment：PROTEIN KINASE, UNP residues 983-1286	Mutation：E1097A, E1099A	CCX 3-cyano-N-{1-[4-(5-cyano-1H-indol-3-yl)butyl]piperidin-4-yl}-1H-indole-7-carboxamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 0；pH 0.0	Resolution 1.79 Å R-free 0.185
3LW0 IGF-1RK in complex with ligand MSC1609119A-1 Deposited 2010-02-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 983–1286（304 aa） Fragment：PROTEIN KINASE, UNP residues 983-1286	Mutation：E1097A, E1099A	CCX 3-cyano-N-{1-[4-(5-cyano-1H-indol-3-yl)butyl]piperidin-4-yl}-1H-indole-7-carboxamide × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 0；pH 0.0	Resolution 1.79 Å R-free 0.185
3LW0 IGF-1RK in complex with ligand MSC1609119A-1 Deposited 2010-02-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 983–1286（304 aa） Fragment：PROTEIN KINASE, UNP residues 983-1286	Mutation：E1097A, E1099A	CCX 3-cyano-N-{1-[4-(5-cyano-1H-indol-3-yl)butyl]piperidin-4-yl}-1H-indole-7-carboxamide × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 0；pH 0.0	Resolution 1.79 Å R-free 0.185
3LW0 IGF-1RK in complex with ligand MSC1609119A-1 Deposited 2010-02-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 983–1286（304 aa） Fragment：PROTEIN KINASE, UNP residues 983-1286	Mutation：E1097A, E1099A	CCX 3-cyano-N-{1-[4-(5-cyano-1H-indol-3-yl)butyl]piperidin-4-yl}-1H-indole-7-carboxamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 0；pH 0.0	Resolution 1.79 Å R-free 0.185
3NW5 Crystal structure of insulin-like growth factor 1 receptor (IGF-1R-WT) complex with a carbon-linked proline isostere inhibitor (11B) Deposited 2010-07-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 982–1286（305 aa） Fragment：KINASE DOMAIN (RESIDUES 982-1286)	Not recorded	LGX N-(5-cyclopropyl-1H-pyrazol-3-yl)-2-{(2R)-1-[(6-fluoropyridin-3-yl)carbonyl]pyrrolidin-2-yl}pyrrolo[2,1-f][1,2,4]triazin-4-amine × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.14 Å R-free 0.254
3NW6 Crystal structure of insulin-like growth factor 1 receptor (IGF-1R-WT) complex with a carbon-linked proline isostere inhibitor (11A) Deposited 2010-07-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 982–1286（305 aa） Fragment：KINASE DOMAIN (RESIDUES 982-1286)	Not recorded	LGW N-(5-cyclopropyl-1H-pyrazol-3-yl)-2-{(2S)-1-[(6-fluoropyridin-3-yl)carbonyl]pyrrolidin-2-yl}pyrrolo[2,1-f][1,2,4]triazin-4-amine × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å R-free 0.253
3NW7 Crystal structure of insulin-like growth factor 1 receptor (IGF-1R-WT) complex with a carbon-linked proline isostere inhibitor (34) Deposited 2010-07-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 982–1286（305 aa） Fragment：KINASE DOMAIN (RESIDUES 982-1286)	Not recorded	LGV N-({4-[(3-cyclopropyl-1H-pyrazol-5-yl)amino]pyrrolo[2,1-f][1,2,4]triazin-2-yl}methyl)-6-fluoropyridine-3-carboxamide × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.11 Å R-free 0.226
3O23 Human unphosphorylated IGF1-R Kinase domain in complex with an hydantoin inhibitor Deposited 2010-07-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 982–1286（305 aa） Fragment：Kinase domain	Mutation：Y987F	MQY (5S)-5-methyl-1-(quinolin-4-ylmethyl)-3-{4-[(trifluoromethyl)sulfonyl]phenyl}imidazolidine-2,4-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；40% PEG400, 50mM Mes, 100mM NaCl, 10% glycerol, 5mM DTT, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.10 Å R-free 0.278
3QQU Cocrystal structure of unphosphorylated igf with pyrimidine 8 Deposited 2011-02-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 988–1286（299 aa） Fragment：UNP residues 988-1286	Not recorded	01P N~2~-[3-methoxy-4-(morpholin-4-yl)phenyl]-N~4~-(quinolin-3-yl)pyrimidine-2,4-diamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.2M Mg Acetate, 15%-17.5% PEG8K, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.302
3QQU Cocrystal structure of unphosphorylated igf with pyrimidine 8 Deposited 2011-02-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 988–1286（299 aa） Fragment：UNP residues 988-1286	Not recorded	01P N~2~-[3-methoxy-4-(morpholin-4-yl)phenyl]-N~4~-(quinolin-3-yl)pyrimidine-2,4-diamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.2M Mg Acetate, 15%-17.5% PEG8K, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.302
3QQU Cocrystal structure of unphosphorylated igf with pyrimidine 8 Deposited 2011-02-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 988–1286（299 aa） Fragment：UNP residues 988-1286	Not recorded	01P N~2~-[3-methoxy-4-(morpholin-4-yl)phenyl]-N~4~-(quinolin-3-yl)pyrimidine-2,4-diamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.2M Mg Acetate, 15%-17.5% PEG8K, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.302
3QQU Cocrystal structure of unphosphorylated igf with pyrimidine 8 Deposited 2011-02-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 988–1286（299 aa） Fragment：UNP residues 988-1286	Not recorded	01P N~2~-[3-methoxy-4-(morpholin-4-yl)phenyl]-N~4~-(quinolin-3-yl)pyrimidine-2,4-diamine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；0.2M Mg Acetate, 15%-17.5% PEG8K, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.90 Å R-free 0.302
4D2R Human IGF in complex with a Dyrk1B inhibitor Deposited 2014-05-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 985–1286（302 aa） Fragment：KINASE DOMAIN, RESIDUES 985-1286	Not recorded	CL CHLORIDE ION × 1 DYK N-{2-methoxy-4-[(1-methylpiperidin-4-yl)oxy]phenyl}-4-(1H-pyrrolo[2,3-c]pyridin-3-yl)pyrimidin-2-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；20% PEF3350, 0.2M MGCL2, 0.1M PCTP PH 7.5	Resolution 2.10 Å R-free 0.221
5FXQ IGFR-1R complex with a pyrimidine inhibitor. Deposited 2016-03-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 980–1286（307 aa） Fragment：KINASE, UNP RESIDUES 980-1286	Not recorded	GD5 5-chloranyl-4-imidazo[1,2-a]pyridin-3-yl-N-(5-methyl-1-piperidin-4-yl-pyrazol-4-yl)pyrimidin-2-amine × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å R-free 0.275
5FXR IGFR-1R complex with a pyrimidine inhibitor. Deposited 2016-03-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 980–1286（307 aa） Fragment：KINASE, UNP RESIDUES 980-1286	Not recorded	8LN 5-chloranyl-4-imidazo[1,2-a]pyridin-3-yl-N-(3-methyl-1-piperidin-4-yl-pyrazol-4-yl)pyrimidin-2-amine × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å R-free 0.294
5FXS IGFR-1R complex with a pyrimidine inhibitor. Deposited 2016-03-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 980–1286（307 aa） Fragment：KINASE, UNP RESIDUES 980-1286	Not recorded	ACT ACETATE ION × 3 OZN 2-[4-[4-[[(6Z)-5-chloranyl-6-pyrazolo[1,5-a]pyridin-3-ylidene-1H-pyrimidin-2-yl]amino]-3,5-dimethyl-pyrazol-1-yl]piperidin-1-yl]-N,N-dimethyl-ethanamide × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.214
5U8Q Structure of the ectodomain of the human Type 1 insulin-like growth factor receptor in complex with IGF-I Deposited 2016-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 8 PDB declaration: octameric	Chain A 31–935（905 aa）	Mutation：residues 718-741 are replaced with the sequence AGNN	SO4 SULFATE ION × 4 MLT D-MALATE × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；1.2 M ammonium sulfate, 0.1 M imidazole-malate pH 7.0. IGF-1 was included by soaking directly into the mother crystal. For full details see the primary citation.	Resolution 3.27 Å R-free 0.303
5U8R Structure of the ectodomain of the human Type 1 insulin-like growth factor receptor Deposited 2016-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 31–935（905 aa）	Mutation：residues 718-741 are replaced with the sequence AGNN	SO4 SULFATE ION × 2 MLT D-MALATE × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 IMD IMIDAZOLE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；1.2 M ammonium sulfate, 0.1 M imidazole-malate pH 7.0	Resolution 3.00 Å R-free 0.285
6JK8 Cryo-EM structure of the full-length human IGF-1R in complex with insulin Deposited 2019-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1367（1367 aa） Chain B 1–1367（1367 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；PBS with detergent cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å
6VWG Head region of the open conformation of the human type 1 insulin-like growth factor receptor ectodomain in complex with human insulin-like growth factor II. Deposited 2020-02-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 31–935（905 aa） Chain B 31–935（905 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.21 Å
6VWH Leg region of the open conformation of the human type 1 insulin-like growth factor receptor ectodomain in complex with human insulin-like growth factor II. Deposited 2020-02-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–935（905 aa） Chain B 31–935（905 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.26 Å
6VWI Head region of the closed conformation of the human type 1 insulin-like growth factor receptor ectodomain in complex with human insulin-like growth factor II. Deposited 2020-02-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 31–935（905 aa） Chain B 31–935（905 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
6VWJ Leg region of the closed conformation of the human type 1 insulin-like growth factor receptor ectodomain in complex with human insulin-like growth factor II Deposited 2020-02-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–935（905 aa） Chain B 31–935（905 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.21 Å
7PH8 Structure of Insulin-like growth factor 1 receptor's transmembrane domain Deposited 2021-08-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 932–962（31 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；313 K；Ionic strength (raw mmCIF value) 0.1；Pressure AMBIENT NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] IGF1Rtm, 100 mM [U-99% 2H] DPC, 0.3 mM sodium azide, 30 mM KH2PO4, 20 mM K2HPO4, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
7S0Q Head region of a complex of IGF-I with the ectodomain of a hybrid insulin receptor / type 1 insulin-like growth factor receptor Deposited 2021-08-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 31–935（905 aa）	Not recorded	BMA beta-D-mannopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20mM Tris pH 8.0 160mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7S8V Leg region of a complex of IGF-I with the ectodomain of a hybrid insulin receptor / type 1 insulin-like growth factor receptor Deposited 2021-09-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 31–935（905 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.73 Å
7U23 Single-chain LCDV-1 viral insulin-like peptide bound to IGF-1R ectodomain, leucine-zippered form Deposited 2022-02-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 31–935（905 aa） Chain F 31–935（905 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å
7V3P Cryo-EM structure of the IGF1R/insulin complex Deposited 2021-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–931（931 aa） Chain B 1–931（931 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7XGD Cryo-EM structure of Apo-IGF1R map 1 Deposited 2022-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–927（897 aa） Chain B 31–927（897 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen OTHER	Resolution 4.00 Å
7XLC conformation II of apo-IGF1R states Deposited 2022-04-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–927（897 aa） Chain B 31–927（897 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen OTHER	Resolution 5.00 Å
7YRR Cryo-EM structure of IGF1R with two IGF1 complex Deposited 2022-08-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 31–927（897 aa） Chain B 31–927（897 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen OTHER	Resolution 4.30 Å
8PYI Human IGF1R with inhibitor 6 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 974–1286（313 aa）	Not recorded	IER 3-[8-azanyl-1-(4-ethoxy-8-fluoranyl-2-phenyl-quinolin-7-yl)imidazo[1,5-a]pyrazin-3-yl]-1-methyl-cyclobutan-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M Bis-Tris, 0.3 M MgCl2, 20% PEG 3350	Resolution 3.06 Å R-free 0.235
8PYI Human IGF1R with inhibitor 6 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain BBB 974–1286（313 aa）	Not recorded	IER 3-[8-azanyl-1-(4-ethoxy-8-fluoranyl-2-phenyl-quinolin-7-yl)imidazo[1,5-a]pyrazin-3-yl]-1-methyl-cyclobutan-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M Bis-Tris, 0.3 M MgCl2, 20% PEG 3350	Resolution 3.06 Å R-free 0.235
8PYI Human IGF1R with inhibitor 6 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain CCC 974–1286（313 aa）	Not recorded	IER 3-[8-azanyl-1-(4-ethoxy-8-fluoranyl-2-phenyl-quinolin-7-yl)imidazo[1,5-a]pyrazin-3-yl]-1-methyl-cyclobutan-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M Bis-Tris, 0.3 M MgCl2, 20% PEG 3350	Resolution 3.06 Å R-free 0.235
8PYI Human IGF1R with inhibitor 6 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain DDD 974–1286（313 aa）	Not recorded	IER 3-[8-azanyl-1-(4-ethoxy-8-fluoranyl-2-phenyl-quinolin-7-yl)imidazo[1,5-a]pyrazin-3-yl]-1-methyl-cyclobutan-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M Bis-Tris, 0.3 M MgCl2, 20% PEG 3350	Resolution 3.06 Å R-free 0.235
8PYI Human IGF1R with inhibitor 6 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain EEE 974–1286（313 aa）	Not recorded	IER 3-[8-azanyl-1-(4-ethoxy-8-fluoranyl-2-phenyl-quinolin-7-yl)imidazo[1,5-a]pyrazin-3-yl]-1-methyl-cyclobutan-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M Bis-Tris, 0.3 M MgCl2, 20% PEG 3350	Resolution 3.06 Å R-free 0.235
8PYI Human IGF1R with inhibitor 6 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain FFF 974–1286（313 aa）	Not recorded	IER 3-[8-azanyl-1-(4-ethoxy-8-fluoranyl-2-phenyl-quinolin-7-yl)imidazo[1,5-a]pyrazin-3-yl]-1-methyl-cyclobutan-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M Bis-Tris, 0.3 M MgCl2, 20% PEG 3350	Resolution 3.06 Å R-free 0.235
8PYI Human IGF1R with inhibitor 6 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain GGG 974–1286（313 aa）	Not recorded	IER 3-[8-azanyl-1-(4-ethoxy-8-fluoranyl-2-phenyl-quinolin-7-yl)imidazo[1,5-a]pyrazin-3-yl]-1-methyl-cyclobutan-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M Bis-Tris, 0.3 M MgCl2, 20% PEG 3350	Resolution 3.06 Å R-free 0.235
8PYI Human IGF1R with inhibitor 6 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain HHH 974–1286（313 aa）	Not recorded	IER 3-[8-azanyl-1-(4-ethoxy-8-fluoranyl-2-phenyl-quinolin-7-yl)imidazo[1,5-a]pyrazin-3-yl]-1-methyl-cyclobutan-1-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M Bis-Tris, 0.3 M MgCl2, 20% PEG 3350	Resolution 3.06 Å R-free 0.235
8PYJ Human IGF1R with inhibitor 8 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 974–1286（313 aa）	Not recorded	IEA 5,5-dimethyl-1-(quinolin-4-ylmethyl)-3-[4-(trifluoromethylsulfonyl)phenyl]imidazolidine-2,4-dione × 1 NI NICKEL (II) ION × 1 CD CADMIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5-8.5, 9-12 % PEG3350, 5 mM CoCl2, 5 mM CdCl2, 5 mM MgCl2, and 5 mM NiCl2	Resolution 2.70 Å R-free 0.302
8PYK Human IGF1R with inhibitor 47 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 974–1286（313 aa）	Not recorded	IC2 5,5-dimethyl-1-(1H-pyrrolo[2,3-b]pyridin-3-ylmethyl)-3-[4-(trifluoromethylsulfanyl)phenyl]imidazolidine-2,4-dione × 1 NI NICKEL (II) ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5-8.5, 9-12 % PEG3350, 5 mM CoCl2, 5 mM CdCl2, 5 mM MgCl2, and 5 mM NiCl2	Resolution 2.23 Å R-free 0.253
8PYL Human IGF1R with inhibitor 53 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 974–1286（313 aa）	Not recorded	IE0 (5S)-5-methyl-1-(1H-pyrrolo[2,3-b]pyridin-4-ylmethyl)-3-[4-(trifluoromethylsulfanyl)phenyl]imidazolidine-2,4-dione × 1 NI NICKEL (II) ION × 1 CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5-8.5, 9-12 % PEG3350, 5 mM CoCl2, 5 mM CdCl2, 5 mM MgCl2, and 5 mM NiCl2	Resolution 2.93 Å R-free 0.249
8PYM Human IGF1R with inhibitor 54 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 974–1286（313 aa）	Not recorded	IED 5,5-dimethyl-1-(1H-pyrrolo[2,3-b]pyridin-4-ylmethyl)-3-[4-(trifluoromethylsulfanyl)phenyl]imidazolidine-2,4-dione × 1 NI NICKEL (II) ION × 1 CD CADMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5-8.5, 9-12 % PEG3350, 5 mM CoCl2, 5 mM CdCl2, 5 mM MgCl2, and 5 mM NiCl2	Resolution 2.65 Å R-free 0.309
8PYN Human IGF1R with inhibitor 56 Deposited 2023-07-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 974–1286（313 aa）	Not recorded	ICV 5,5-dimethyl-1-(1H-pyrrolo[2,3-b]pyridin-4-ylmethyl)-3-[4-(trifluoromethylsulfonyl)phenyl]imidazolidine-2,4-dione × 1 CD CADMIUM ION × 1 NI NICKEL (II) ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M HEPES pH 7.5-8.5, 9-12 % PEG3350, 5 mM CoCl2, 5 mM CdCl2, 5 mM MgCl2, and 5 mM NiCl2	Resolution 1.71 Å R-free 0.209
8TAN CryoEM structure of MFRV-VILP bound to IGF1Rzip Deposited 2023-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 31–935（905 aa） Chain B 31–935（905 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 11	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.05 Å
9NCO IN-ML-15 bound to IGF1Rzip Deposited 2025-02-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 31–926（896 aa） Chain B 31–926（896 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

44 other PDB entries and 85 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IGF1R_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–304； UniProt 983–1286 Author chain B； PDBConstruct 1–304； UniProt 983–1286 Author chain C； PDBConstruct 1–304； UniProt 983–1286 Author chain D； PDBConstruct 1–304； UniProt 983–1286 Author chain E； PDBConstruct 1–304； UniProt 983–1286 Author chain F； PDBConstruct 1–304； UniProt 983–1286 Author chain G； PDBConstruct 1–304； UniProt 983–1286 Author chain H； PDBConstruct 1–304； UniProt 983–1286

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

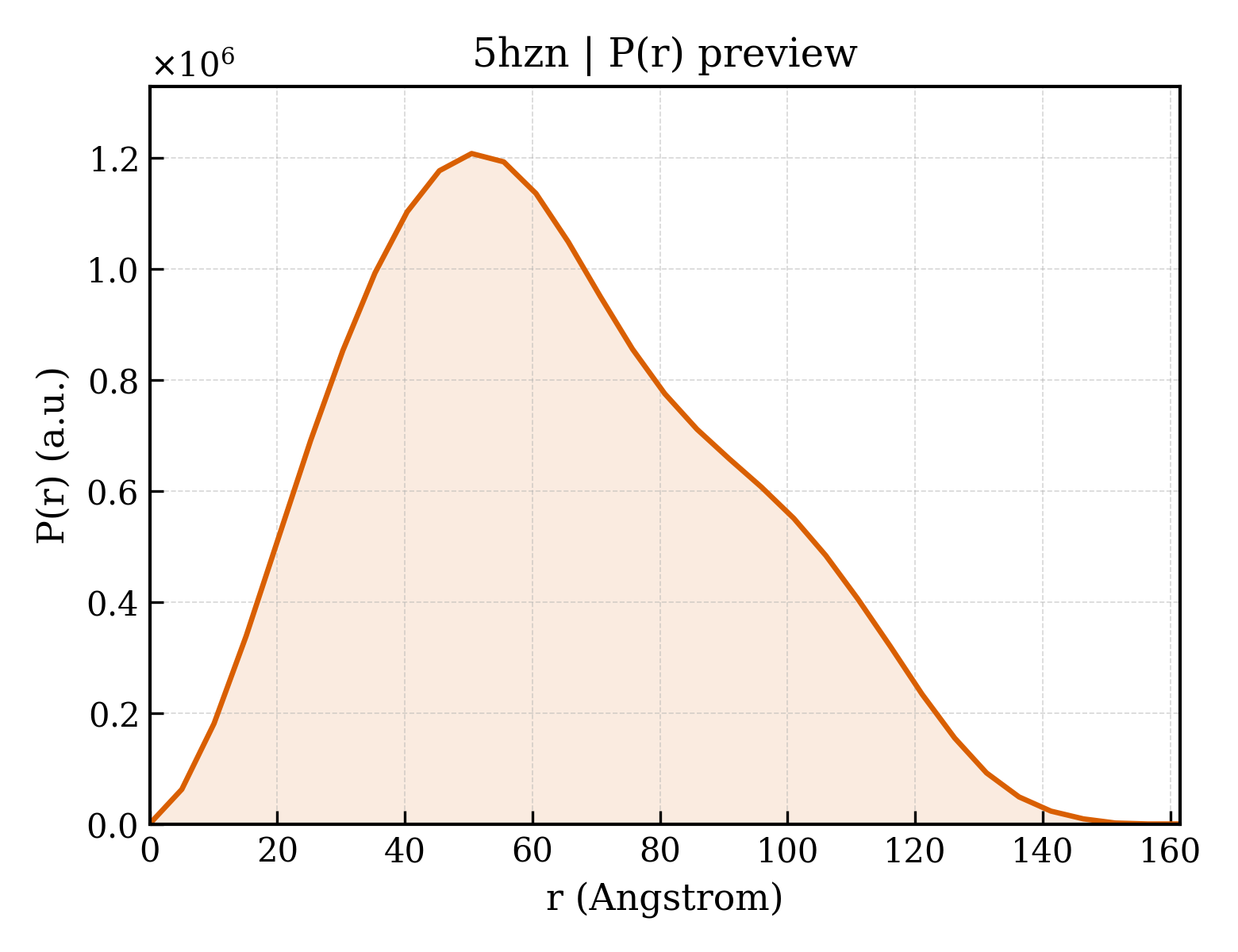

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5hzn
Deposition date deposition_date	2016-02-02
Structure title title	Structure of NVP-AEW541 in complex with IGF-1R kinase
Keywords keywords	Inhibitor, Kinase, transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	48.71 Å
Radius of gyration Rg (electron density) rg_electron	48.79 Å
Forward intensity I(0) i0	1102450000.00
Molecular weight molecular_weight	276350.0 kDa
Excluded volume excluded_volume	345630 Å³
Envelope volume envelope_volume	478450 Å³
Hydration-shell volume shell_volume	81897 Å³
Envelope diameter envelope_diameter	162.2 Å
Shell Rg shell_rg	52.38 Å
Envelope Rg envelope_rg	47.90 Å
Shape Rg shape_rg	48.79 Å
Total Rg total_rg	48.92 Å
Total atoms total_atoms	19355
Residues n_residues	2383
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	161.5 Å
Rg (real space) rg_real	48.82 Å
Rg uncertainty (real space) rg_real_error	1.36 Å
I(0) (real space) i0_real	1.1020e+09
I(0) uncertainty (real space) i0_real_error	2.2060e+07
Rg (reciprocal space) rg_reciprocal	48.71 Å
I(0) (reciprocal space) i0_reciprocal	1102000000.0000
Solution quality estimate total_estimate	0.8715
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	50.5 Å
Skewness Skewness skewness	0.352
Kurtosis Kurtosis kurtosis	-0.561
Angular range angular_range	— – 0.1600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	108600000.0000
Real-space data points n_real_points	33
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.857; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.760

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Insulin-like growth factor 1 receptor
Molecular weight formula_weight	34607.8 kDa
EC 编号 ec_number	2.7.10.1
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	19906

AADVYVPDEWEVAREKITMSRELGQGSFGMVYEGVAKGVVKDEPETRVAIKTVNEAASMRERIEFLNEASVMKEFNCHHVVRLLGVVSQGQPTLVIMELMTRGDLKSYLRSLRPAMANNPVLAPPSLSKMIQMAGEIADGMAYLNANKFVHRDLAARNCMVAEDFTVKIGDFGMTRDIYETDYYRKGGKGLLPVRWMSPESLKDGVFTTYSDVWSFGVVLWEIATLAEQPYQGLSNEQVLRFVMEGGLLDKPDNCPDMLFELMRMCWQYNPKMRPSFLEIISSIKEEMEPGFREVSFYYSEENK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	unidentified baculovirus

Entity 2 Entity 2 non-polymer

Description description	7-[cis-3-(azetidin-1-ylmethyl)cyclobutyl]-5-[3-(benzyloxy)phenyl]-7H-pyrrolo[2,3-d]pyrimidin-4-amine
Molecular weight formula_weight	439.6 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	551

▼

7. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d5hzna_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d5hznb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d5hznc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d5hznd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d5hzne_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d5hznf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d5hzng_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d5hznh_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (16 domains)

Domain ID domain_id	5hznA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	5hznA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	5hznB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	5hznB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	5hznC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	5hznC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	5hznD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	5hznD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	5hznE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	5hznE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	5hznF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	5hznF02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	5hznG01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	5hznG02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	5hznH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	5hznH02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	111.435 Å
Unit-cell length b length_b	190.045 Å
Unit-cell length c length_c	155.488 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.22 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1952
R_work r_work	0.1940
R_free r_free	0.2178

fit	/app/data/saxs_computation/hz/5hzn/5hzn.fit
pddf	/app/data/pr_computation/hz/5hzn/5hzn.pr.out
profile	/app/data/saxs_computation/hz/5hzn/5hzn.dat
