5i42

Structure of HIV-1 Reverse Transcriptase in complex with a DNA aptamer, AZTTP, and CA(2+) ion

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIV-1 REVERSE TRANSCRIPTASE P66 SUBUNIT

Human immunodeficiency virus type 1 group M subtype B (isolate BH10)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 1	DNA (38-MER) × 1 CALCIUM ION × 1 3'-AZIDO-3'-DEOXYTHYMIDINE-5'-TRIPHOSPHATE × 1	Consistent with all polymers
2	Protein–DNA	Homooligomer	Protein 2 DNA 1	DNA (38-MER) × 1 CALCIUM ION × 1 3'-AZIDO-3'-DEOXYTHYMIDINE-5'-TRIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV1B1
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–555； UniProt 600–1154 Author chain C； PDBConstruct 1–555； UniProt 600–1154 Author chain B； PDBConstruct 17–444； UniProt 600–1027 Author chain D； PDBConstruct 17–444； UniProt 600–1027

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5i42
Deposition date deposition_date	2016-02-11
Structure title title	Structure of HIV-1 Reverse Transcriptase in complex with a DNA aptamer, AZTTP, and CA(2+) ion
Keywords keywords	RT, DNA aptamer, AZTTP, polymerase, P site complex, 2-O-METHYLCYTIDINE, TRANSFERASE-DNA complex; TRANSFERASE/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5i42__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5i42__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

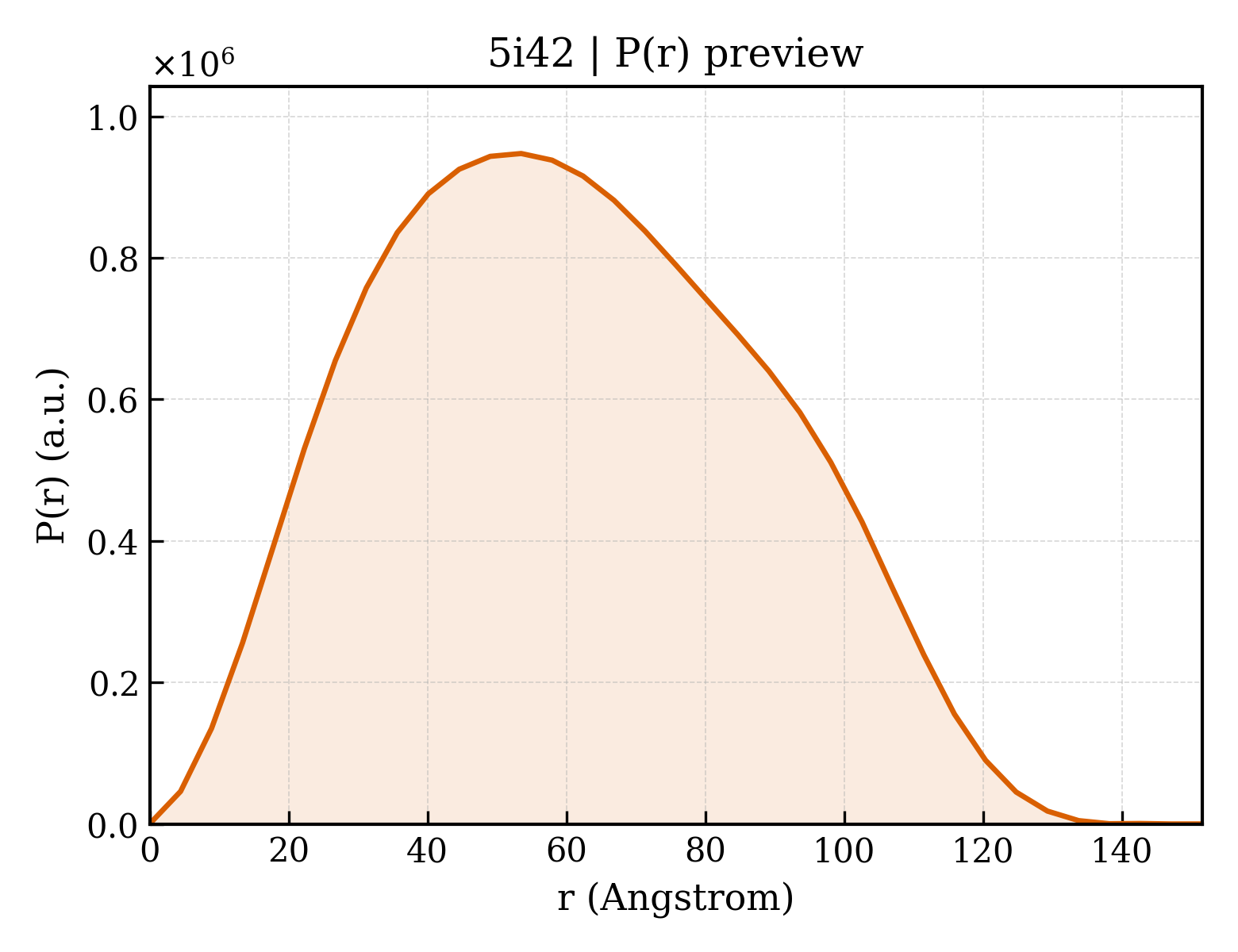

5i42__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.31 Å
Rg (electron density)	33.13 Å
Total Rg	33.75 Å
Atom count	8659
Residues	999
Excluded volume	153340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5i42__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5i42__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	HIV-1 REVERSE TRANSCRIPTASE P66 SUBUNIT
Molecular weight formula_weight	63875.1 kDa
EC 编号 ec_number	2.7.7.49
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	17320

PISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSAG

Source Source

Source organism organism	Human immunodeficiency virus type 1 group M subtype B (isolate BH10)
Common name common_name	HIV-1
NCBI taxonomy ID ncbi_taxonomy_id	11678
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	HIV-1 REVERSE TRANSCRIPTASE P51 SUBUNIT
Molecular weight formula_weight	51928.6 kDa
EC 编号 ec_number	2.7.7.49
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MAHHHHHHALEVLFQGPISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ

Source Source

Source organism organism	Human immunodeficiency virus type 1 group M subtype B (isolate BH10)
Common name common_name	HIV-1
NCBI taxonomy ID ncbi_taxonomy_id	11678
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	DNA (38-MER)
Molecular weight formula_weight	11748.5 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	E,F

TAATACCCCCCCTTCGGTGCTTTGCACCGAAGGGGGGG

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	3'-AZIDO-3'-DEOXYTHYMIDINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 18 domains

CATH v4.4 (18 domains)

Domain ID domain_id	5i42A01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1

Domain ID domain_id	5i42A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42A03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42A04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42A05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	5i42B01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1

Domain ID domain_id	5i42B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42B03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42B04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42C01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1

Domain ID domain_id	5i42C02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42C03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42C04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42C05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	5i42D01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1

Domain ID domain_id	5i42D02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42D03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	5i42D04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

▶

Unit-cell length a length_a	90.151 Å
Unit-cell length b length_b	132.192 Å
Unit-cell length c length_c	139.658 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.15 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	48.449 Å
R factor r_factor	0.2217
R_work r_work	0.2206
R_free r_free	0.2473
